Shop Fox Vertical Wood/Metal Bandsaw 220V 1 1/2HP 3 Phase

$116.55

New

1000 in stock

SKU: 754001511132 Category:

Description

Description

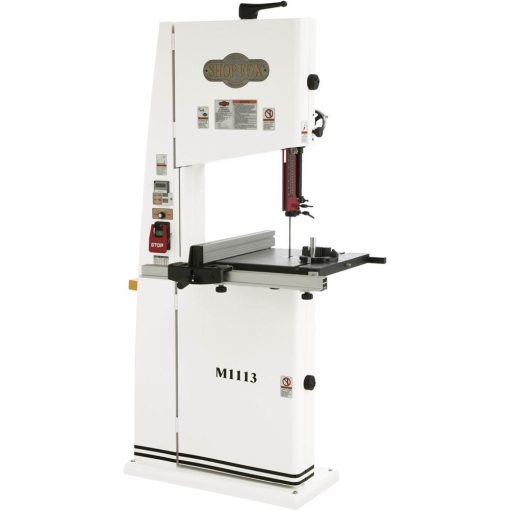

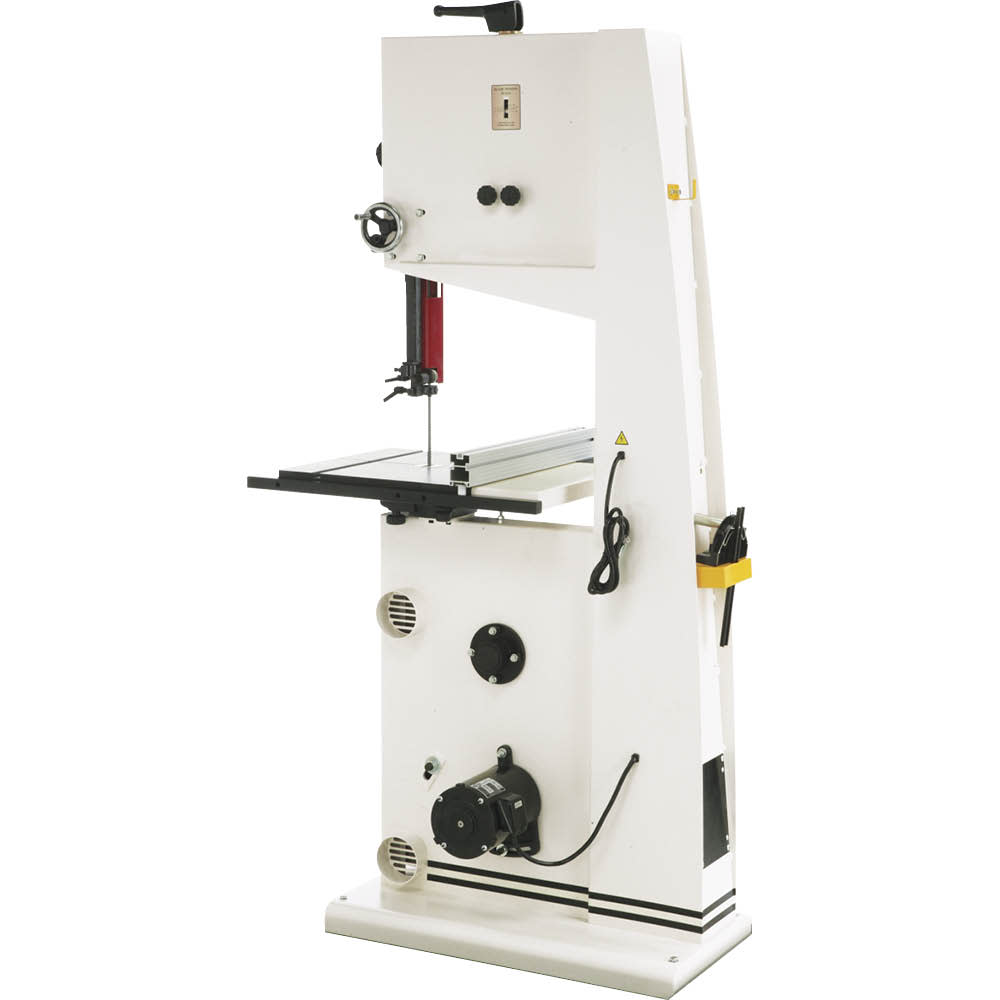

Shop Fox Vertical Wood/Metal Bandsaw 220V 1 1/2HP 3 Phase

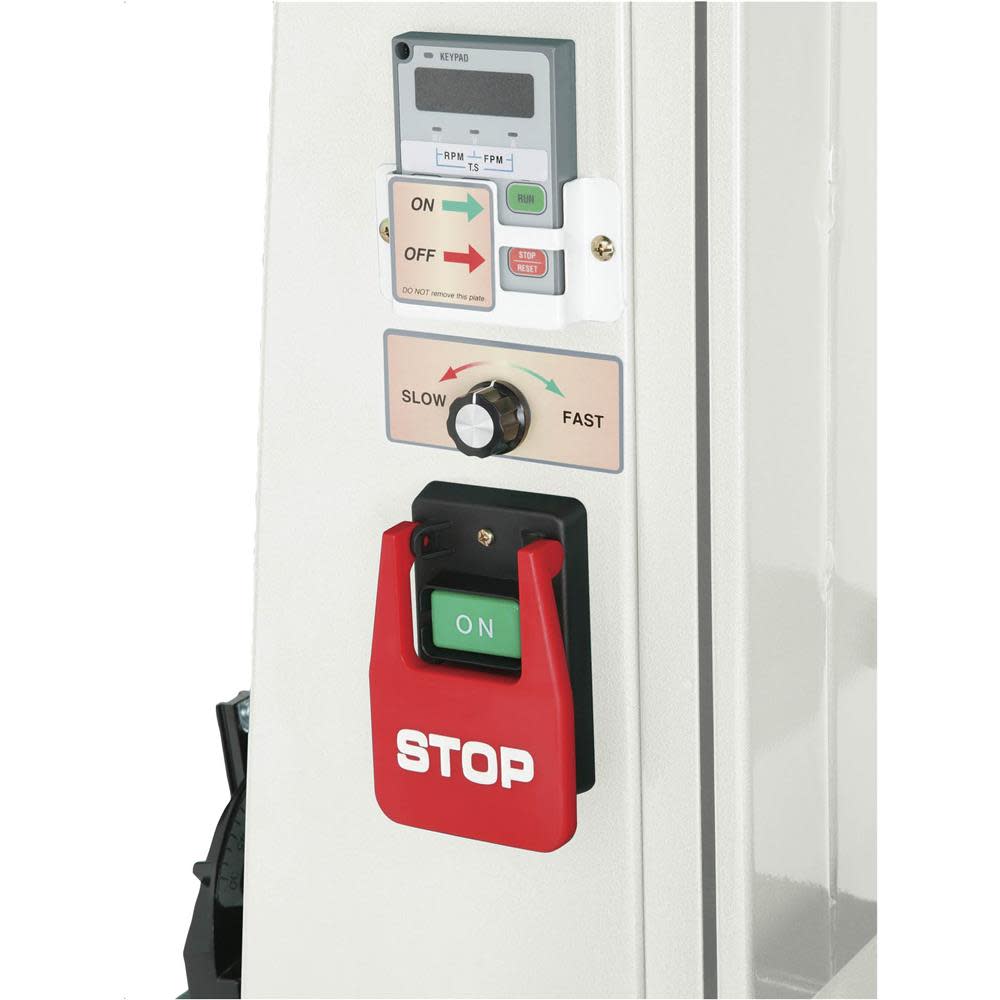

A VFD (Variable Frequency Drive) with digital readout provides infinitely variable blade speeds between 150 and 3000 Fpm, making this saw great for cutting wood and metal alike! Just turn the speed control dial to set the perfect cutting speed for each type of material you’re cutting. Besides providing the variable-speed control, the VFD also allows this machine to take full advantage of the high-torque/low-speed characteristics of a 3 Phase motor-while only requiring a single-phase power supply. The vertical cutting configuration and massive cast-iron table also makes it easy to feed intricate, curved cuts. All in all, the strong versatility of this 18 In. Vertical Wood/Metal Bandsaw makes it an ideal choice when shop space is limited and the range of project types is diverse!.



Features


Precision‐ground cast‐iron table

Variable frequency drive speed control

Left and right table tilting control

Upper and lower blade guides

Rack and pinion adjustment on upper blade guide support

Fully balanced, cast‐iron wheels with rubber tires

Quick‐release blade tension

Steel guide blocks

Two dust ports

Specifications

Acme Tools Brand Name
SHOP FOX
Acme Tools Part Number
M1113
Amperage (A)
5
Assembled Weight (lbs)
385

Band Saw Type
Stationary
Blade Guide Type
Bearings
California Proposition 65 Warning Required
Yes
Color/Finish
White
Cord Length (ft)
6
Cordless / Corded
Corded
Country of Origin
Taiwan
Cutting Capacity Height (in)
12
Diameter
1/8 in
Dust Port Outside Diameter (in)
4
Fence Included
Yes
Horsepower (hp)
1.5
Material
Cast Iron
Maximum Blade Length (In)
133
Maximum Blade Width (In)
1.25
Maximum Feet Per Minute
3000
Maximum RPM
1725
Minimum Blade Length (in)
133
Minimum Blade Width (in)
0.13
Minimum Feet Per Minute
150
Motor Type
TEFC Induction
Package Depth
19
Package Height
79
Package Weight
328
Package Weight (lbs)
328
Phase
3
Saw Type
Stationary
Table Height (in)
37.25
Table Height From Floor (In)
37.25
Table Length (in)
24
Table Material
Cast Iron
Table Tilt Left (Deg)
5
Table Tilt Right (Deg)
45
Table Width (in)
18
UL Listed
No
Variable Speed
No
