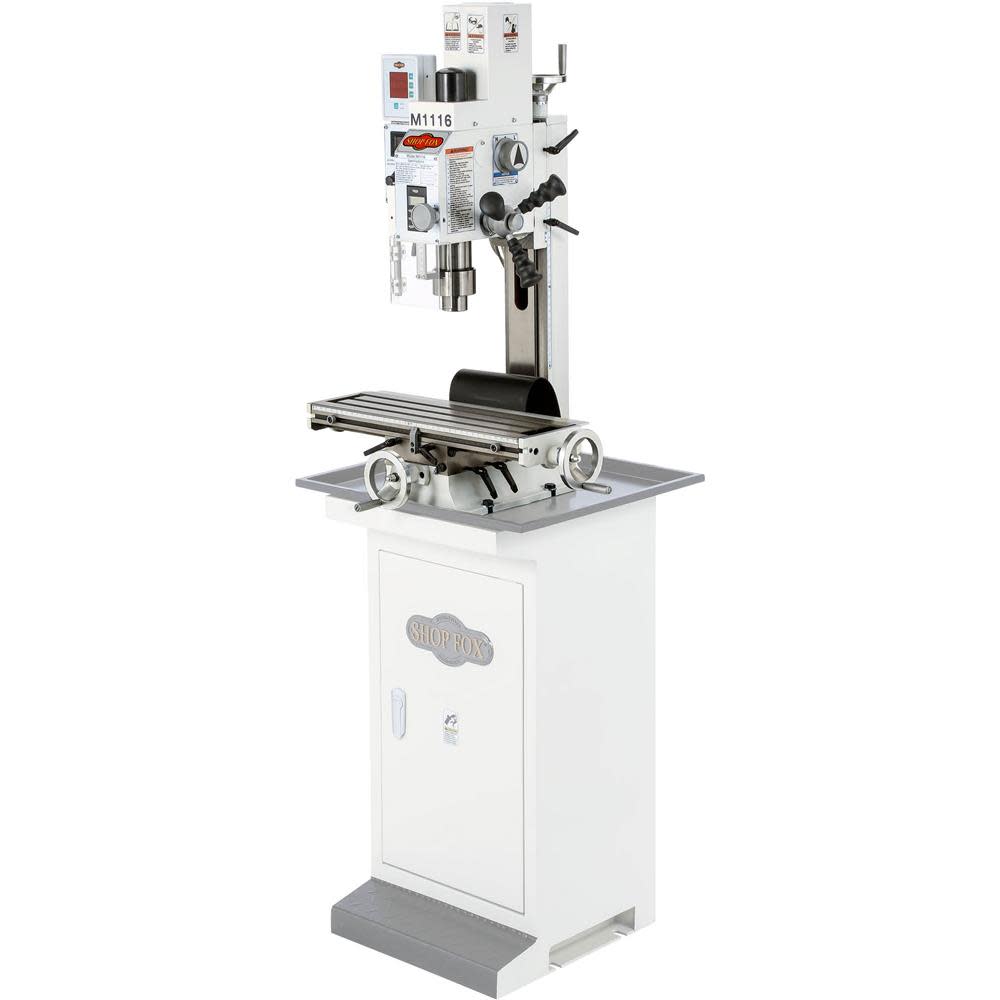

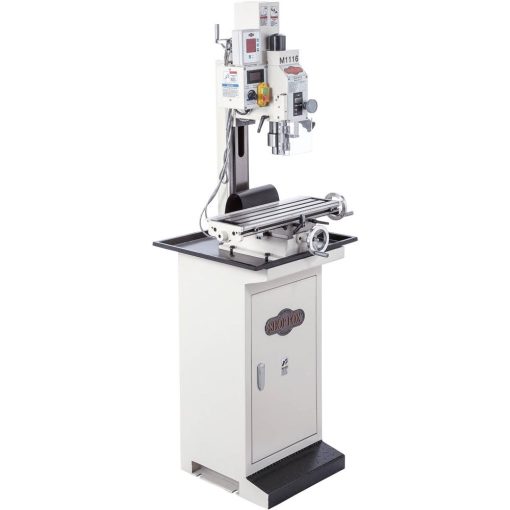

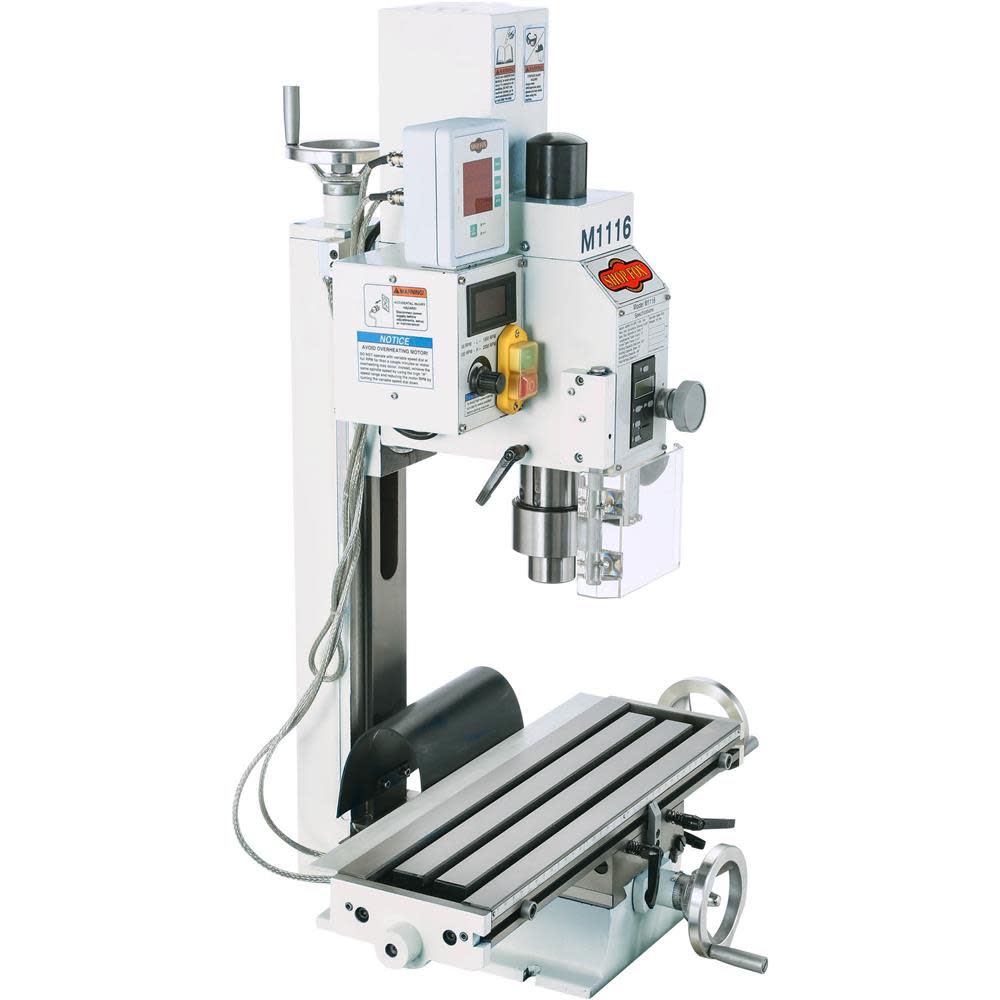

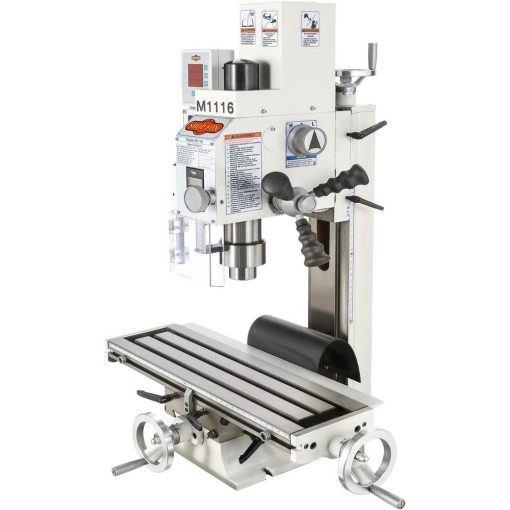

Shop Fox Mill/Drill 110V 3/4HP 1 Phase Deluxe Variable Speed
This great little machine sports some of the same features found on much larger mill/drills: dovetail column, variable speed 3/4HP motor, R8 spindle with digital read out, tapered gibs with double locks, and large 5-3/4 In. x 19-3/4 In. table. This is an excellent value and great for just starting out or even as a dedicated, single-purpose machine in the shop.
Features
Dovetail headstock column and table ways
High‐Torque, low‐noise DC motor

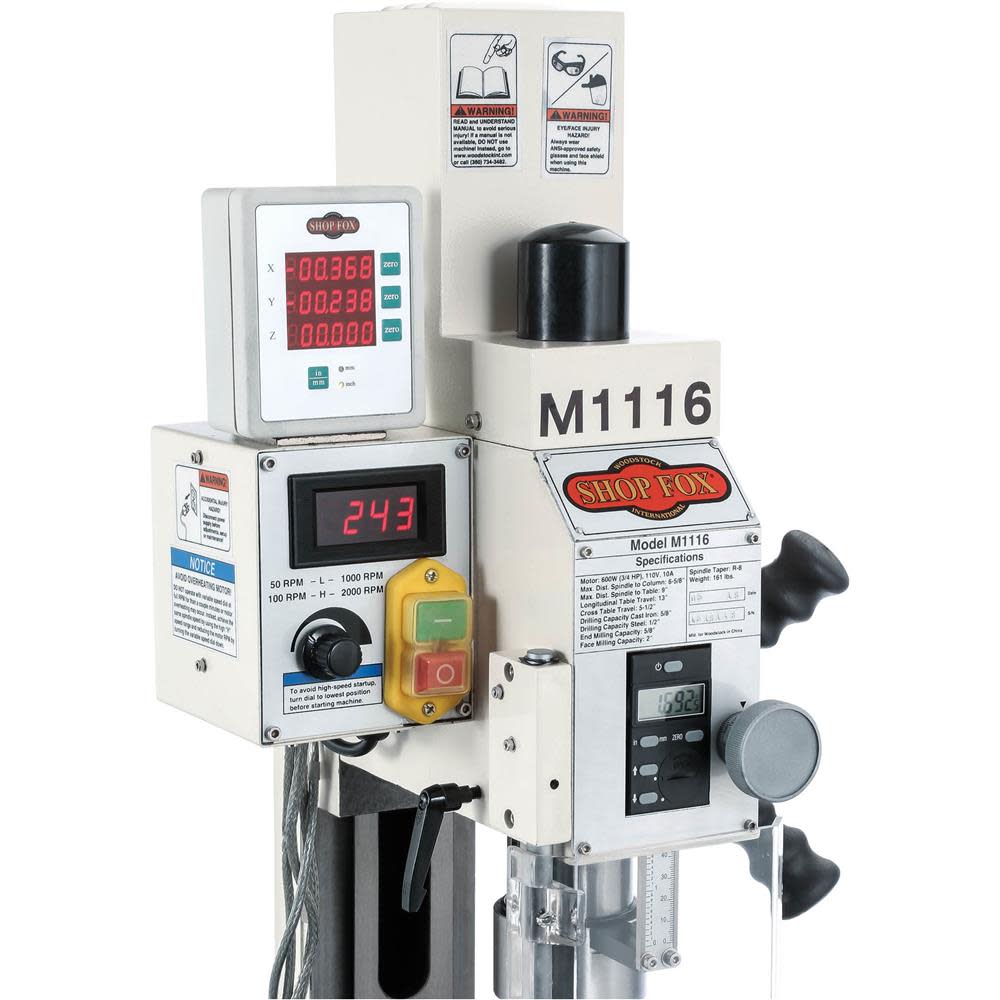

Variable‐Speed spindle w/DRO
Spindle elevation DRO

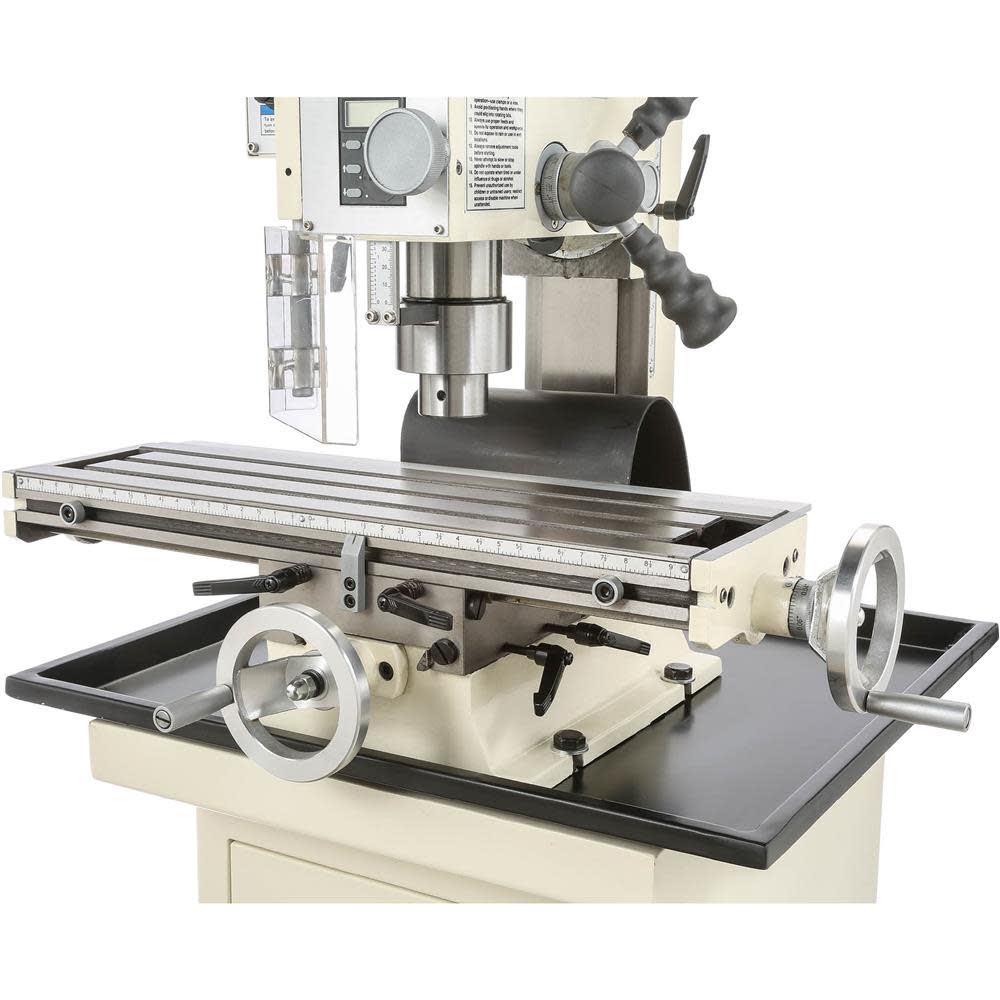

3‐Axis precision handwheel control

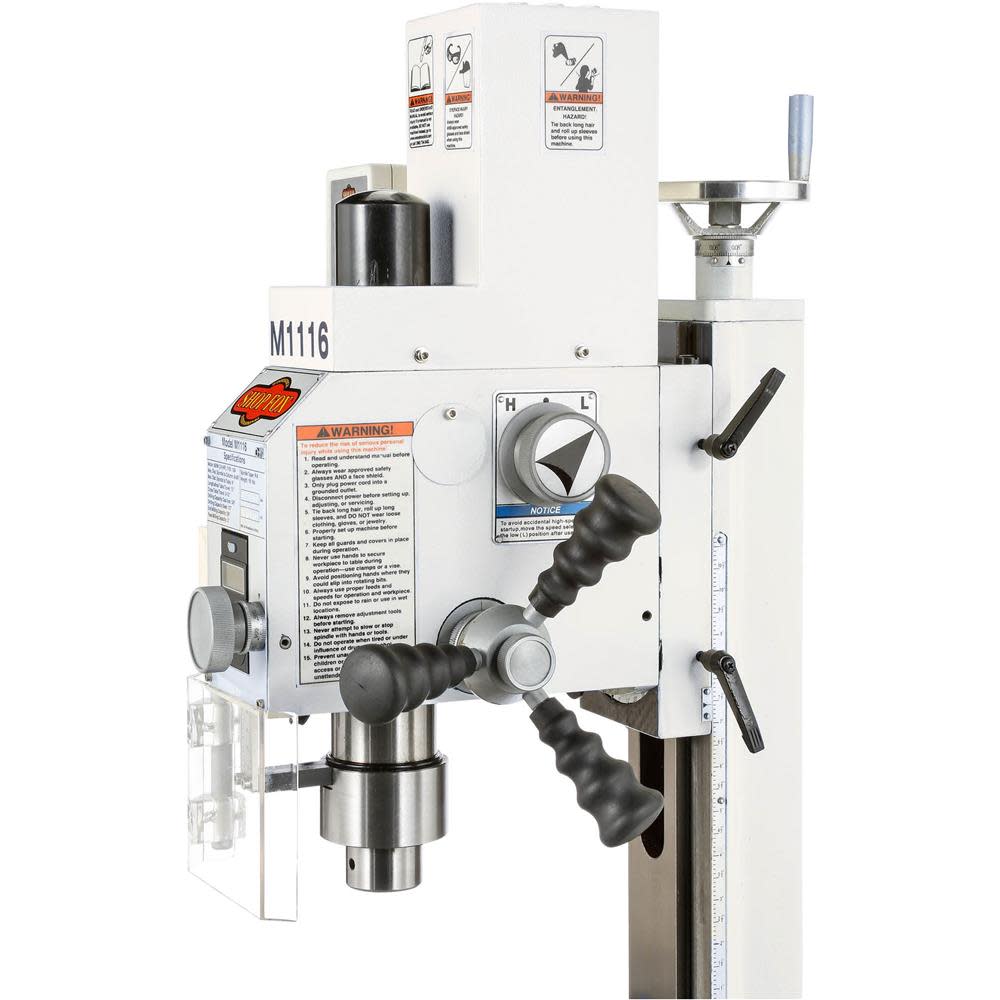

Coarse and fine spindle downfeed
2‐Speed gearbox
Zero‐Setting dials on handwheels
Hand wheel dials feature 0.002 In. graduation
Specifications
Acme Tools Brand Name
SHOP FOX
Acme Tools Part Number
M1116
Amperage (A)
10
Assembled Weight (lbs)
204
Color/Finish
White
Country of Origin
China
Horsepower (hp)
0.75
Material
Cast Iron
Motor RPM
4500
Motor Size
3/4HP, 110V, 1 Phase
Number of T-Slots
3
Package Contents
Variable Speed Mill/Drill with DRO
Package Depth
24
Package Height
32
Package Weight
204
Quill Diameter
2.36
Spindle Taper
R-8
Spindle To Column
6-5/8
Switch Type
On/Off Push Button Switch with Safety Cover
T-Slot Center Distance
1-1/2 In.
T-Slot Width (in)
3/8
Table Material
Cast Iron
Variable Speed
Yes
