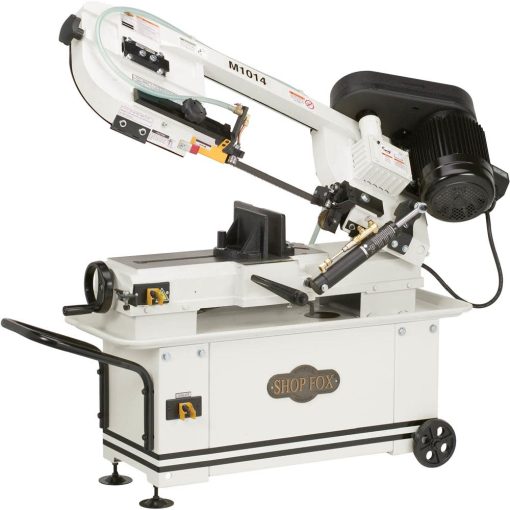

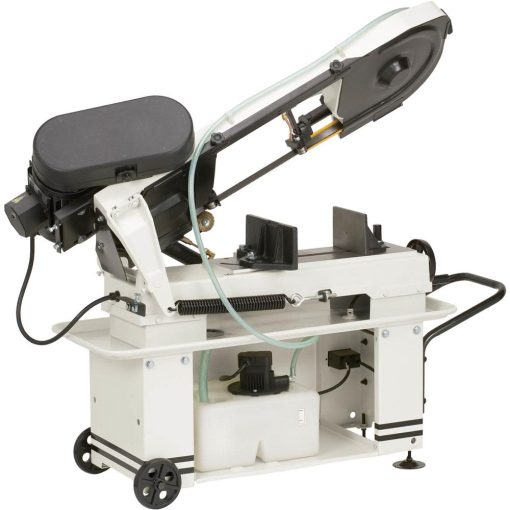

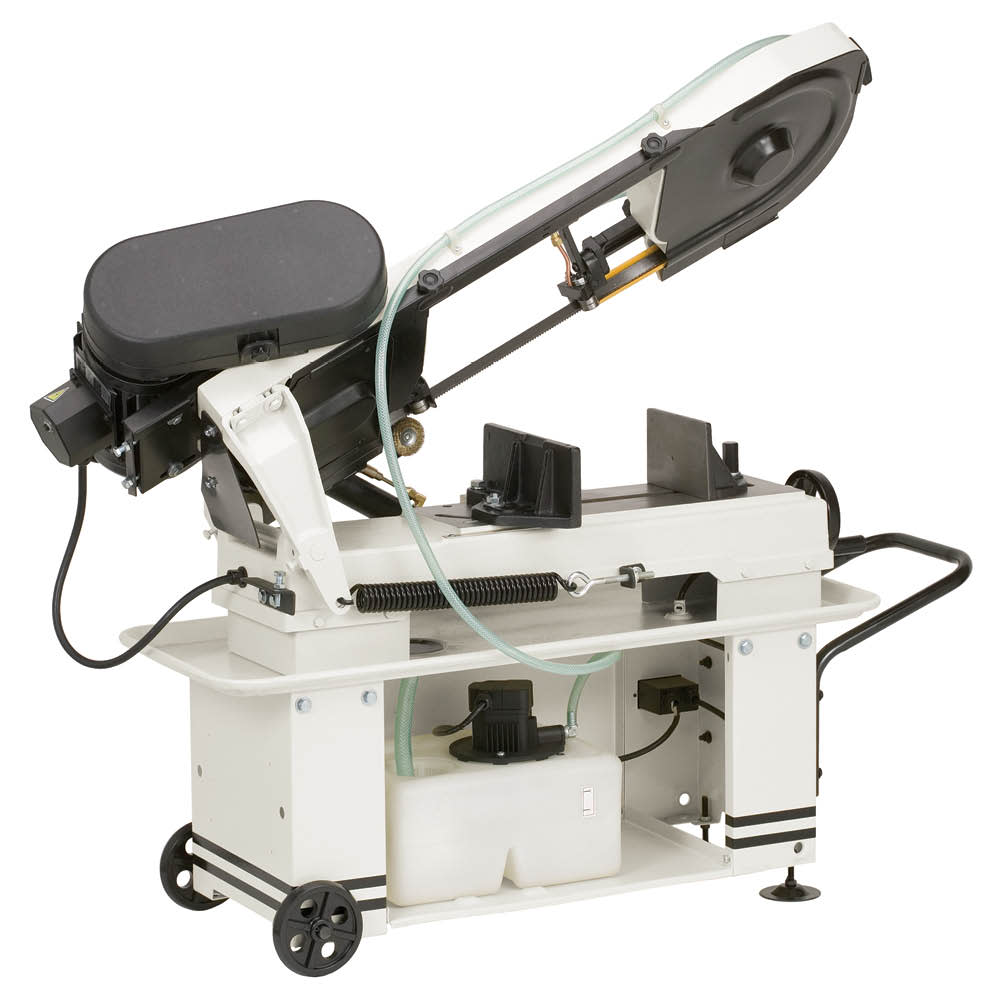

Shop Fox Metal Cutting Bandsaw 110/220V 1HP 1 Phase
Great for production shops, this 7 In. x 12 In. metal-cutting bandsaw handles large jobs with ease. Features angle cutting to 45 Deg, four blade speeds, internal coolant system, quick-setting vise, hydraulic downfeed control, and automatic shut-off. Wheels and a handle add mobility for even greater convenience.
Features
Centralized control panel on top of saw bow
Heavy‐duty, all‐steel, one‐piece base
Adjustable hydraulic down‐feed ‐ just dial your feed rate on the control panel

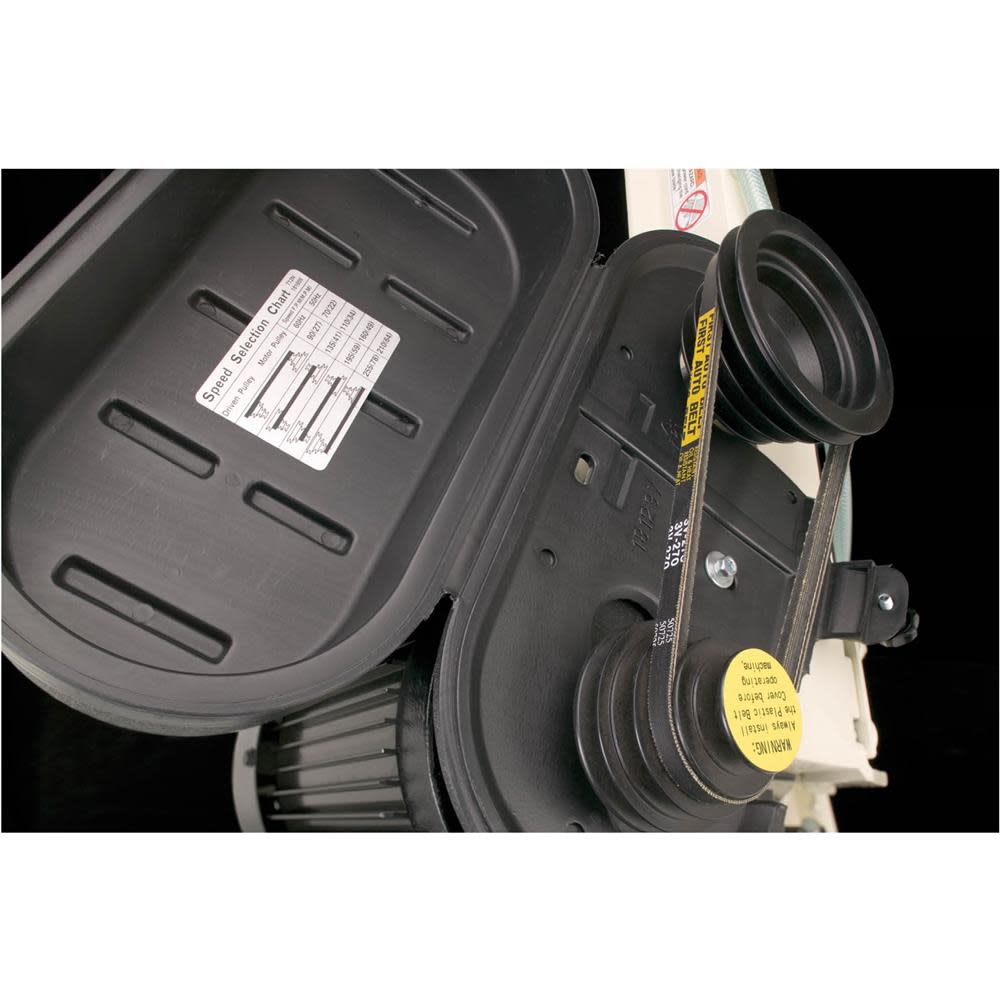

Worm gearbox has hardened and ground gears
Quick‐release vise for fast job changes
Miter cutting ability
Blade wheels have heavy‐duty ball bearings
Magnetic safety switch
Specifications
Acme Tools Brand Name
SHOP FOX
Acme Tools Part Number
M1014
Amperage (A)
12/6
Assembled Weight (lbs)
339
Band Saw Type
Stationary
Blade Guide Type
Bearings
California Proposition 65 Warning Required
Yes
Color/Finish
White
Cord Length (ft)
7
Cordless / Corded
Corded
Country of Origin
China
Cutting Capacity Height (in)
7
Diameter
3/4 in
Horsepower (hp)
1
Material
Cast Iron
Maximum Blade Length (In)
93
Maximum Blade Width (In)
0.75
Maximum Feet Per Minute
255
Maximum RPM
1725
Minimum Blade Length (in)
93
Minimum Blade Width (in)
0.75
Minimum Feet Per Minute
90
Motor Type
TEFC Capacitor‐Start Induction
Number of Wheels
2
Package Contents
Metal Cutting Bandsaw, Blade and Vertical Saw Table
Package Depth
51
Package Height
40
Package Weight
340
Package Weight (lbs)
340
Phase
1
Saw Type
Stationary
Table Length (in)
20.5
Table Material
Cast Iron
Table Width (in)
6.75
UL Listed
Yes
Variable Speed
No
