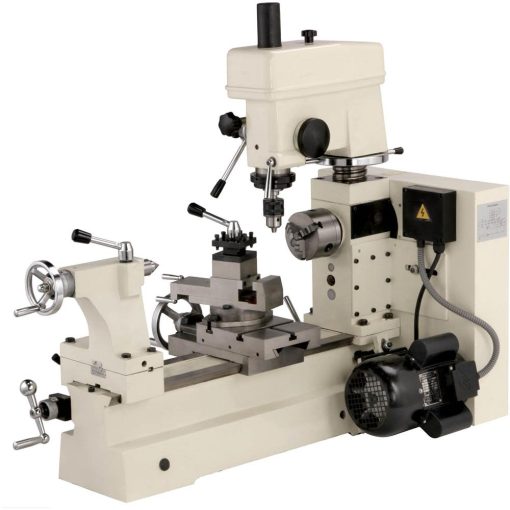

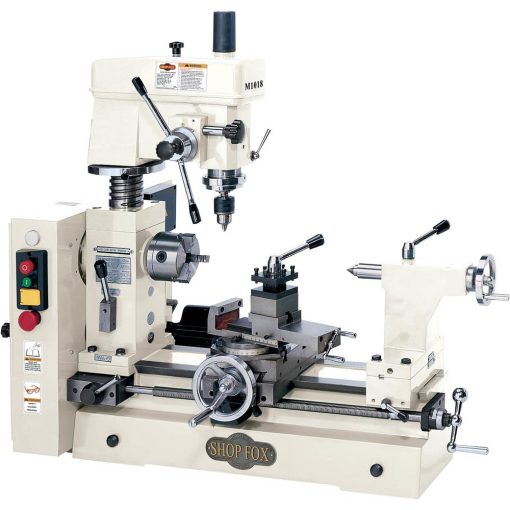

Shop Fox Combo Lathe/Mill 110V 3/4HP 1 Phase Small

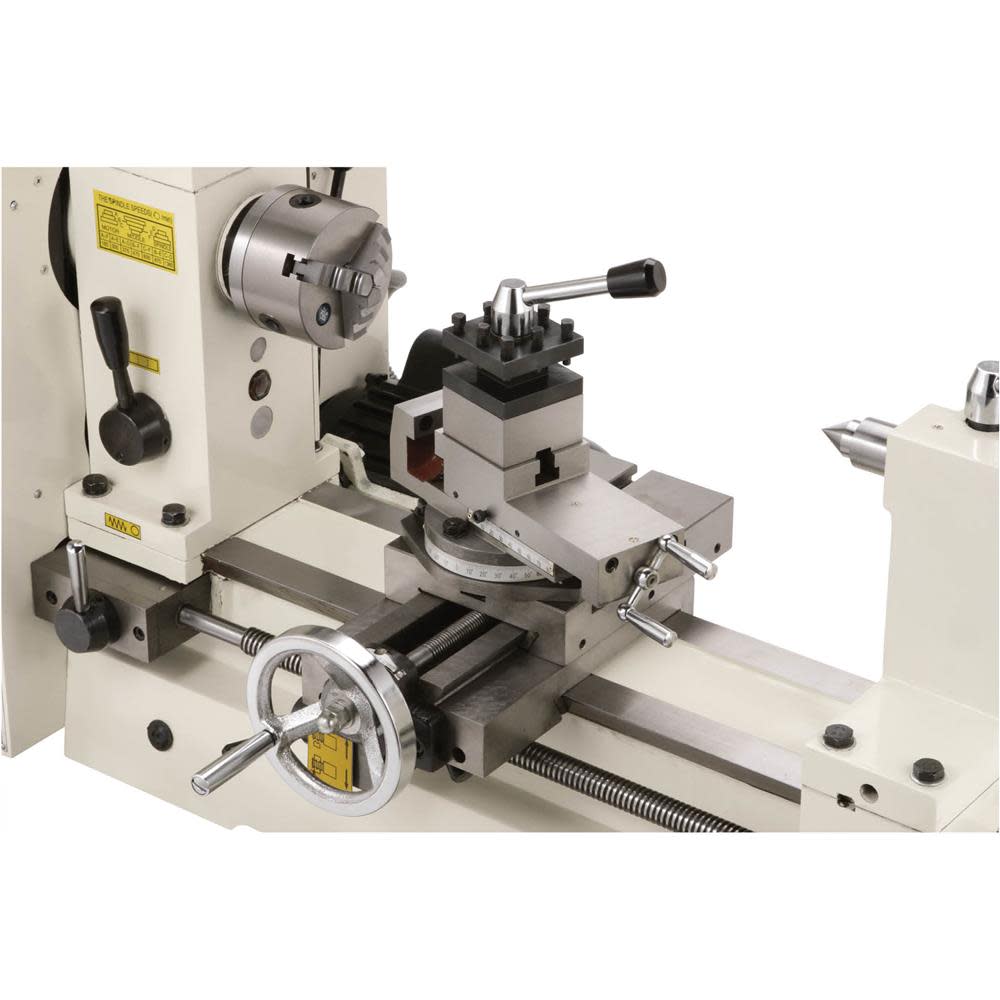

Hobby or entry-level machinists will not want to pass up this versatile machine. Great for turning, cutting threads, and drilling and milling small projects, this combo lathe is packed with extra add-ons like a 4-way turret tool post, 9-1/2 In. faceplate, 4 In. 3-jaw chuck, and a built-in rotating vise. Features a 16-1/2 In. swing over bed, 11-1/2 In. swing over saddle, 19-1/4 In. distance between centers, 3/4 In. spindle bore, and MT#3 tapers.
Features
T‐Slots in cross slide
Cuts inch and metric threads
Built-in vise
Fine down-feed
Turret tool post
Adjustable mill/drill head
Specifications
Acme Tools Brand Name
SHOP FOX
Acme Tools Part Number
M1018W
Amperage (A)
9
Assembled Weight (lbs)
478
Color/Finish
White
Country of Origin
China
Horsepower (hp)
0.75
Motor RPM
1725
Motor Size
3/4HP, 110V, 1 Phase
Package Contents
Lathe/Mill, 1/2 In. Drill Chuck, 2 Dead Centers, 4 In. 3-Jaw Chuck, 4-Way Tool Post, 5 In. Back Plate, 9-1/2 In. Faceplate, Change Gears, MT#3 Chuck Arbor, Hex & Combo Wrenches
Package Depth
41
Package Height
39
Package Weight
478
Quill Diameter
N/A
Quill Travel
1-1/2
Spindle Taper
MT#3
Spindle To Column
N/A
Switch Type
Push Button, Reversing
T-Slot Width (in)
N/A
Variable Speed
Yes
