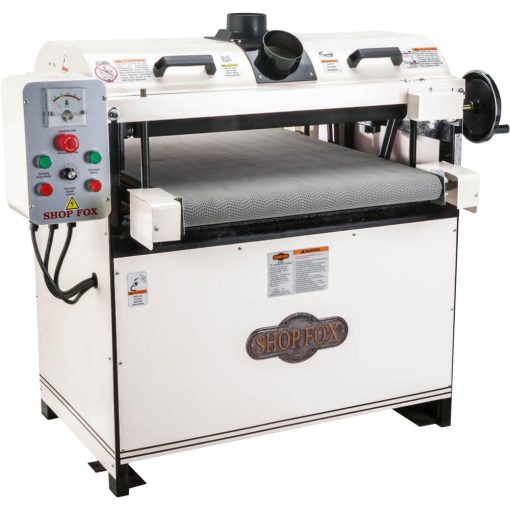

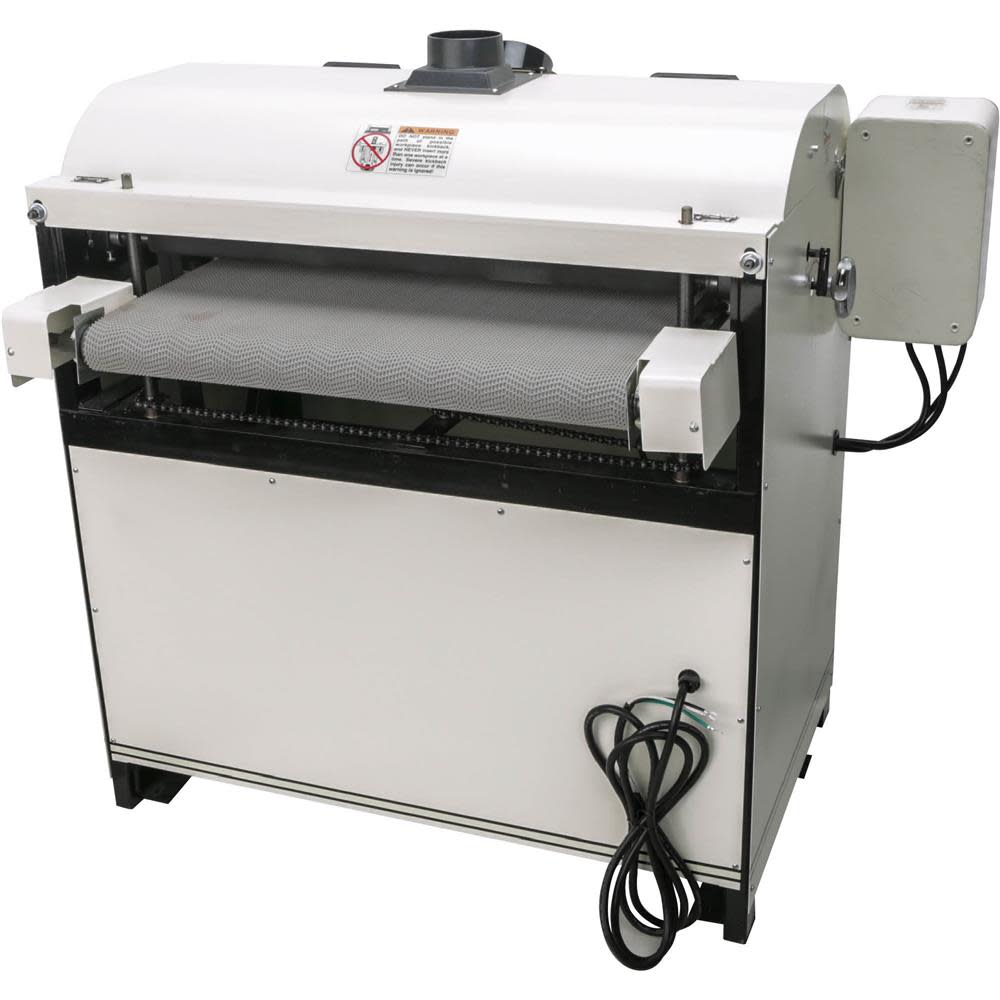

Shop Fox 26″ Drum Sander 220V 5HP 1 Phase
Whether quickly sanding large quantities of panel assemblies or achieving “tear-out” free finishes on figured wood, the Model W1678 performs like a champ in even the most demanding shops. At a full 26 In. wide, this Dual Drum Sander can be fitted with two different grits, allowing both rough and finish sanding in one pass. Push aside those old handheld sanders and make room for this one!.
Features

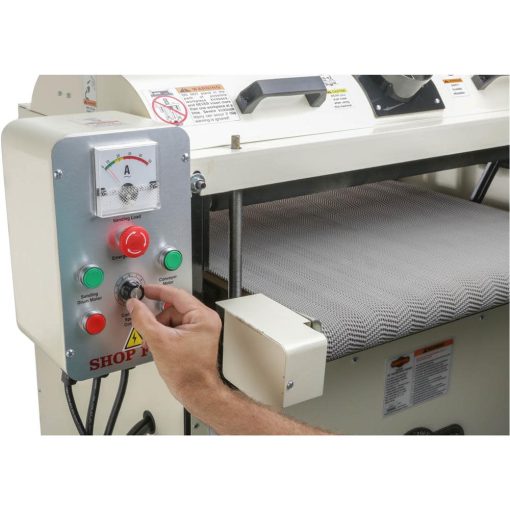

Easy access control panel

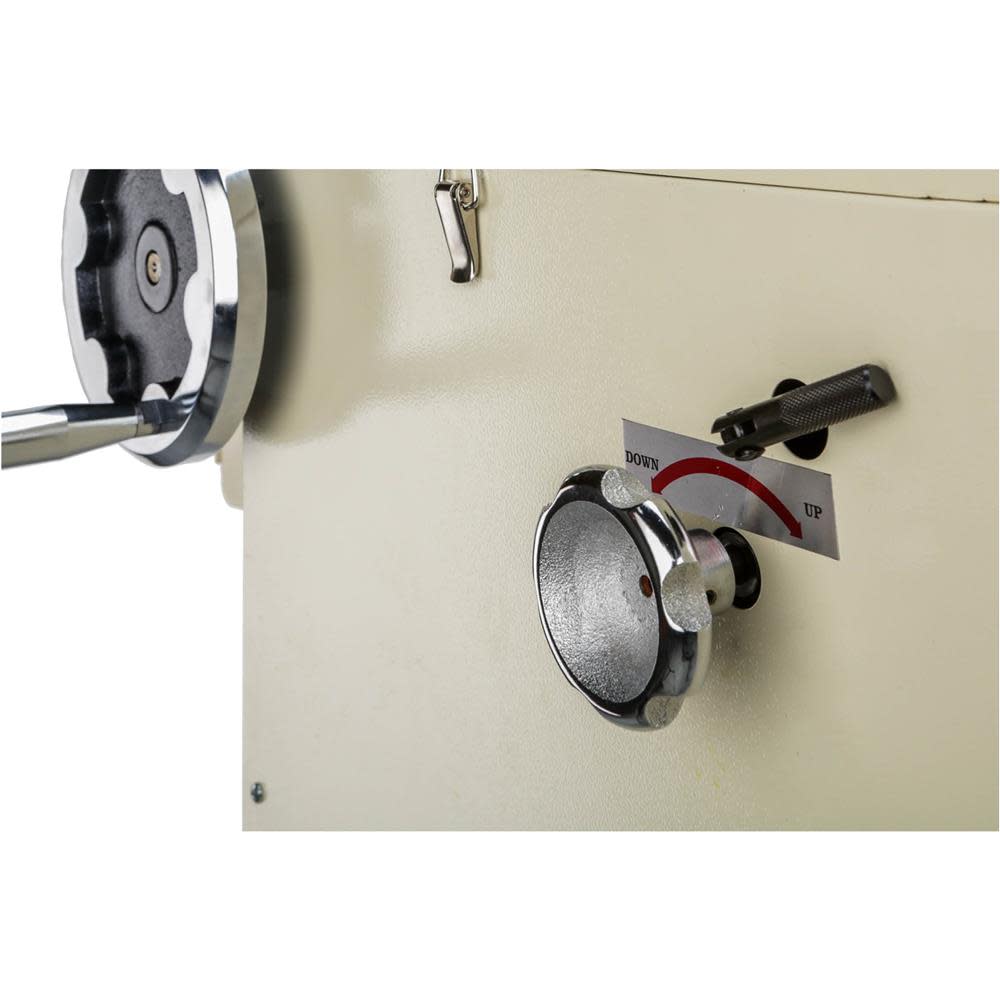

External mi0cro‐adjustment on outfeed drum
Variable speed conveyor
Industrial rubber conveyor belt similar to wide belt sanders
Amp/Load meter
Computer balanced drums
Hook and loop sanding belt attachment

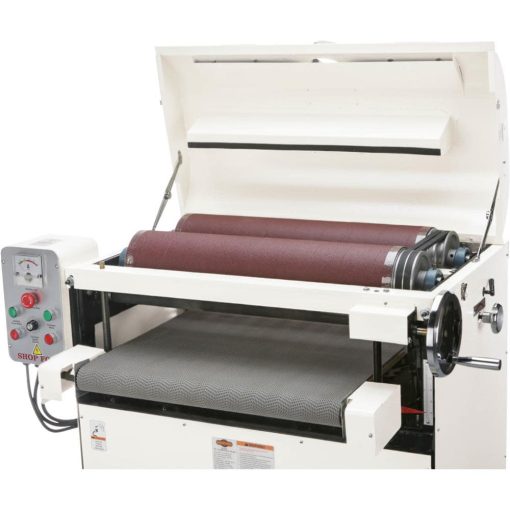

Dual sanding drums

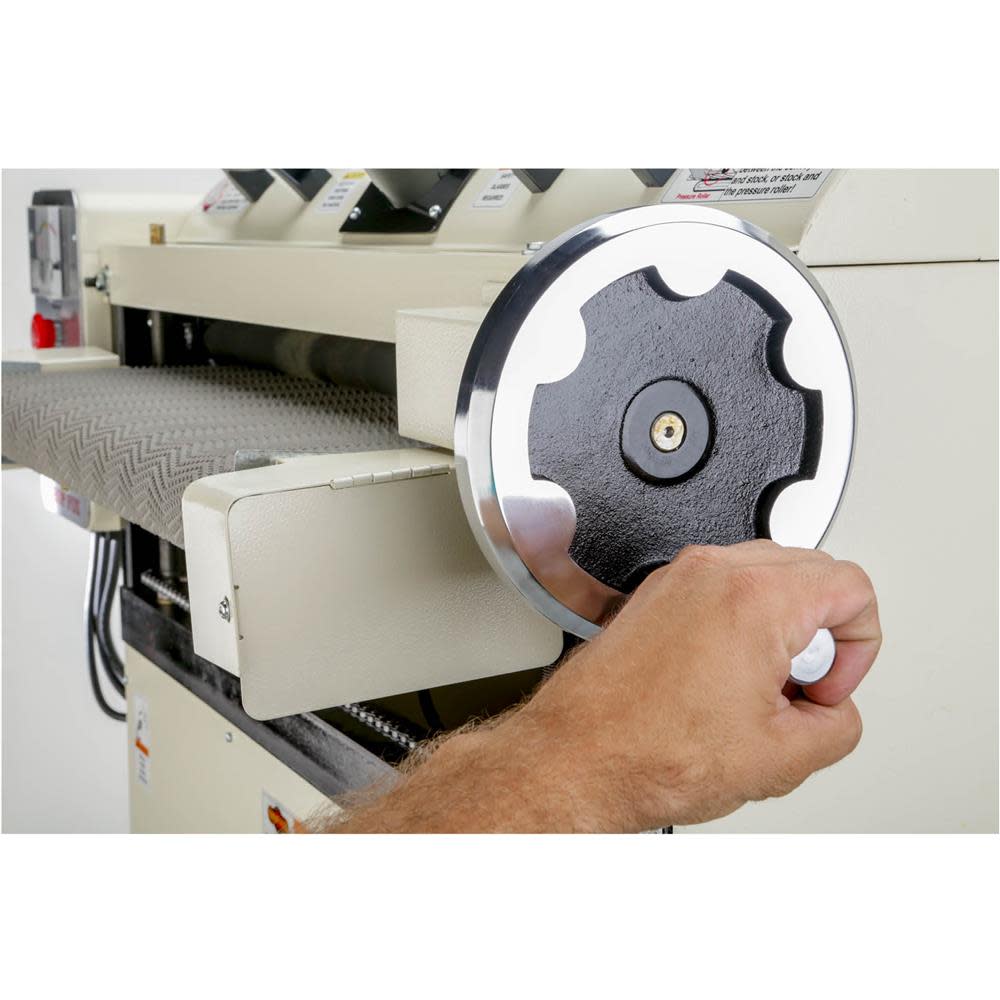

Four leadscrew table lifting and lowering system
Specifications
Abrasive Fastening
Hook & Loop
Abrasive Wrap Size
N/A
Acme Tools Brand Name
SHOP FOX
Acme Tools Part Number
W1678
Amperage (A)
25
Assembled Weight (lbs)
546
Bench or Stationary
Stationary
Color/Finish
White
Conveyor Bed Material
Rubber
Conveyor Maximum Speed (Ft/Min)
20
Conveyor Motor Horsepower (hp)
1/3
Cord Length (ft)
8
Cordless / Corded
Corded
Country of Origin
Taiwan
Drum Diameter (in)
6
Drum Length (in)
27-3/4
Drum Material
Aluminum
Dust Collection
Yes

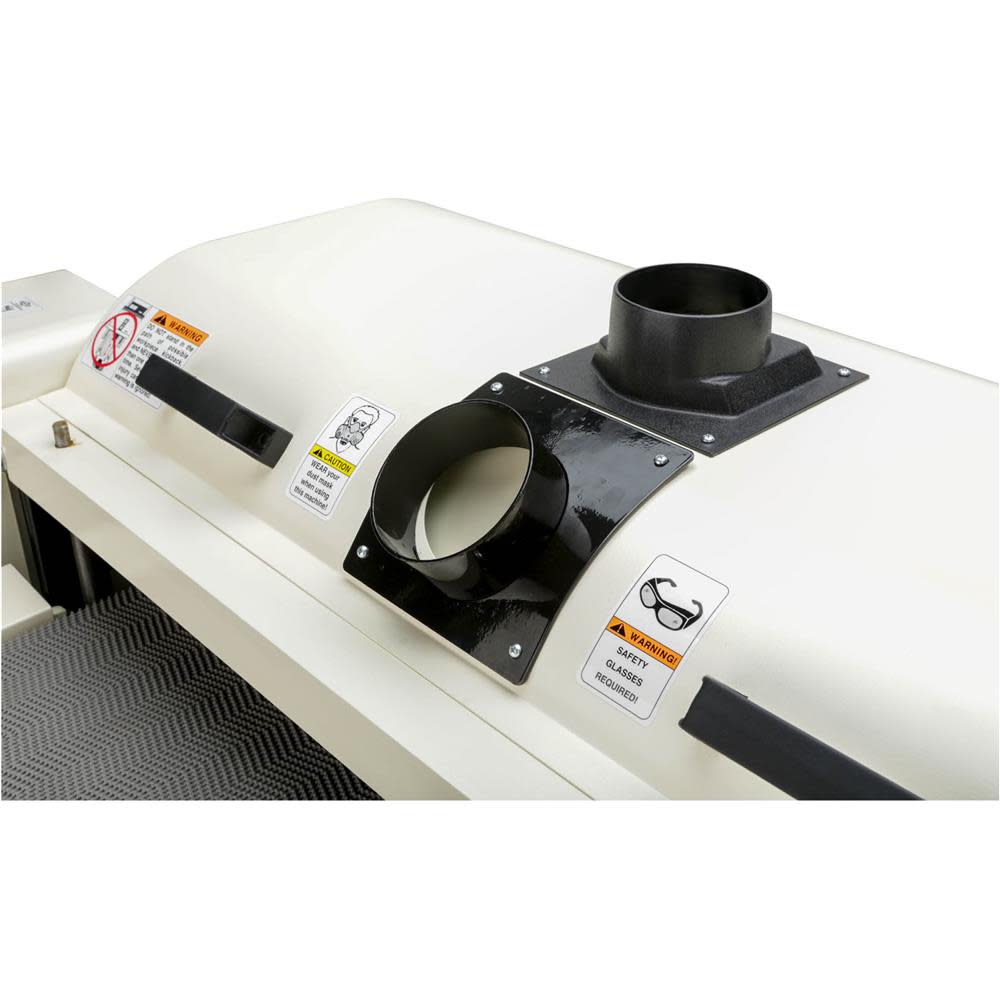

Dust Collection Method
Dust Port
Electrical Cord Configuration
10 AWG
Horsepower (hp)
25
Housing Material
Steel
Material
Aluminum
Maximum Drum Surface Speed (Ft/Min)
2300
Maximum Stock Thickness (in)
4-1/4
Maximum Stock Width (Single Pass) (in)
26
Minimum Drum Surface Speed (Ft/Min)
2300
Minimum Stock Thickness (In)
N/A
Number of Drums
2
Number of Motors
1
Number of Wheels
0
Package Contents
Drum Sander
Package Depth
41
Package Height
41
Package Weight
546
Sander Style
Drum
Sandpaper Type
Drum
Variable Speed
Yes
