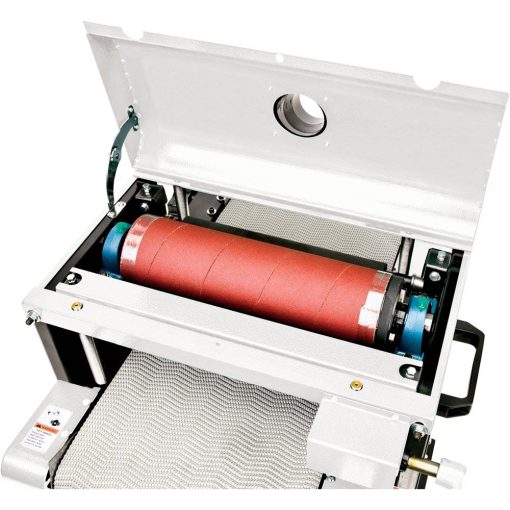

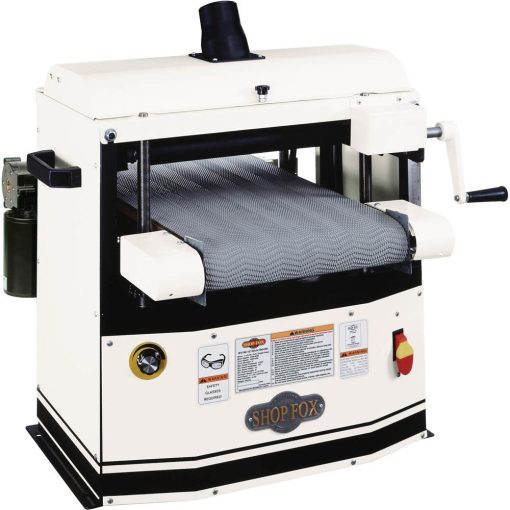

Shop Fox 12″ Bench Top Drum Sander 115V 1 1/2HP 1 Phase
Finally, a smaller shop-sized unit that delivers the even sanding performance that only a self-feeding drum sander can provide. With 12 In. width and 3-3/4 In. thickness capacity, this little workhorse handles most stock sizes produced in a home shop, which makes it the ideal machine for removing the telltale surface marks from a planer. Accepts hook-and-loop sanding rolls for easy installation and grit changes. Certified meeting CSA and UL standards.
Features
Variable speed conveyor
Steel dust scoop maximizes dust collection efficiency
Two adjustable pressure rollers
Thickness scale
Welded steel construction
Industrial-Duty conveyor belt
Side handles for portability
Uses hook and loop style sandpaper
Certified to CSA and UL standards
Specifications
Abrasive Fastening
Hook & Loop
Abrasive Wrap Size
N/A
Acme Tools Brand Name
SHOP FOX
Acme Tools Part Number
W1740
Amperage (A)
0.3
Assembled Weight (lbs)
160
Bench or Stationary
Bench
Color/Finish
White
Conveyor Bed Material
Rubber
Conveyor Maximum Speed (Ft/Min)
17.3
Conveyor Motor Horsepower (hp)
1/8
Cord Length (ft)
11
Cordless / Corded
Corded
Country of Origin
Taiwan
CSA Certified
Yes
Drum Diameter (in)
3
Drum Length (in)
70
Drum Material
Aluminum
Dust Collection
Yes
Dust Collection Method
Dust Port
Electrical Cord Configuration
14 AWG
Horsepower (hp)
1.5
Housing Material
Steel
Material
Aluminum
Maximum Stock Thickness (in)
3-1/2
Maximum Stock Width (Single Pass) (in)
12
Minimum Stock Thickness (In)
N/A
Number of Drums
1
Number of Motors
1
Number of Wheels
0
Package Contents
Drum Sander
Package Depth
27
Package Height
26
Package Weight
160
Sander Style
Drum
Sandpaper Type
Drum
UL Listed
Yes
Variable Speed
Yes
