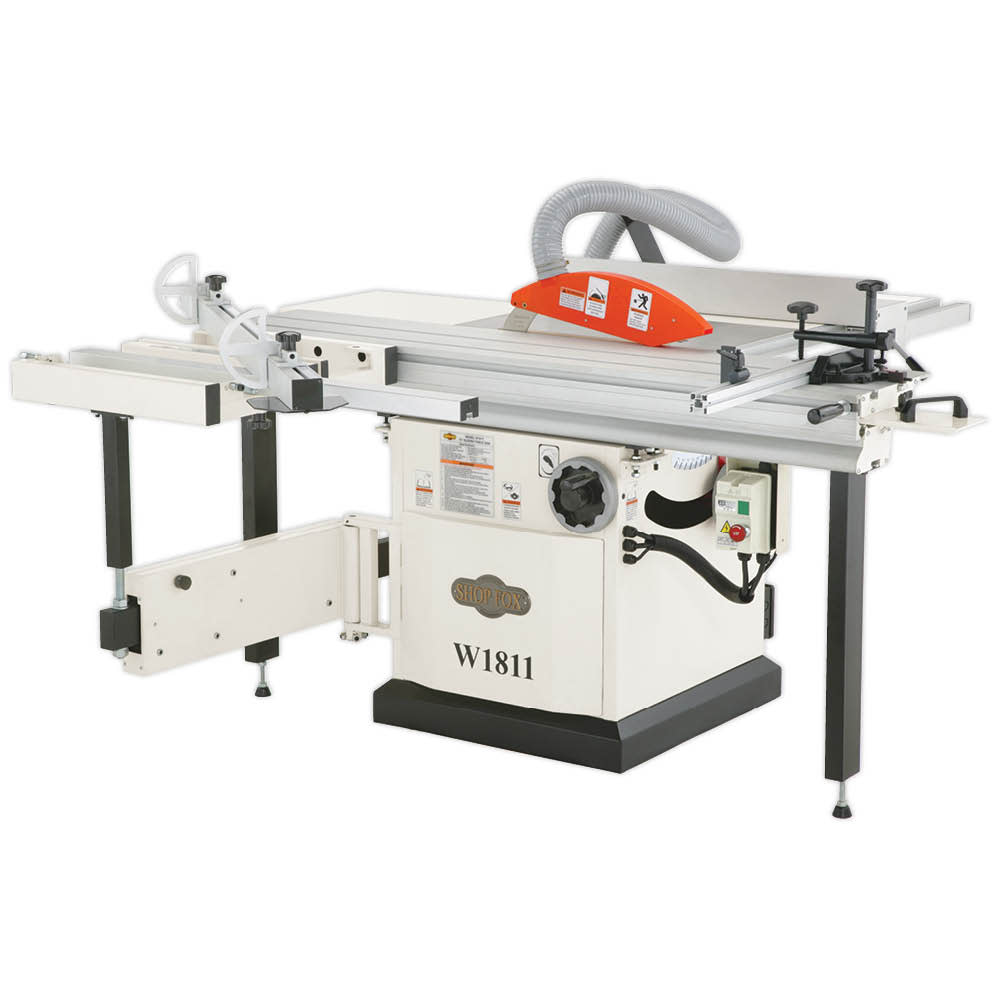

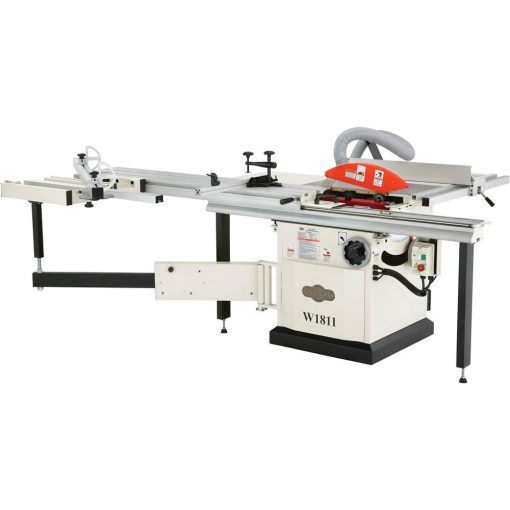

Shop Fox 10″ Sliding Table Saw 230V 5HP 1 Phase

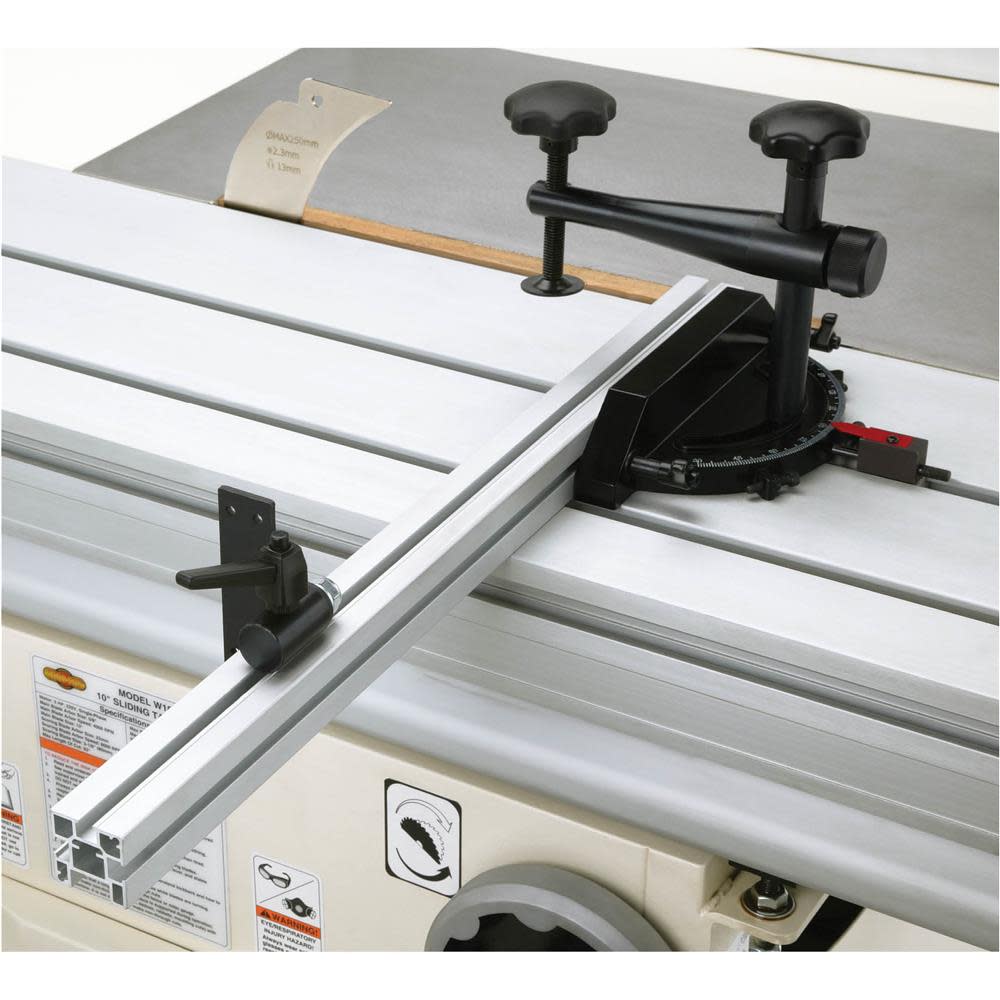

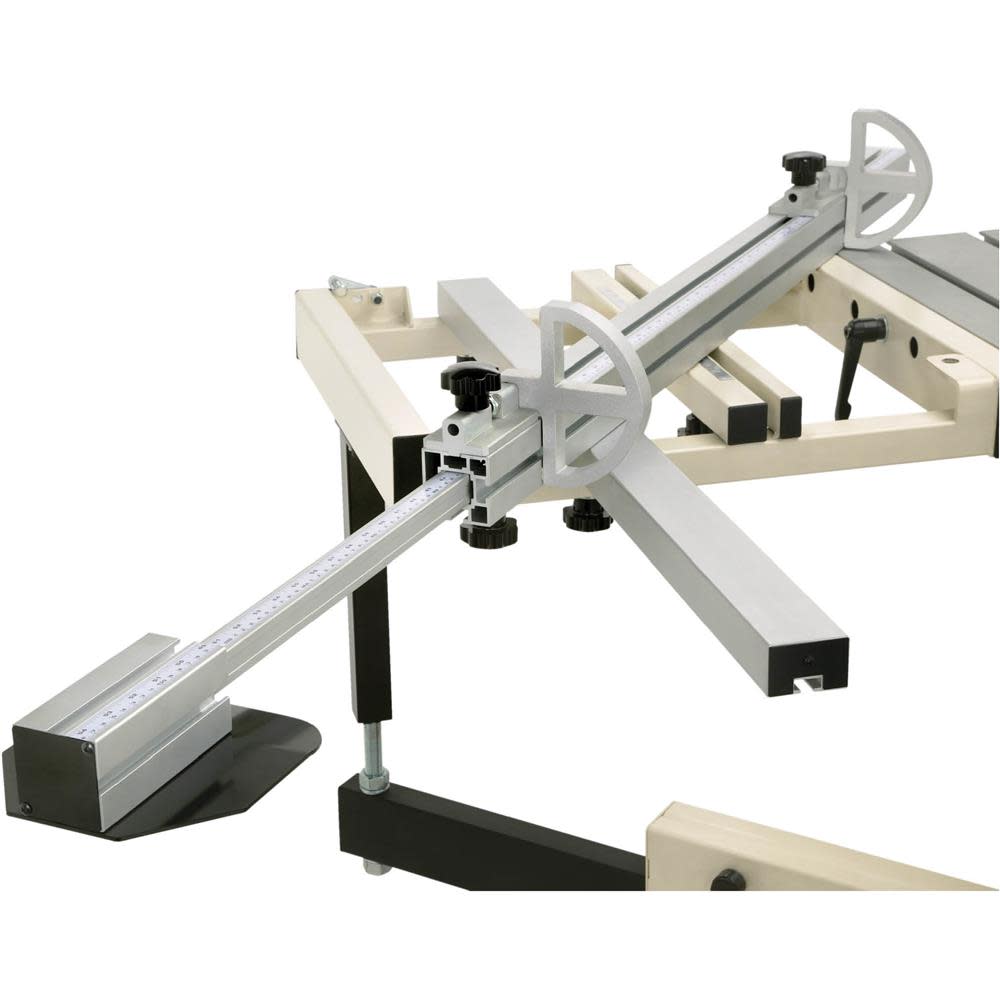

Perfect for cutting wide panels in limited shop space, this 10 In. sliding table saw features a scoring blade to eliminate cross grain tear-out, a 63 In. long crosscut capacity, telescoping crosscut fence with two rock-solid flip stops, fully-adjustable miter fence with its own flip stop, two-position extruded-aluminum rip fence, riving knife, and large blade guard with integral dust port. This 10 in. sliding table saw makes quick work of all standard plywood panels. Accepts 10 In. saw blades with 5/8 In. arbor bores or dado blades up to 13/16 In. wide. Certified to CSA standards.
Features
4 In. Main dust port

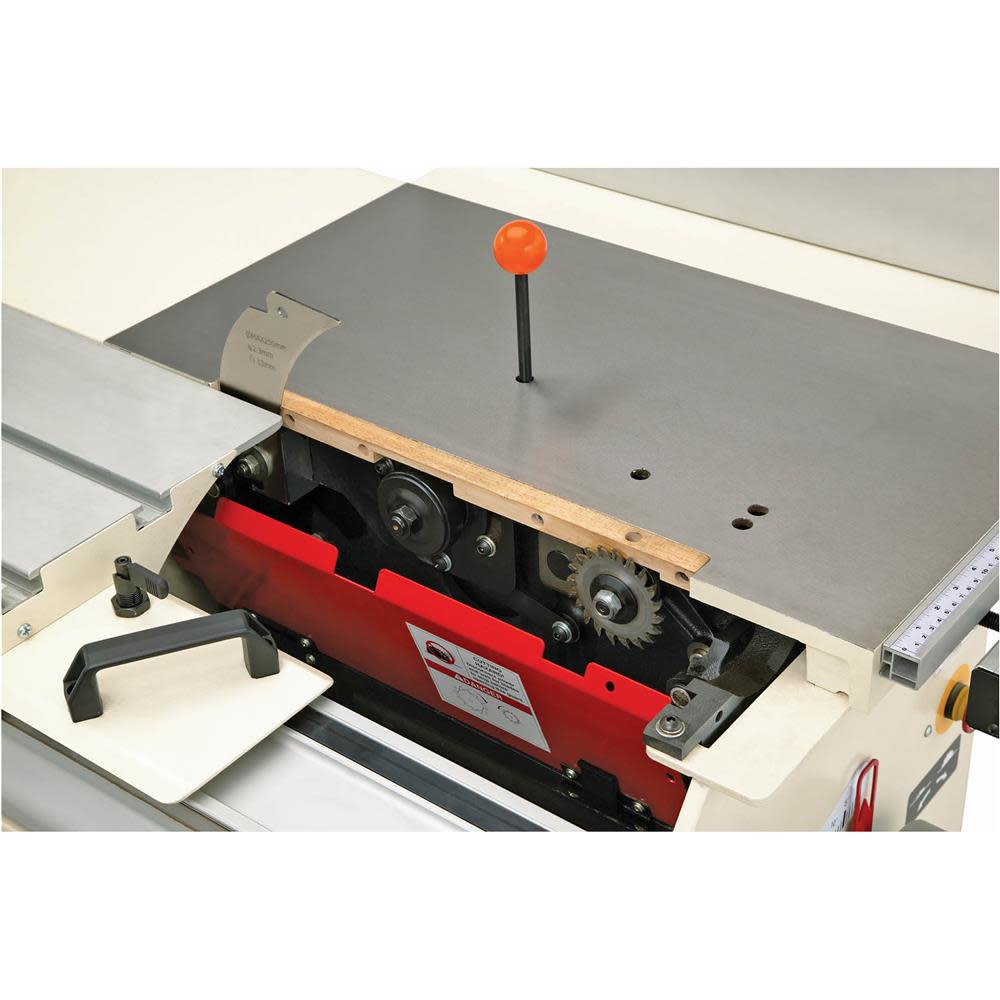

Adjustable scoring knife kerf
Adjustable riving knife
Single lever locking fence

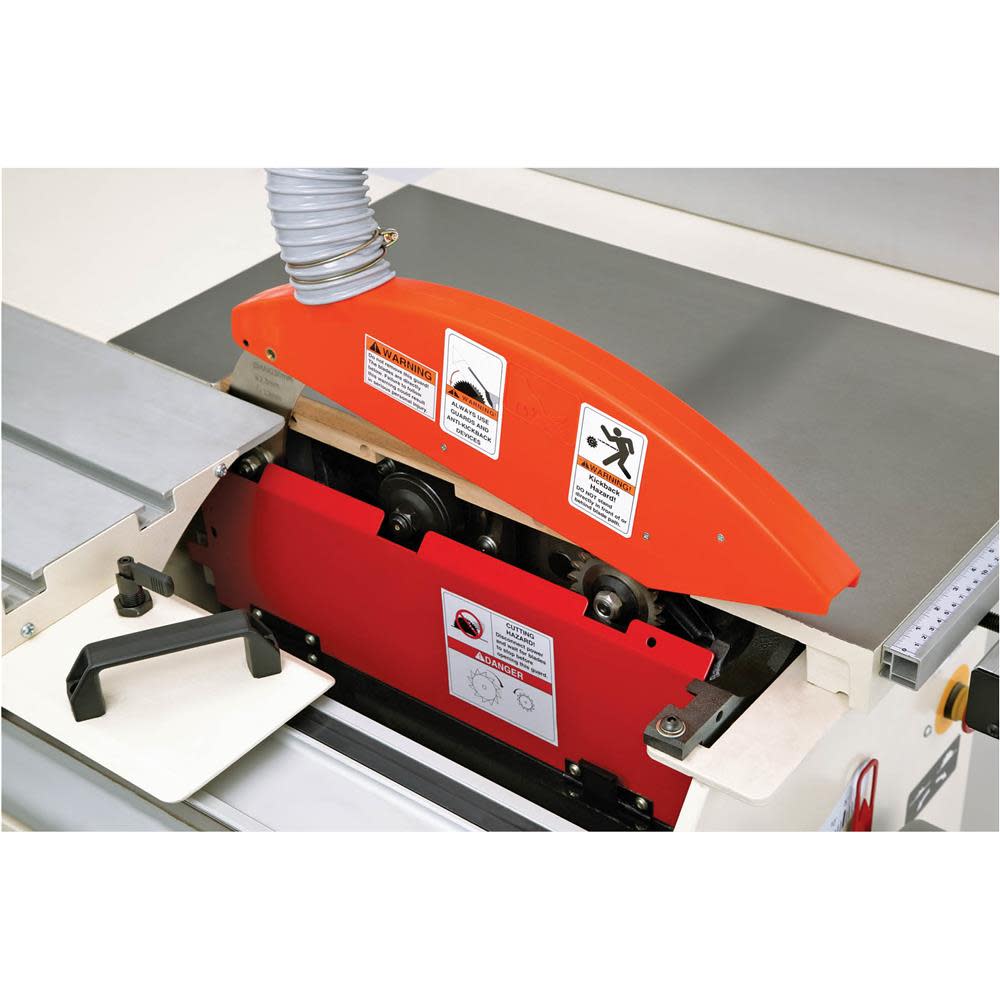

Blade guard with 2‐1/2 In. dust port
Dadoes Up To 13/16 In.
Shielded and lubricated bearings
Includes extended-reach push stick
Magnetic switch with thermal overload protection
Specifications
Acme Tools Brand Name
SHOP FOX
Acme Tools Part Number
W1811
Amperage (A)
19
Assembled Weight (lbs)
688
Bench or Stationary
Stationary
Blade Diameter (in)
10
Blade Speed (rpm)
4000
California Proposition 65 Warning Required
Yes
Color/Finish
White
Cord Length (ft)
6
Cordless / Corded
Corded
Country of Origin
Taiwan
CSA Certified
Yes
Diameter
5/8 in
Dust Port
Yes
Dust Port Outside Diameter (in)
4
Electrical Cord Configuration
12 AWG
Fence Included
Yes
Horsepower (hp)
5
Material
Cast Iron
Maximum Dado Diameter (In)
13/16
Maximum Dado Width (in)
13/16
Miter Gauge
Yes
Motor Bearings
Sealed & Permanently Lubricated
Package Depth
76
Package Height
46
Package Weight
689
Package Weight (lbs)
689
Phase
Single Phase
Table Height (in)
33.625
Table Height From Floor (In)
33.625
Table Length (in)
27
Table Material
Cast Iron
Table Width (in)
14.37
UL Listed
No
