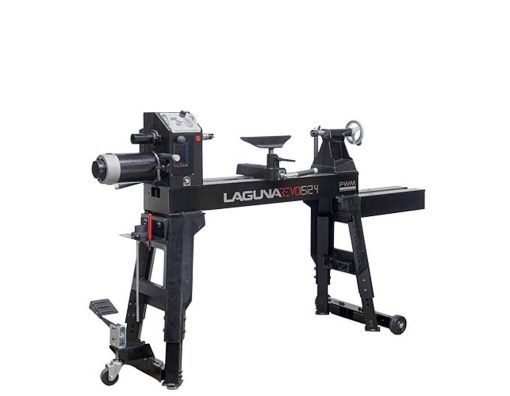

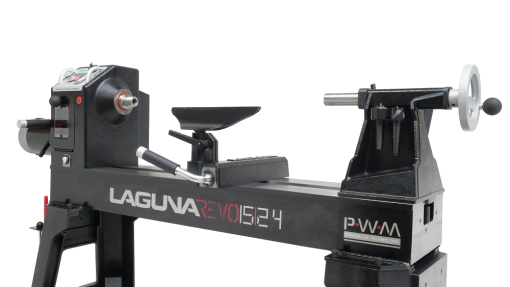

REVO 15|24 110V Lathe
With the Revo 15|24 Laguna is filling the gap between the Revo 12|16 & the legendary Revo 18|36, providing space constrained users with more power and capacity. Infinite electronic variable speed from 50 – 4200 RPM with a 3 step pulley. Adjustable-height legs allow a more ergonomic working position tailored to individuals needs. A brand new feature is the patent-pending Precise Point that allows you to dial in the tailstock quill to meet with the headstock center.
Features
World-class fit and finish Laguna is known for
Sliding headstock

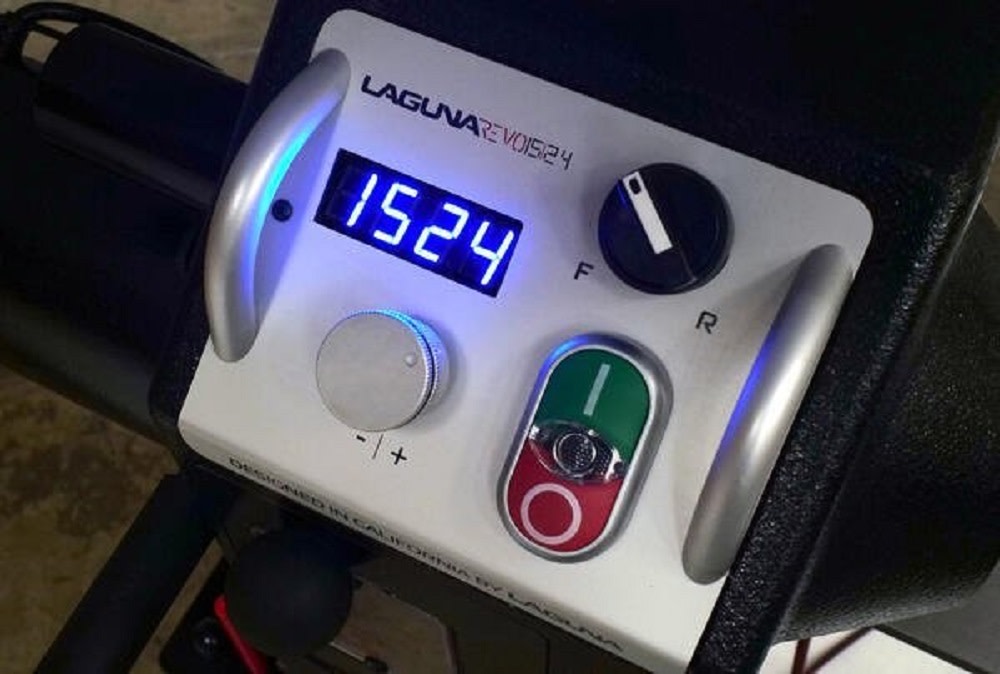

Infinite electronic variable speed from 50 – 4200 RPM with a 3 step pulley
Extraordinary torque even at low speeds, powered by Laguna Pulse Width Modulation
Adjustable-height legs allow a more ergonomic working position tailored to individuals needs
Steel bed provides strength, stability and a surface that the banjo will glide across smoothly

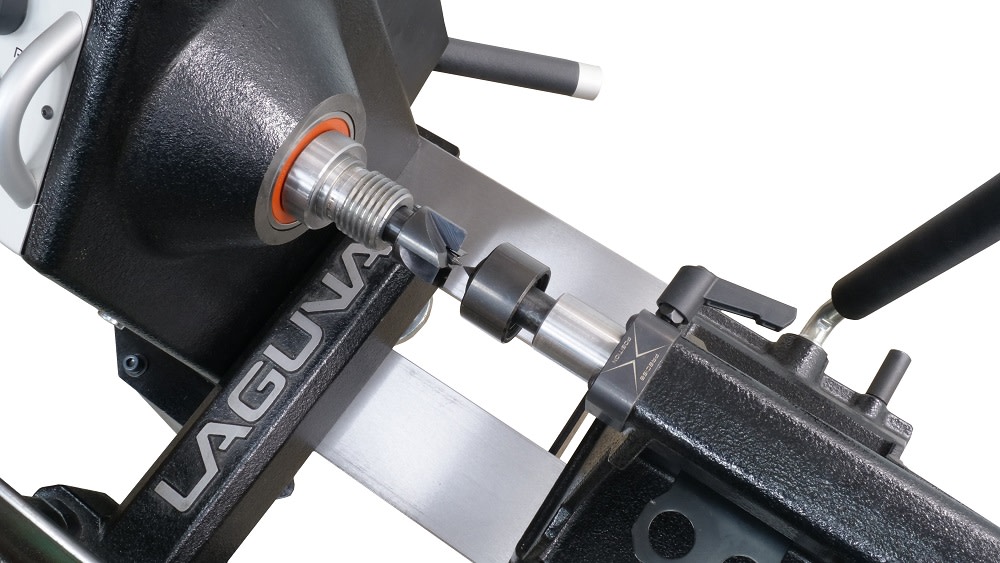

A brand new feature is the patent-pending Precise Point that allows you to dial in the tailstock quill to meet with the headstock center
Specifications
Acme Tools Brand Name
LAGUNA TOOLS
Acme Tools Part Number
MLAREVO1524110
Assembled Weight (lbs)
288
California Proposition 65 Warning Required
Yes
Center To Center (in)
24
Country of Origin
Taiwan
Digital Display
Yes
ETL Listed
Yes
Horsepower (hp)
1.5
Lowest Operational Speed (rpm)
50-650
Maximum Speed (rpm)
650-4200
Package Contents
Lathe
Package Depth
52
Package Height
22
Package Weight
302
Package Weight (lbs)
289
Spindle Bore Diameter
3/8
Stand Included
Yes
Swing Over Bed
15.5
UL Listed
Yes
Variable Speed
Yes
Voltage
110 Volts
