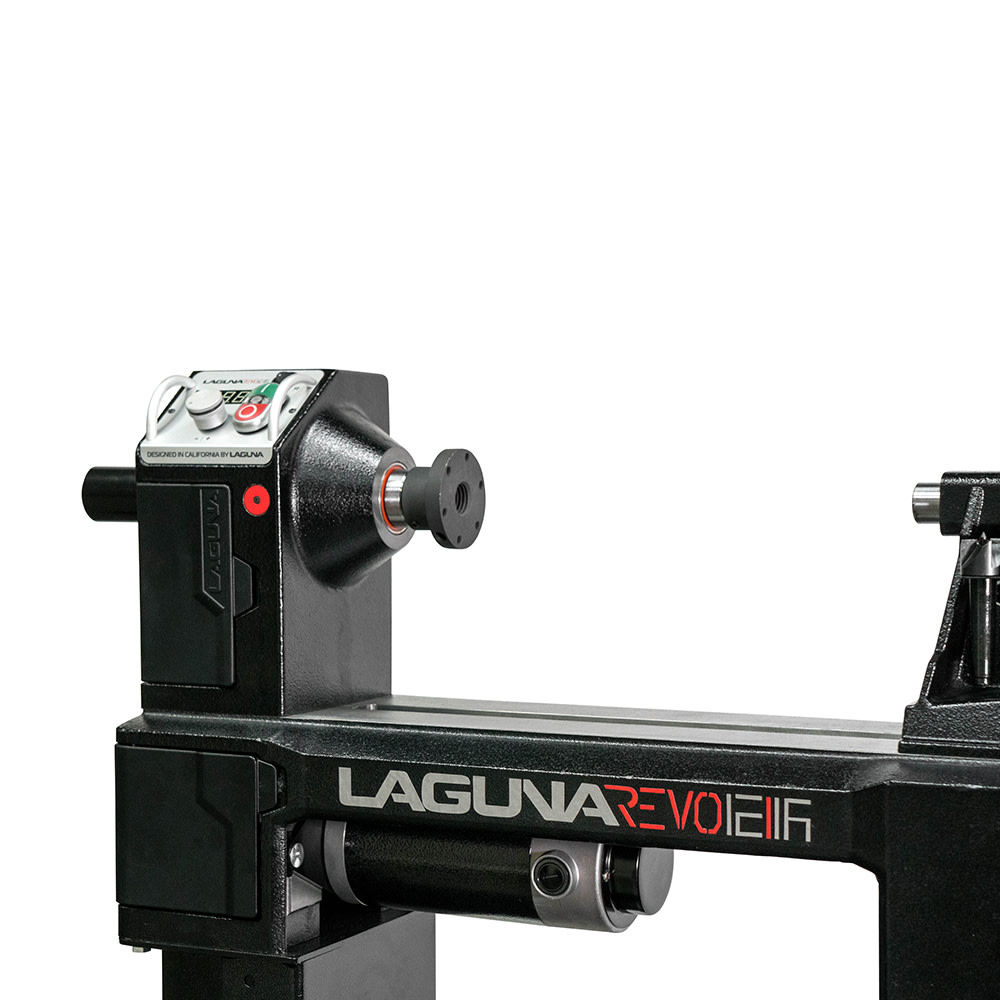

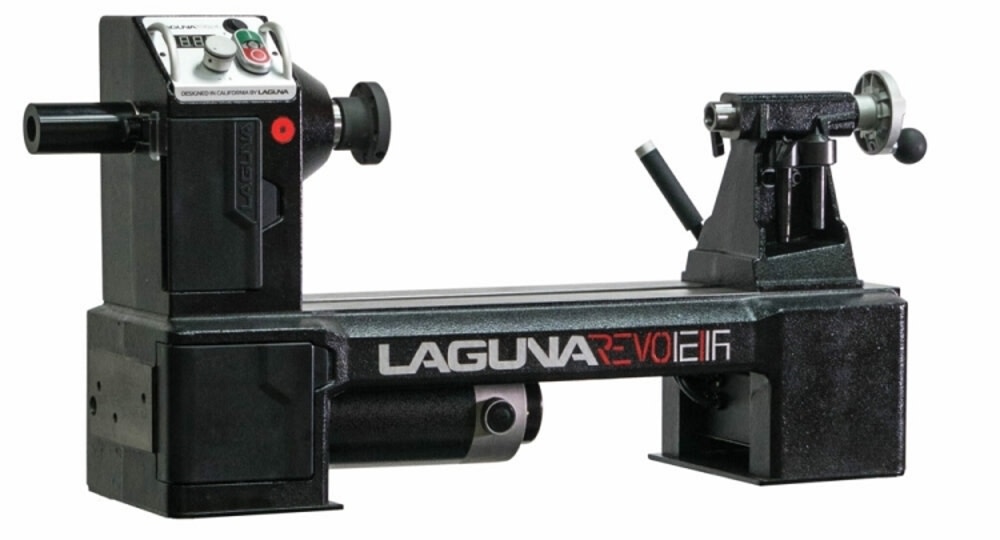

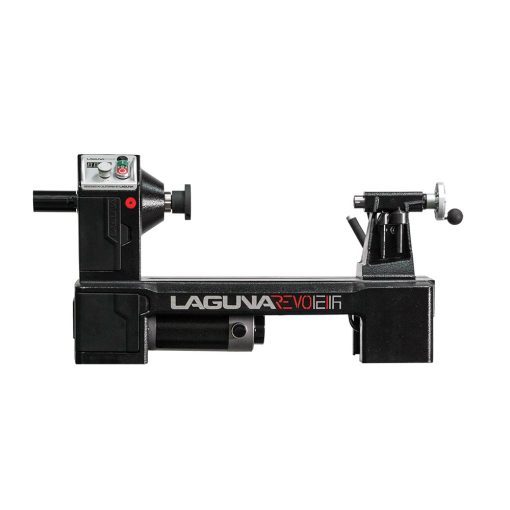

REVO 12 | 16 Lathe

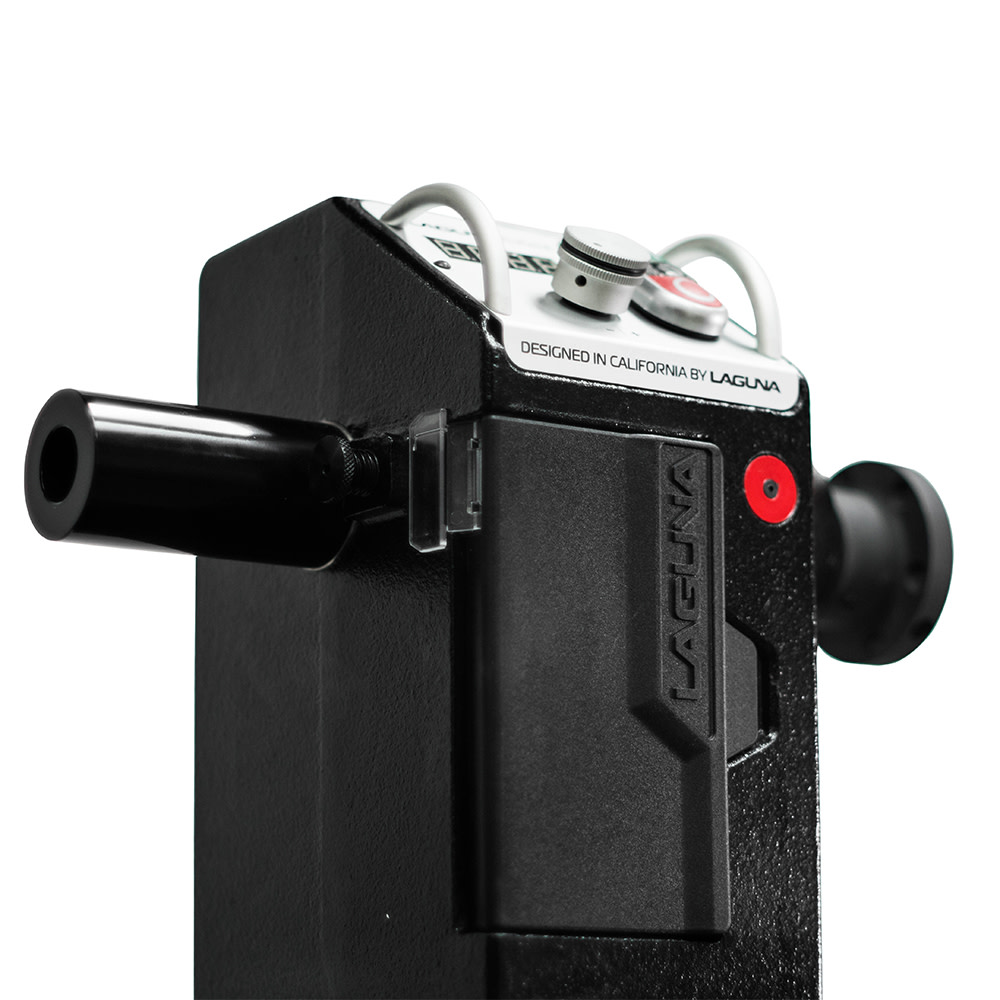

The definitive midi-lathe, Laguna’s REVO 12|16 encapsulates the prestige of Laguna in a small package. Featuring a Pulse Width Modulation system motor to maintain consistent torque at any speed, one step cam-action belt change with magnetic door housing, and a luxury banjo w/45º chamfered edge.
Features
1 HP DC permanent magnet motor

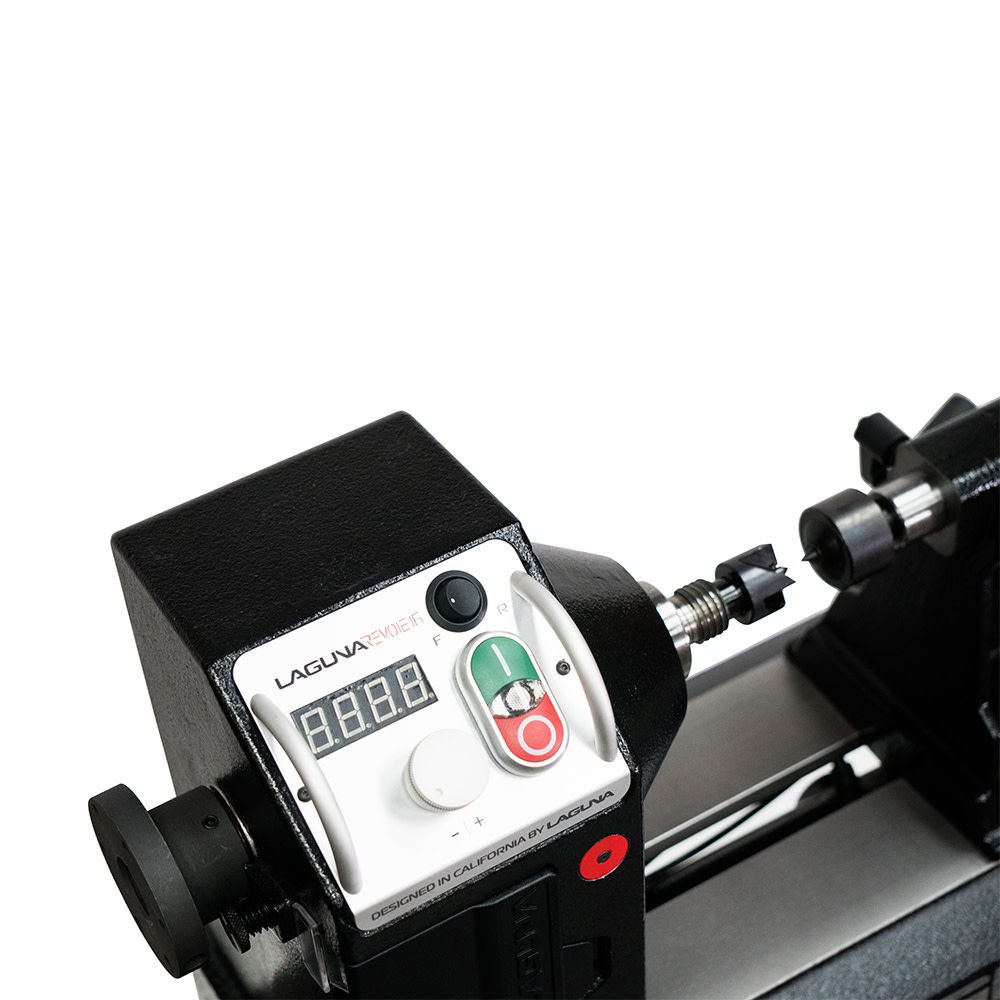

Pulse width modulation (PWM) controller
Drive belt Poly-V belt 6 grooves
Indexing 24 positions w/ lock

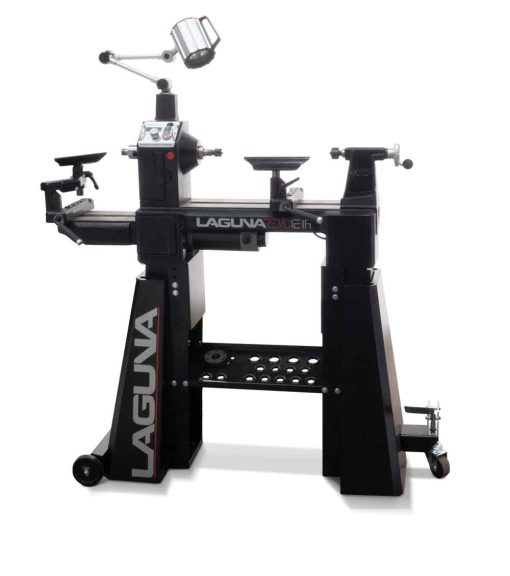

Stand and Light are optional accessories
Specifications
Acme Tools Brand Name
LAGUNA TOOLS
Acme Tools Part Number
MLAREVO1216EVS
Assembled Depth (in)
29.4
Assembled Height (in)
17.4
Assembled Weight (lbs)
118
Assembled Width (in)
8.9
Bed Length (in)
29.4
California Proposition 65 Warning Required
Yes
Center To Center (in)
15.5
Country of Origin
Taiwan
Height (in)
17.4
Horsepower (hp)
1
Lowest Operational Speed (rpm)
50
Maximum Speed (rpm)
3500
Package Contents
Lathe and Owner’s Manual
Package Depth
29.4
Package Height
17.4
Package Weight
125
Package Weight (lbs)
125
Stand Included
No
Variable Speed
Yes
Voltage
110
Work Light
No
