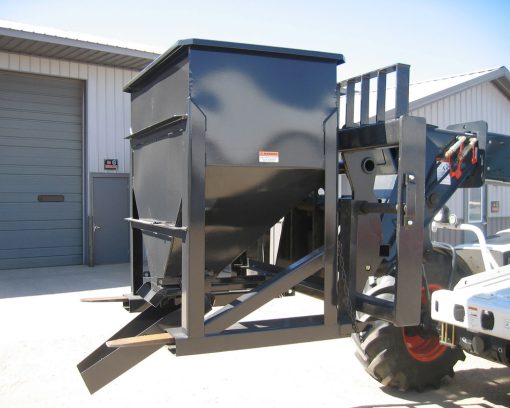

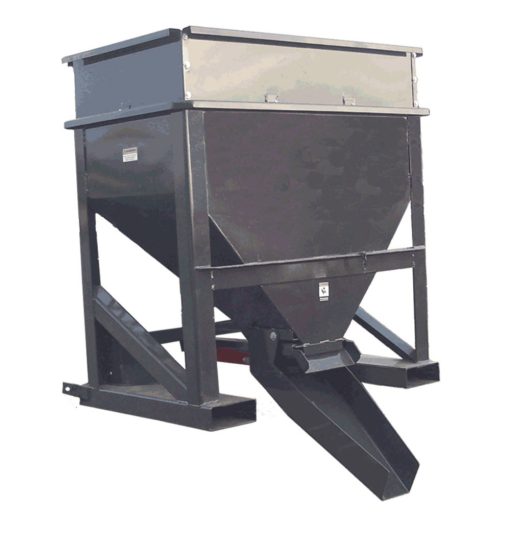

Marv Haugen Concrete Hopper with Fork Pockets
Haugen Concrete Hoppers for Telehandlers. This is a ¾” cubic yard concrete hopper that dispenses concrete out the bottom through a 10” x 8” door. This door is controlled by a manual lever that slides a door open. This allows to operator to control how much material is coming out. The unit can be upgraded to a hydraulic door in the field. The concrete is allowed to drop straight down or the chute can be lowered to project to material forward. It will fit Fork tines up to 2.75” x 7.5” . The unit is 52” wide and 44” deep. The concrete hopper is secured with safety pins.
Features
Fits most forklifts “Slips over your Pallet fork tines”
Chute Operation = Manual Door
3/4 Cubic Yard Capacity
The fork pockets are 42″ deep and will fit tines up to 2.50″ thick x 7.50″ wide
Specifications
Acme Tools Brand Name
MARV HAUGEN
Acme Tools Part Number
HCH-M75
Assembled Weight (lbs)
570
California Proposition 65 Warning Required
Yes
Country of Origin
United States
Package Contents
1 Marv Haugen Concrete Hopper with Fork Pockets
Package Depth
52
Package Height
60
Package Weight
620
