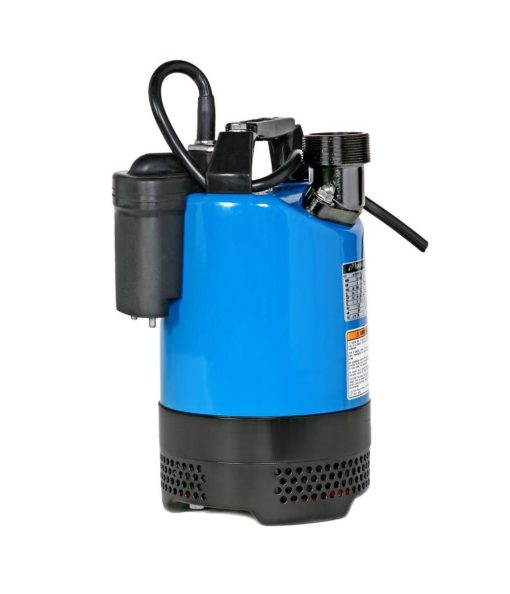

LB-800A Electric Submersible Pump
Tsurumi LB-800A Dewatering pump features the level sensor which incorporates low voltage, stainless steel probes, epoxy and rubber encapsulated timing relay, that turns the unit off when liquid is not present.
Features
Durable build with resin-molded, rubber-encased relay sensors
Urethane semi-vortex impeller and wear plates
Dual inside Mechanical Seal with SiC faces provides long life
Patented oil lifter provides lubrication of seal faces down to 1/3 of normal oil level to extend seal life by ten times
Specifications
Acme Tools Brand Name
TSURUMI
Acme Tools Part Number
LB-800A
Amperage (A)
10.5
Assembled Weight (lbs)
38
Battery Backup
No
California Proposition 65 Warning Required
No
Cord Length (ft)
32.0
Cordless / Corded
Corded
Country of Origin
Japan
Floatable
No
Gallons Per Hour (gal)
4920.0
Height (in)
13.438
Horsepower (hp)
1.0
Housing Material
Aluminum Die Casting
Impeller Material
Urethane Rubber
Inlet Size (in)
0.23
Internal Supplier Part #
LB-800A
Internet Product Code (IPC)
4F8541DA264
Length (in)
7.5625
Manufacturer Warranty
2 Year
Maximum Pumping Height (Ft.)
59
On / Off Points
N/A
Outlet Dimension (in)
3.0
Outlet Size (in)
2
Package Depth
16.5
Package Height
9
Package Weight
40
Package Weight (lbs)
40
Pump Category
Sump
Pump Construction
Cast Aluminum
Pump Switch Type
Specialty
Shut Off PSI
25
Submersible
Yes
Sump Type
Submersible
Switch Type
Specialty
Voltage
115
Voltage (V)
115.0
Water Flow
N/A
Width (in)
8.75
