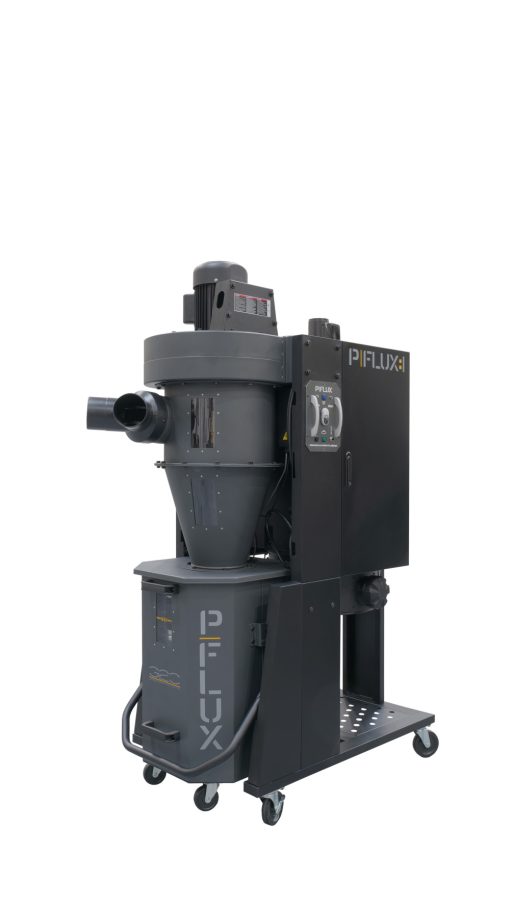

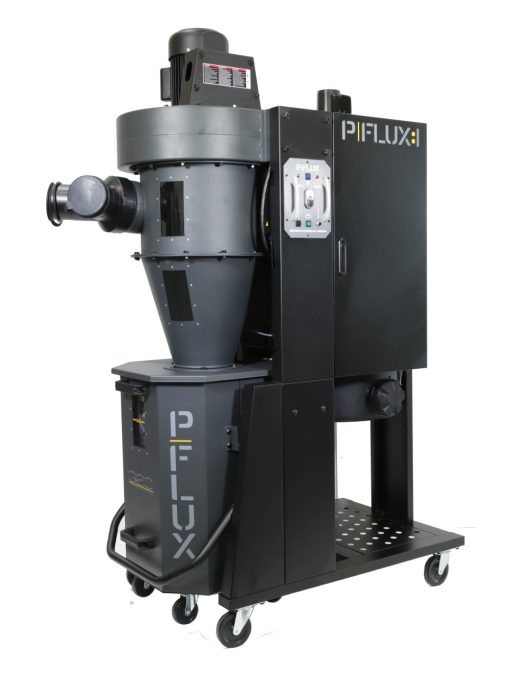

Laguna P|Flux:1 Dust Collector 1.5HP 110/220V 60Hz

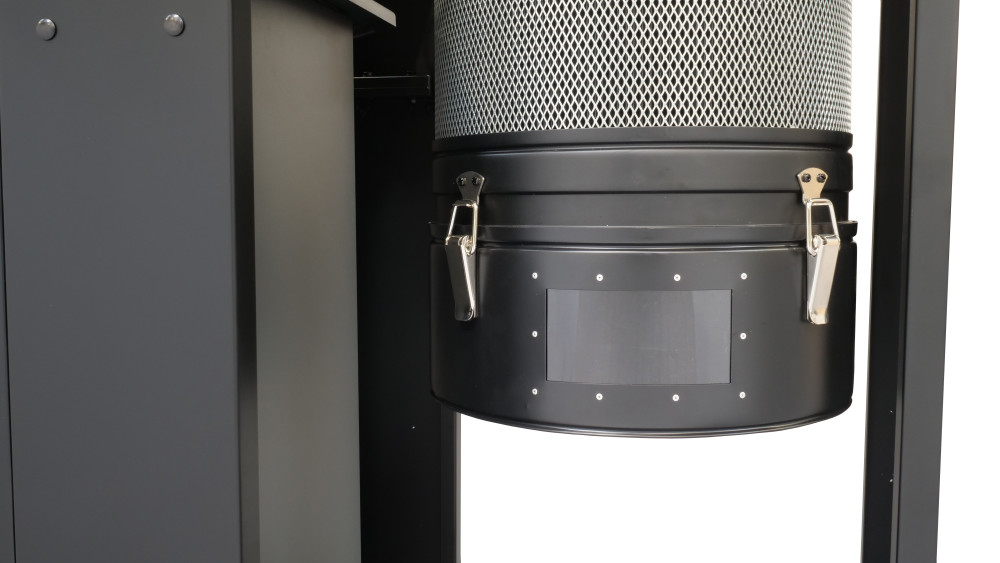

The P|Flux series gets a host of exciting new upgrades including an auto-cleaning feature standard on all models in this line. The auto-clean conveniently activates every 10 minutes, or you can simply activate from the sleek redesigned remote. Overfilling the drum is a thing of the past, thanks to the super-sized 46 gallon octagonal drum (P|Flux 2 and 3), and a bright LED light illuminating the drum on all P|Flux models. Plus, LED and audio warning lets you know when the drum is full – features that are now standard in this line.
Features
Motor 1.5 HP, phase 1, voltage 110/220v 60Hz
Amps 18.8 A, hertz 60, plug no
RPM 3450, high frequency hand held remote control

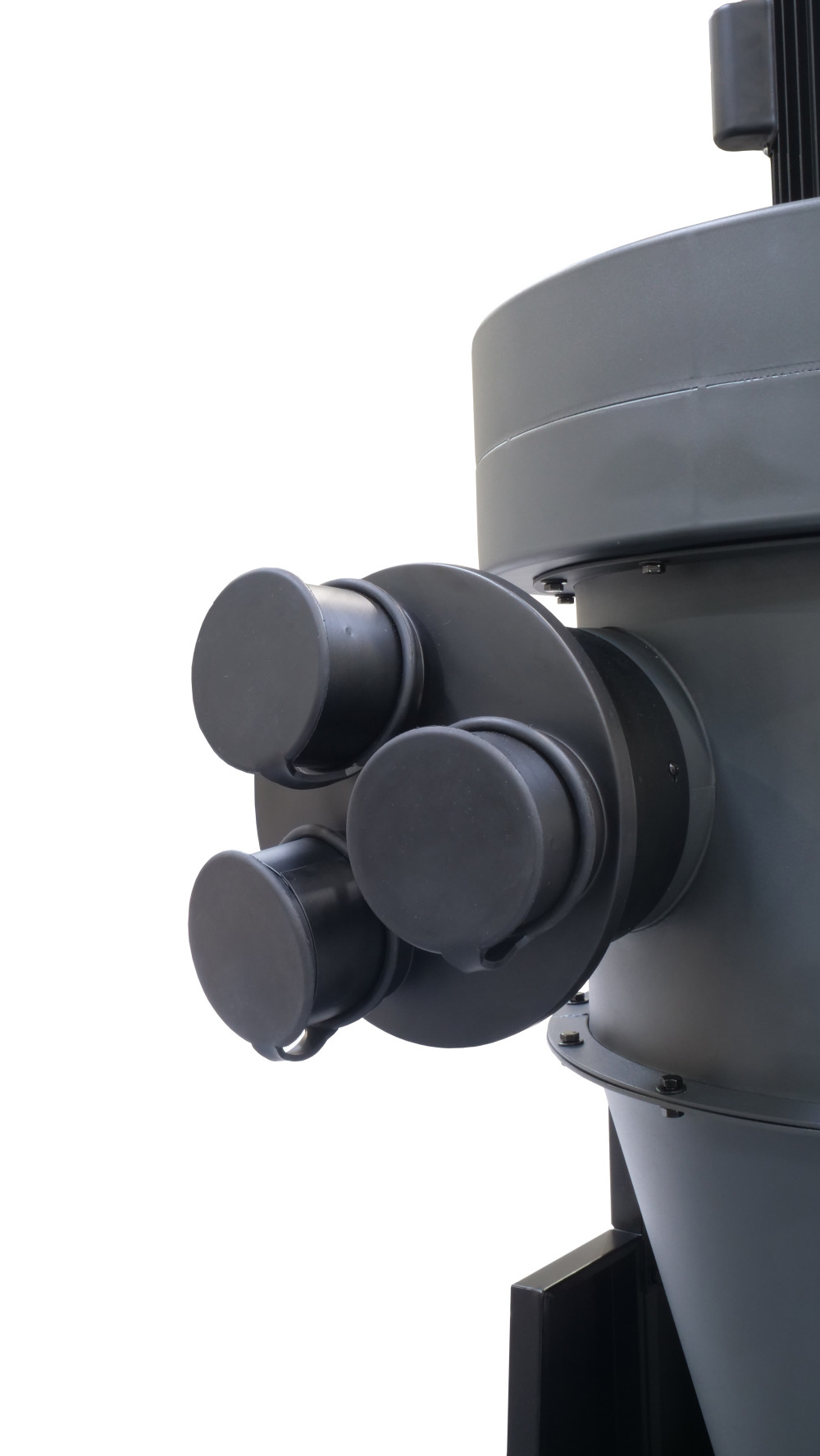

Nominal CFM 1314, inlet diameters 16″ manifold 4 In. (2)
Control panel embedded anodized aluminum w. magnetic on/off
Max static pressure (inches of water) 10.1″
Impeller/fan size 13.5″
Impeller material steel
Impeller type radial fin
Specifications
Acme Tools Brand Name
LAGUNA TOOLS
Acme Tools Part Number
MDCPF15110
Assembled Weight (lbs)
232
California Proposition 65 Warning Required
Yes
Country of Origin
Taiwan
Manufacturer Warranty
1 Year Manufacturers Warranty
Package Depth
45
Package Height
47
Package Weight
287
Package Weight (lbs)
287
Shipping Weight (lbs)
287
