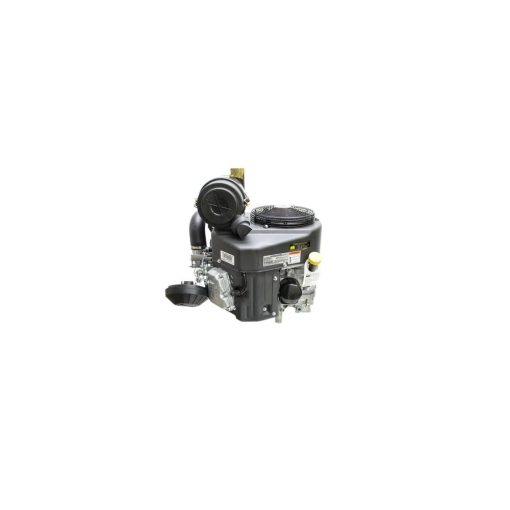

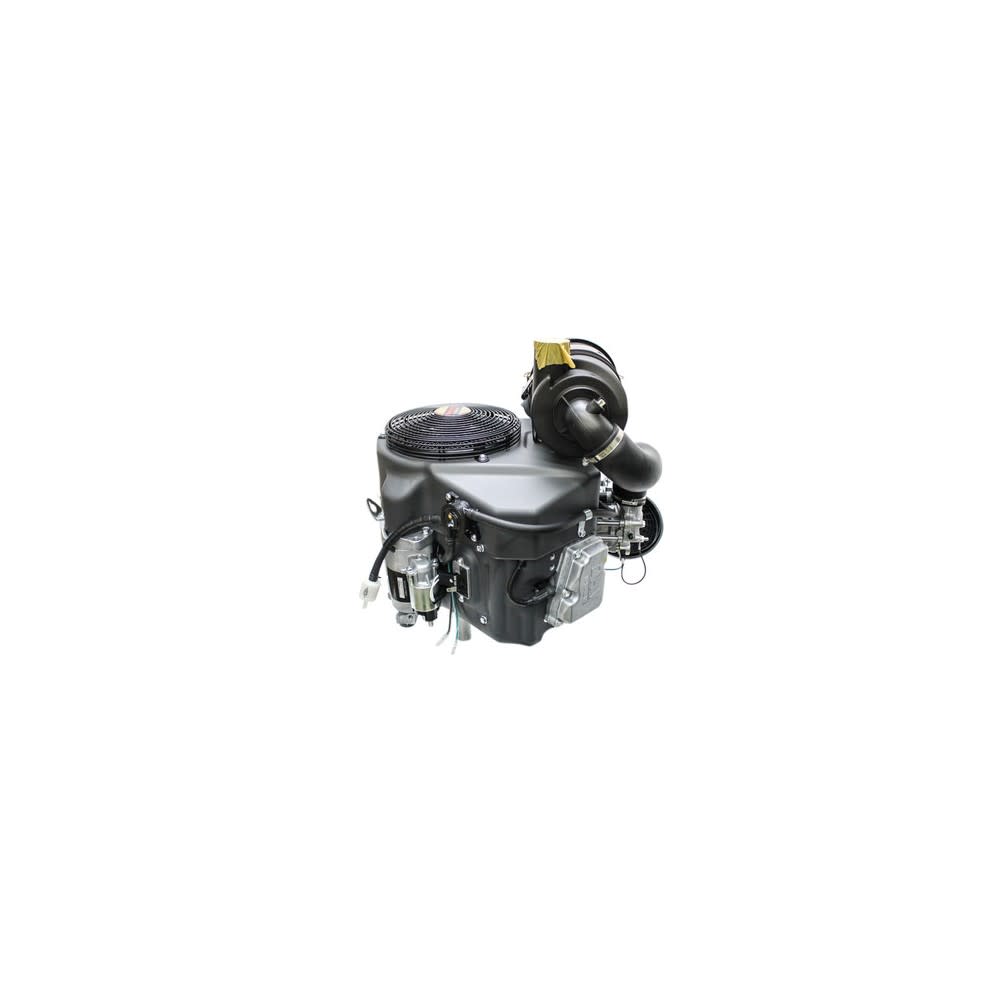

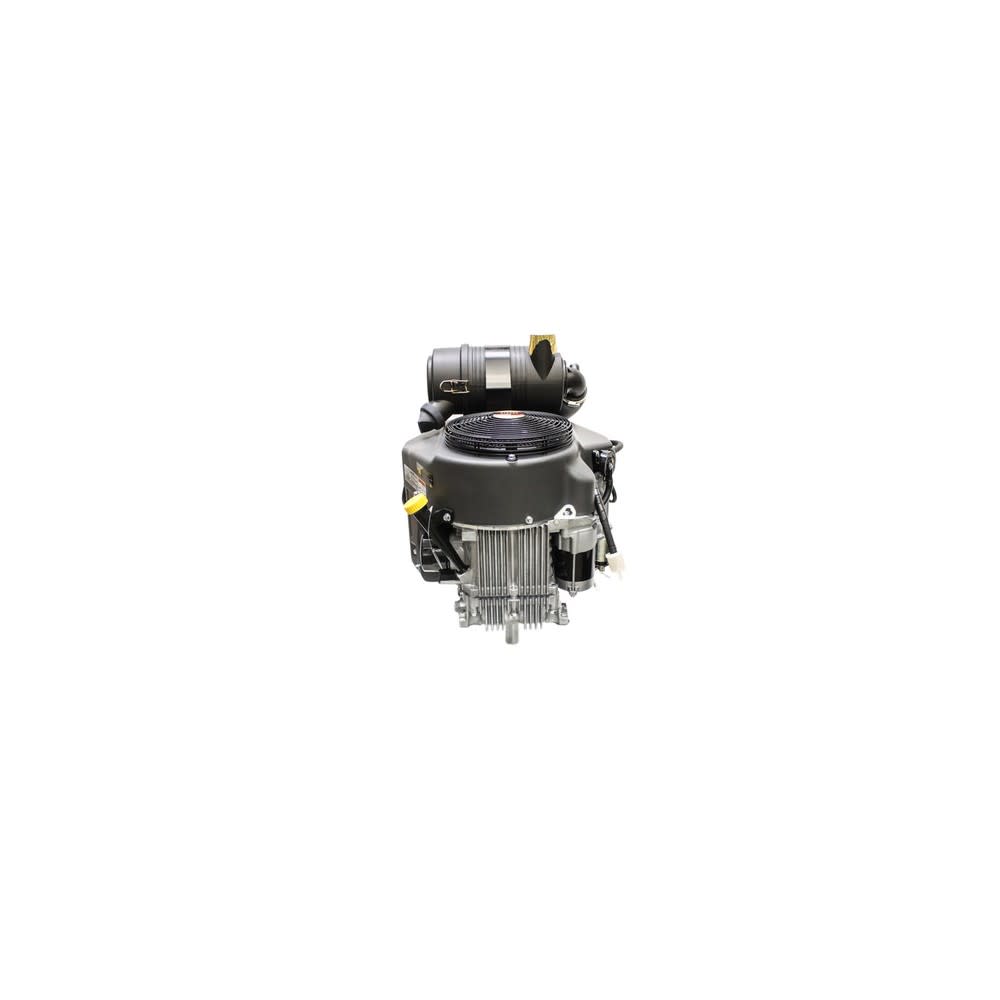

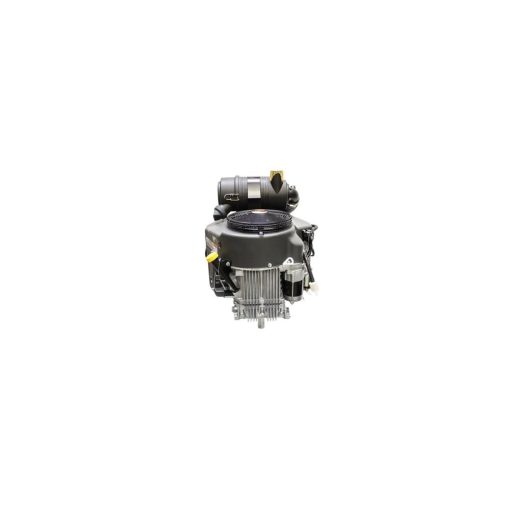

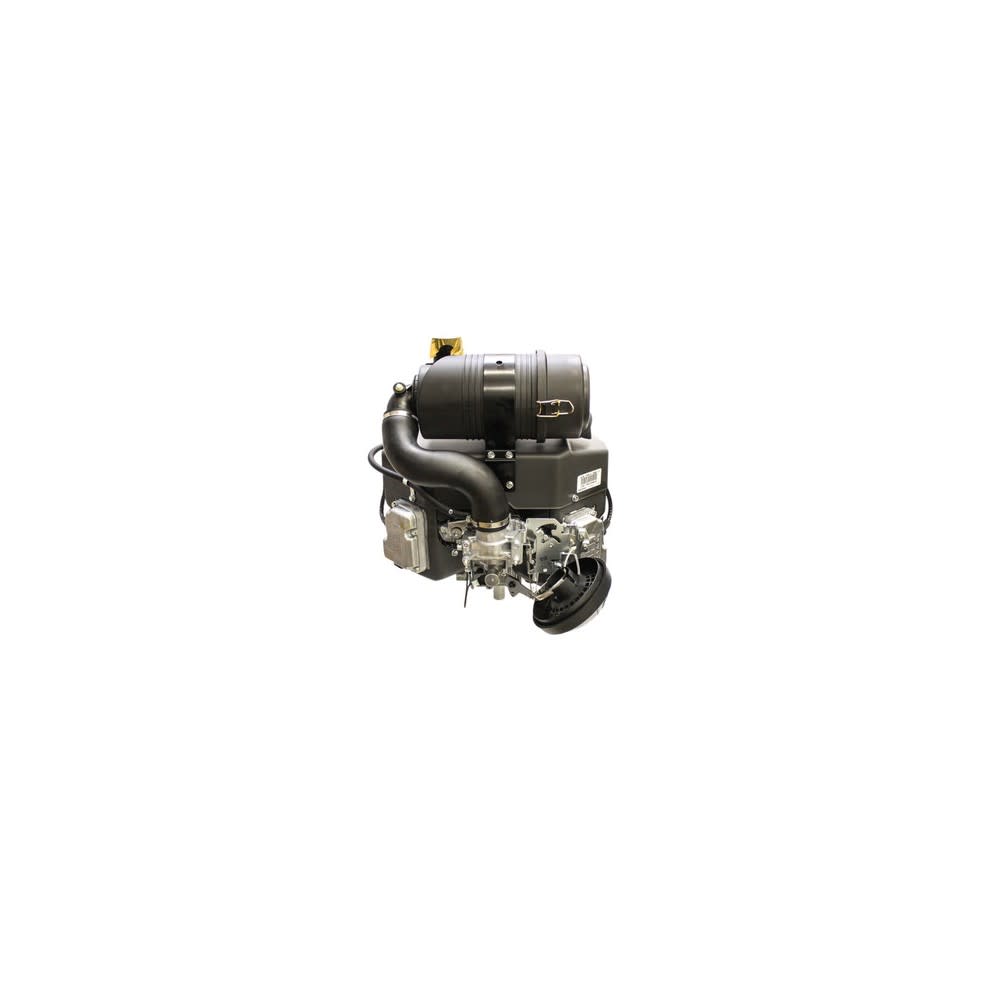

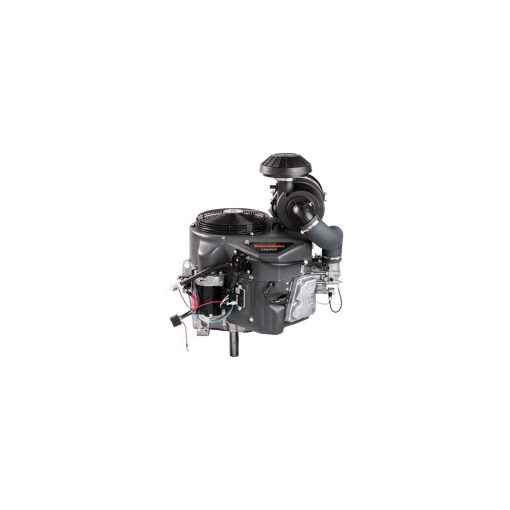

Kawasaki Gasoline Engine Air Cooled V Twin 4 Stroke 22hp 726cc
Major power and commercial-grade strength are on tap from the Kawasaki FX series engines. When you’re looking for power for your mower or heavy duty industrial and construction equipment, you’ll find it here. All FX engines are Critical Power SAE-certified, compact, 90 Deg V-twin engines. Every one features hemispherical combustion chambers and overhead V-valve technology that helps ensure low emissions, high power, and smooth operation. The FX691V engine takes on the toughest jobs with Kawasaki-engineered power. This forced air-cooled V-twin engine features an internally vented carburetor with fuel shut-off solenoid and heavy duty canister air filter.
Features
Overhead V-valves
90 Deg V-twin
Pressurized lubrication system
Electronic spark ignition
Automatic compression release
Multi-Stage canister air filter
Twin barrel, internally vented carburetor with fuel shut-off solenoid
Rotating grass screen
Cast-iron cylinder liners
Specifications
Acme Tools Brand Name
KAWASAKI ENGINES
Acme Tools Part Number
FX691V-ES14S
Assembled Weight (lbs)
101.41
Camshaft Configuration
OHV
Color
Multiple
Color/Finish
Multi
Country of Origin
United States
Cylinder Count
2
Dry Weight (lbs)
101.4
Engine Block Material
Cast Iron
Engine Bore (mm)
78
Engine Compression Ratio
8.2:1
Engine Configuration
V-Twin
Engine Cooling System
Air Cooled
Engine Cycle
4-Stroke
Engine Displacement (cc)
726
Engine Fuel Type
Gasoline
Engine Horsepower (hp)
22
Engine Output Shaft Direction
Vertical Shaft
Engine Stroke (mm)
76
Engine Torque (ft-lbs)
39.3
Ignition System
Electronic
Oil Capacity (qt)
2.2
Package Contents
Replacement Engine
Package Depth
18.85
Package Height
22.41
Package Weight
101.41
Starting System
Shift Type
Type of Lubrication System
Full Pressure
