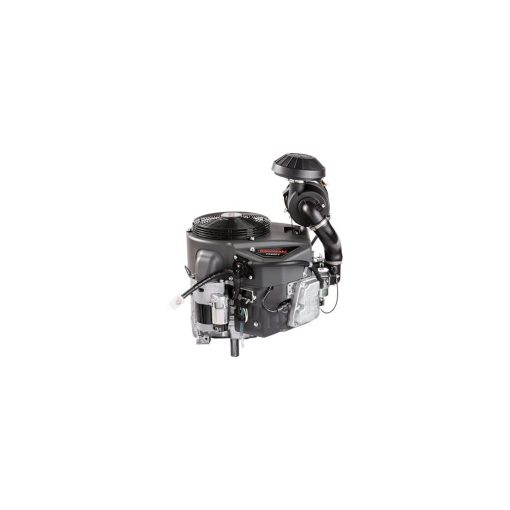

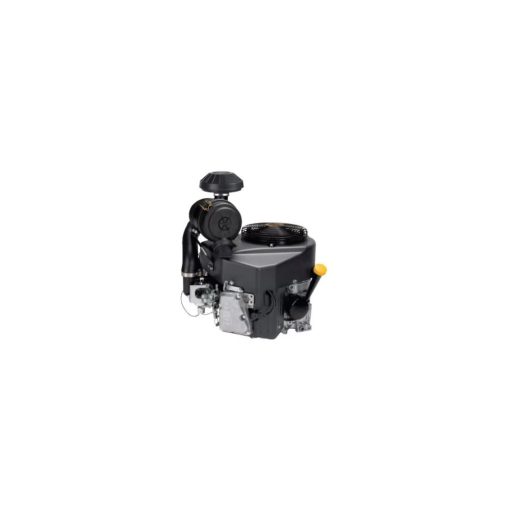

Kawasaki Gasoline Engine Air Cooled V Twin 4 Stroke 19hp 603cc
Major power and commercial-grade strength are on tap from the Kawasaki FX series engines. When you’re looking for power for your mower or heavy duty industrial and construction equipment, you’ll find it here. All FX engines are critical power SAE-Certified, compact, 90 Deg V-twin engines. Every one features hemispherical combustion chambers and overhead V-valve technology that helps ensure low emissions, high power, and smooth operation. The FX600V engine is built to handle the toughest jobs you’ve got. This count-on-it reliable 4-cycle engine features a metal engine cover and a heavy duty shift-type starter.
Features
Overhead V-valves
90 Deg V-twin
Pressurized lubrication system
Electronic spark ignition
Automatic compression release
Multi-Stage canister air filter
Internally vented carburetor with fuel shut-off solenoid
Rotating grass chopper screen
Cast-iron cylinder liners
Specifications
Acme Tools Brand Name
KAWASAKI ENGINES
Acme Tools Part Number
FX600V-FS02S
Assembled Weight (lbs)
89.72
Camshaft Configuration
OHV
Color
Multiple
Color/Finish
Multi
Country of Origin
United States
Cylinder Count
2
Dry Weight (lbs)
89.7
Engine Block Material
Cast Iron
Engine Bore (mm)
73
Engine Compression Ratio
8.1:1
Engine Configuration
V-Twin
Engine Cooling System
Air Cooled
Engine Cycle
4-Stroke
Engine Displacement (cc)
603
Engine Fuel Type
Gasoline
Engine Horsepower (hp)
19
Engine Output Shaft Direction
Vertical Shaft
Engine Stroke (mm)
72
Engine Torque (ft-lbs)
32.5
Ignition System
Electronic
Oil Capacity (qt)
1.8
Package Contents
Replacement Engine
Package Depth
18.42
Package Height
21.41
Package Weight
89.72
Starting System
Shift Type
Type of Lubrication System
Full Pressure
