K30 2-Stage Compressor Pump with Flywheel

$114.66

1000 in stock

SKU: 662865009576 Category:

Description

Description

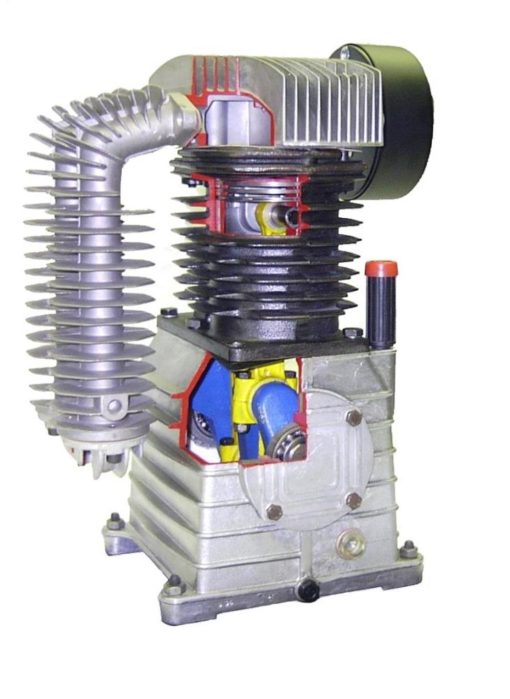

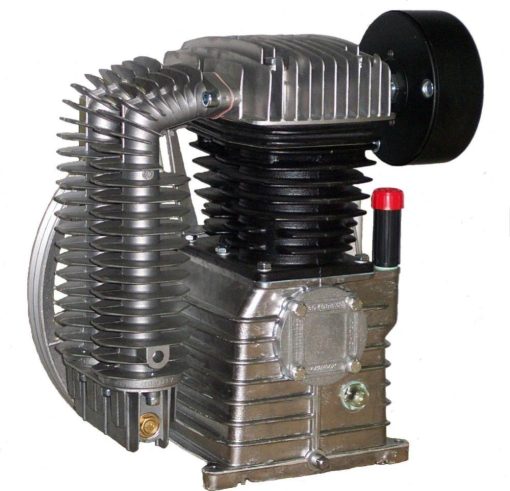

K30 2-Stage Compressor Pump with Flywheel

The Rolair K30 2-Stage Compressor Pump with Flywheel is an excellent choice for saving yourself the trouble of manually rebuilding your old compressor. It is a whole pump assembly that comes with a flywheel, cast iron cylinders, oil drain extension, after-cooler and intake filter assembly. The cast aluminum crankcase and head of the replacement compressor pump extend lifespan by running at a lower temperature. It has an oil capacity of 47 ounces and runs at 1100 RPM for greater efficiency and less wear and tear. With a footprint of 8.97 x 7.48 inches, the flywheel has a 15.16-inch diameter, and the stroke measures 3.31 inches for space saving power. The Rolair compressor pump is a direct replacement for models 5230K30CS, V5312K30, H5312K30, H75160K30, V75180K30, V5112K30, H5112K30, V5360K30, V5180K30, H5180K30, H5360K30, V5380K30, H5380K30, H75180K30, V75112K30, H75112K30, H75360K30, V75380K30, V75312K30, 8422HK30, 8230HK30, V5160K30, H5160K30, 13GR30HK30. It also fits other OEM models. It has a maximum pressure of 200 psi, making it perfect for many different projects.



View Warning Label

Features


Two cylinder compressor pump assembly is designed as a total pump replacement

Complete with cast iron cylinders, flywheel, after-cooler, oil drain extension and intake filter assembly

47-ounce oil capacity

Rolair compressor pump operates at 1100 RPM

Footprint: 8.97 x 7.48 inches

Flywheel diameter: 15.16 inches

Stroke: 3.31 inches

Maximum of 200 psi

Cast aluminum crankcase and head lower operating temperature

Rolair two stage compressor pump comes with 30-day warranty if installed by certified Rolair service center and used as intended

Specifications

Acme Tools Brand Name
ROLAIR
Acme Tools Part Number
PMP22K30CH
Air Compressor Pump Design
Oil Lubricated
Assembled Weight (lbs)
83.8
Bore Diameter (in)
0.0
California Proposition 65 Warning Required
Yes
Cordless / Corded
Corded
Country of Origin
Italy
Dry Weight (lbs)
83.8
Height (in)
18.7
Horsepower (hp)
5.0, 7.5 (Electric) & 8.0, 9.0, 11.0, 13.0 (Gas)
Internal Supplier Part #
PMP22K30CH
Internet Product Code (IPC)
8B889D0C018
Manufacturer Warranty
30 Days on replacement pumps if installed by certified ROLAIR service center and used as intended
Material
Cast Iron & Cast Aluminum
Maximum Pressure Rating (psi)
200
Maximum PSI
200.0
Package Weight
95.0
Package Weight (lbs)
95
Pump Construction
Cast Iron & Cast Aluminum
Pump Switch Type
Switchless
RPM
1100.0
Shut Off PSI
175.0
Stroke (in)
3.31
Switch Type
Switchless
