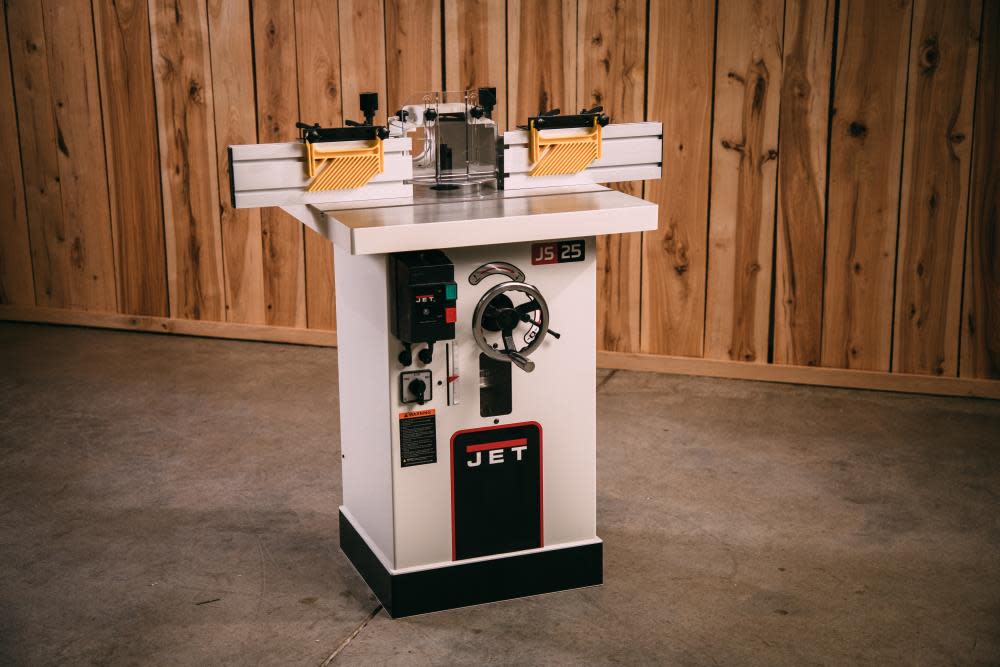

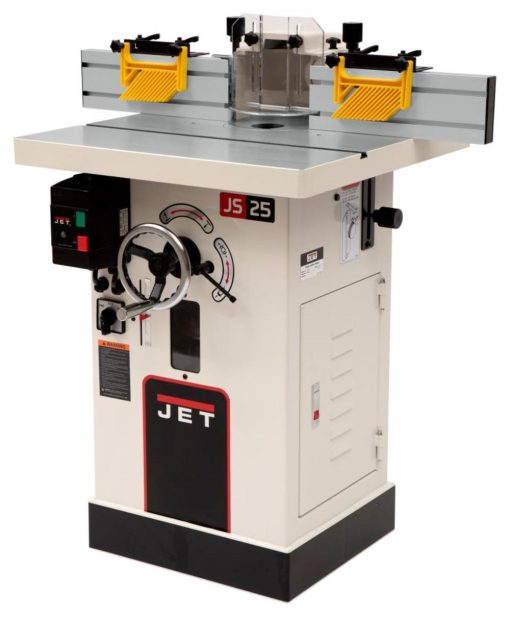

JWS-25X, Shaper, 3HP, 1PH
The JWS-25X, JET® Shaper, 3HP, 1Ph, helps finish your cabinet doors, trim or other woodworking projects. This 3 hp shaper’s powerful motor can run the spindle at up to 10,000 rpm for making cuts in hard material. This model has a variable-speed design that allows you to work at the specified rpm of the cutter being used. The Jet JWS-25X shaper’s left and right fences are easy to adjust separately to accommodate pieces of various shapes and sizes. Its table inserts keep particles out of the inner workings to extend the machine’s operational lifespan. The 4-inch dust port directs sawdust away from your eyes and face so you can work with greater comfort and increased safety
Features

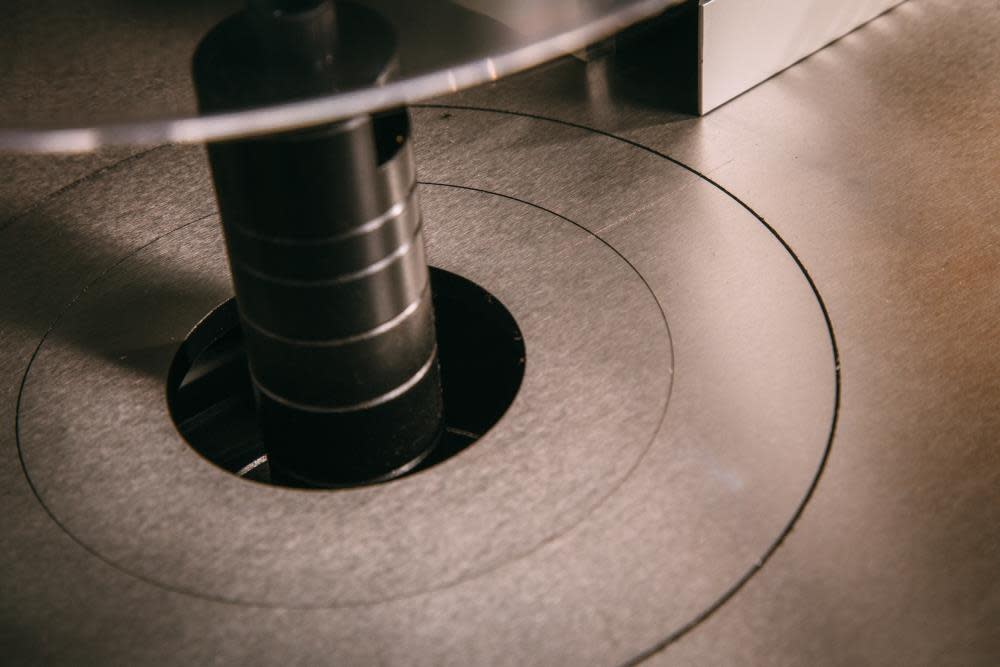

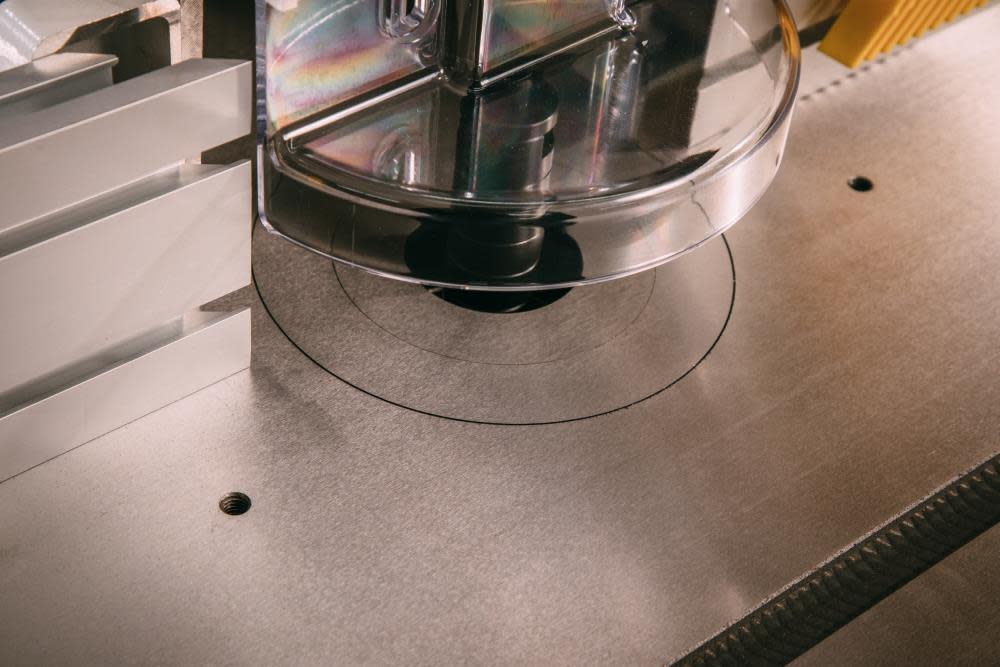

Jet JWS-25X shaper comes with 2 table inserts
Creates intricate cuts inside of wood pieces
3 hp motor delivers a maximum speed of 10,000 rpm
Jet shaper’s variable-speed design provides control and greater comfort

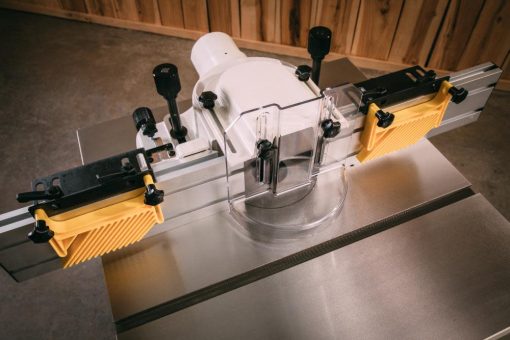

Fences on either side adjust separately for working with various shapes
3 hp shaper has inserts to keep sawdust out of the motor

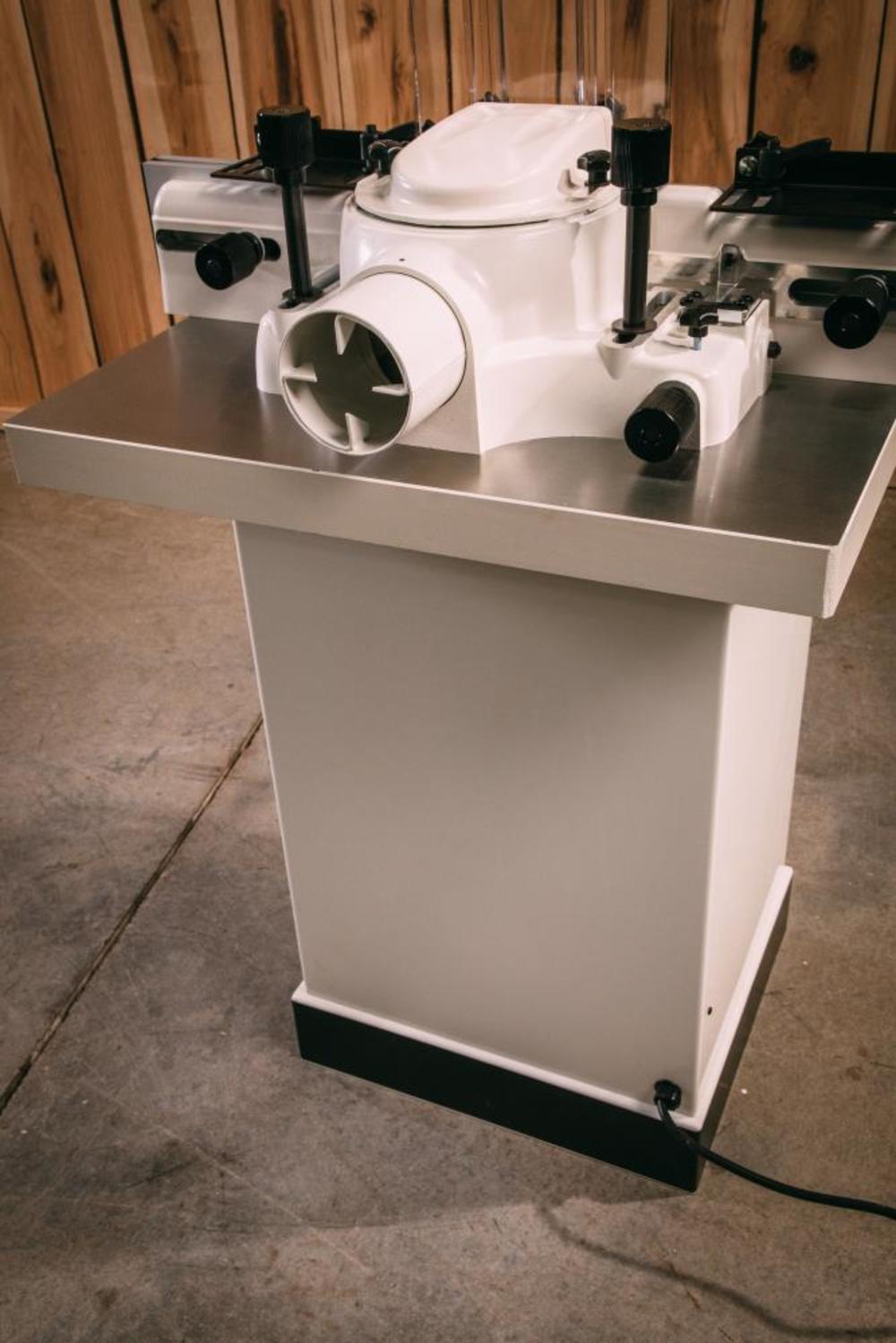

4-inch dust port keeps particles away from your face and eyes
JET Red Assurance 5-year warranty
Specifications
Acme Tools Brand Name
JET
Acme Tools Part Number
708309
Amperage (A)
16
Assembled Weight (lbs)
331
California Proposition 65 Warning Required
Yes
Color / Finish
See Photo
Country of Origin
Taiwan
CSA Certified
No
Dust Collection
Yes
Dust Port
Yes
Dust Port Outside Diameter (in)
4
ETL Listed
No
Fence Type
Adjustable
Horsepower (hp)
3
Internal Supplier Part #
708309
Internet Product Code (IPC)
D3C7F9BDFB5
Manufacturer Warranty
2 Year
Package Depth
43
Package Height
23
Package Weight
381
Package Weight (lbs)
381
Spindle Speed High (rpm)
10000
Spindle Speed Low (rpm)
7500
Stand Included
Yes
Switch Type
Push Button
Table Height From Floor (In)
33
Table Length (in)
25
Table Material
Cast Iron
Table Width (in)
25.5
UL Listed
No
Variable Speed
No
Voltage
220 Volts
Wheeled
No
