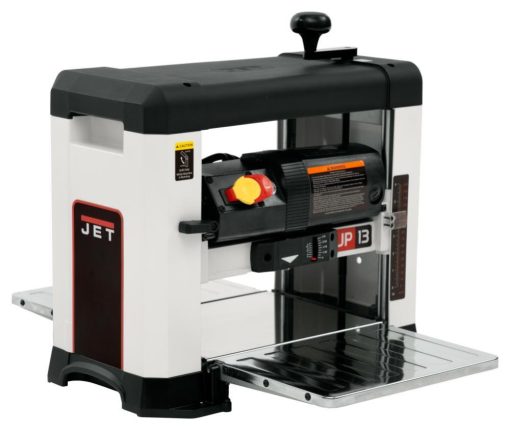

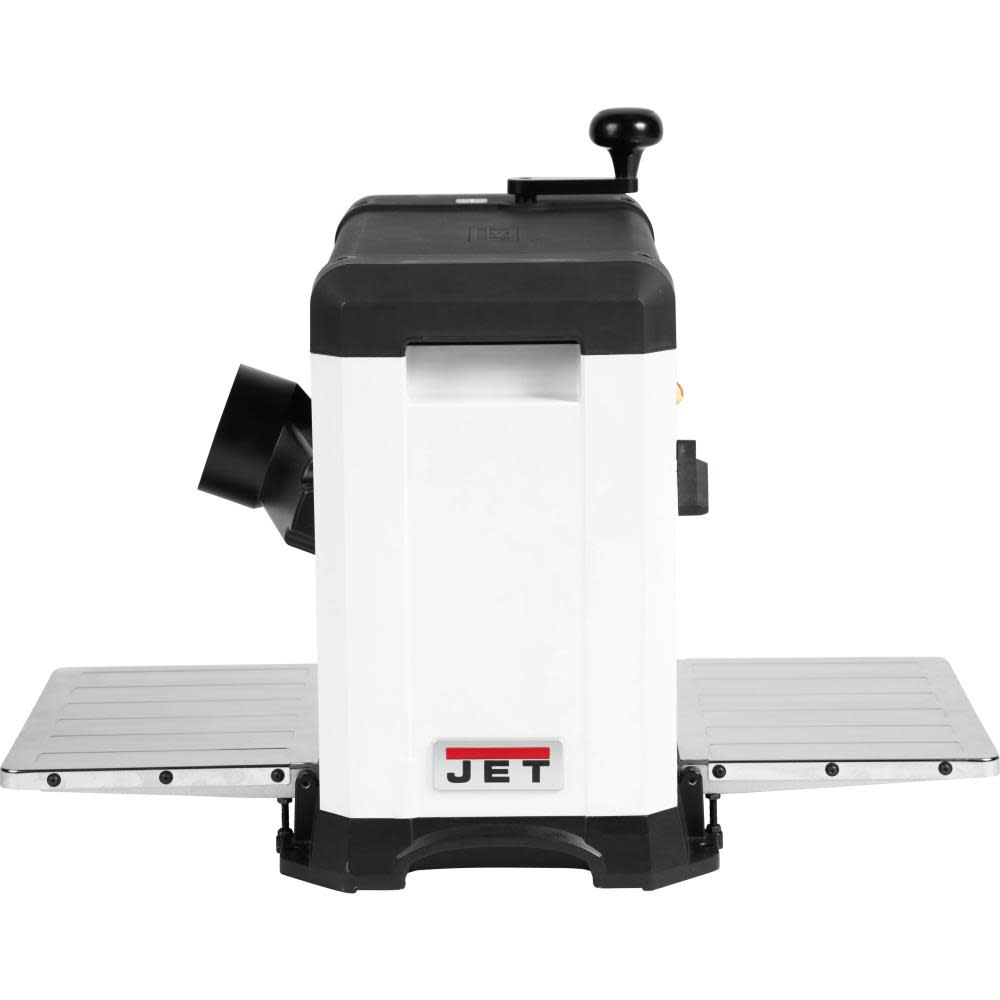

JWP-13BT 13In Benchtop Planer 110V

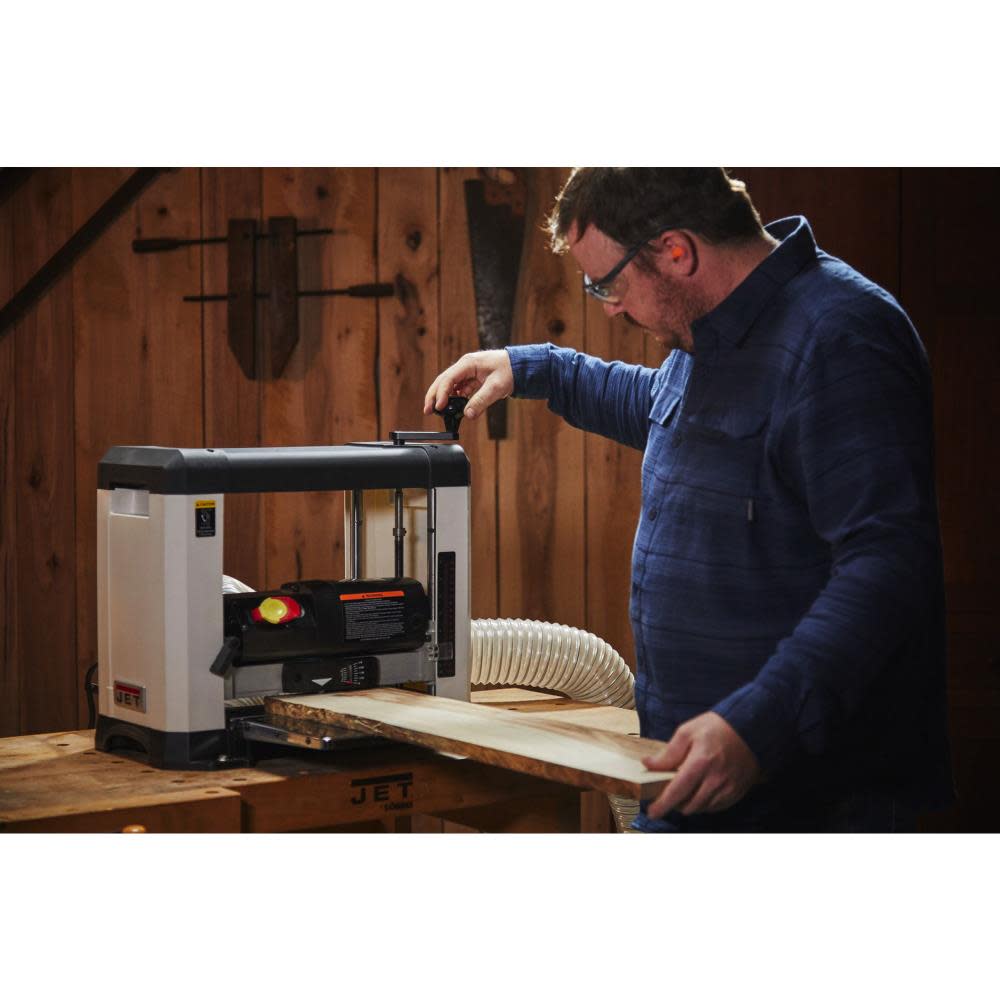

The Jet 13 In. bench top planer delivers the power and efficiency that woodworkers demand in the shop. The Jet 13 In. Planer produces a smooth and consistent cut surface thanks to its helical style cutter head with 6 rows of 24 individual quick change inserts which can be easily rotated or replaced if damaged or worn. This segmented cutter head design helps reduce noise as its 2 HP motor is turning at an impressive 10,000 RPM. Features include a rugged 4 post design, adjustable folding tables, 2 Infeed speeds and a sturdy cast iron base which helps reduce snipe.
Features
Helical style cutter head with 6 rows of 24 individual quick change inserts, provides a clean and smooth cut with easy to change blades

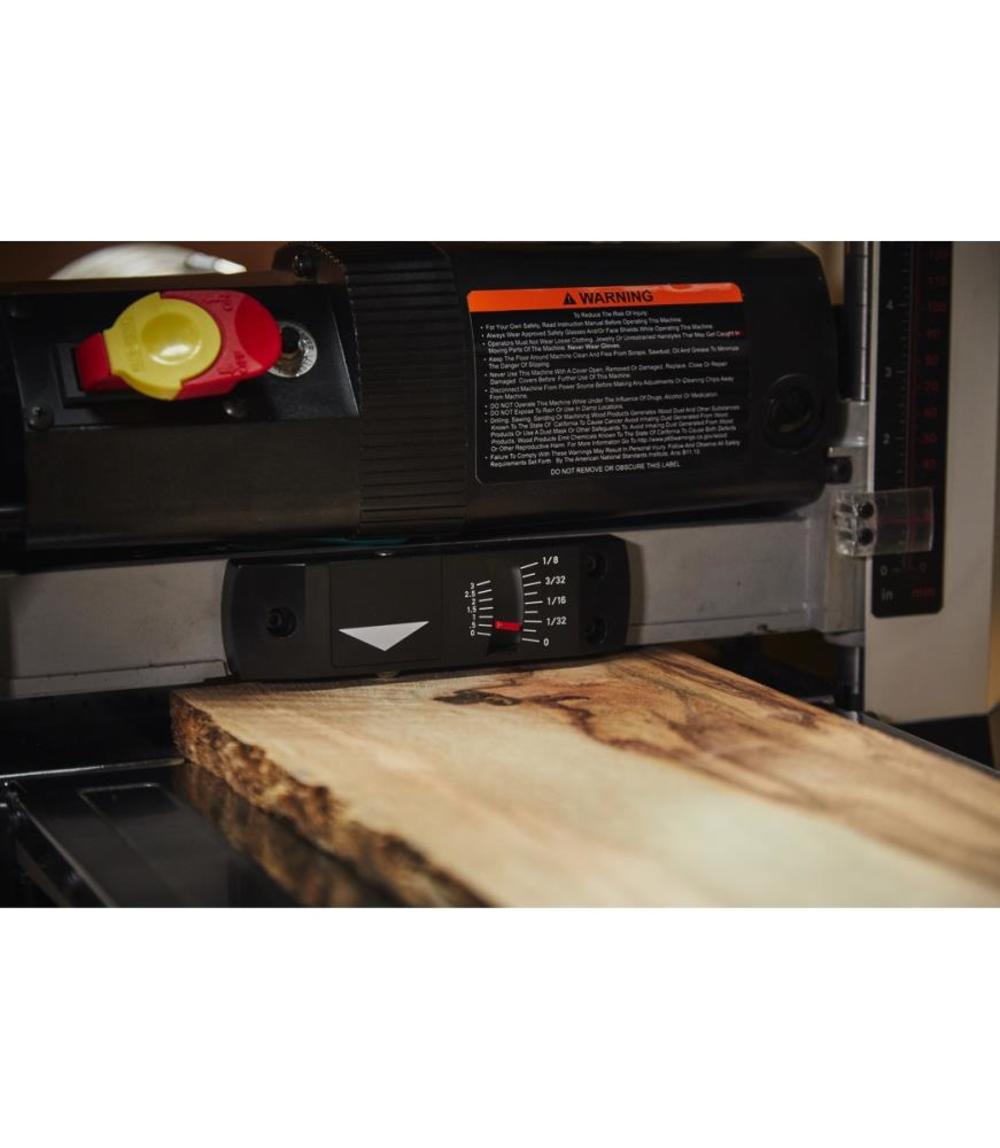

Precision machined cast iron bed and steel cover assists in keeping boards flat and reduces snipe
Four post design for maximum control and support of cutter head in reference to work piece and cast table
Powerful 2HP 15 Amp motor turns the cutter head at 10,000 RPM
Dual Infeed speed control for 18 FPM or 26 FPM, maximizes cut efficiency on different wood material types
Maximum depth of cut 1/8-in depth and 13-in capacity
Adjustable folding Infeed/outfeed tables for leveling to bed and saves shop space when stored

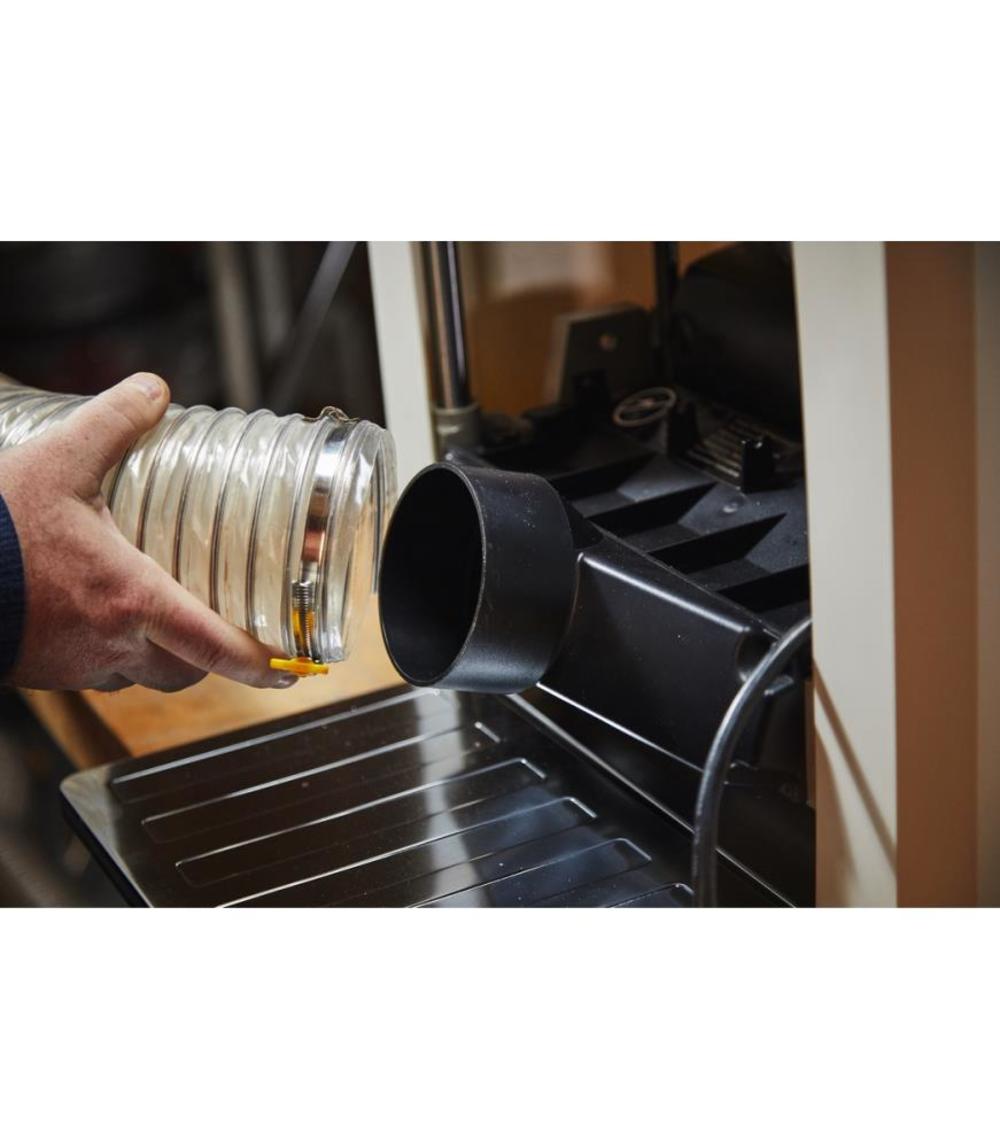

Dust port hooks up to dust management system and helps keep shop clean

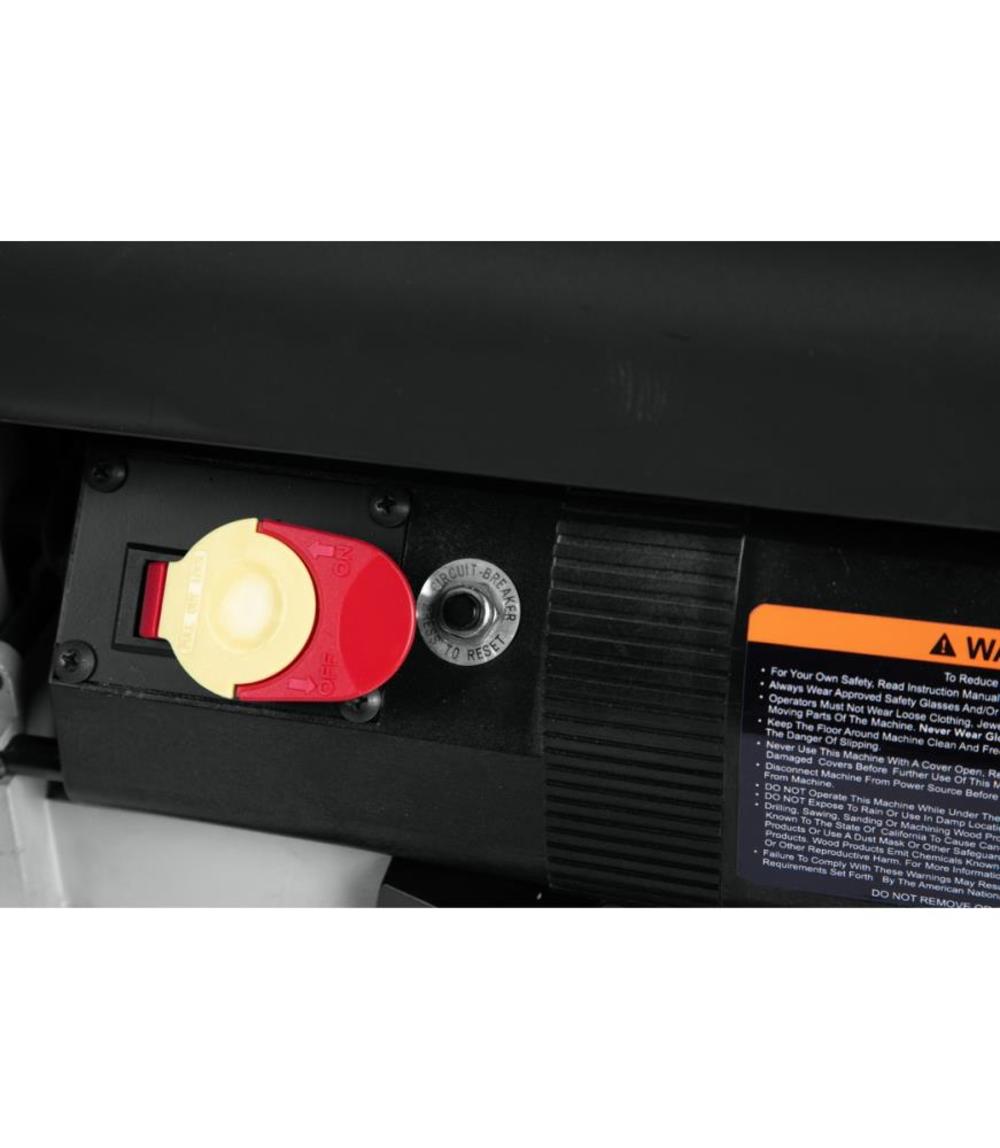

Toggle switch with removable safety key
Specifications
Acme Tools Brand Name
JET
Acme Tools Part Number
722130
Amperage (A)
15
Assembled Weight (lbs)
74.8
Bench or Stationary
Bench
Blade Count
26
Blade Type
Two Edged, Helical Head Style Inserts
California Proposition 65 Warning Required
Yes
Color / Finish
White/Cast Iron
Cord Length (ft)
6.5
Cordless / Corded
Corded
Country of Origin
Taiwan
CSA Certified
Yes
Cuts Per Minute
20000
Cutter Head Type
Spiral
ETL Listed
No
Feed Rate/s (Ft/Min)
18 – 26
Height (in)
19
Housing Material
Steel
Internal Supplier Part #
722130
Internet Product Code (IPC)
620F802408E
Length (in)
28
Manufacturer Warranty
3 Year
Maximum Board Thickness (in)
6
Maximum Cutting Depth (in)
0.125
Maximum RPM
10000
Maximum Width Cutting Capacity (in)
13
Motor Horsepower (hp)
Universal Motor
Overall Weight (lbs)
74.8
Package Contents

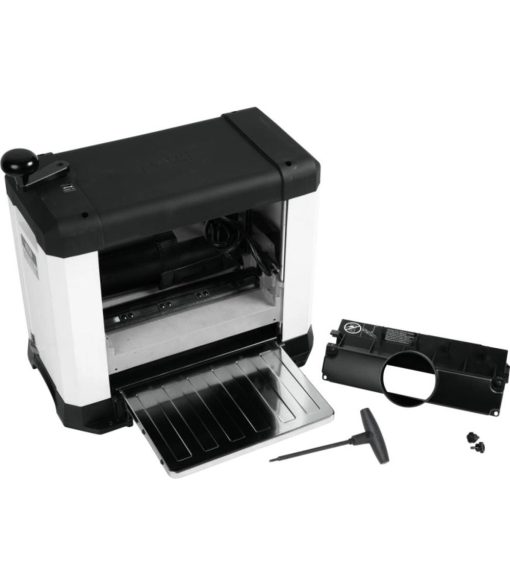

1 Planer, 1 Crank handle, 1 Socket head cap screw M5x25,1 Dust hood, 1 T-handle hex wrench, 3mm, 1 Operating Instructions & Parts Manual, 1 Product registration card
Package Depth
23
Package Height
20.5
Package Weight
81.7
Package Weight (lbs)
81.7
Reversible
Yes
Switch Type
Toggle
UL Listed
Yes
Variable Speed
No
Voltage
120 Volts
Width (in)
22
