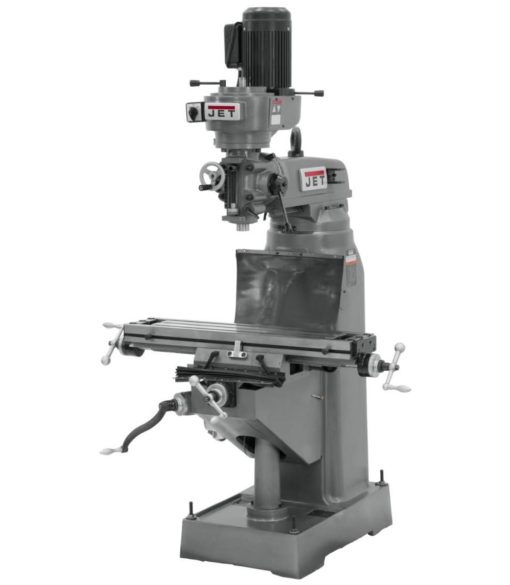

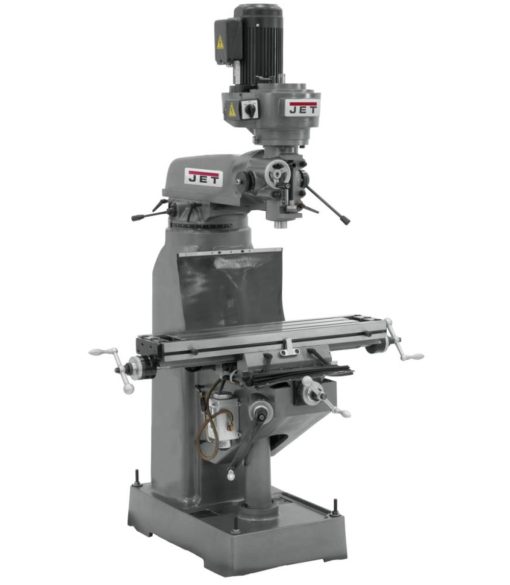

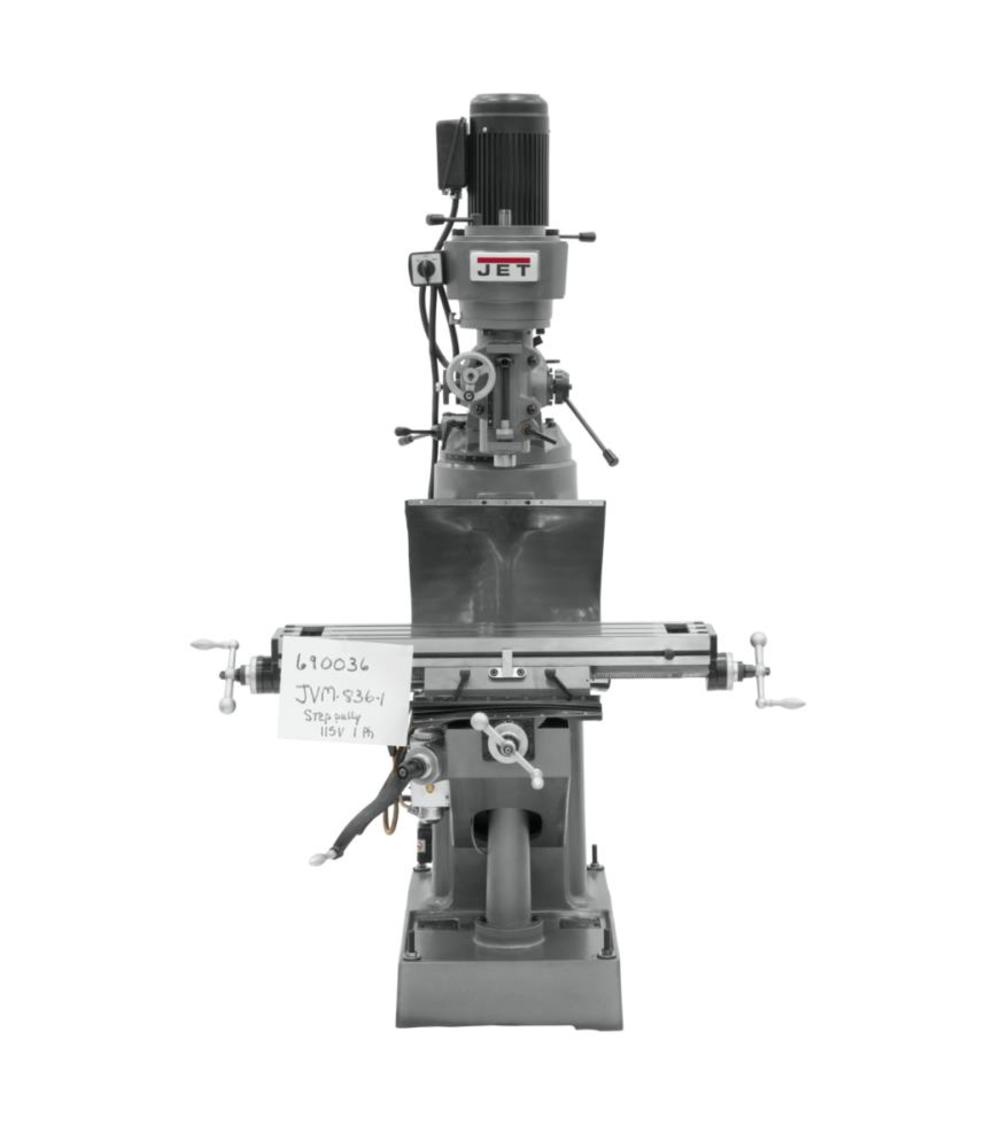

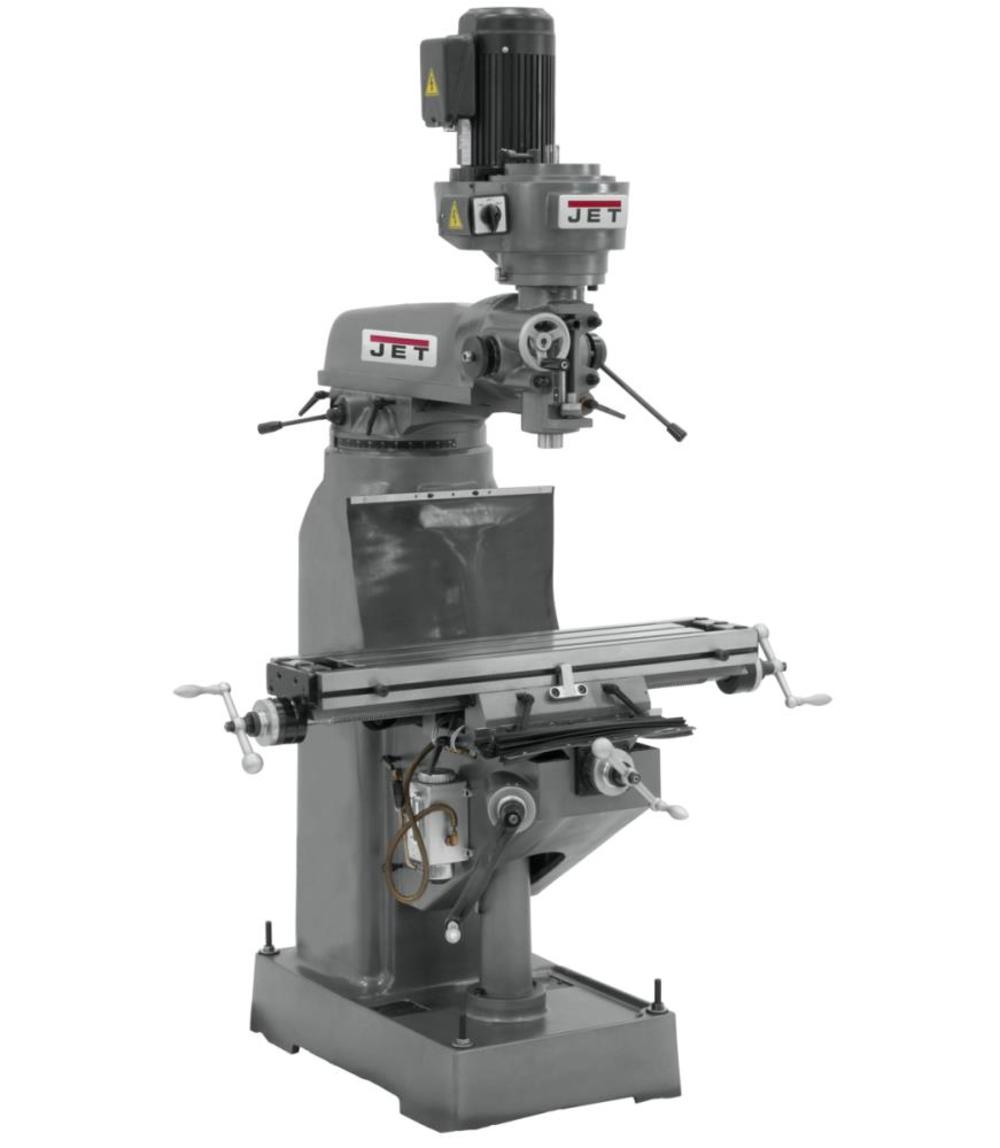

JVM-836-1 Step Pulley Milling Machine 115V 1PH
JET® milling machines and components provide consistent quality and performance year after year. Precision-built and designed to last, the complete line of JET® step pulley, variable speed and CNC mills allows your shop greater flexibility to meet the needs of any job. Professional manuals get you up and running, and every JET® machine is backed by our industry-leading two-year warranty.
Features
Vertical milling machine – JVM-836-1/3

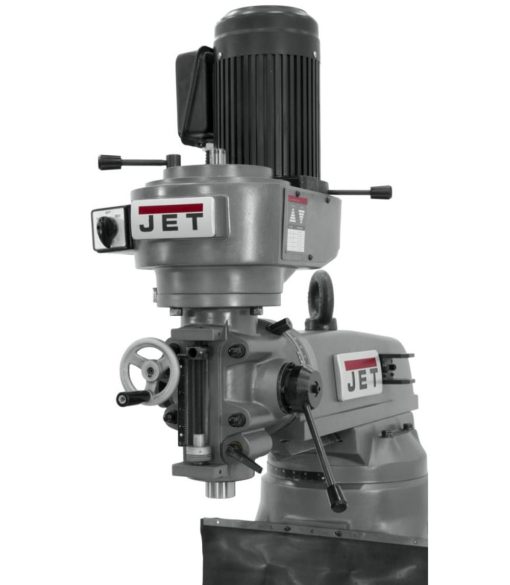

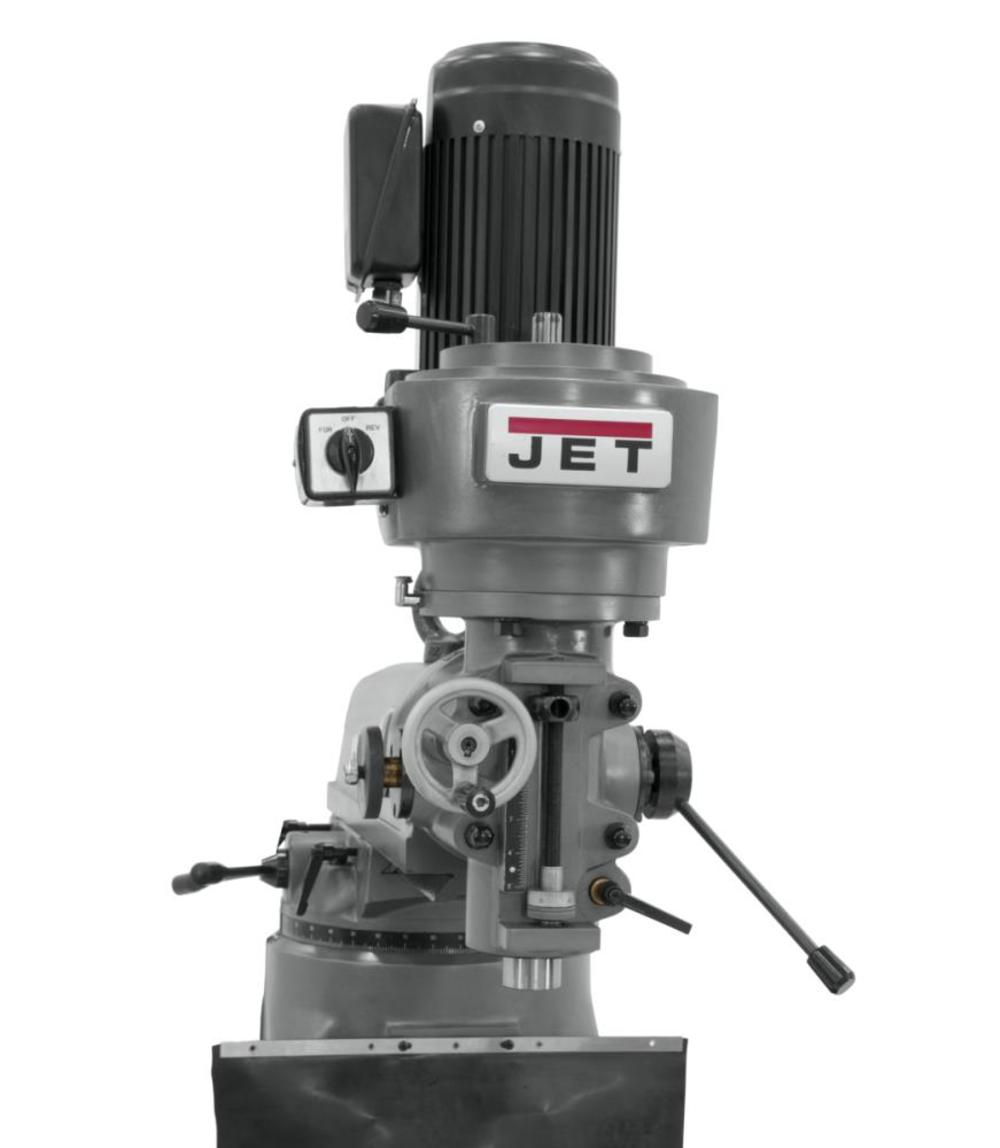

Precision bored and honed milling head
Large diameter quill is chromed
High precision spindle bearings
Over 1 In. of front to back ram travel
Locks on all movable surfaces
Hardened and ground precision table
Head tilts left or right
Graduated scale on column
One-shot lubrication system
Way covers
Draw bar
Tool box and tools
This small mill has all of the feature found on our larger mills, but sized for the home shop, repair shops or small maintenance shops
Use of static phase converter will void warranty
Specifications
Acme Tools Brand Name
JET
Acme Tools Part Number
690036
Assembled Weight (lbs)
1617
California Proposition 65 Warning Required
Yes
Chuck Capacity
0.5
Chuck Style
Keyless
Color / Finish
See Photo
Column Turret Diameter (in)
0
Country of Origin
China
CSA Certified
No
Digital Display
Not Required
ETL Listed
No
Head Tilt (Front Or Back)
0
Head Tilt (Left Or Right)
90
Height (in)
67
Horsepower (hp)
1.5
Includes Hold Down Foot
No
Internal Supplier Part #
690036
Internet Product Code (IPC)
2725B4EF8B0
Knee Bearing Length (in)
0
Knee Width (in)
0
Length (in)
69
Manufacturer Warranty
2 Year
Material
Cast Iron
Motor RPM
240–1,550
Motor Size
1-1/2HP, 115/230V, 1Ph Prewired 115V
Number of T-Slots
3
Package Depth
66
Package Height
67
Package Weight
1617
Package Weight (lbs)
1617
Quill Diameter
3.38
Quill Feed
0
Quill Travel
5
Ram Swivel
0
Ram Travel
10.5
Ram/Turret Bearing Length (in)
0
Saddle Length (in)
0
Spindle Nose To Table
0
Spindle Taper
R-8
Spindle To Column
5.25
Stand Included
No
Switch Type
Push Button
T-Slot Center Distance
2.5
T-Slot Width (in)
0.63
Table Bearing Length
0
Table Load Capacity
500
Table Material
Cast Iron
Table Tilt Range (Deg)
0
UL Listed
No
Unit of Measurement
Metric
Variable Speed
Yes
Voltage
115/230 Volts
Weight (lbs)
1617
Width (in)
59
Work Light
No
X Axis, Longitudinal (in)
22.25
Y Axis, Cross (in)
9.5
Z Axis, Knee (in)
0
