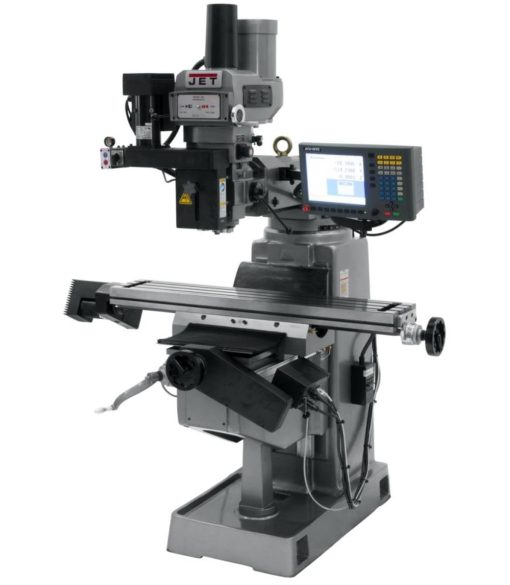

JTM-1050EVS2 Vertical Milling Machine
Constructed using the Meehanite® casting process, the JTM-1050EVS2/230, 10″ x 50″ Electronic Variable Speed Milling Machine provides consistent and reliable operation. The newly designed column and base incorporates a rigid, robust design that is easily leveled without lifting the machine. JET Mills have features you’ve come to expect and are backed by the industry-leading JET Two Year Warranty
Features

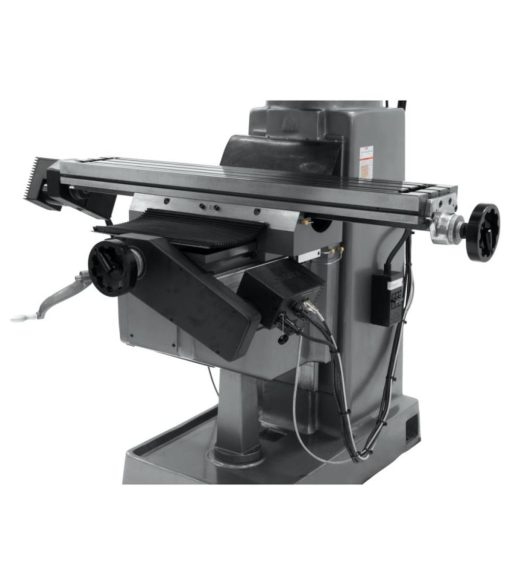

Precision ground ball screws eliminate backlash for Prewired lateral movements

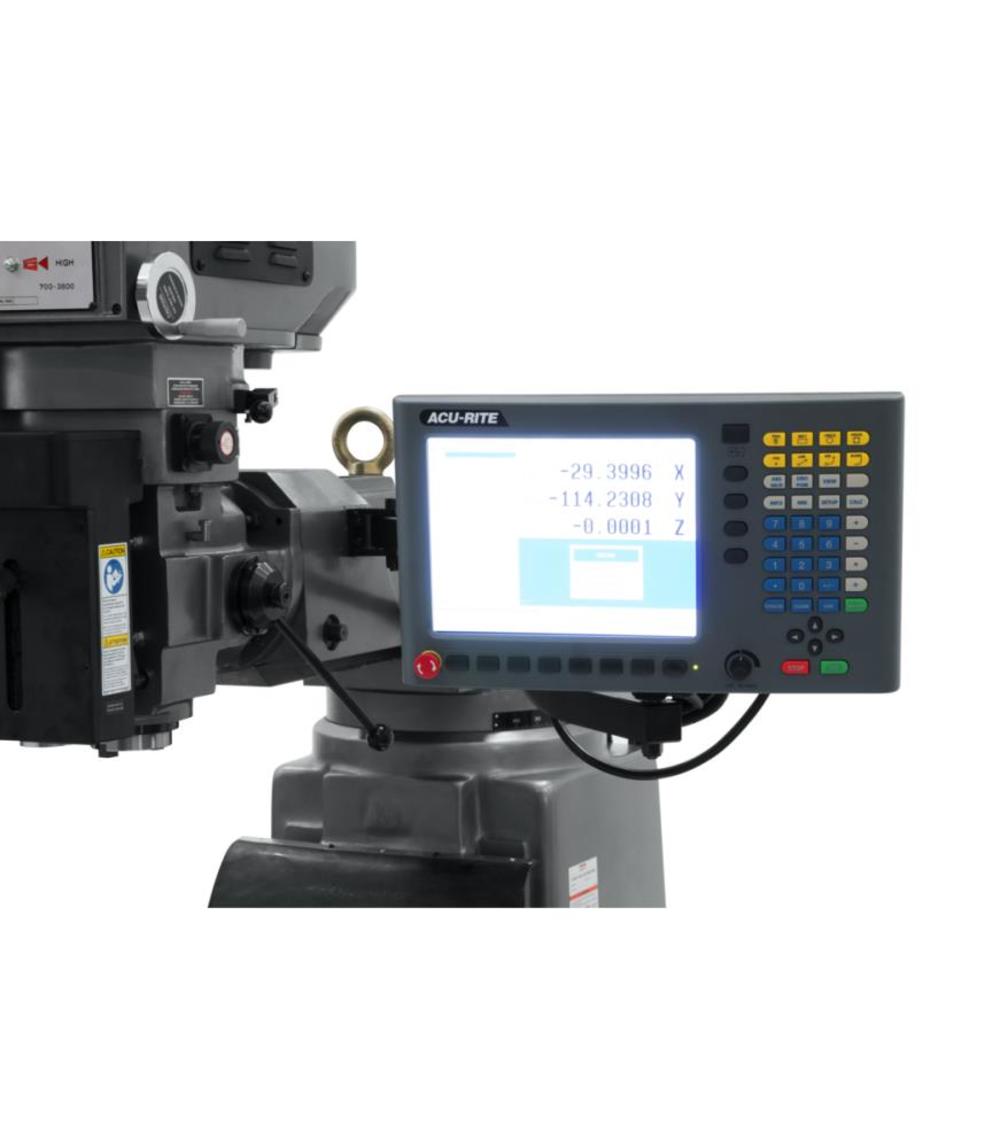

Closed loop feedback using ACU-RITE precision linear encoders with 0.00005 In. resolution
Powerful DC servo motor assemblies that include mounting castings and hardware
Handwheels are included for manual operation
Specifications
Acme Tools Brand Name
JET
Acme Tools Part Number
690684
Assembled Weight (lbs)
2860
California Proposition 65 Warning Required
Yes
Color / Finish
See Image
Country of Origin
Taiwan
Head Tilt (Left Or Right)
90
Height (in)
88.0
Horsepower (hp)
3
Internal Supplier Part #
690684
Internet Product Code (IPC)
57AE98858E7
Length (in)
96.0
Manufacturer Warranty
2 Year
Motor RPM
1720
Motor Size
3 HP, 230V, 3Ph
Number of T-Slots
3
Package Weight
2900
Package Weight (lbs)
2900
Ram Travel
15.875
Stand Included
Yes
T-Slot Width (in)
0.625
UL Listed
No
Unit of Measurement
Inch
Variable Speed
Yes
Voltage
230 Volts
Weight (lbs)
2580.0
Width (in)
78.0
X Axis, Longitudinal (in)
0.0
Y Axis, Cross (in)
0.0
