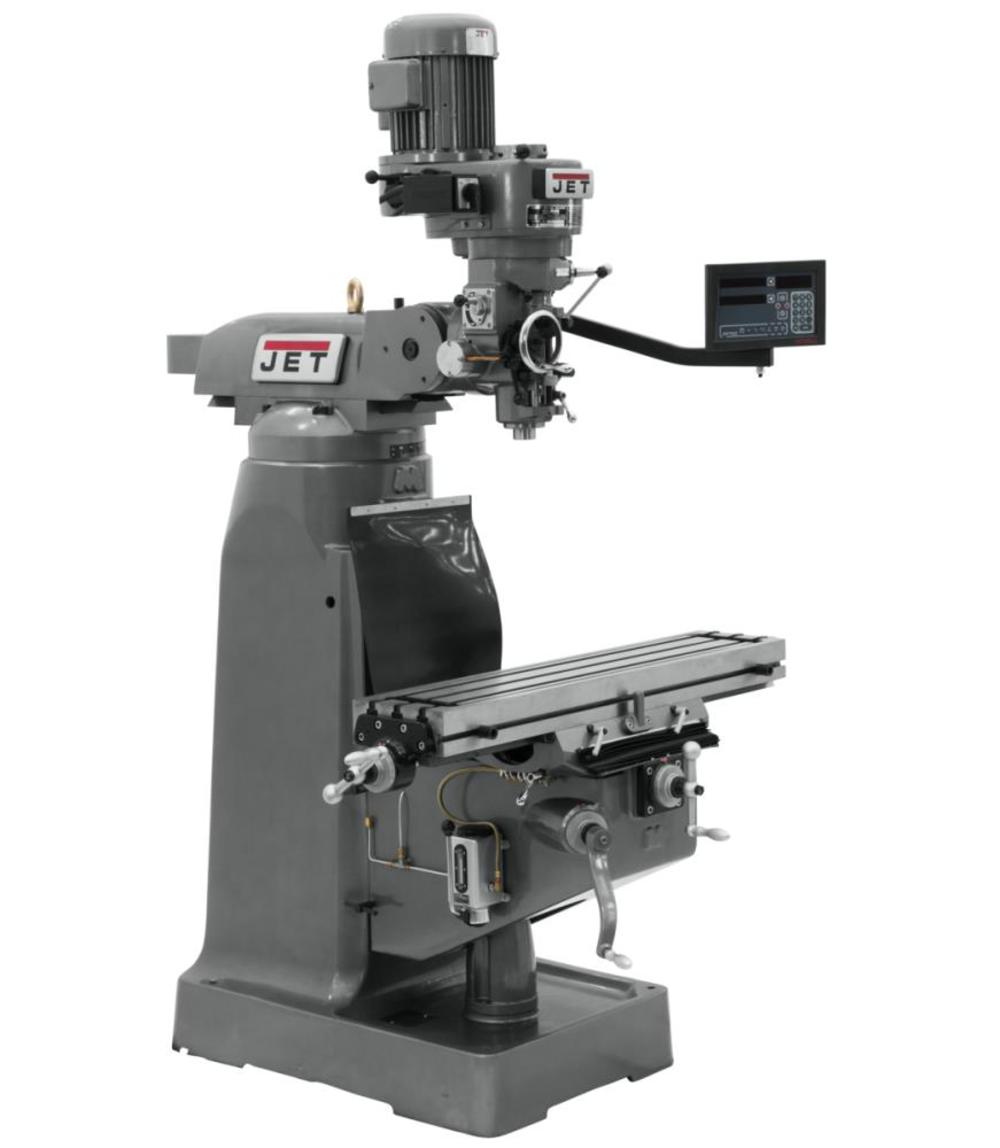

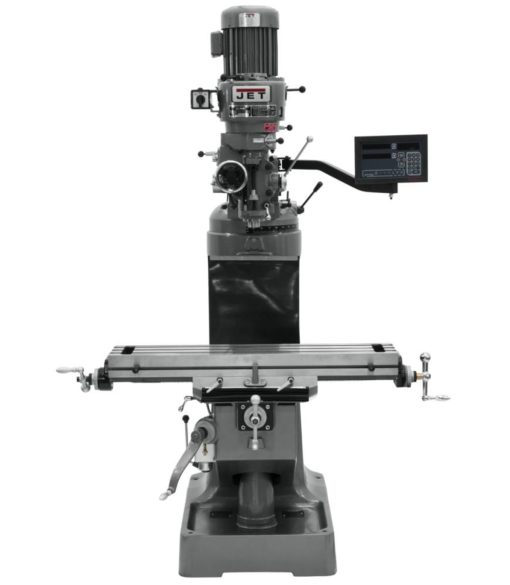

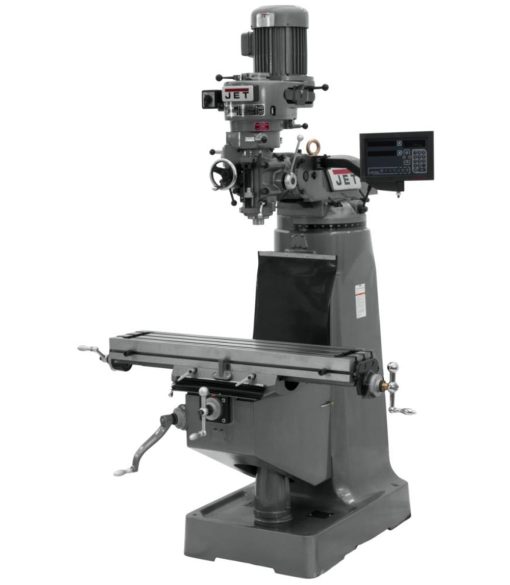

JTM-1 Mill with Newall DP700M 2-Axis DRO 2HP 230V 3 Ph
JET® milling machines and components provide consistent quality and performance year after year. Precision-built and designed to last, the complete line of JET® step pulley, variable speed and CNC mills allows your shop greater flexibility to meet the needs of any job. Professional manuals get you up and running, and every JET® machine is backed by our industry-leading two-year warranty.
Features
Meehanite casting
Precision bored and honed milling head
Large diameter quill is chromed
High precision class 7 spindle bearings
Spindle head is internally cooled
Satin chrome finished dials
Heavy duty splined motor drive
One piece quill pinion and shaft
Three stage power downfeed with automatic stop
Precision hardened and ground ways
Adjustable gibs throughout
Internal coolant tank built into base for use with coolant system (coolant pump not included)
Tolerance test sheet included
One shot lubrication system
Way covers
Draw bar
Tool box with tools
Specifications
Acme Tools Brand Name
JET
Acme Tools Part Number
691187
Assembled Weight (lbs)
2200
California Proposition 65 Warning Required
Yes
Chuck Capacity
.5
Chuck Style
Keyless
Color / Finish
See Photo
Column Turret Diameter (in)
0
Country of Origin
Taiwan
CSA Certified
No
Digital Display
Yes
ETL Listed
No
Head Tilt (Front Or Back)
45
Head Tilt (Left Or Right)
90
Height (in)
82
Horsepower (hp)
2
Includes Hold Down Foot
No
Internal Supplier Part #
691187
Internet Product Code (IPC)
E0BFA5ED7E7
Knee Bearing Length (in)
0
Knee Width (in)
0
Length (in)
64
Manufacturer Warranty
2 Year
Material
Cast Iron
Motor RPM
80 – 5440
Motor Size
2 HP, 230V, 3 Ph
Number of T-Slots
3
Package Depth
64
Package Height
82
Package Weight
2200
Package Weight (lbs)
2200
Quill Diameter
3.375
Quill Feed
0
Quill Travel
0
Ram Swivel
0
Ram Travel
13.375
Ram/Turret Bearing Length (in)
0
Saddle Length (in)
0
Spindle Nose To Table
0
Spindle Taper
R-8
Spindle To Column
4.5
Stand Included
No
Switch Type
Push Button
T-Slot Center Distance
2.5
T-Slot Width (in)
0.625
Table Bearing Length
0
Table Load Capacity
550
Table Material
Cast Iron
Table Tilt Range (Deg)
0
UL Listed
No
Unit of Measurement
Metric
Variable Speed
No
Voltage
230 Volts
Weight (lbs)
2200
Width (in)
57
Work Light
No
X Axis, Longitudinal (in)
23.875
Y Axis, Cross (in)
12.5
Z Axis, Knee (in)
0
