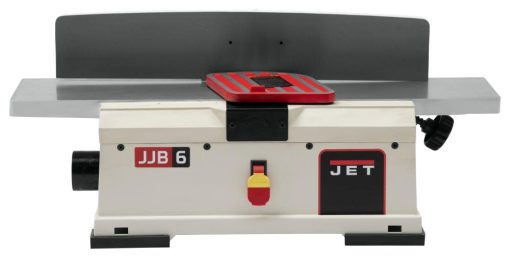

JJ-6HHBT, 6 Inch Helical Head Benchtop Jointer
The new Jet 6″ Benchtop jointer provides a smooth and consistent cut surface thanks to its use of 14 carbide tipped helical head blades. Heavy duty cast iron tables and fully adjustable fence make for a premium cutting experience. Features include a fully adjustable cast iron fence, internal dust collection system and safety black and push stick.
Features

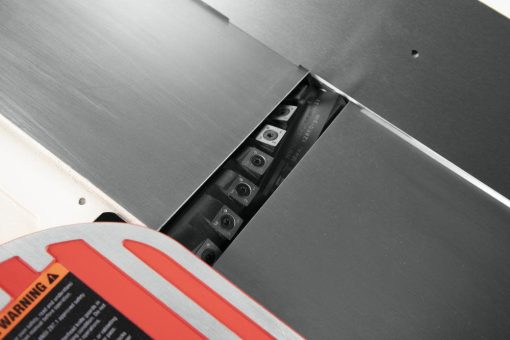

True helical cut with 14 indexable four- sided carbide blades
Heavy duty cast iron tables
Large cast iron fence

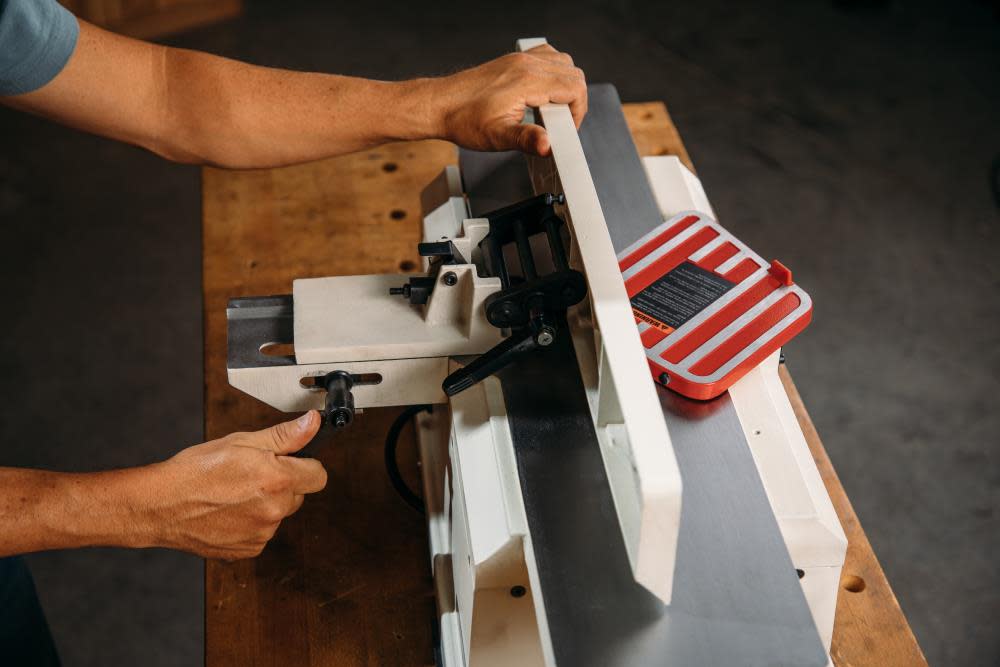

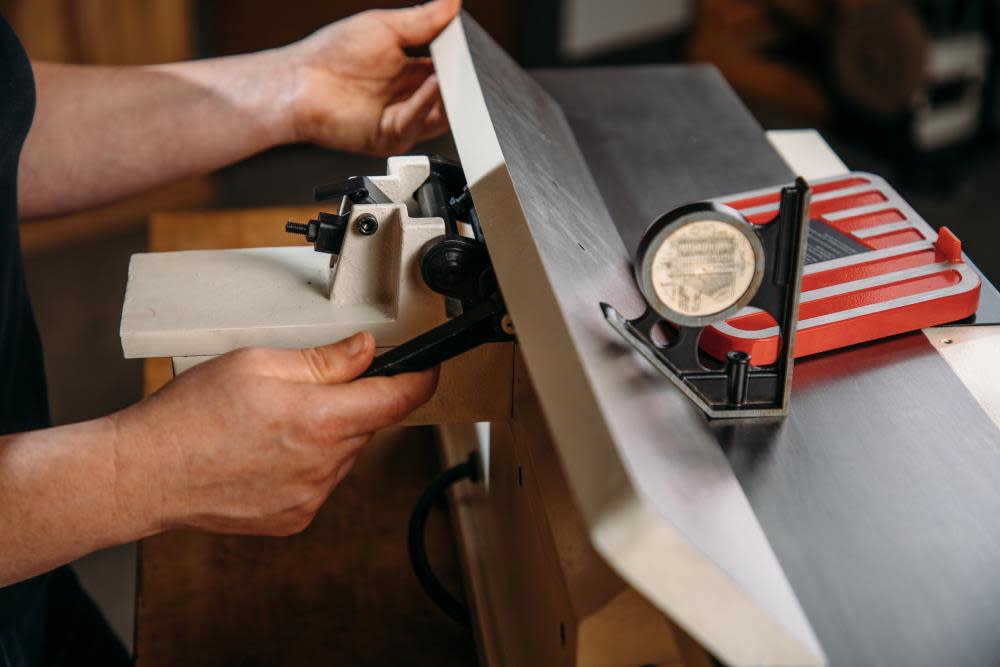

Fully adjustable fence with locking stops at +/- 45 tilt duel direction for beveling

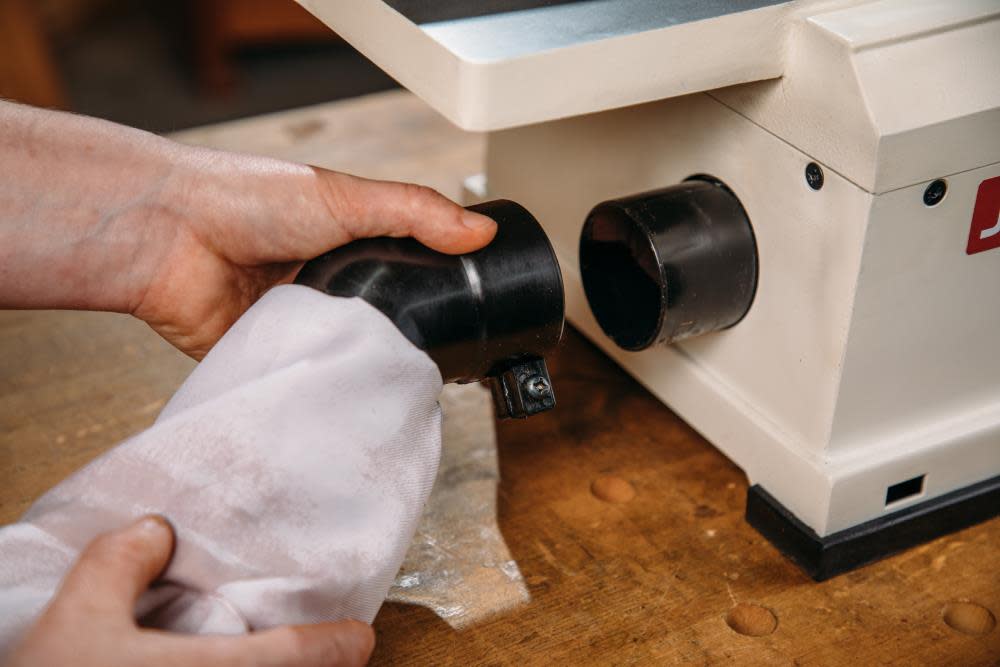

Internal blower motor moves dust and chips away from motor and cutter head
Powerful 1HP 15 amp motor turns the cutter head at 10,000 RPM

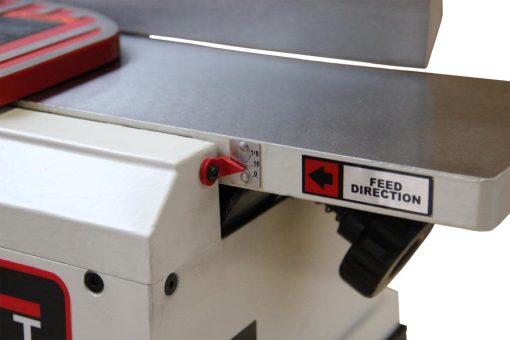

Highly visible scale for accurate depth of cut adjustments
Front mounted toggle switch with removable safety key
Six inch jointing capacity in small footprint
Specifications
Acme Tools Brand Name
JET
Acme Tools Part Number
718600
Amperage (A)
15
Assembled Weight (lbs)
71
Bench or Stationary
Bench
Blade Count
14
Blade Thickness (in)
.10
Blade Width (in)
.59
California Proposition 65 Warning Required
Yes
Color / Finish
white metal
Cord Length (ft)
6
Cordless / Corded
Corded
Country of Origin
China
CSA Certified
No
Dust Port
Yes
Dust Port Outside Diameter (in)
2.5
Housing Material
cast iron
Internal Supplier Part #
718600
Internet Product Code (IPC)
576B9D24D5E
Manufacturer Warranty
3 Years
Maximum Cutting Depth (in)
.125
Maximum Speed (rpm)
10000
Motor Horsepower (hp)
1
Overall Height (in)
13
Overall Length (in)
30
Overall Width (in)
20
Package Contents
Planer with blade guard,Angle Fence,Fence tilting handle with spacer, Fence bracket assembly, Fence support, Spring, Fence sliding handle with spacer, Locking plate assembly, Filter bag, Dust chute, Push block, Push stick, (2) Star point screwdrivers, Operator’s manual, Product registration card, Hardware bag.
Package Depth
32.75
Package Height
11.5
Package Weight
71
Package Weight (lbs)
71
Speeds
1
Table Length (in)
28.625
Table Material
Cast Iron
Table Width (in)
6.25
Voltage
115 Volts
Weight (lbs)
71
