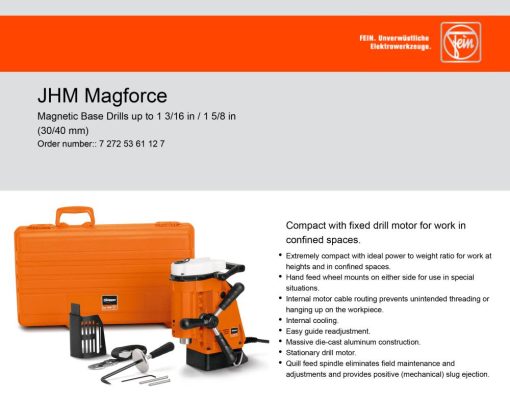

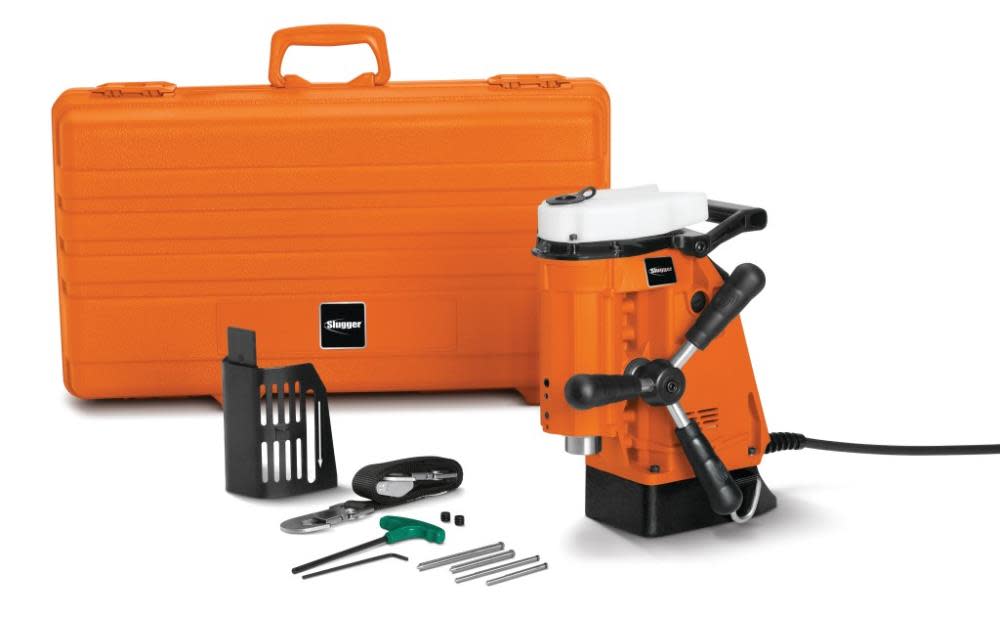

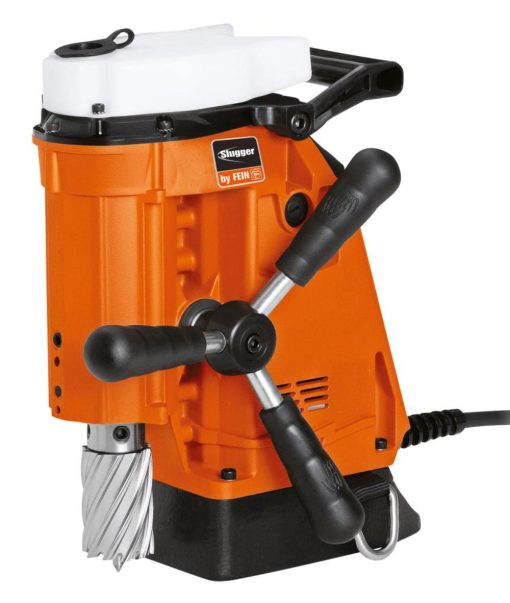

JHM Magforce SLUGGER Magnetic Drill 1-5/8 In. Capacity

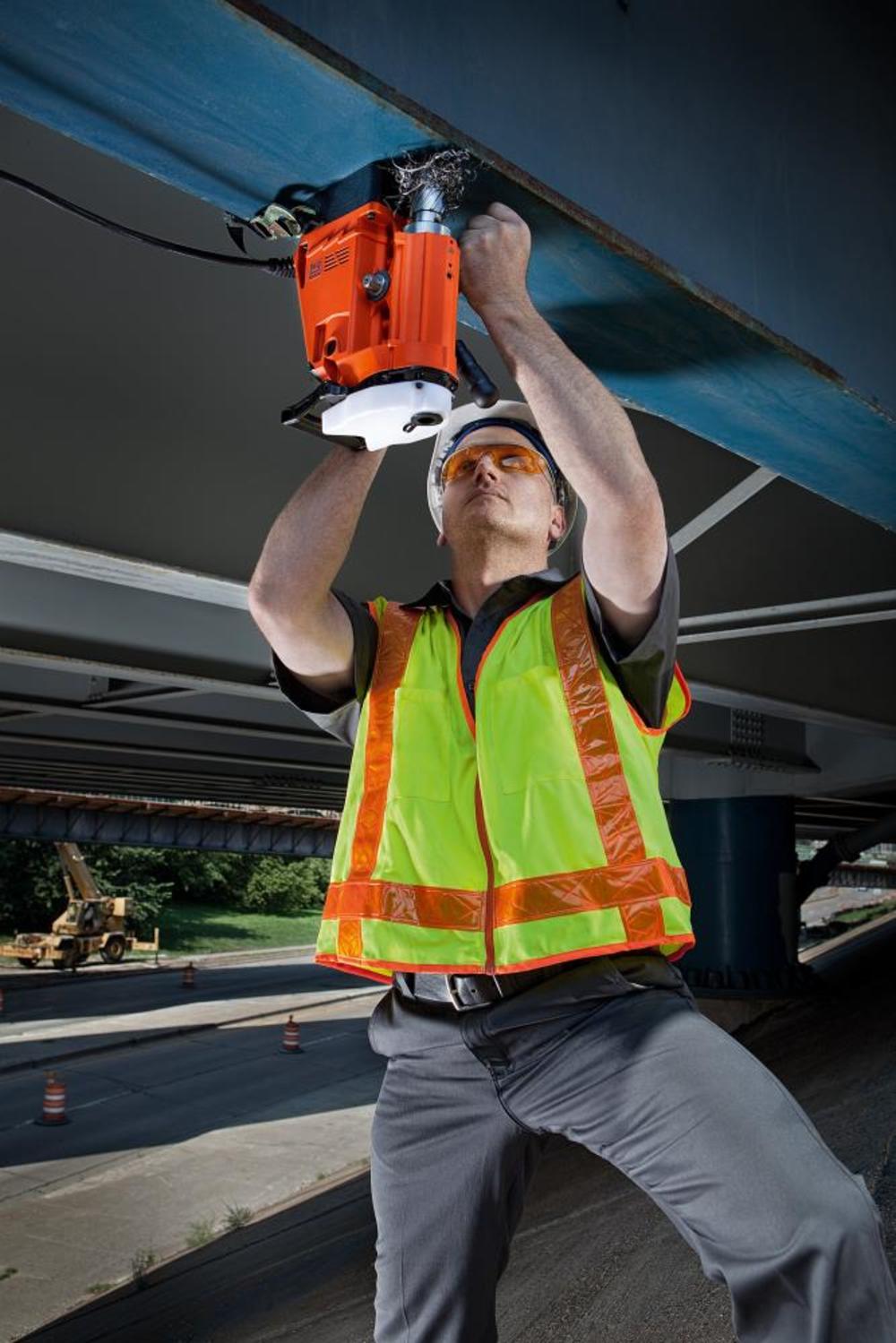

The SLUGGER JHM Magforce is a magnetic base drilling unit for diameters of up to 1-5/8 In. (40 mm). Designed for installation work, it features a quill feed enclosed in the housing. The motor and jig are cast from a single block, keeping the height constantly equal during operation. With its compact dimensions and rugged construction, this tool is ideal for working in confined spaces on the construction site.
Features
Motor and drill jig are constructed as a single piece to enable the unit to stand up to the toughest conditions.
Compact dimensions make it easy to work in confined or hard to reach places.
Drill shaft is mounted without play and with no maintenance requirements in a spindle sleeve for precision drilling results and positive slug ejection.
Gravity fed cooling lubrication.
Specifications
Acme Tools Brand Name
FEIN
Acme Tools Part Number
72725361127
Amperage (A)
5
Assembled Weight (lbs)
43
California Proposition 65 Warning Required
Yes
Case Included
Yes
Chuck Capacity
3/4 In. Slugger Shank Chuck 1-5/8 In. annular cutter capacity
Color / Finish
FEIN orange/matte black
Coolant System
Yes
Cord Length (ft)
13
Cordless / Corded
Corded
Country of Origin
United States
Decibel Rating (dB)
98
Drill Amperage (A)
5
Drill Type
Magnetic
ETL Listed
No
First Gear Maximum Speed (rpm)
280
First Gear Minimum Speed (rpm)
280
Handle Type
Spade
Height (in)
12.8
Housing Material
Die-cast aluminum
Included Safety Features
Safety strap and contact guard
Internal Supplier Part #
72725361127
Internet Product Code (IPC)
DC985B4BCE0
Length (in)
11.29
Lock-on Switch
Yes
Manufacturer Warranty
1 Year out of the package plus two additional years available with product registration
Maximum Torque (in-lbs)
184.0512
Net Tool Weight (lbs)
29
Package Weight
43
Package Weight (lbs)
43
Powered Tool Power Source
Electric – Corded
Range Spindle Lock
No
Reverse
No
Second Gear Maximum Speed (rpm)
0
Second Gear Minimum Speed (rpm)
0
Side Handle
Yes
Switch Type
Rocker/Push button switch
Tool Handle Type
Spade
UL Listed
Yes
Voltage
120
Voltage (V)
120
Weight (lbs)
43
Width (in)
6.5
