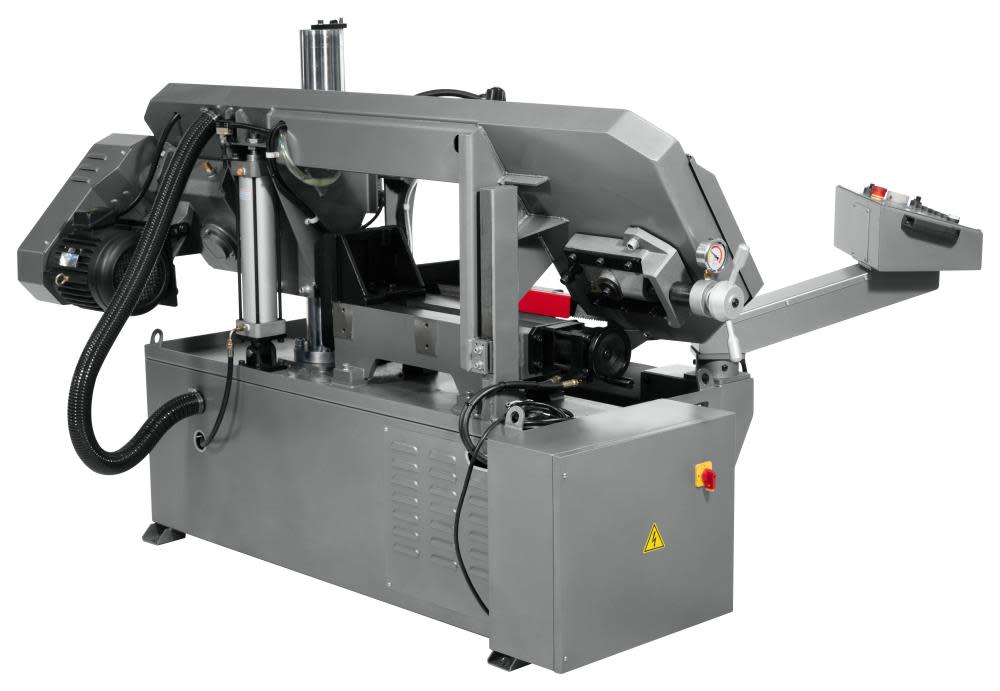

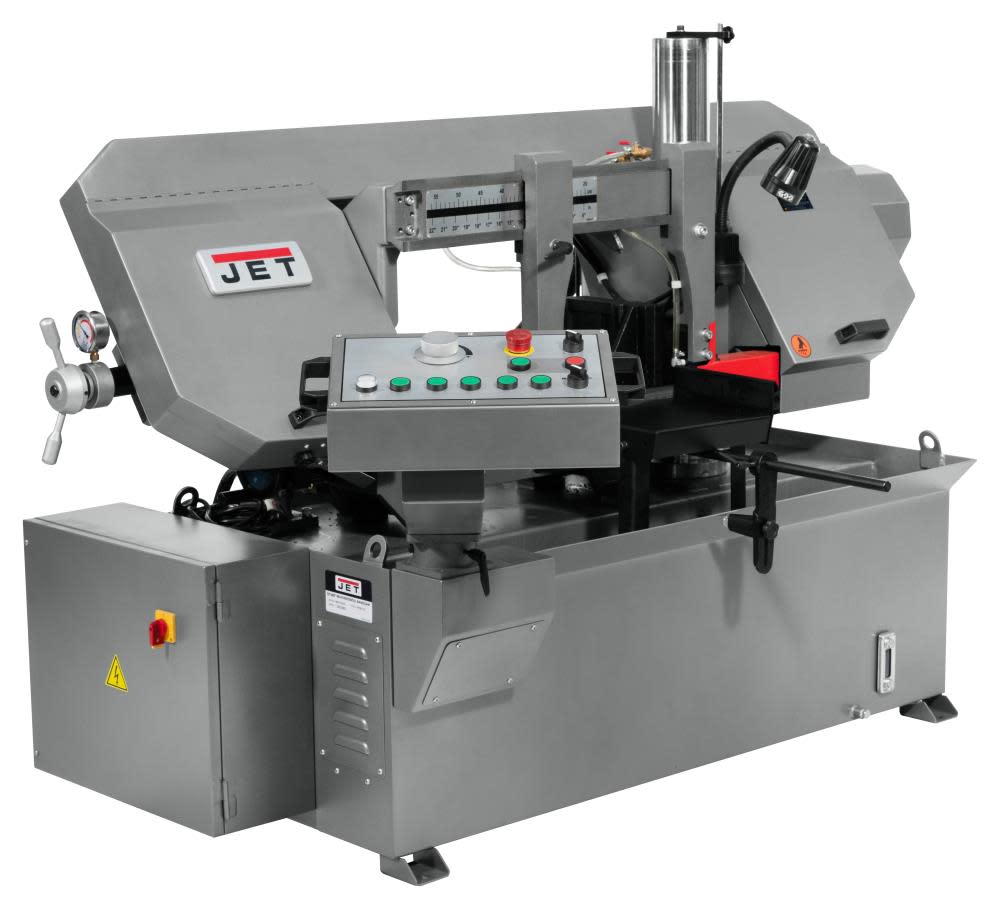

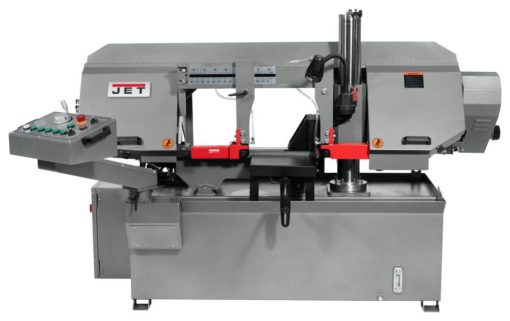

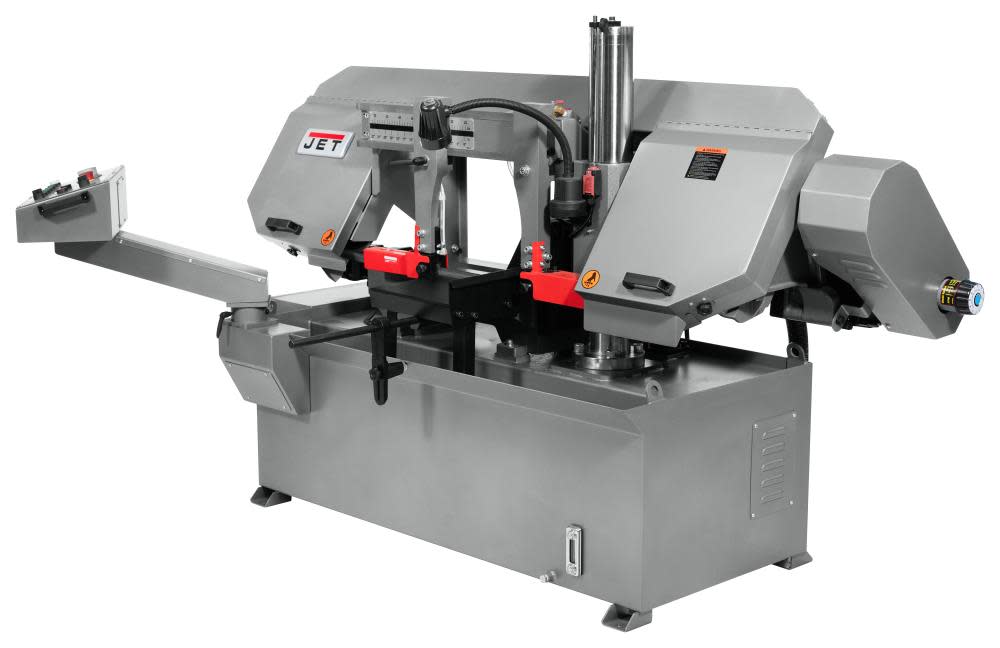

Jet Semi-Automatic Dual Column Bandsaw 12″ x 20″, 3HP, 230/460V, 3 Phase
Jet’s dual column bandsaw is great for cutting large parts while keeping the blade as straight as possible while the head is descending during the cut.
Features
Heavy duty construction reduces vibration and deflection
Built-in self-propelled blade brush prevents chip build up in blade guides
Coolant is distributed through the blade guides through an integrated coolant system
Blade tension gauge helps to ensure the blade is in the correct cutting position
Two column design for more productive cutting
Powerful gearbox for long life

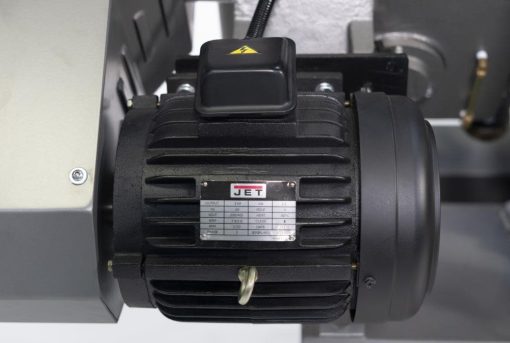

Motor designed for continuous operation
Specifications
Acme Tools Brand Name
JET
Acme Tools Part Number
413400
Amperage (A)
7.6
Assembled Weight (lbs)
1420
Band Saw Frame Material
Steel
Band Saw Type
Stationary
Blade Guide Type
Bearings
California Proposition 65 Warning Required
Yes
Color / Finish
Grey/Cast Iron
Cordless / Corded
Corded
Country of Origin
Taiwan
CSA Certified
Yes
Cutting Capacity Height (in)
11.8
Dust Port
No
ETL Listed
No
Horsepower (hp)
3
Internal Supplier Part #
413400
Internet Product Code (IPC)
0B2DC29D6B2
Manufacturer Warranty
2 Year
Material
Cast Iron
Maximum Blade Length (In)
155.5
Maximum Blade Width (In)
1.312
Maximum Feet Per Minute
295
Maximum RPM
95
Minimum Blade Length (in)
155.5
Minimum Blade Width (in)
1.312
Minimum Feet Per Minute
35
Motor Type
Totally Enclosed, Fan-Cooled
Number of Wheels
2
Package Contents
1 Band saw with installed blade, 1 Work stop assembly, 1 Operating Instructions and Parts Manual, 1 Product registration card, 1 Factory-cut test piece, 1 Tool box
Package Depth
89.17
Package Height
61.47
Package Weight
1628
Quick Tensioning System
Yes
Saw Wheel Material
Cast Iron
Speeds
35
Stand Included
Yes
Table Height (in)
27
Table Height From Floor (In)
27
Table Length (in)
00
Table Material
Cast Iron
Table Width (in)
0
UL Listed
No

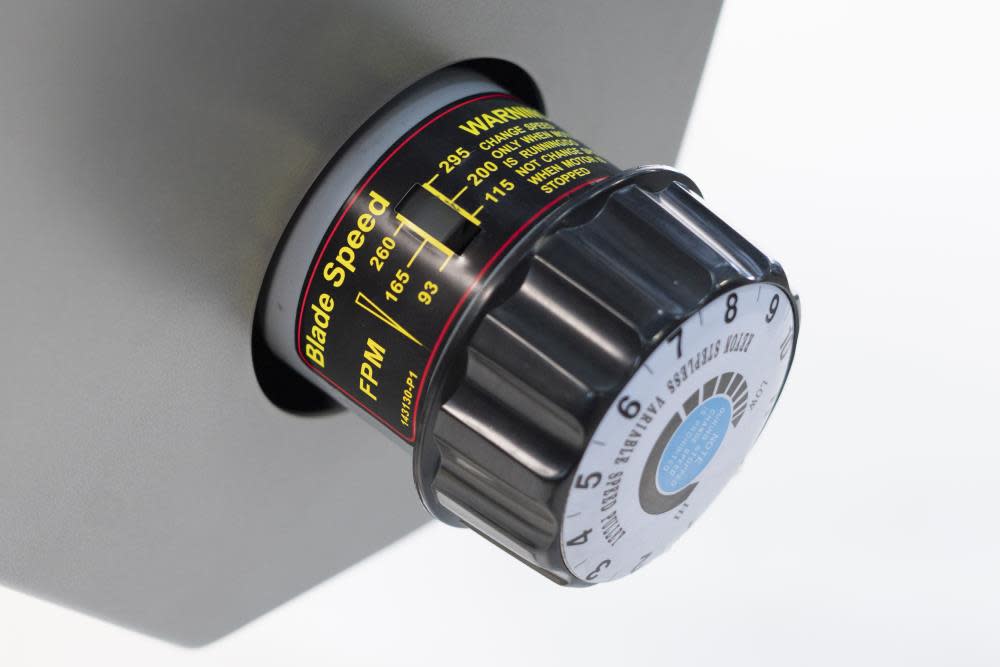

Variable Speed
Yes
Voltage
230/460 Volts

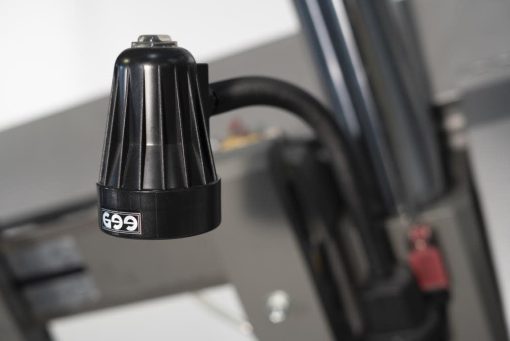

Work Light
Yes
