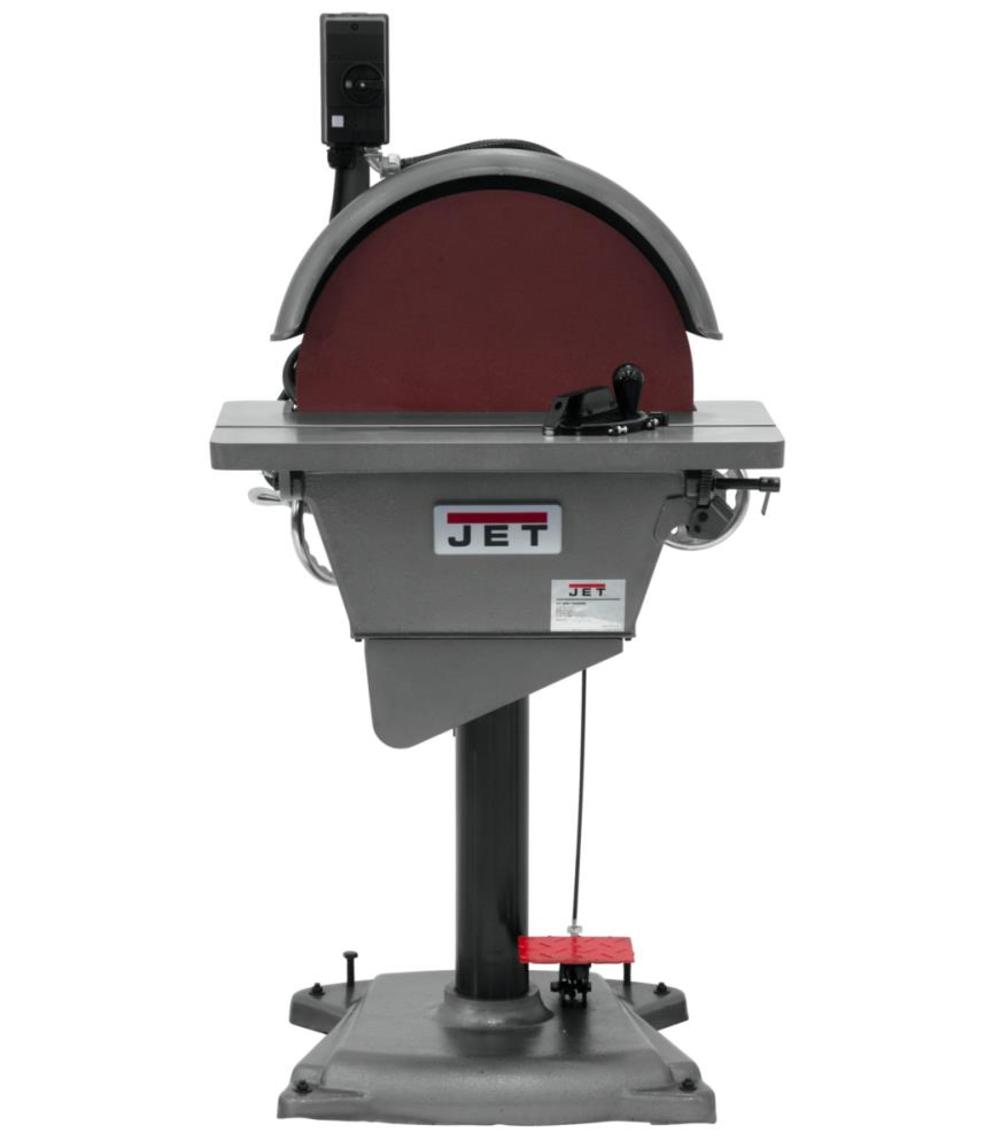

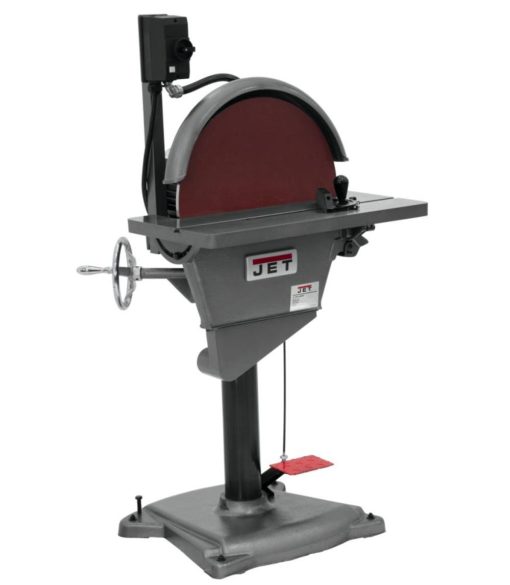

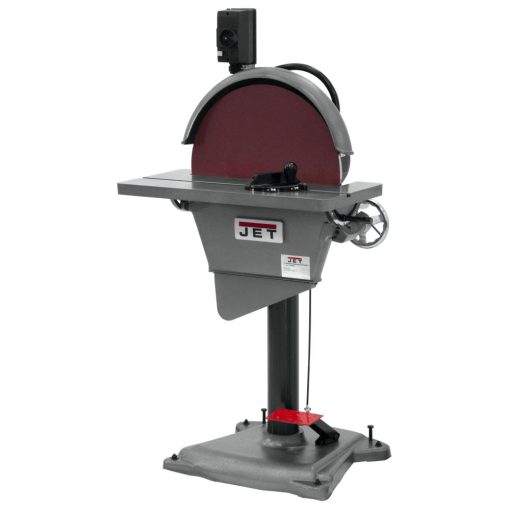

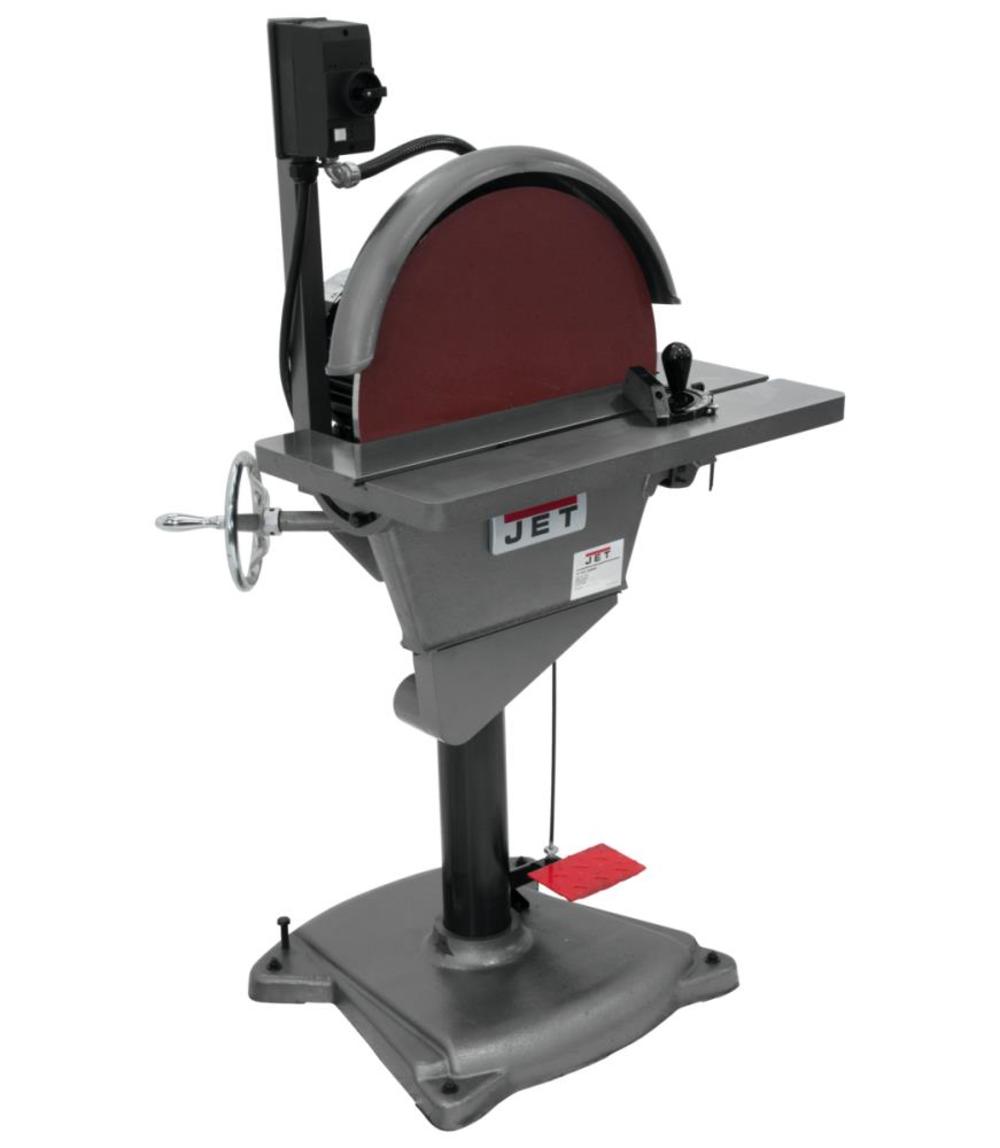

J-4421-2 20 In. Disc Grinder 3 PH, 220 V
High-speed precision that conforms to curves, variable speed operation for command and control at all times and confidence that JET® square wheel grinders, and combination sanders and chamfering machines will perform at the flip of a switch.
Features

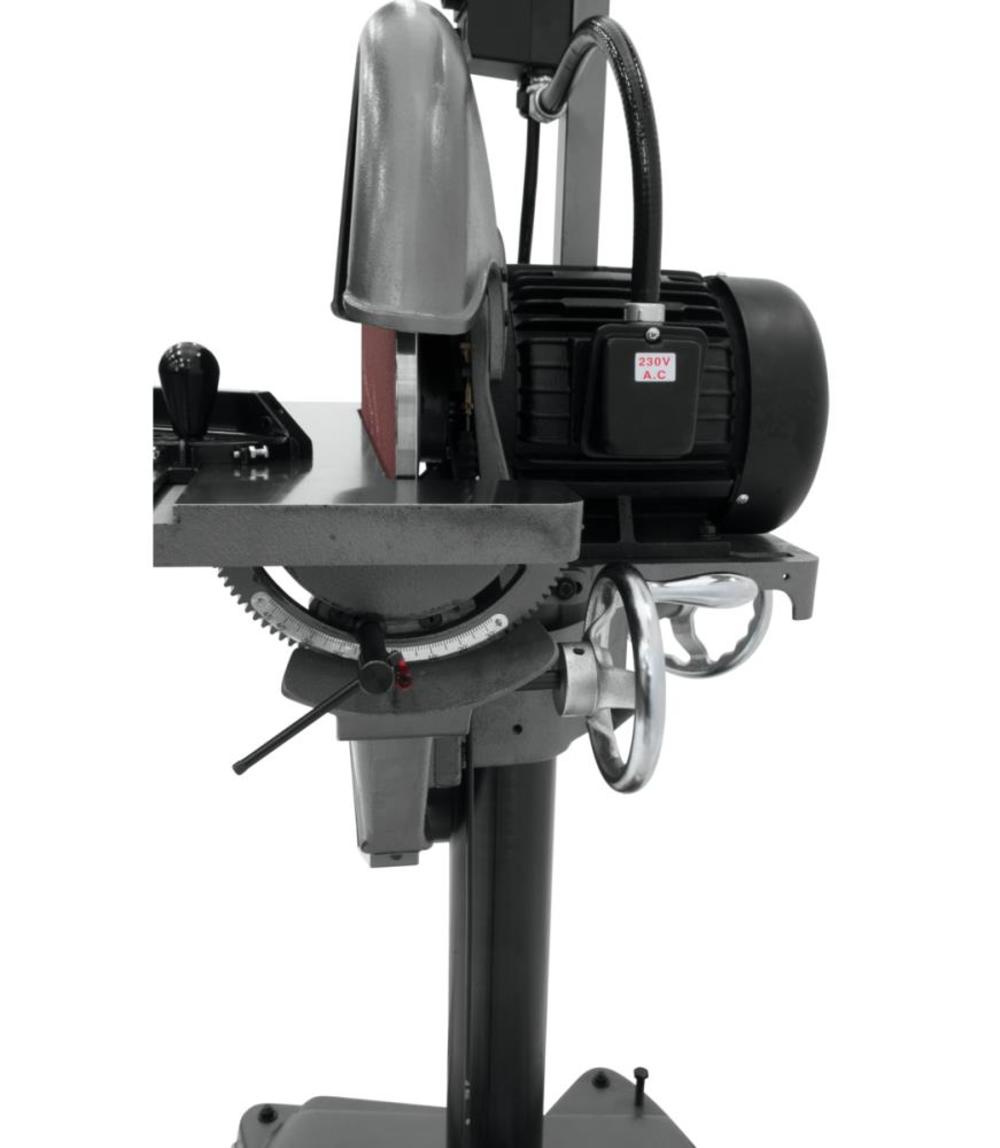

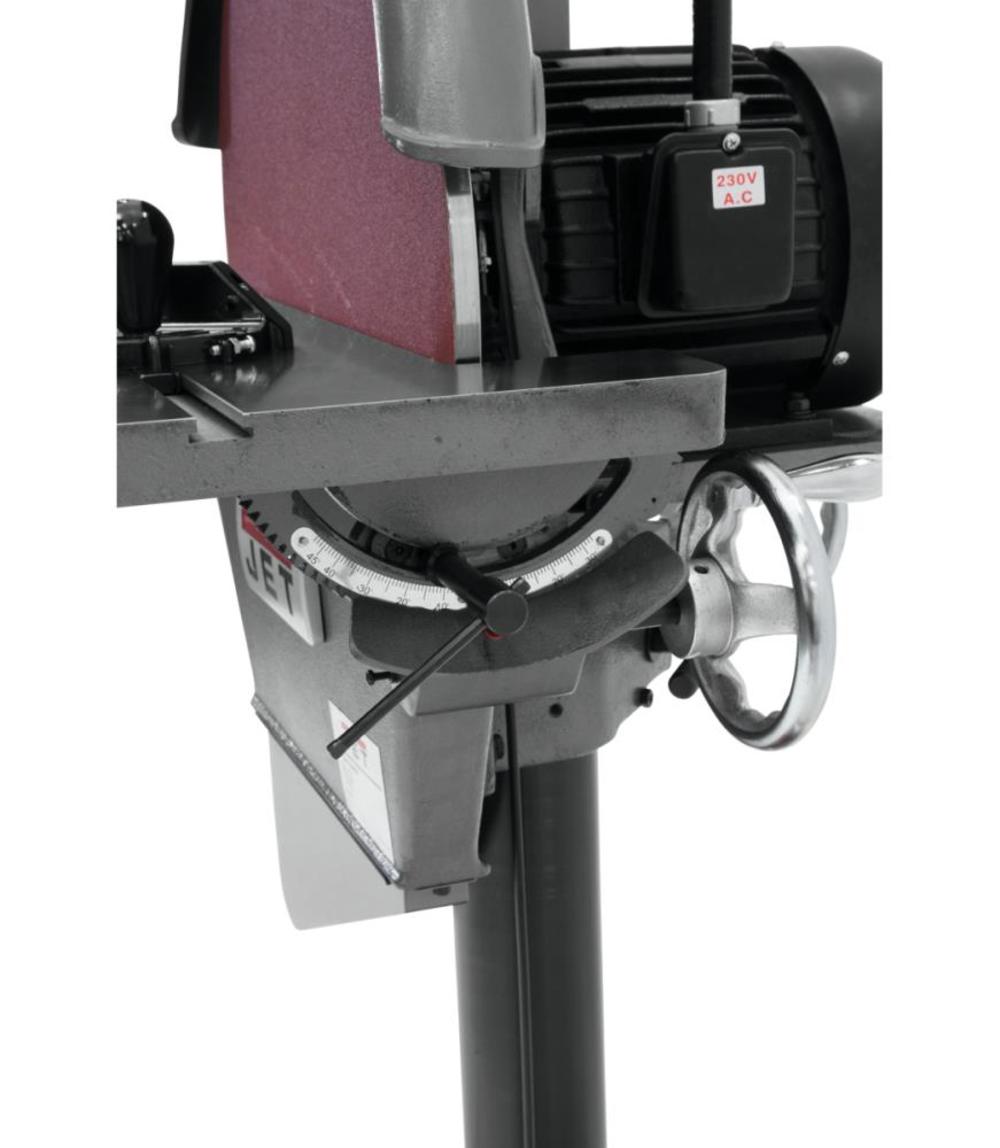

Tilting table capability adds flexibility of 45° forward and 15° backward on positive lock rack and gear
Table can be lowered below the disc to accommodate large work pieces
Direct drive motor

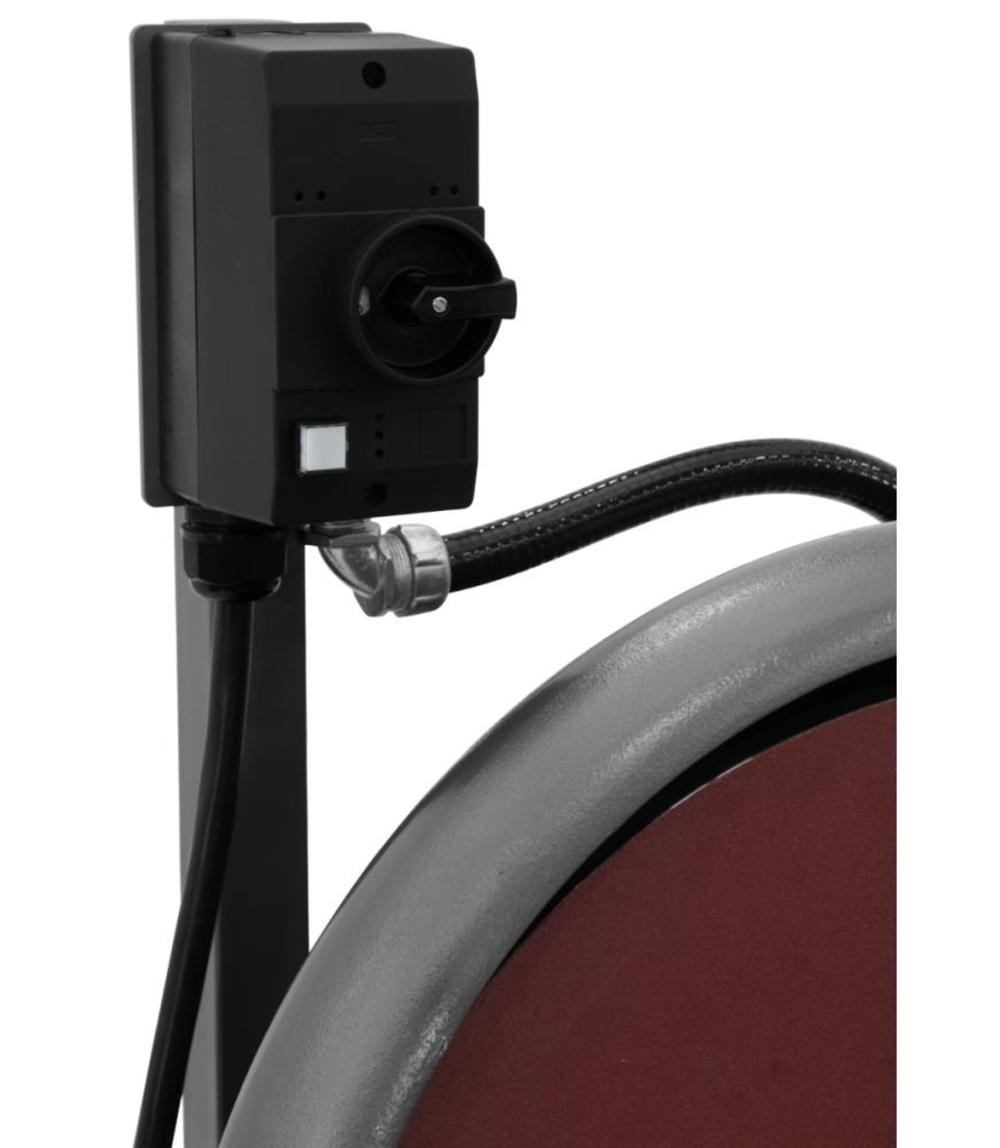

Low voltage protection switch

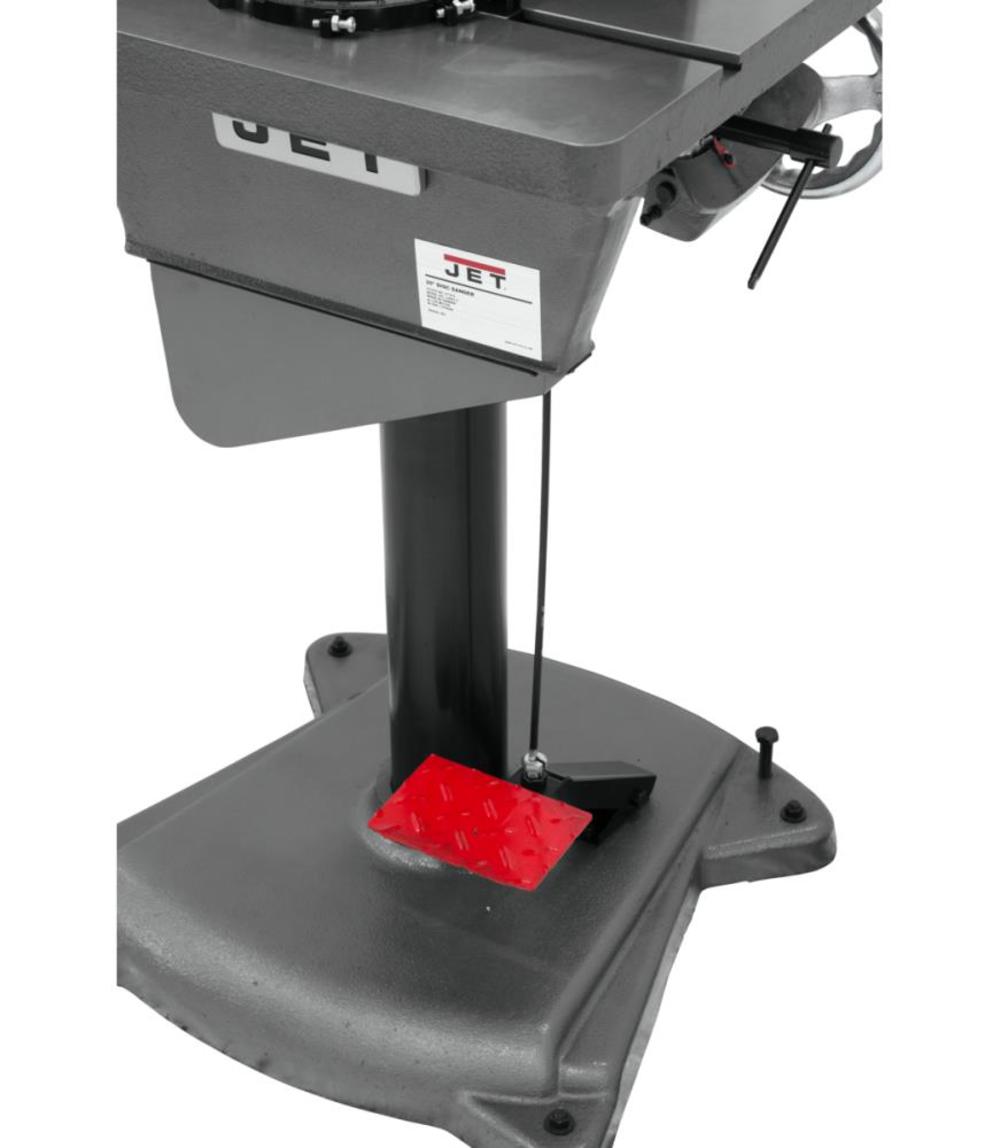

Rigid column and heavy duty base
Miter gauge
Extra large tilting table lowers completely below disc for use of the entire disc surface
Wrap over guard for added safety
Specifications
Acme Tools Brand Name
JET
Acme Tools Part Number
577010
Amperage (A)
9.6
Assembled Weight (lbs)
400
Assembly Required
Yes
Bench or Stationary
Stationary
California Proposition 65 Warning Required
Yes
Color / Finish
See Photo
Convertible To 220 V
No
Cord Length (ft)
8
Cordless / Corded
Corded
Country of Origin
Taiwan
CSA Certified
No
Disc Table Length (In)
27.5
Disc Table Tilt Range (Deg)
45° out, 15° in
Disc Table Width (In)
10.5
Dust Collection
No
ETL Listed
No
Horsepower (hp)
3
Housing Material
Metal
Internal Supplier Part #
577010
Internet Product Code (IPC)
281A4DCC6D1
Lock-on Switch
No
Lockout Power Switch
No
Manufacturer Warranty
2 Year
Material
Cast Iron
Maximum Disc Speed (rpm)
1725
Miter Gauge
Yes
Net Tool Weight (lbs)
0
Number of T-Slots
1
Package Contents
20 In. Disc Sander
Package Depth
30
Package Height
53
Package Weight
452
Package Weight (lbs)
452
Sander Style
Disc
Sanding Disc Diameter (in)
20
Table Height (in)
0
Table Material
Cast Iron
UL Listed
No
Variable Speed
No
Voltage
220 Volts
