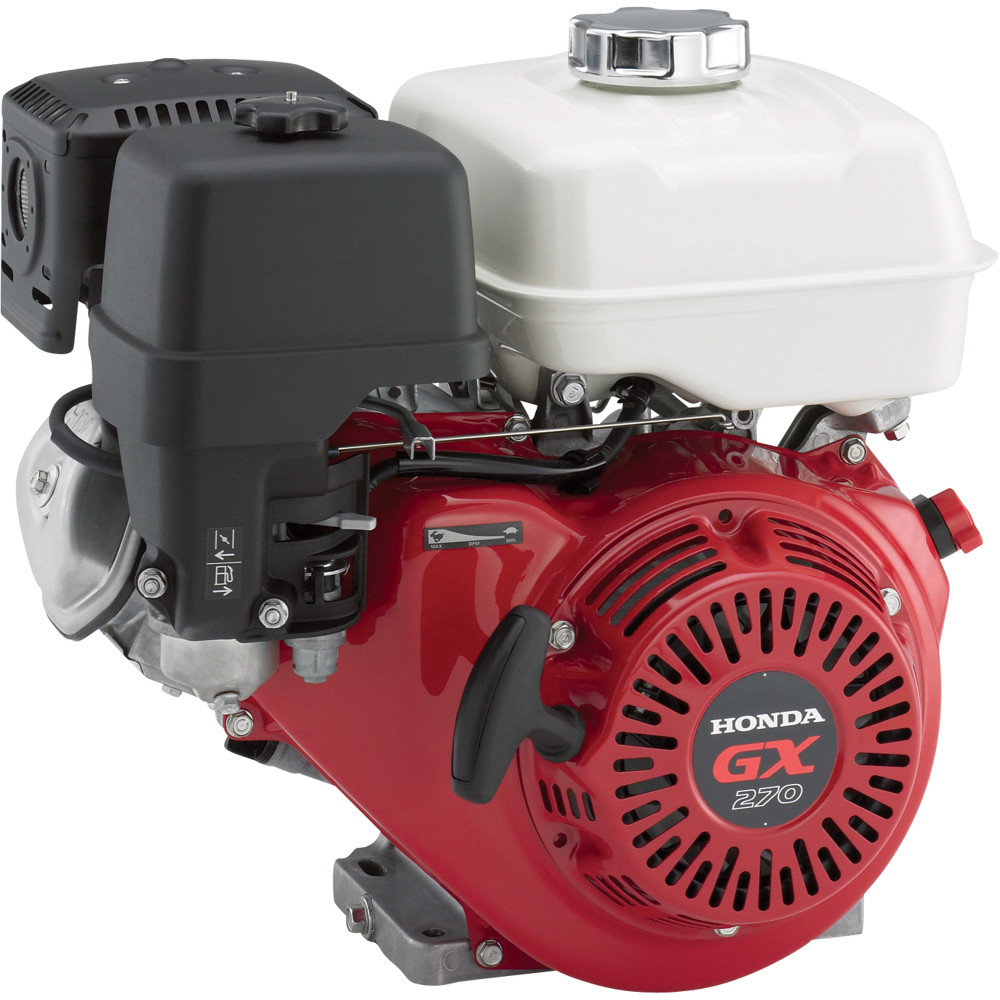

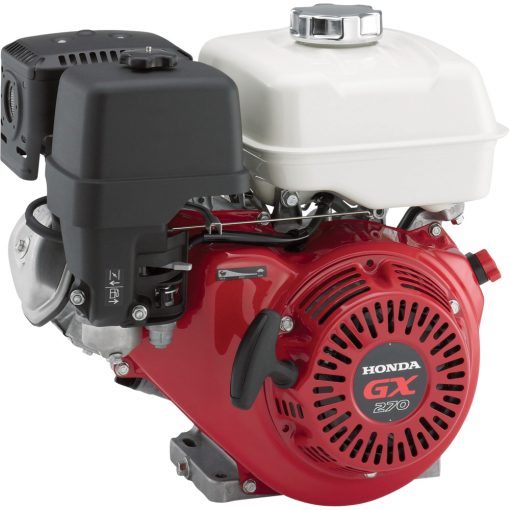

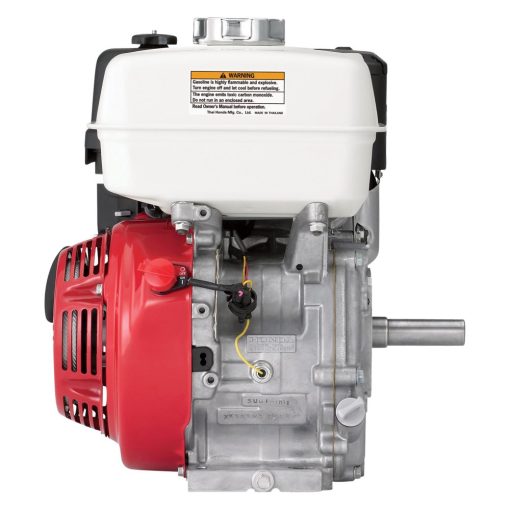

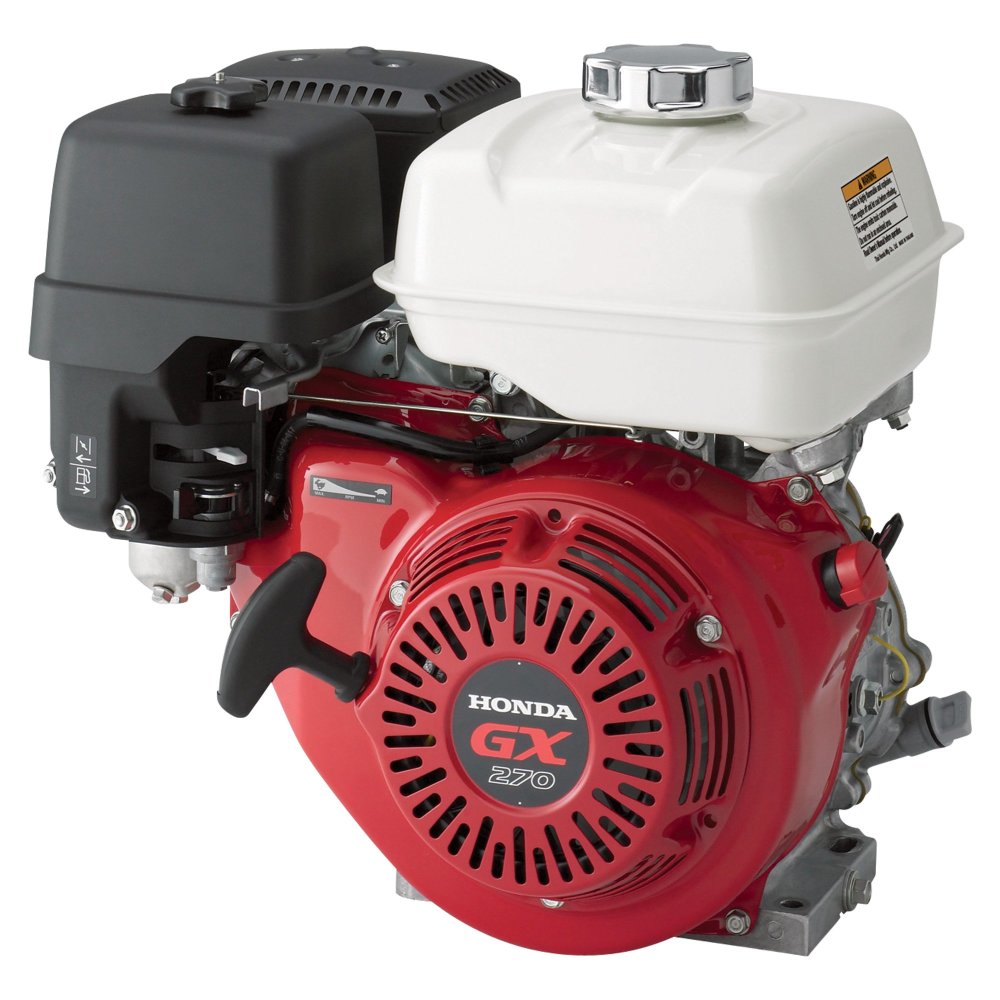

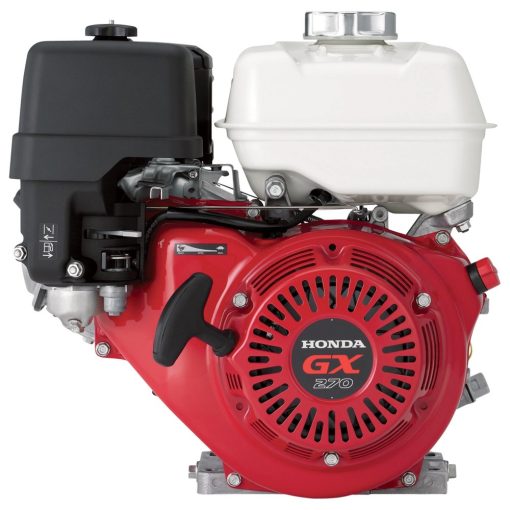

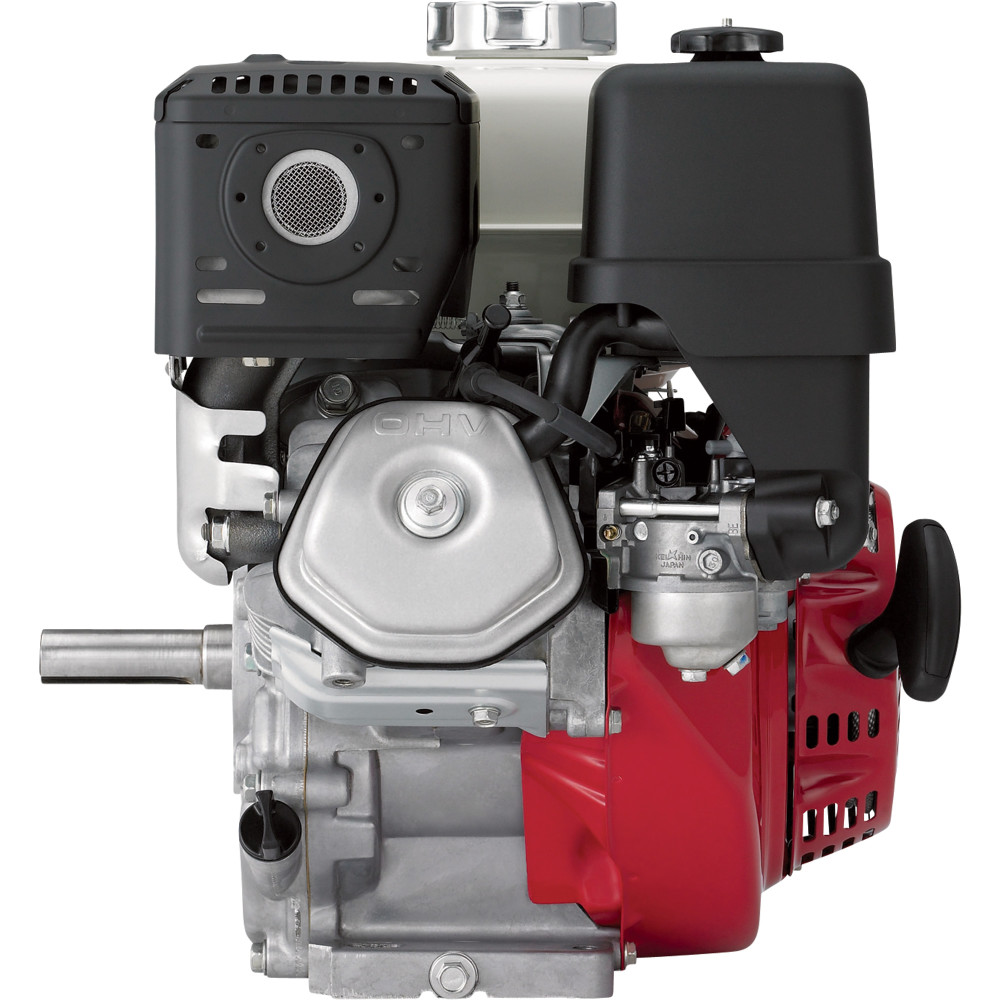

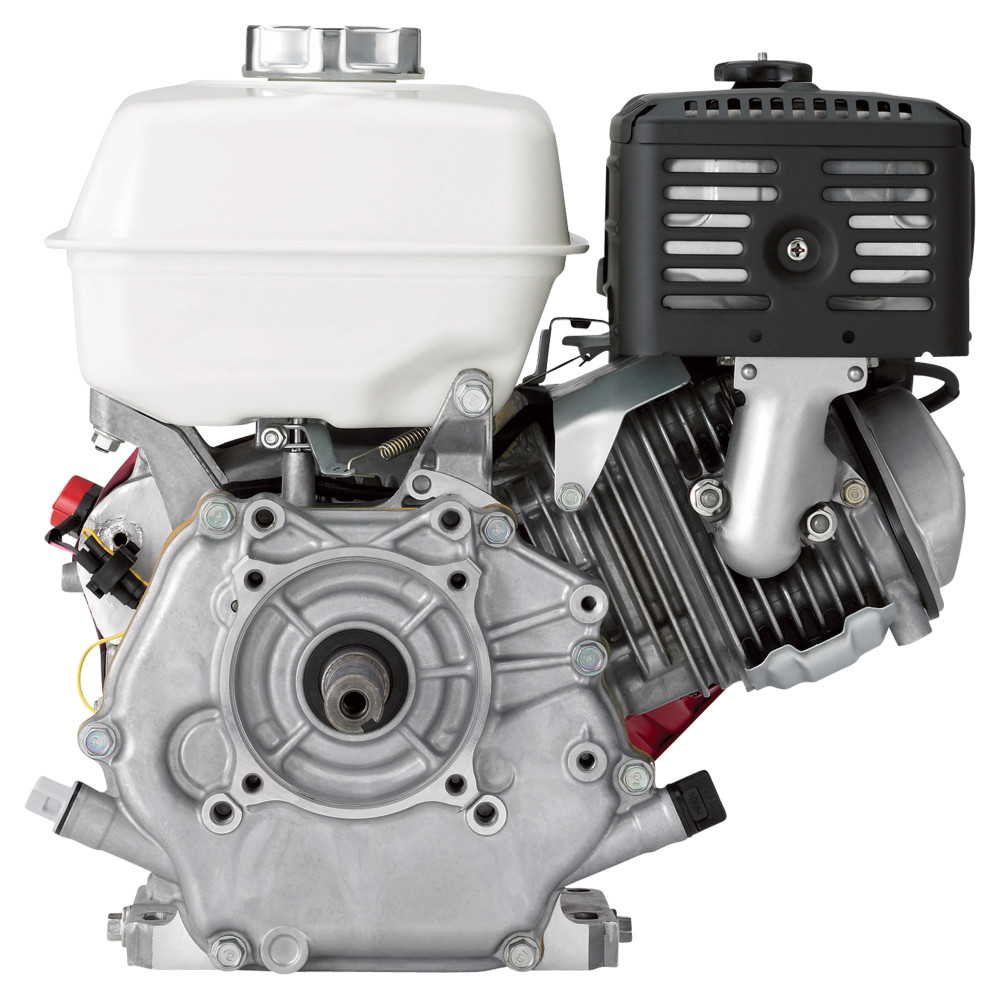

Horizontal OHV Engine — 270cc, GX Series, 1in. x 3 31/64in. Shaft
The Honda 270cc GX Series OHV commercial-grade engine is designed for the most demanding commercial applications. It has set an industry standard for reliability and durability. Overhead Valve design offers cooler, fuel-efficient operation and cast iron cylinder sleeve provides longer service life. The GX is reliable, easy starting and quiet running. Meets EPA and CARB emission levels standards. This legendary engine has earned the reputation as the preferred engine for construction equipment. Common applications include pressure washers, compressors, go-karts, log splitters and chipper/shredders.
Features
Precision camshaft design for precise valve timing, optimal valve overlap and better fuel economy
OHV design for increased efficiency and optimal power transfer
High compression ratio for better fuel efficiency
Low vibration from precision-engineered components
Ball bearing-supported crankshaft for greater stability
Large capacity, multi-chamber exhaust system for a low noise level
Sophisticated air intake system
Oil Alert for extra engine protection
Carburetor filter and chamber coating help protect against fuel impurities
Specifications
Acme Tools Brand Name
HONDA
Acme Tools Part Number
GX270UT2QA2
Assembled Depth (in)
15
Assembled Height (in)
16.1
Assembled Weight (lbs)
65
Assembled Width (in)
16.8
California Proposition 65 Warning Required
Yes
CARB Compliant
No
Country of Origin
Thailand
Height (in)
16.1
Horsepower (hp)
8.5
Input Frequency (Hz)
60
Input Voltage
6.9
Motor Enclosure
Closed
NEMA Frame Size
254T
Package Contents
Engine
Package Depth
15
Package Height
16.1
Package Weight
66
Package Weight (lbs)
66
RPM
3600
Shaft Diameter (in)
1
Shaft Length (in)
3.4
Shaft Rotation
Counterclockwise
