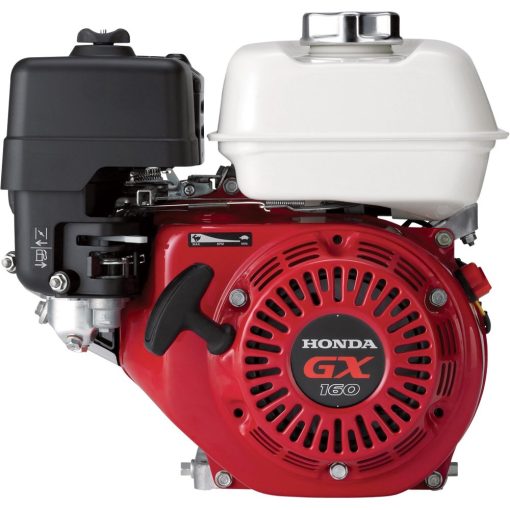

Horizontal OHV Engine — 163cc, GX Series, 3/4in. x 1 31/32in. Shaft
The Honda 163cc GX Series OHV commercial-grade engine is designed for the most demanding commercial applications. It has set an industry standard for reliability and durability. Overhead Valve design offers cooler, fuel-efficient operation and cast iron cylinder sleeve provides longer service life. The GX is reliable, easy starting and quiet running. Meets EPA and CARB emission levels standards. This legendary engine has earned the reputation as the preferred engine for construction equipment. Common application: cement mixers.
Features
6.1 can be rotated to position of application
Automatic decompression for easy starting
Heavy-duty ball bearing supported crankshaft
Double walled heavy-duty tank with in tank fuel strainer
50-state compliant engine
Specifications
Acme Tools Brand Name
HONDA
Acme Tools Part Number
GX160UT2HX2
Assembled Depth (in)
12
Assembled Height (in)
12.5
Assembled Weight (lbs)
45
Assembled Width (in)
13.3
California Proposition 65 Warning Required
Yes
CARB Compliant
No
Country of Origin
Thailand
Height (in)
12.5
Horsepower (hp)
4.8
Input Frequency (Hz)
60
Input Voltage
6.9
Motor Enclosure
Closed
NEMA Frame Size
254T
Package Contents
Engine
Package Depth
12
Package Height
12.5
Package Weight
46
Package Weight (lbs)
46
RPM
3600
Shaft Diameter (in)
.75
Shaft Length (in)
1.9
Shaft Rotation
Counterclockwise
