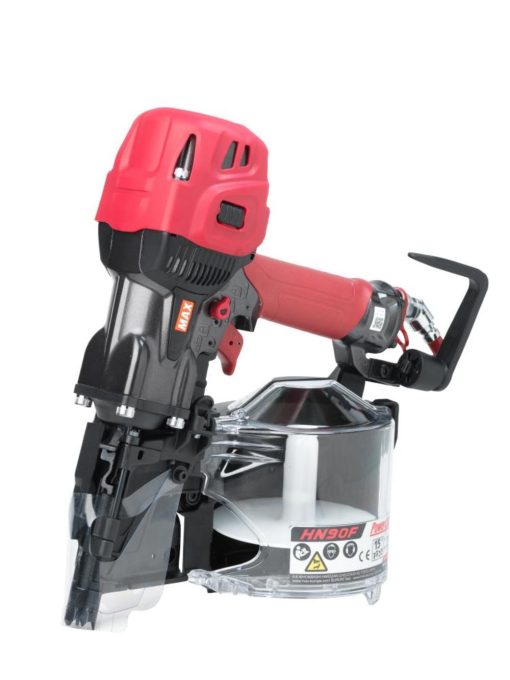

High Pressure Coil Framing Nailer
The MAX HN90F is a top of the line professional grade coil framing nailer powered by MAX’s 500 PSI Powerlite Compressor. The HN90F can be used for framing, sheathing, decking, furring, siding, sub flooring, and crate and box assembly. Backed by the power of a 500 PSI Powerlite Compressor, the HN90F can easily drive nails through the toughest wood.
Features
Patented maintenance free end cap filter prevents foreign substances from entering the tool. The filter has a self-cleaning feature; foreign substances are automatically ejected from the tool when the air hose is disconnected
Has enough power to drive nails through LSL
Lightweight-only 5.7 lbs. approx. 40% lighter than most other brands without sacrificing power
Load capacity of 300 nails. shoots up to 3-1/2 In. nail
Compact. Tool height is less than 13 in. 12% shorter than conventional coil framing tools
Tangle free swivel plug to alleviate the tangling of the air hose no matter what angle the tool is being held
Anti-double fire trigger
Adjustable rafter hook
Specifications
Acme Tools Brand Name
MAX USA
Acme Tools Part Number
HN90F
Air Inlet Size (in)
0.4375
ANSI Safety Listing
Yes
Assembled Weight (lbs)
5.7
California Proposition 65 Warning Required
Yes
Case Included
Yes
Color / Finish
Red, Black, Silver
Cordless / Corded
Corded
Country of Origin
Japan
Depth Control
Adjustable
Fastener Format
Coil
Fastener Gauge Range
1-3/4″ to 3-1/2″
Fastener Length Range
1-3/4″ to 3-1/2″
Fasteners Used
1-3/4″ up to 3-1/2″ flat wire welded nails or 1-3/4″ up to 3″ flat plastic sheet collated nails
Height (in)
13
Housing Material
Metal, Plastic
Internet Product Code (IPC)
9EAE6B3839A
Length (in)
11.75
Magazine Capacity
300
Manufacturer Warranty
5 year limited
Nailer / Stapler Design
Nailer
Nailer / Stapler Power
Pneumatic
Net Tool Weight (lbs)
5.7
Operating Pressure
500 psi
Package Weight
10
Package Weight (lbs)
10
Pneumatic Nailer Type
Framing
Powered Tool Power Source
Pneumatic
