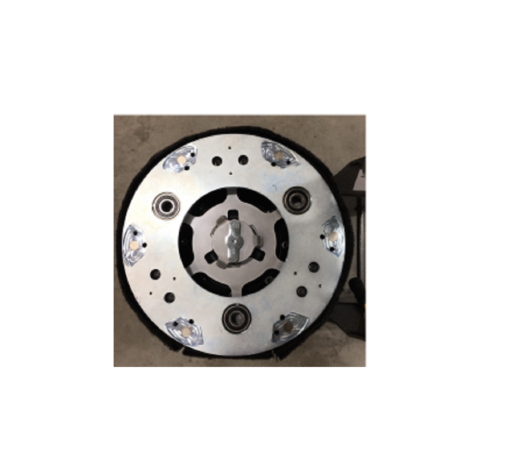

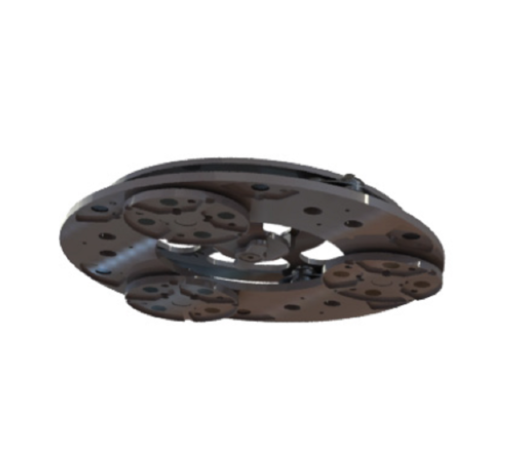

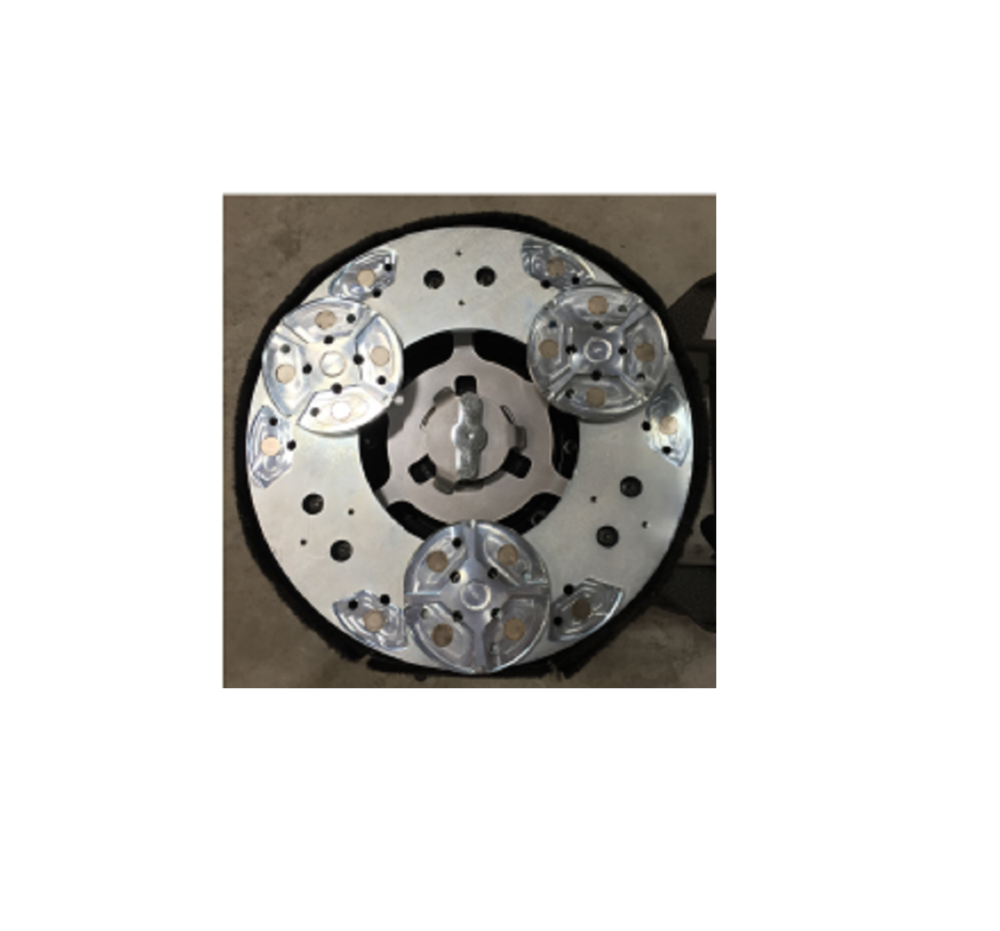

Helix® Grind and Scrape Plate
The deluxe Helix Grind and Scrape Plate is the most versatile prepping plate in the industry. This magnetic tooling system converts from aggressive grinding and scraping to passive planetary for diamond grinding, carbide/PCD scraping, polishing, and sanding. The Morflex couplers allow the plate to follow the contour of the floor.
Features
Fits the Helix
Rigid plate mount allows for aggressive grinding and scraping
Passive planetary tooling creates random scratch pattern
Polishes and sands without leaving swirl marks
Morflex couplers reduce the shock to the operator and the machine
Follows the contour of the floor for uniform operation in low spots
For use with machines large enough to accept a 16-inch plate with a standard 3¼-inch hub
Converts from grinding to scraping to polishing to sanding in seconds
Includes three satellite plates that are easily attachable/detachable with cotter pins
Specifications
Acme Tools Brand Name
NATIONAL FLOORING EQUIPMENT
Acme Tools Part Number
402757
Assembled Weight (lbs)
13
Attachment Method
Sliding latch
California Proposition 65 Warning Required
Yes
Country of Origin
China
Diameter
20 in
Diameter (in)
16
Flammable
No
Package Contents
1 Plate
Package Depth
18
Package Height
4
Package Weight
14
Package Weight (lbs)
14
Used With
Helix planetary grinder
