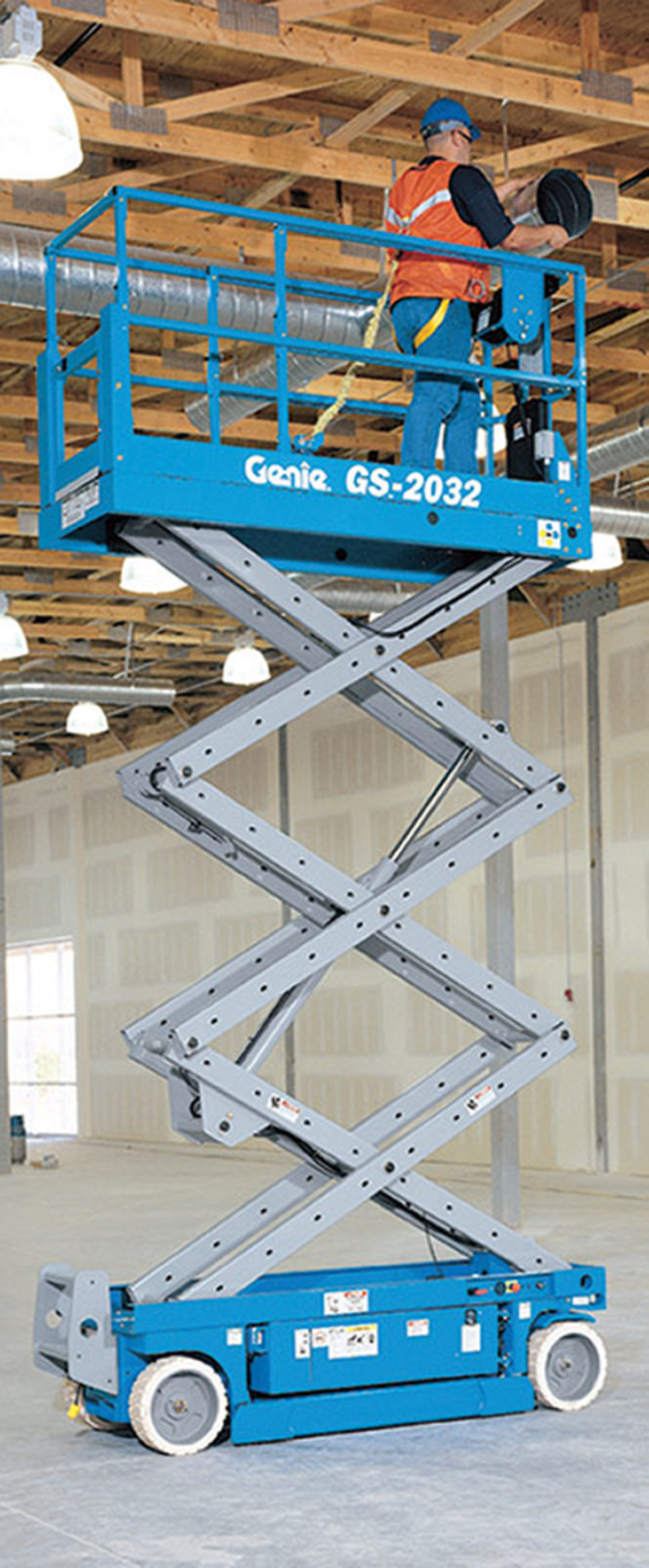

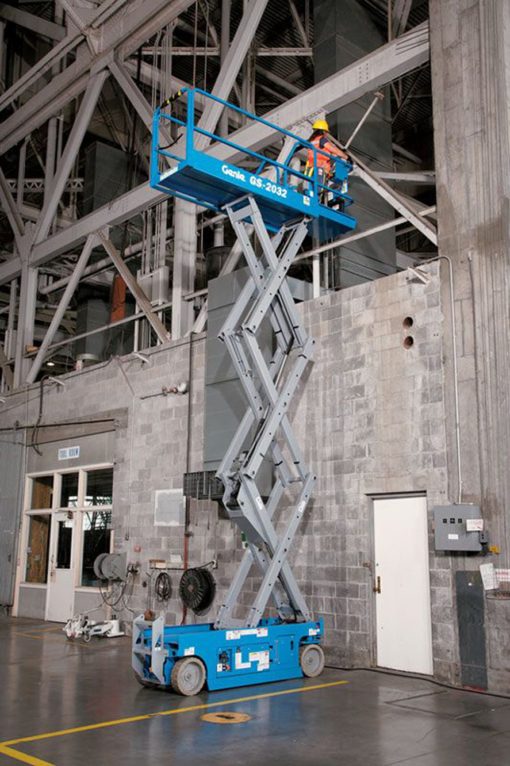

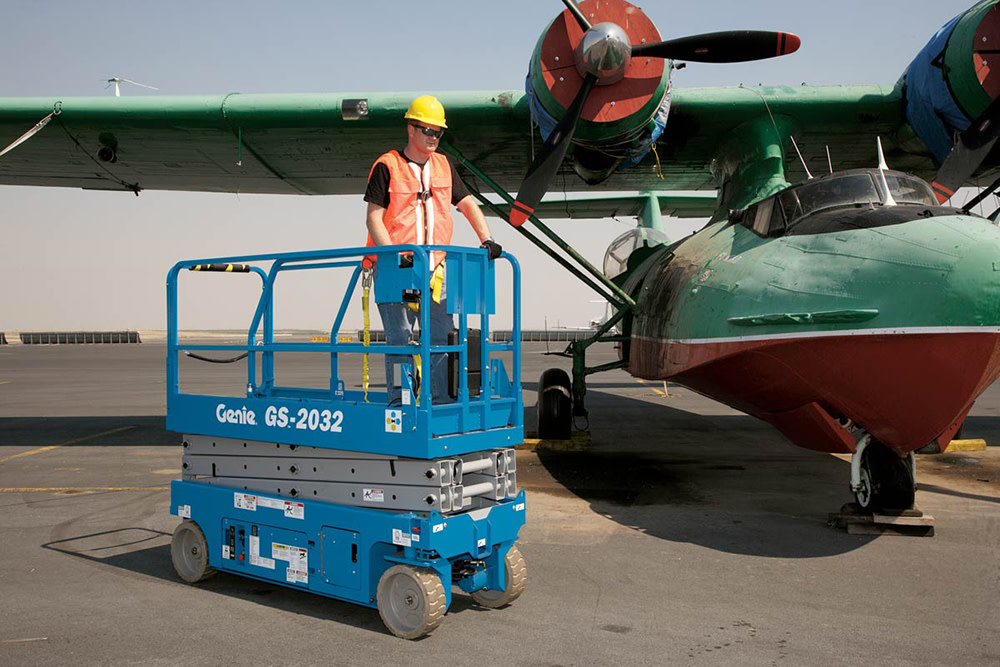

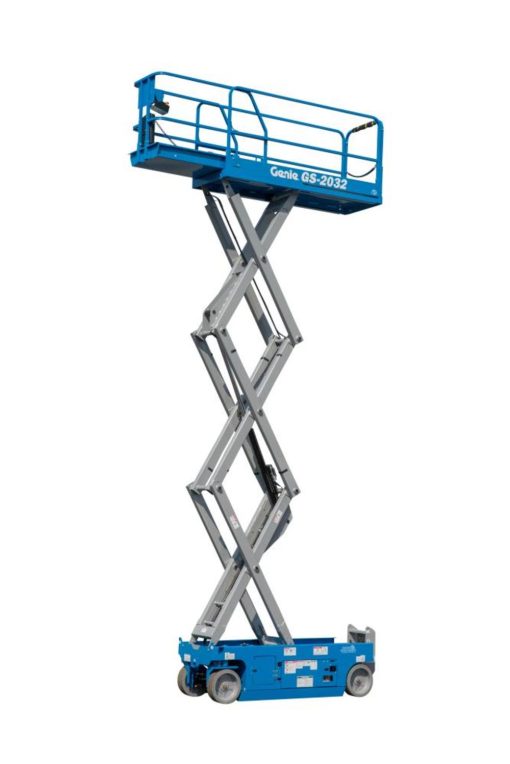

Genie 20′ Scissor Lift 32″ Width Electric
If your job calls for you to wear many hats like maintenance, installation, and construction, you need a machine that can do the same. With the Genie GS-2032 lift, you get that and more. Designed to be used inside or outdoors, as long as the surface is level and firm, this lift will show you its versatility. The Genie 2032 has a max height of 20 feet and a 39-inch roll-out platform extension. That plus its already large steel platform you can easily have two workers and tools on with little hassle. The GS 2032 lift will handle large spaces and tight areas with ease, thanks to its Smart Link™ control panel and 0° turn radius.
Features
Zero-emission electric operation
39 in. (1 m) roll-out platform extension
High angle steering for excellent maneuverability
Fixed rail with chain entry gate standard
Universal 20 amp smart charger
Proportional controls for lift and drive functions
On-board diagnostics for easy troubleshooting
Multiple disc brakes provide smooth deceleration
Emergency stop at both platform and ground controls
AC power to platform
89 x 32 in. steel platform
Dual front wheel drive
Rear recessed charger receptacle
SmartLink – proportional lift and drive
Platform control with battery charge indicator and diagnostic display
Lanyard attachment points
Manual platform lowering valve
Front wheel hydraulic dynamic braking
Brake release
Pothole guards
Electronic horn
Specifications
Acme Tools Brand Name
GENIE
Acme Tools Heavy Equipment
true
Acme Tools Part Number
GS-2032
ANSI Approved
Yes
Assembled Weight (lbs)
4059
Battery Ampere-hour (Ah)
225
Battery Voltage (V)
24
California Proposition 65 Warning Required
Yes
Color / Finish
Blue Base and Platform, Silver Extension
Country of Origin
United States
CSA Certified
Yes
Drive Motor System
Hydraulic
Drive Type
Front
Ground Clearance (in)
3.5
Horsepower (hp)
8
Hour Meter
Yes
Hydraulic Fluid Capacity (gal)
4.5
Internal Supplier Part #
GS-2032
Internet Product Code (IPC)
9F62DF9AD0E
Manufacturer Warranty
Standard 1-3-5 Year Limited Warranty
OSHA Approved
Yes
Package Weight
4059
Package Weight (lbs)
4099
Platform Width (in)
32
Tire Size
15 x 5 x 11.25 In.
Turning Radius (in)
84
Weight (lbs)
4059
