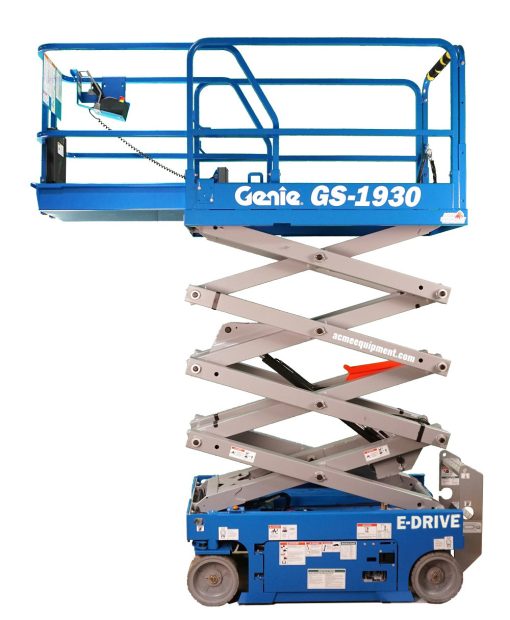

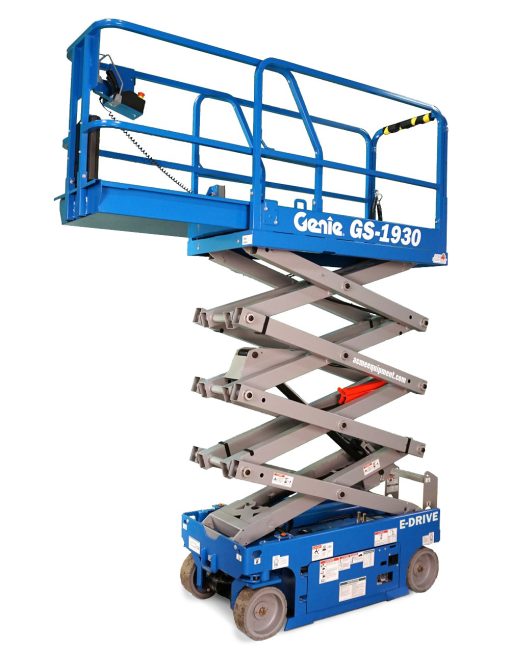

Genie 19′ Scissor Lift 30″ Width Electric with E-Drive
The Genie® GS-1930 slab scissor lift boasts quiet electric operation and is ideal for indoor and outdoor applications in tight spaces on firm, level surfaces. Electrically-powered with Genie AC E-Drive configuration, this GS-1930 provides excellent capacity and generous platform workspace. The Genie GS-1930E scissor lift has a 25-ft working height and boasts quiet electric, zero-emissions operation perfect for sound-sensitive environments like office buildings, shopping malls, hotels, schools and more.
Features
Dual front wheel AC electric drive motors (E-drive)
On-board diagnostics help operators troubleshoot on the fly and make adjustments in the field
Swing-out battery box and power module trays allow easy access to engine components
Front wheel hydraulic dynamic braking and rear wheel multiple disc brakes
Drive speed interlock limits speed while elevated
Manual platform lowering valve
Pothole guards
Emergency stop at both platform and ground controls
Tilt level sensor with audible alarm
36 inch extension deck
Drive at full height
AC power to platform
Solid, non-marking tires
Outdoor functionality on firm, level surfaces
Lanyard attachment points
Fixed rail with chain entry gate
Specifications
Acme Tools Brand Name
GENIE
Acme Tools Heavy Equipment
true
Acme Tools Part Number
GS-1930E
Additional Contents
Operator’s Manual
ANSI Approved
Yes
Assembled Weight (lbs)
3209
Battery Ampere-hour (Ah)
225
Battery Voltage (V)
24
California Proposition 65 Warning Required
Yes
Color / Finish
Blue base and platform, gray extension
Country of Origin
United States
CSA Certified
Yes
Drive Motor System
Hydraulic
Drive Type
2-Wheel Front
Ground Clearance (in)
3.2
Horsepower (hp)
8
Hour Meter
Yes
Hydraulic Fluid Capacity (gal)
3.8
Internal Supplier Part #
GS-1930E
Manufacturer Warranty
Standard 1-3-5 Year Warranty
OSHA Approved
Yes
Package Contents
Operator’s Manual
Package Weight
3209
Package Weight (lbs)
3209
Platform Width (in)
29
Tire Size
12 x 4.5 In.
Turning Radius (in)
61
Weight (lbs)
3209
