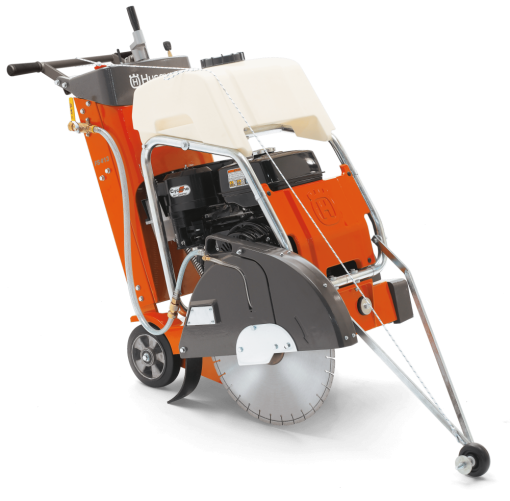

FS 413 20 In. Walk Behind Concrete Saw
The FS 400 series floor saws are true multi-purpose concrete saws, available with 11 hp Honda gas engines. They are compact and developed with a clear focus on ergonomics, making them ideal for small to mid-sized jobs. This saw has a maximum cutting depth of 7.6 inches and low vibrations; the engine and blade shaft mounting system increases comfort and gives excellent cutting performance.
Features

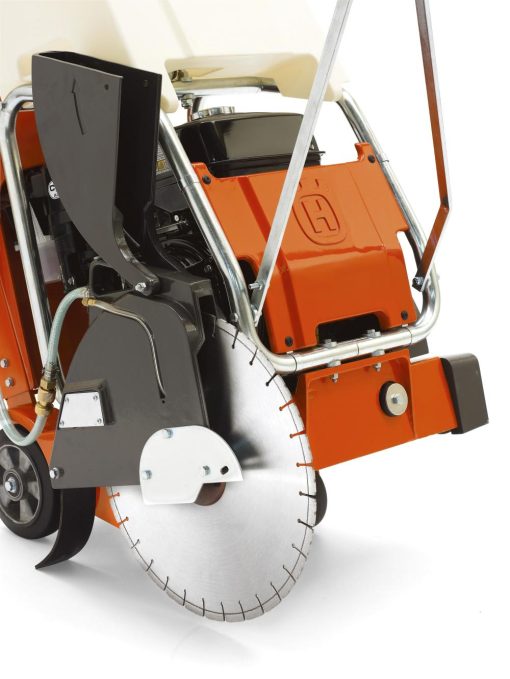

Low vibrations- engine and blade shaft mounting system increases comfort and gives excellent cutting performance.
The IntelliSeal blade shaft system allows for a minimum of 250 maintenance-free hours without daily greasing of bearings.

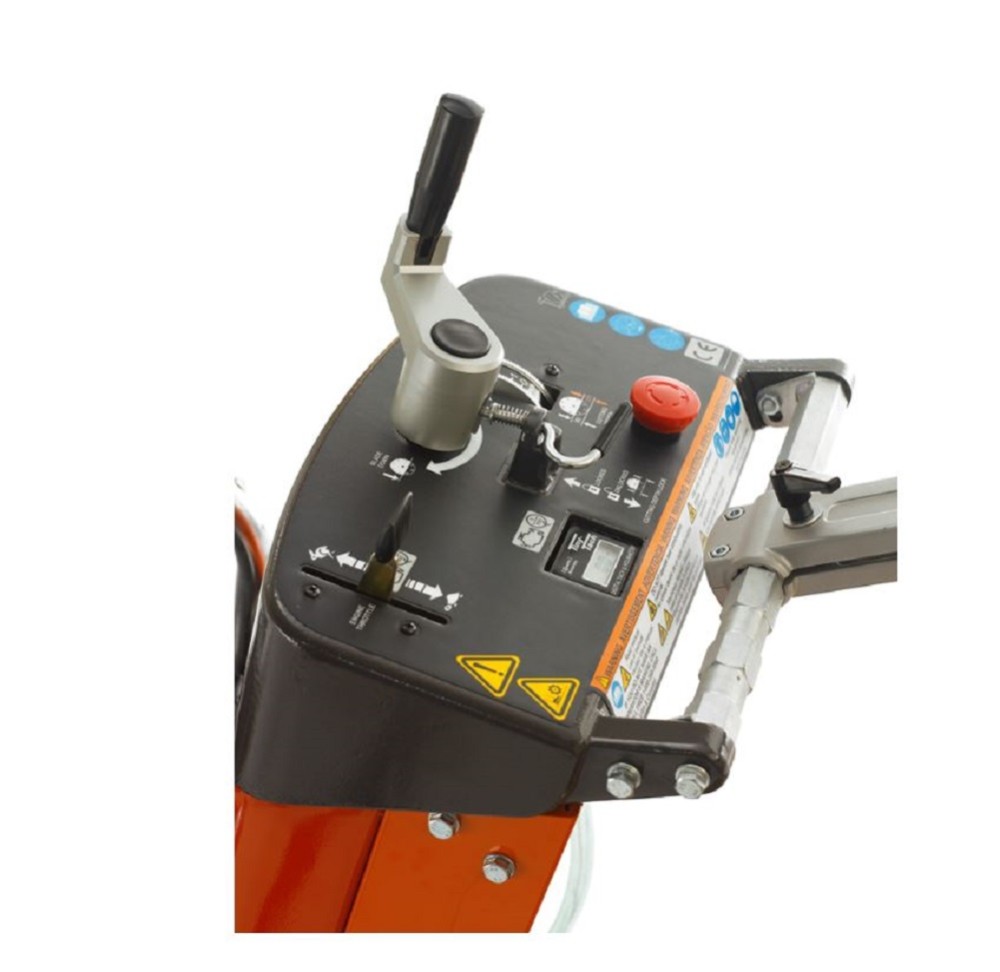

Spring-assisted screw feed facilitates blade adjustment in and out of the cut.
Compact saw that is easy to lift.

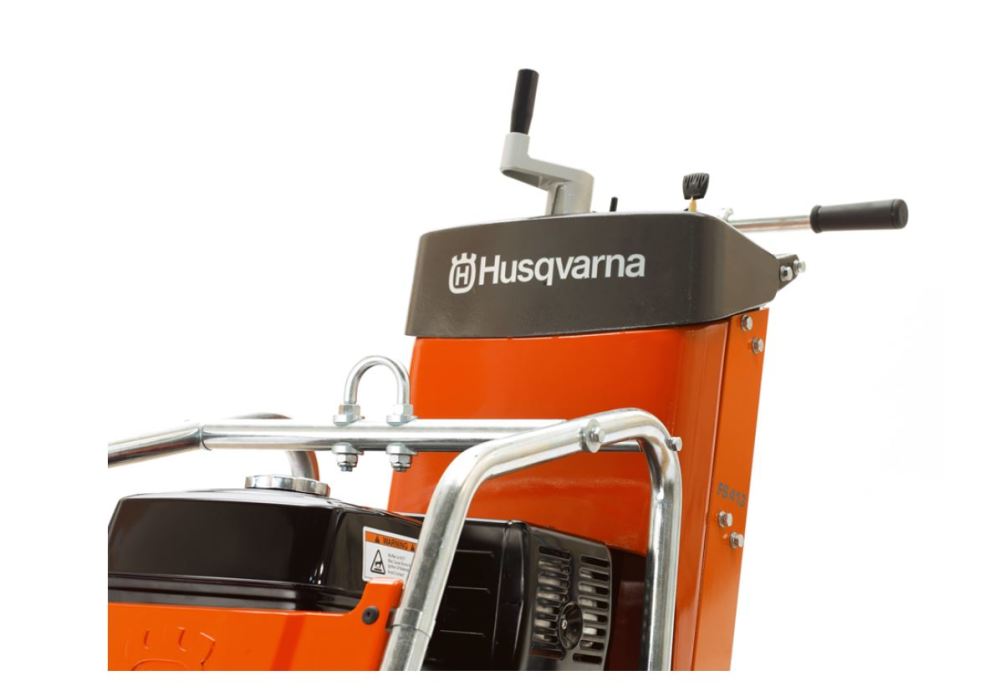

Adjustable handles
Clear depth indicator
Specifications
Acme Tools Brand Name
HUSQVARNA CONSTRUCTION
Acme Tools Part Number
965150107
Arbor Size
1 in
Arbor Size (in)
1
Assembled Height (in)
47.24
Assembled Weight (lbs)
306
Assembled Width (in)
19.9
Blade Diameter (in)
20
California Proposition 65 Warning Required
Yes
Capacity
Fuel: 1.60 Gal
CARB Compliant
No
Country of Origin
China
Engine Displacement (cc)
0
Engine Horsepower (hp)
11
Fuel Mix Ratio
Unleaded Fuel
Fuel Tank Capacity (gal)
1.60
Height (in)
47.24
Maximum Cutting Depth (in)
7.6
Maximum Flow Rate (gpm)
0
Package Contents
Saw and Owner’s Manual
Package Depth
48
Package Height
50
Package Weight
307
Package Weight (lbs)
307
Size
1 in
