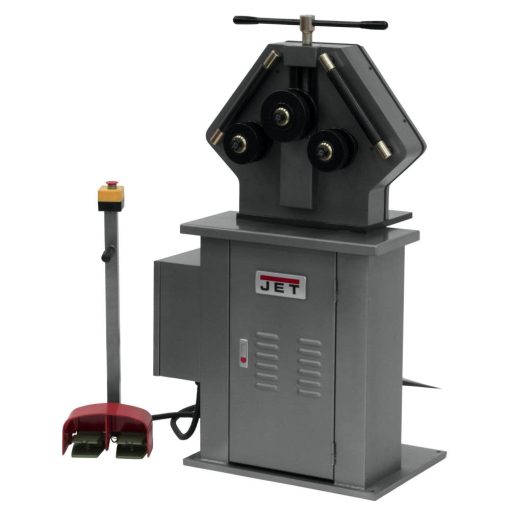

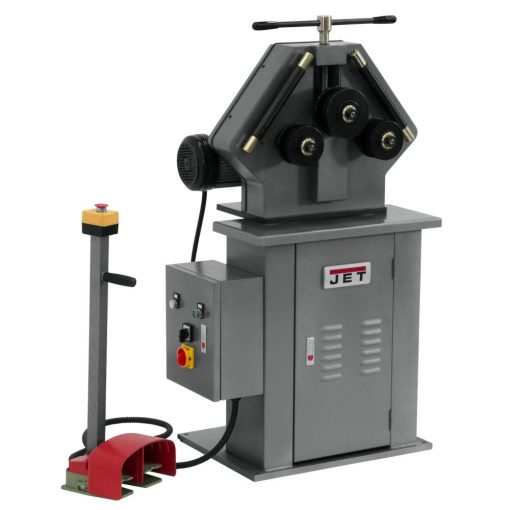

Er-2 Electric Pinch Roll Bender
With a rugged frame and base, and hardened rolling shafts with bronze bushings, the Jet electric pinch roll bender is built for durability and accuracy. All electrical and rotating parts are designed to enhance operator safety and comfort.
Features
Heavy duty cast iron construction machined to strict tolerances with maintain tolerances and accuracy
Hardened rolling shafts with bronze bushings ensures the machine will last for years of operation
CSA/US: following strict guidelines and electrical requirements, this Jet roller is CSA/US certified

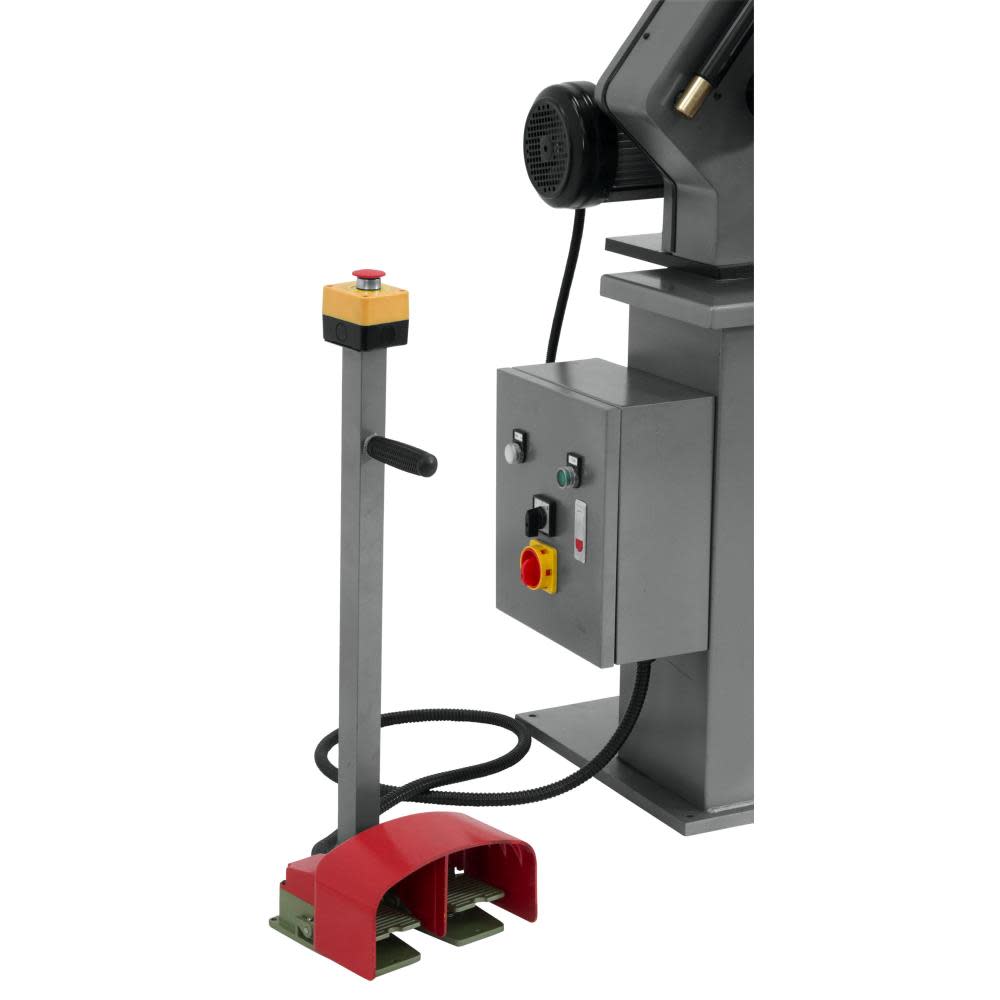

Foot-control assembly with emergency-stop
Open face design allows the operator to roll full circles
Reduction gearbox cuts down on operator fatigue
Equipped with 6 various size segment rolls for flat bar, square tubing and angle iron

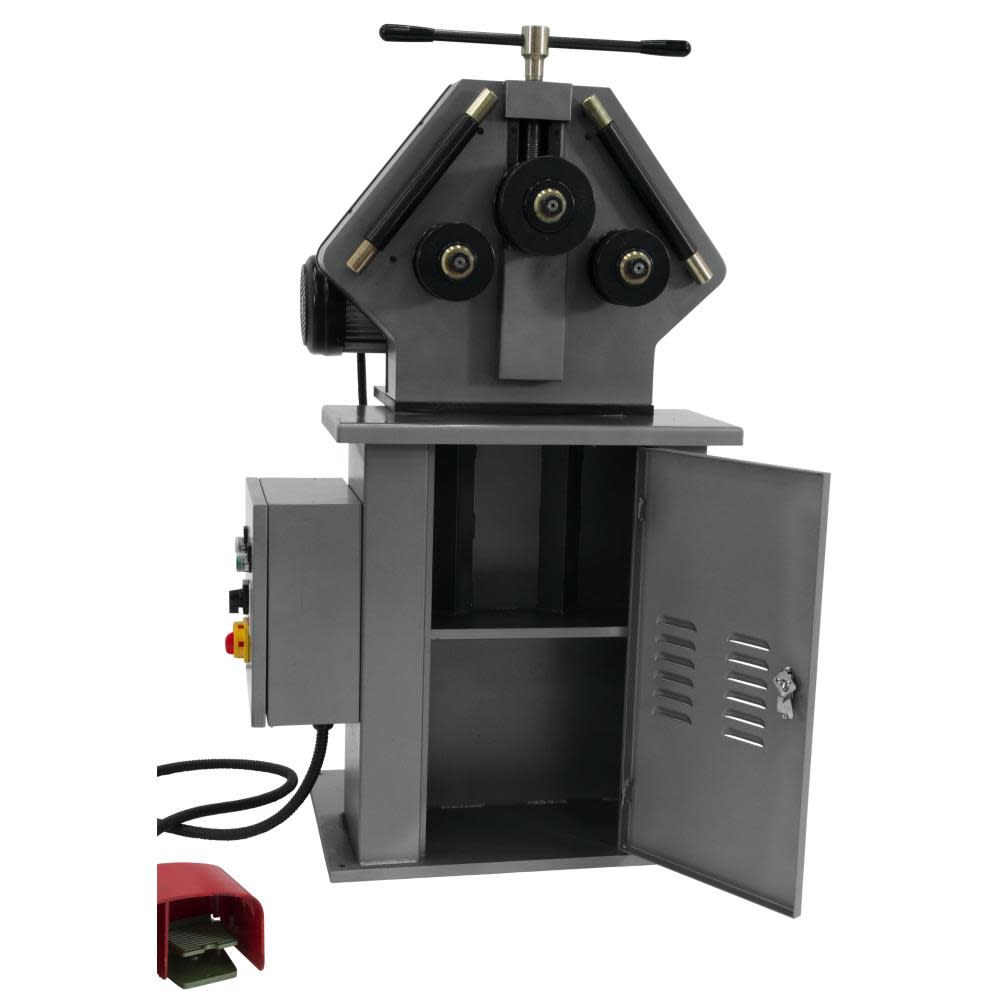

Base comes standard with a full storage cabinet
Specifications
Acme Tools Brand Name
JET
Acme Tools Part Number
754435
Assembled Weight (lbs)
606
Bed Length (in)
31
Bed Width (in)
20.0
California Proposition 65 Warning Required
Yes
Color / Finish
See image
Country of Origin
Taiwan
Internet Product Code (IPC)
78DBCABA458
Manufacturer Warranty
2 year
Material
metal
Maximum Gauge Capacity
1
Overall Height (in)
56.0
Overall Length (in)
31.0
Overall Weight (lbs)
527.0
Overall Width (in)
20.0
Package Depth
31
Package Height
56
Package Weight
606
Package Weight (lbs)
606
