Electric Submersible Pump

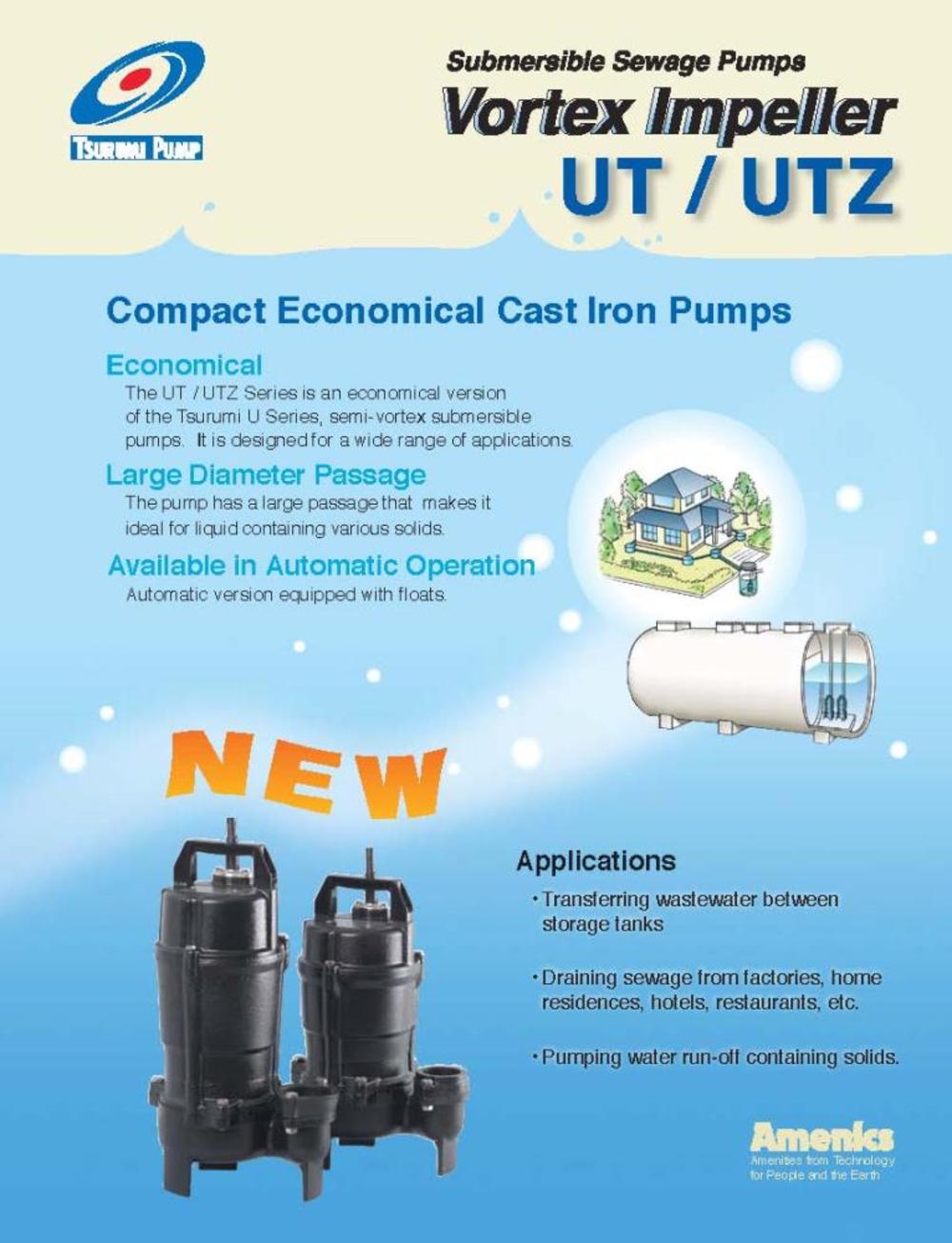

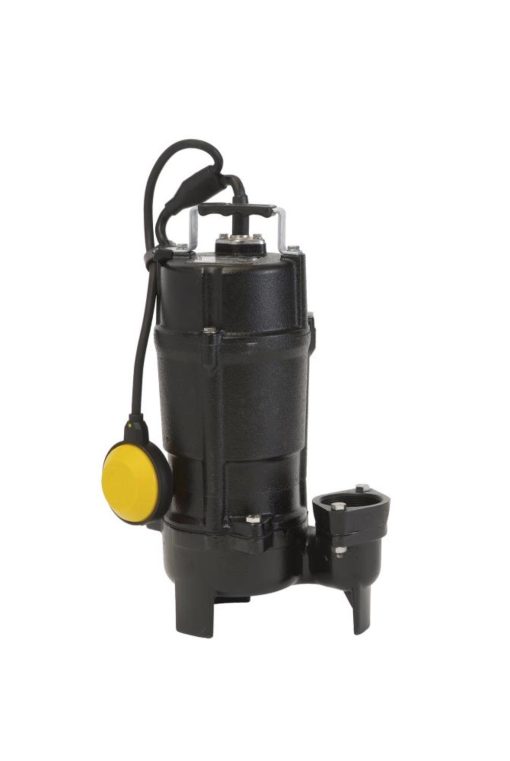

Tsurumi 50UTZ2.75S is an economical semi-vortex submersible pump, designed for effluent and dirty water applications, equipped with automatic floats.
Features
Large passage ideal for liquid containing various solids
Anti wicking cable entrance
Dual inside Mechanical Seal with SiC faces provides long life
Patented oil lifter provides lubrication of seal faces down to 1/3 of normal oil level to extend seal life by ten times
Specifications
Acme Tools Brand Name
TSURUMI
Acme Tools Part Number
50UTZ2.75S
Amperage (A)
9.9
Assembled Weight (lbs)
26.0
Battery Backup
No
California Proposition 65 Warning Required
No
Cord Length (ft)
20.0
Cordless / Corded
Corded
Country of Origin
Japan
Floatable
No
Gallons Per Hour (gal)
5700.0
Horsepower (hp)
1.0
Housing Material
Gray Iron Casting
Impeller Material
Glass-fiber Reinforced Resin
Inlet Size (in)
1.4
Internal Supplier Part #
50UTZ2.75S
Internet Product Code (IPC)
3E52C4976CD
Length (in)
9.5
Manufacturer Warranty
2 Year
On / Off Points
N/A
Outlet Dimension (in)
2.0
Package Depth
18.5
Package Height
8.25
Package Weight
28
Package Weight (lbs)
28
Pump Category
Sump
Pump Construction
Cast Iron
Pump Switch Type
Tethered
Sump Type
Submersible
Switch Type
Tethered
Voltage
115
Voltage (V)
115.0
Water Flow
N/A
Width (in)
6.375
