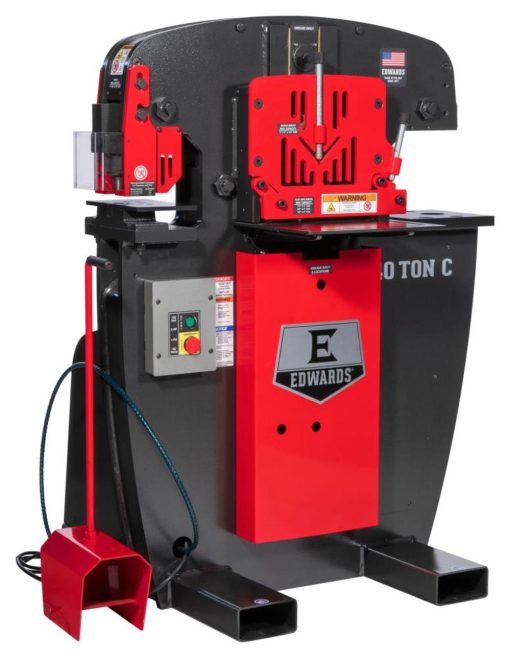

Edwards 40 Ton C Ironworker 1 Phase 115 Volt
40 Ton C Ironworker. Compact machine that allows for fast and easy transitions between fabrication operations: punch, shear, notch, bend and cope all in one machine.
Features
Four workstations
11 interchangeable Attachments available to tailor the Ironworker to your needs
16 optional Accessories available to increase precision and efficiency
Compact machine that allows for fast and easy
transitions between fabrication operations: punch,
shear, notch, bend and cope all in one machine
Optimized workstation heights for improved efficiency
Durable, heavy-duty, Made In USA steel construction
Vertical movement produces even pressure resulting in
precise punching and shearing with minimal distortion
that results in extended tooling life
Punches are easily changeable, long-lasting and
available from 1/8” to 4” diameters along with square,
oblong, hex, metric, and custom shapes
Flat Bar Shear blades are made of precision machined,
high-quality tool steel with 4 cutting edges for
extended life
Specifications
Acme Tools Brand Name
EDWARDS
Acme Tools Part Number
IW40C-1P120
Amperage (A)
17
ANSI Safety Listing
Yes
Assembled Weight (lbs)
1720
California Proposition 65 Warning Required
Yes
Color / Finish
Red/Grey
Country of Origin
United States
CSA Certified
No
ETL Listed
Yes
Horsepower (hp)
2
Internal Supplier Part #
IW40C-1P120
Internet Product Code (IPC)
D5150BD2068
Manufacturer Warranty
1 year
Maximum RPM
1725
Motor Horsepower (hp)
2
Motor Voltage (V)
115
Overall Height (in)
53
Overall Length (in)
36.12
Overall Width (in)
40
Package Depth
40
Package Height
36.12
Package Weight
1720
Phase
Single Phase
Reservoir Capacity (gal)
7
UL Listed
No
Voltage
115
Weight (lbs)
1720
