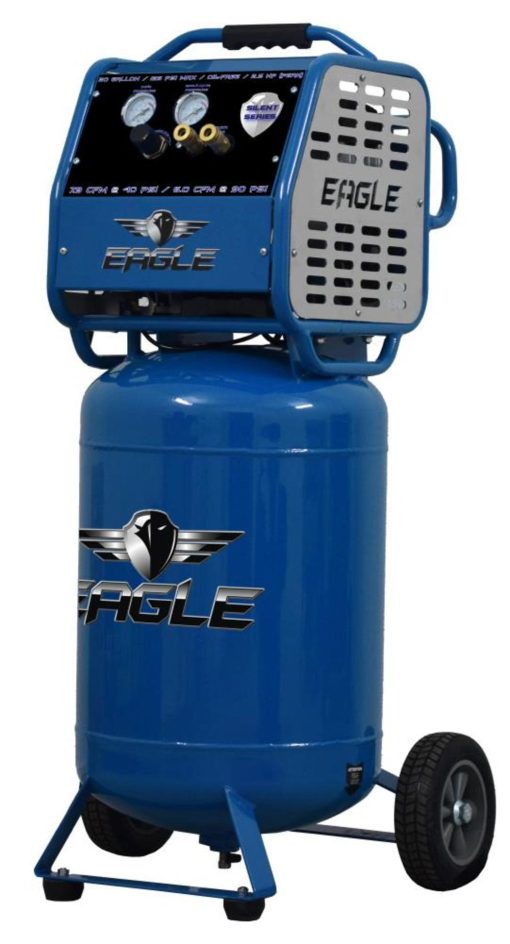

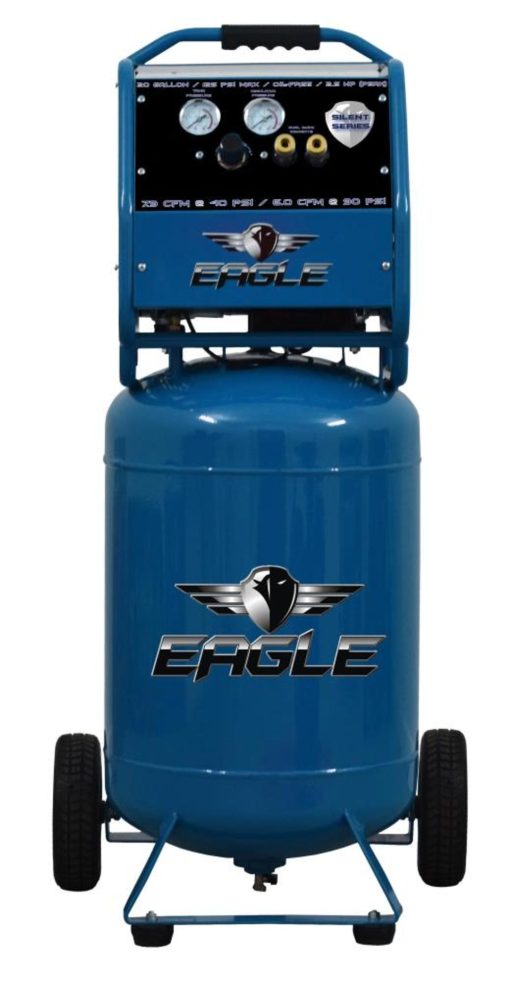

Eagle Silent Series 20 Gallon Electric Portable Air Compressor
Eagle silent series EA-6500 20 Gallon tank 2.5 HP(peak) air compressor. Low RPM induction motor runs at a quiet 53 Db 25 feet. Twin cylinder oil free compressor delivers 7.9 CFM 40 PSI and 6.0 CFM 90 PSI. Easy access control panel has quick connect and regular with gauges.125 Max PSI. Lever type tank drain. Heavy duty pressure switch. Includes wheel kit for easy mobility.
Features
20 Gallon tank capacity
2.5 HP inductive motor
7.9 CFM 40 PSI and 6.0 CFM 90 PSI
Integrated wheel kit
Specifications
Acme Tools Brand Name
EAGLE COMPRESSOR
Acme Tools Part Number
EA-6500
Air Compressor Pump Design
Oil Free
Air Delivery (scfm) @ 40PSI
7.9
Air Delivery (scfm) @ 90PSI
6.0
Amperage (A)
12
Assembled Weight (lbs)
150
California Proposition 65 Warning Required
Yes
Carrying System
Wheel kit with folding handle
Color / Finish
Teal
Compressor Design
Vertical
Cordless / Corded
Corded
Country of Origin
China
CSA Certified
No
Decibel Rating (dB)
53
ETL Listed
No
Height (in)
45.9
Horsepower (hp)
2.5
Internal Supplier Part #
EA-6500
Internet Product Code (IPC)
AB94B1FADB4
Length (in)
21.6
Manufacturer Warranty
TWELVE (12) MONTHS FROM DATE OF START
Maximum Pressure Rating (psi)
125
Motor Type
Induction
Operating Position
Horizontal or Vertical
Package Depth
23
Package Height
48
Package Weight
150
Package Weight (lbs)
150
Regulator
Yes
Tank Capacity (gal)
20
Tank Configuration
Single
Tank Material
Steel
Tank Pressure Gauge
Yes
Type of Air Compressor Tank
Portable
UL Listed
No
Voltage
120
Voltage Rating
120
Weight (lbs)
132
Wheeled
Yes
Width (in)
18.7
Working Pressure Gauge
yes
