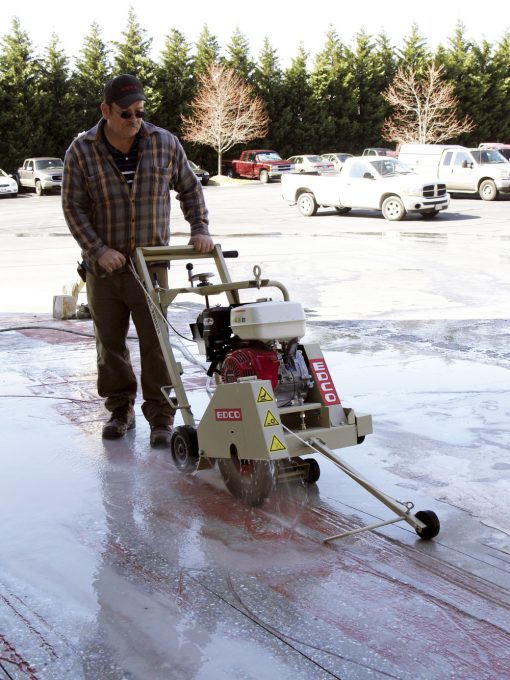

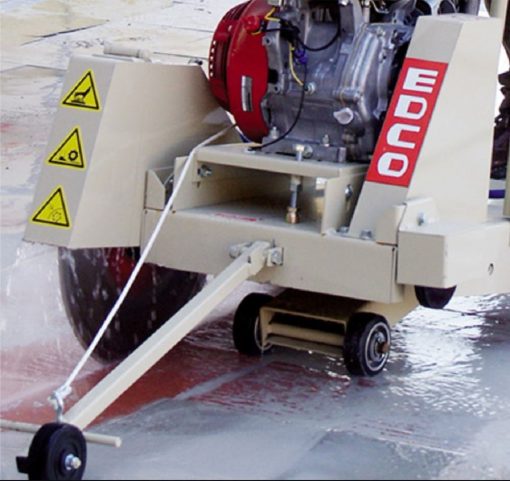

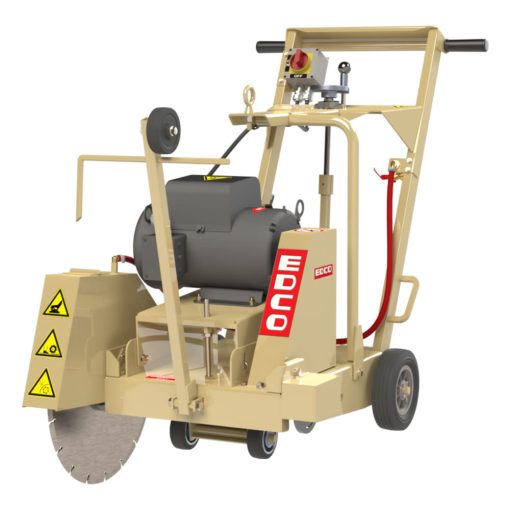

DS-18 5 HP 230V 18″ Walk-Behind Saw
Walk-Behind Saws cut depths varying between 1” to 6 ¾” and are used for trenching, utility installation, crack repair, and other short-run sawing applications.
Features
Heavy-Duty Anti-Vibration engine mount
Screw boot belt tensioner prevents frame damage
18″ blade capacity
7-gauge steel blade guard with welded protective segment flap
Heavy-Duty lifting bail
13 HP gasoline engine or 5 HP electric options
Heavy-Duty 7-gauge steel laser cut frame
Large screw-type depth control
Wide-T handles with rubber grips
High quality molded rubber wheels
Specifications
Acme Tools Brand Name
EDCO
Acme Tools Part Number
37300
Arbor Size
1 in
Arbor Size (in)
0
Assembled Depth (in)
49
Assembled Height (in)
40
Assembled Weight (lbs)
280
Assembled Width (in)
27
Blade Diameter (in)
18
California Proposition 65 Warning Required
Yes
CARB Compliant
Yes
Country of Origin
United States
Engine Displacement (cc)
0
Engine Horsepower (hp)
5
Fuel Mix Ratio
0
Height (in)
40
Maximum Cutting Depth (in)
6.75
Maximum Flow Rate (gpm)
0
Package Contents
18″ Walk Behind Saw
Package Depth
49
Package Height
40
Package Weight
281
Package Weight (lbs)
281
Size
0 in
