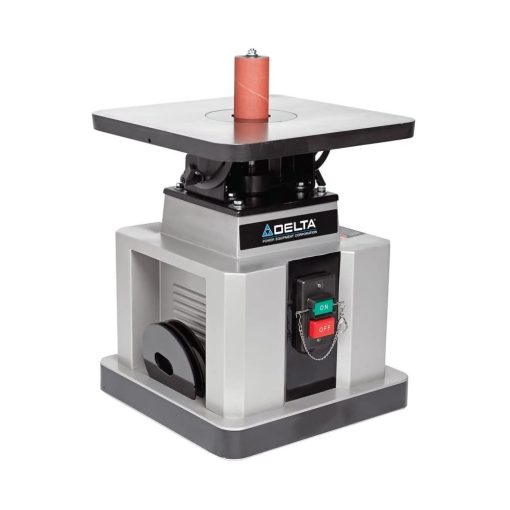

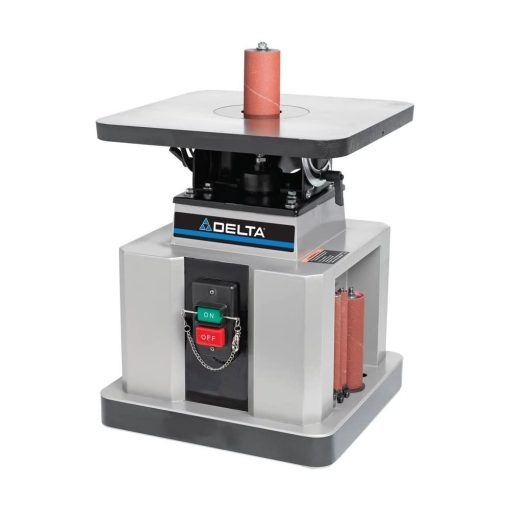

Delta Oscillating Bench Spindle Sander with Tilt Table
The 31-483 heavy duty oscillating bench spindle sander is equipped with a powerful 1/2HP, 115V motor with a 1725 Rpm spindle speed and 29 oscillations per minute. The fully enclosed heavy duty steel frame construction is designed to keep vibration at a minimum. A heavy duty, steel table support and bevel system provides increased stability and long-lasting durability.
Features
Powerful 1/2HP, 115V motor with 1725 Rpm spindle speed and 29 oscillations per minute
Fully enclosed, heavy duty steel frame construction for minimum vibration
14-3/4 In. x 14-3/4 In. precision ground cast iron table
15/16 In. oscillating action uses more of the sleeve, prolonging life of the sleeve
0-45 Deg tilting table design allows for accurate bevel sanding

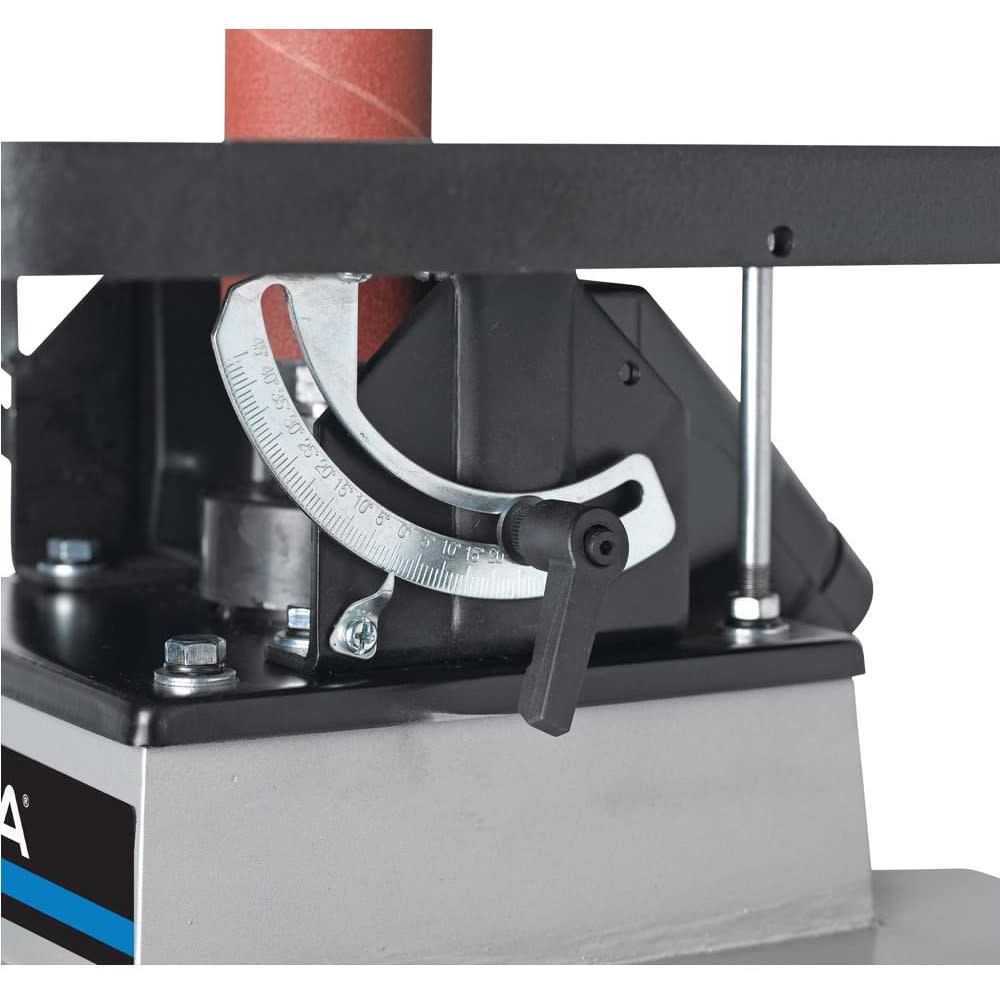

Positive stop at 90 Deg and large bevel scale for accuracy and convenience

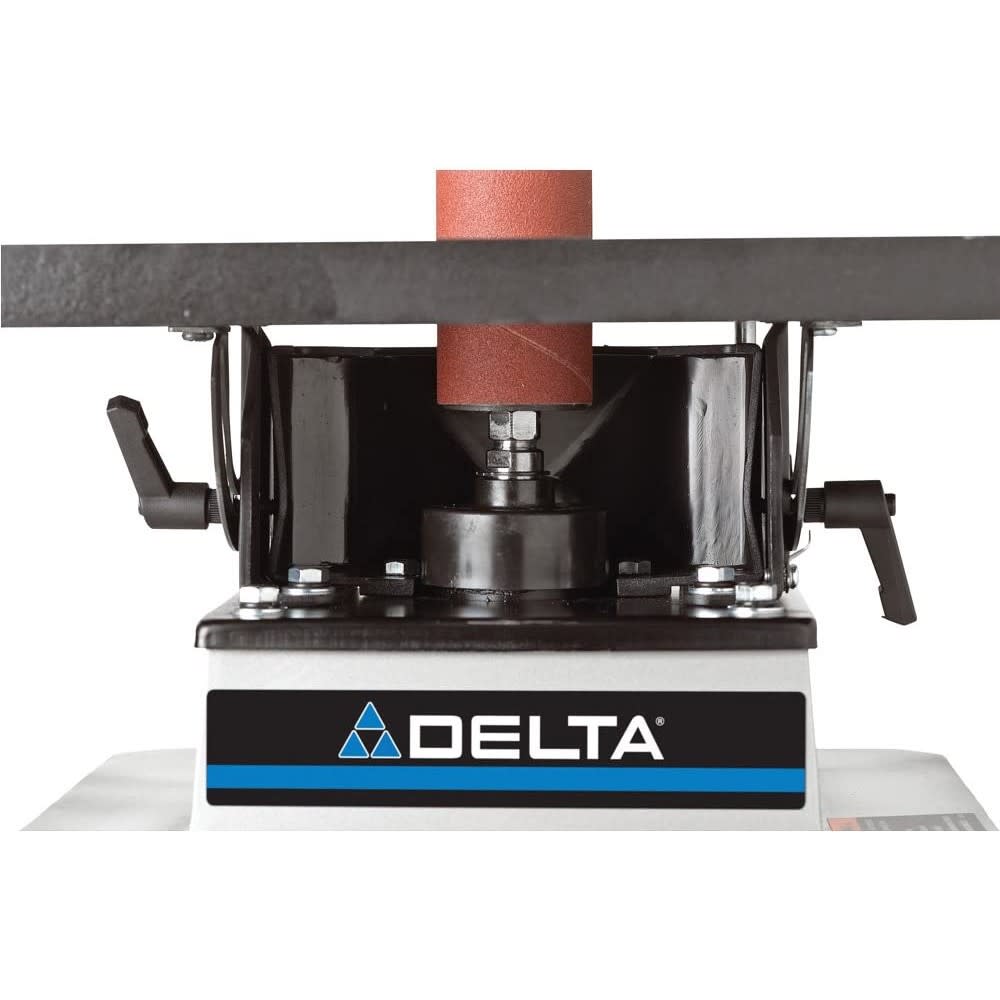

Heavy duty, steel table support and bevel system provides increased stability and long-lasting durability
Twin locking handles for stability in bevel position
Smooth precision ball bearings support the main spindle and heavy duty worm and gear mechanism drives the oscillations
Convenient up front switch with lock out pin
Four in. dust port adapter included for vacuuming dust
Specifications
Acme Tools Brand Name
DELTA
Acme Tools Part Number
31-483
Amperage (A)
10
Assembled Weight (lbs)
66
Assembly Required
No
Bench or Stationary
Bench
California Proposition 65 Warning Required
Yes
Color / Finish
Gray
Cordless / Corded
Corded
Country of Origin
Taiwan
CSA Certified
Yes
Dust Collection
Yes
Dust Collection Method
2-1/4 – 4 In. Dust Port Adaptor
Horsepower (hp)
1/2
Internet Product Code (IPC)
983BEC38ACA
Length (in)
14.75
Manufacturer Warranty
5 Year
Material
Steel
Net Tool Weight (lbs)
66
Number of Spindles Included
5
Oscillation
Yes
Oscillations Per Minute
29
Package Contents

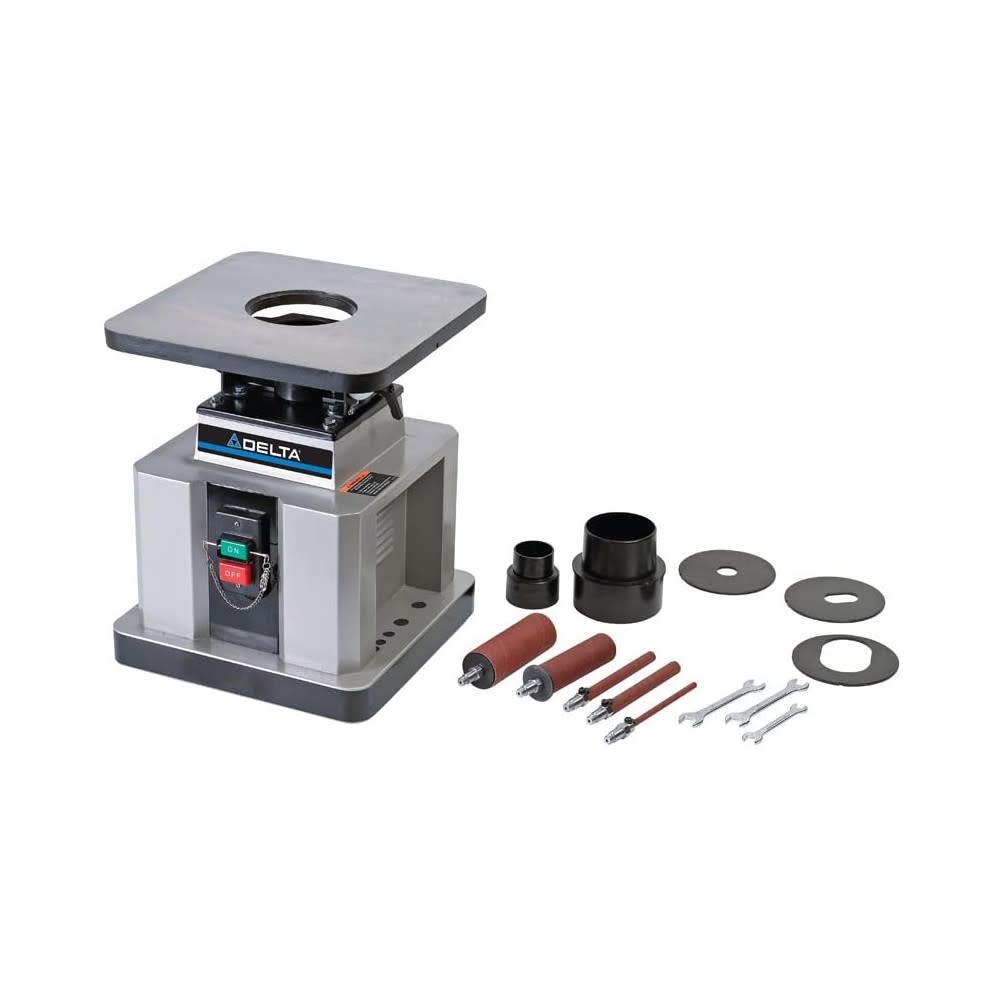

Spindle Sanders, (5) Interchangeable Threaded Spindles, (1) Rubber Drums, (4) Inserts, (1) Power Lock-Off Pin, (1) 2-1/4 – 4 In. Dust Port Adaptor, (3) Wrenches
Package Depth
14.75
Package Height
18
Package Weight
73
Package Weight (lbs)
73
Sander Style
Spindle
Size(s) Of Spindles Included
1/4 In., 1/2 In., 5/8 In., 1-1/2 In., & 2 In.
Spindle Speed High (rpm)
17250
Spindle Table Length (in)
14.75
Spindle Table Tilt Range
0-45
Spindle Table Width (in)
14.75
Stand Included
No
Table Height (in)
18
Table Material
Steel
UL Listed
No
Voltage
115 Volts
