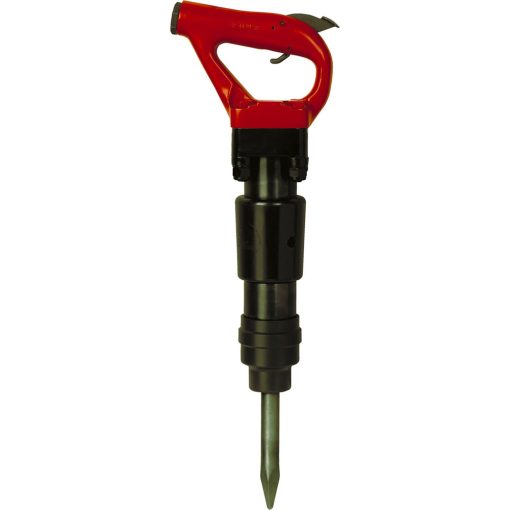

CP4130-3R Chipping Hammer, 4 Bolt, 3″ Stroke, .680RD Shank

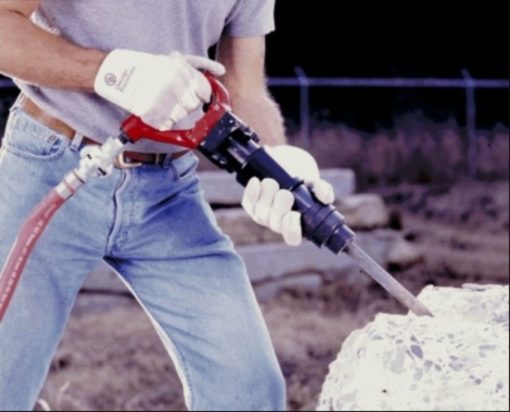

The CP 4130 is the US version of the CP 16, which is used predominately in the European market in the 8 kg category. The 4-bolt hammers are designed to tackle punishing jobs with the hard hitting power that you expect from CP. It is used for medium-duty to heavy-duty chipping, cutting and trimming operations. The four bolt handle provides better durability and makes the tool easy to dissassemble for maintenance.
Features
Four bolt, high strength back-head
”D” handle with outside trigger
and extra safety mechanism
Simplate valve for smooth operation
Strong and reliable
.680” Round bushing means the chisel rotates freely
3” cylinder stroke
All CP hammers are supplied with oval collar retainer
Muffler included
Specifications
Acme Tools Brand Name
ATLAS COPCO
Acme Tools Part Number
8900000116
Assembled Weight (lbs)
15.5
California Proposition 65 Warning Required
Yes
Chuck Design
Straight-On
Chuck Size
Not Applicable
Country of Origin
Sweden
Decibel Rating (dB)
90
Handle Type
D
Impact Energy
1920 BPM
Package Contents
(1) CP4130-3R Chipping Hammer, (1) Manual
Package Depth
6
Package Height
16.5
Package Weight
17
Package Weight (lbs)
17
