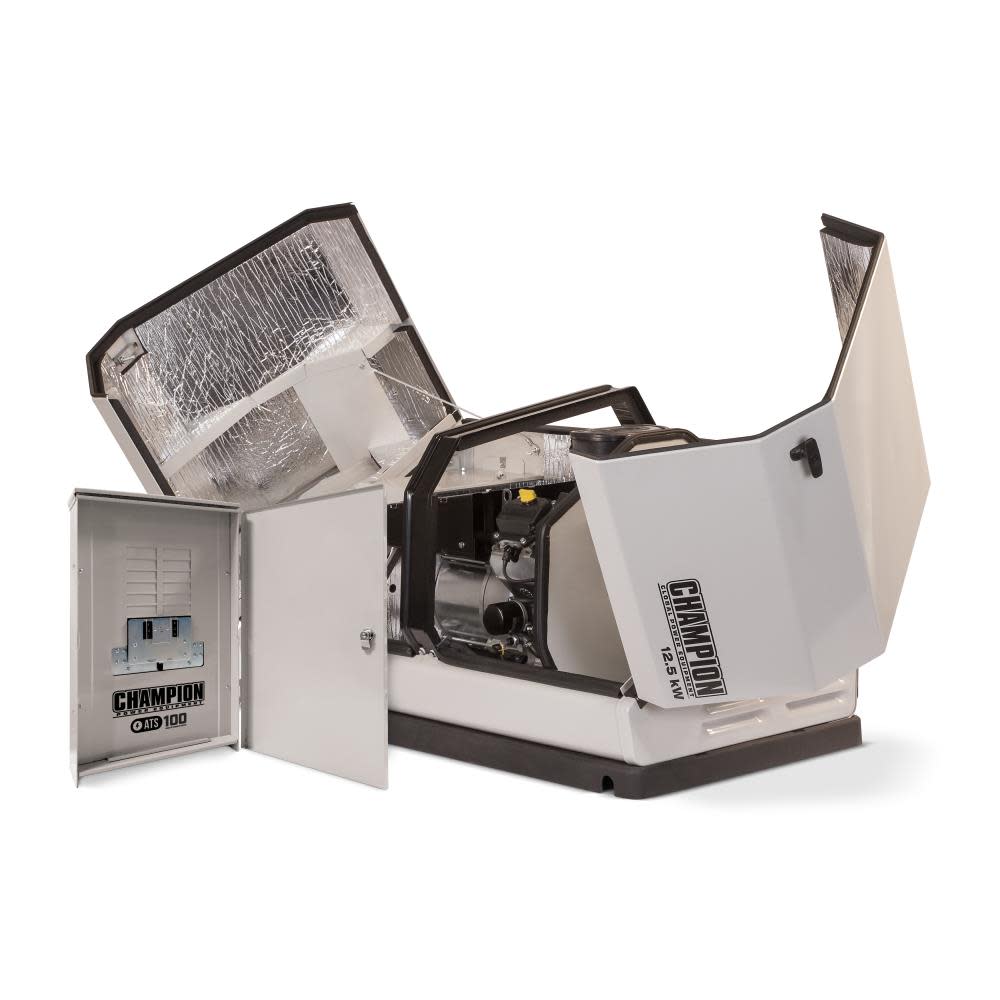

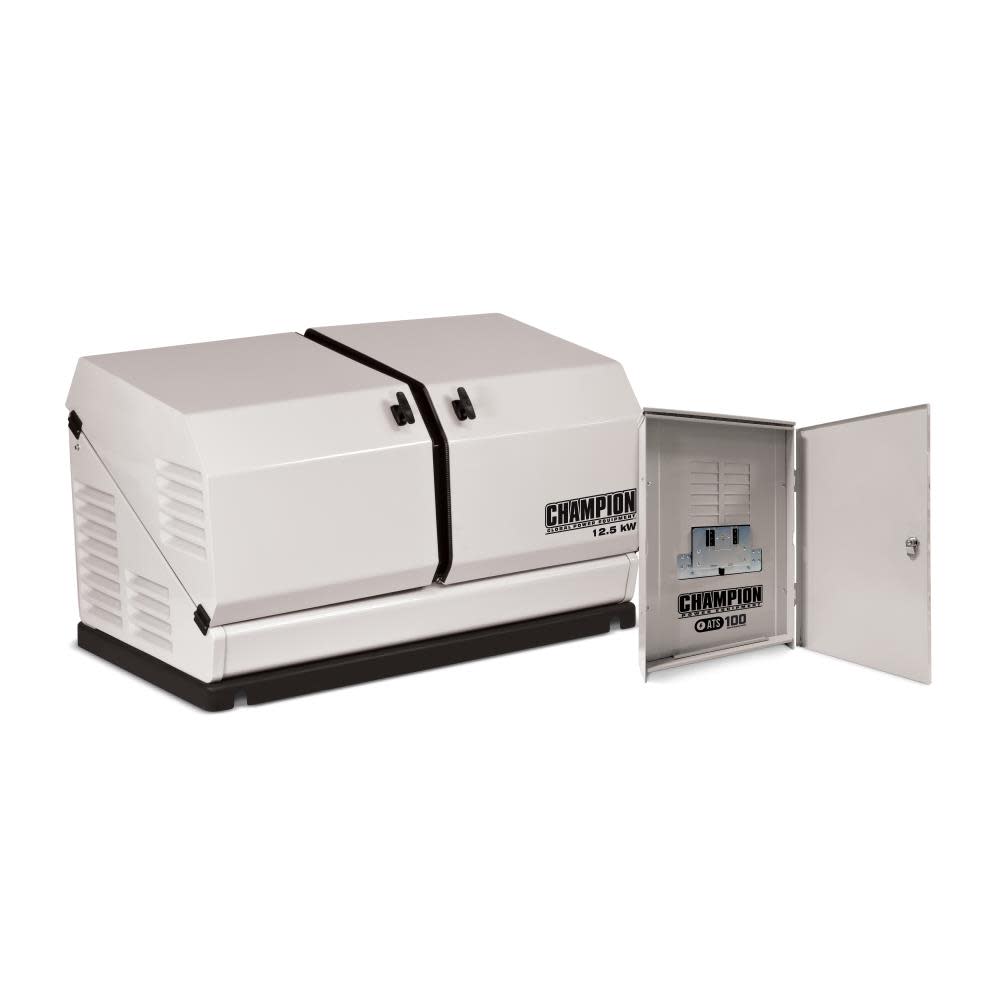

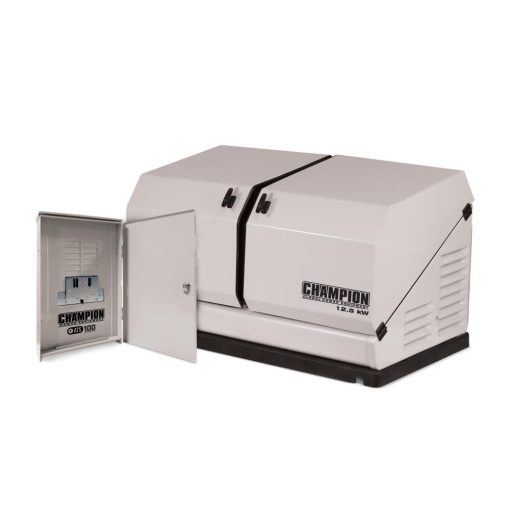

Champion 12.5kW Home Standby Generator with ATS100 Outdoor Rated Automatic Transfer Switch

Champion 12.5 kW home standby generator and ATS100 emergency essentials automatic transfer switch is The Simple Solution™ to a power outage. Provides 24/7 power for your entire home. Quietest-in-class generator operates at a residential friendly 63 dBA and with a 24 V starting system which is designed to operate reliably in sub zero or extreme heat temperatures between -22º F and 104º F – no additional battery warming kit, at additional cost, is needed. Champion home standby generators come standard with an industry leading 10 year limited warranty, which is the longest standard limited warranty on the market. A power outage lasting only a few days can cost thousands in repairs. If power goes out, a Champion home standby generator automatically detects the outage. In a matter of seconds it will start and deliver continuous, reliable power to your home. When utility power is restored, the generator will automatically return to standby mode. Provides 12,500 W of continuous power on propane and 11,000 W on natural gas. Performs a weekly self-diagnostic tests to assure that it is ready and waiting for the next power outage. Permanently installed outside of your home and connects directly to your home’s natural gas line or propane fuel supply. Champion’s innovative gulling design provides easy access to the engine and control panel for simple installation, maintenance or service. Enclosure’s all-weather design is rust and corrosion resistant and protects from the elements. Comes with an all-weather composite mounting pad. Powered by a Champion 717cc OHV v-twin engine. The alternator uses 100% copper windings producing less than 5% total harmonic distortion (THD) to ensure safe use with sensitive electronics. ATS100 automatic transfer switch operates 99 amp, 12 circuit load. Ideal for homeowners who want to power emergency essentials during a power outage as opposed to the whole house. NEMA 3R rated enclosure for outdoor use.



Features


24/7 Power – totally automatic power for home with ATS100 automatic transfer (99 amp, outdoor)

Quietest-in-class – low tone muffler and sound dampening liner for residential operation at only 63 dBA

A decade of support – all Champion home standby generators come standard with our industry leading 10 year warranty

Sub zero/high heat start – 24 V starting system designed to operate between -22° and 104° F

Easy access – innovative gulling enclosure for easy installation and service

Specifications

Acme Tools Brand Name
CHAMPION POWER EQUIPMENT
Acme Tools Part Number
100179C
Assembled Weight (lbs)
455.5
Automatic Idle Control
Yes
Automatic Transfer Switch Included
Yes
Automatic Voltage Regulation
Yes
Battery Charger With Cables
No
California Proposition 65 Warning Required
Yes
Color / Finish
Gray/Matte
Cord Set
No
Country of Origin
China
Current Range (A)
104/52 (LP) / 91.6/45.8 (NG)
Engine
Champion OHV V-twin
Engine Cooling System
Air Cooled
Engine Displacement (cc)
717
Engine Start-Up Type
Electric
ETL Listed
Yes
Exercise Cycle
Yes
Height (in)
40.2
Hour Meter
Yes
Included Accessories
LP hose, oil drain pan, fuel jets
Internal Supplier Part #
100179
Internet Product Code (IPC)
6B1B97F7CDD
Length (in)
50
Low Oil Shut Down
Yes
Manufacturer Warranty
10 Year Limited Warranty
NEMA Rating
3R
Number of Protected Circuits
12
Overload Protection
Yes
Package Weight
549
Package Weight (lbs)
549
Rated Wattage
11000
Recommended Oil & Capacity
Full synthetic 5W-30, 1.5 qt.
Sound Decibels (dB)
63
Standby Generator Fuel Type
Liquid Propane Or Natural Gas
Surged Wattage
12500
UL Listed
No
Voltage Rating
120/240V
Weight (lbs)
455.5
Width (in)
30.1
