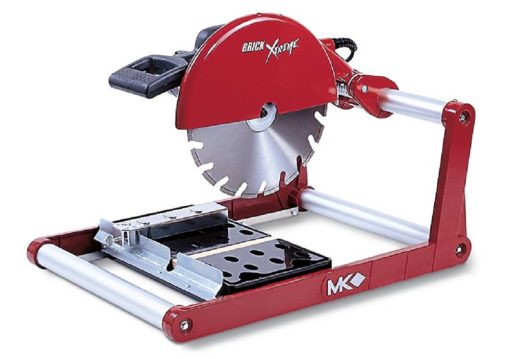

BX-3 Wet Cutting Brick Saw
The BX-3 series is a portable and lightweight line of masonry saws availabe in either dry cutting or wet cutting models. The open-back design allows for large materials to pass through.
Features
Portable and lightweight
Exclusive motor filter protects motor from dust particle damage
8″ x 8″ x 16″ cutting capacity

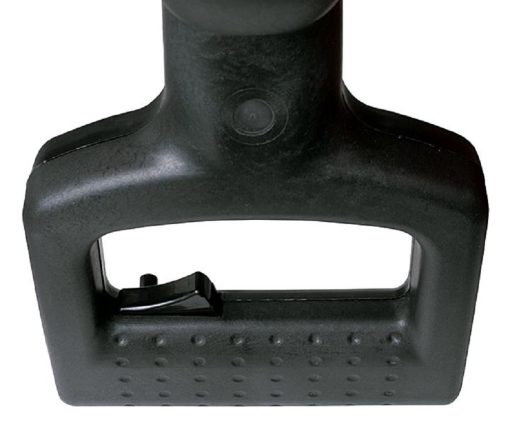

Lockable trigger-operating switch in the handle to allow for ease of operation
Carrying handle incorporated into arm
Spring-loaded head, lockable in the down position
Heavy-duty cast aluminum rolling conveyor cart

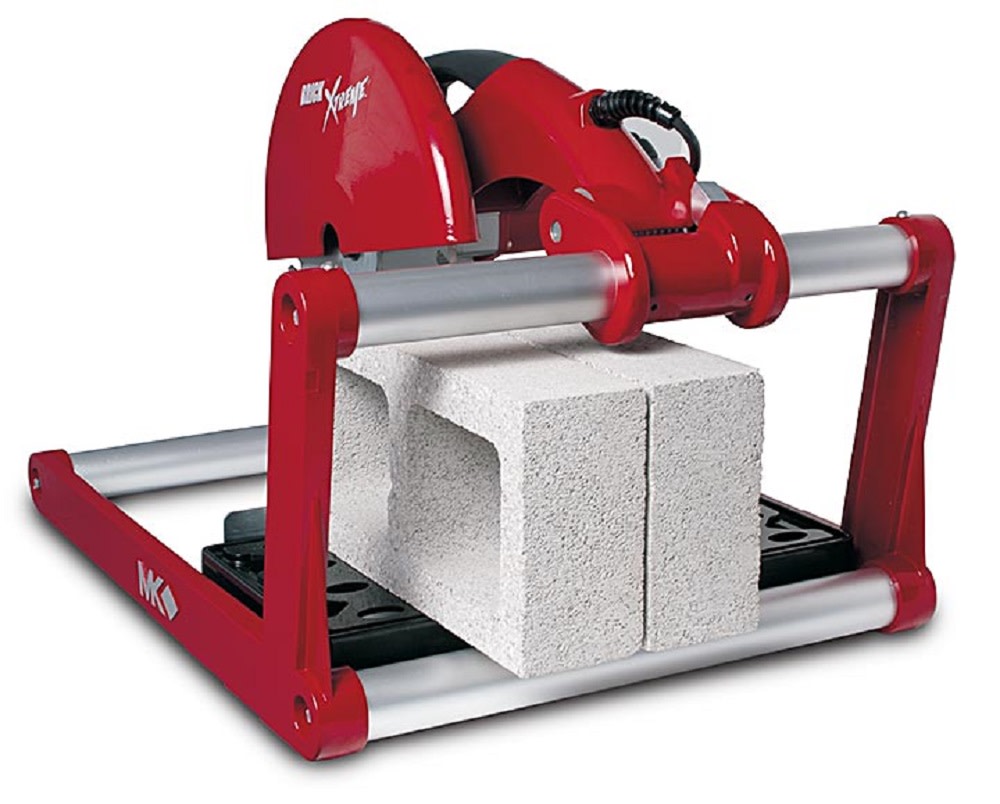

Open-back design for large materials to pass through
Specifications
Acme Tools Brand Name
M K DIAMOND
Acme Tools Part Number
157721WX
Arbor Size
1 in
Arbor Size (in)
1
Assembled Weight (lbs)
50
Blade Diameter (in)
14
California Proposition 65 Warning Required
Yes
CARB Compliant
Yes
Country of Origin
United States
Engine Displacement (cc)
56.875
Engine Horsepower (hp)
1 3/4
Fuel Mix Ratio
50/50
Maximum Cutting Depth (in)
5
Maximum Flow Rate (gpm)
.1
Package Contents
Saw
Package Depth
18
Package Height
30
Package Weight
51
Package Weight (lbs)
51
Size
1 in
