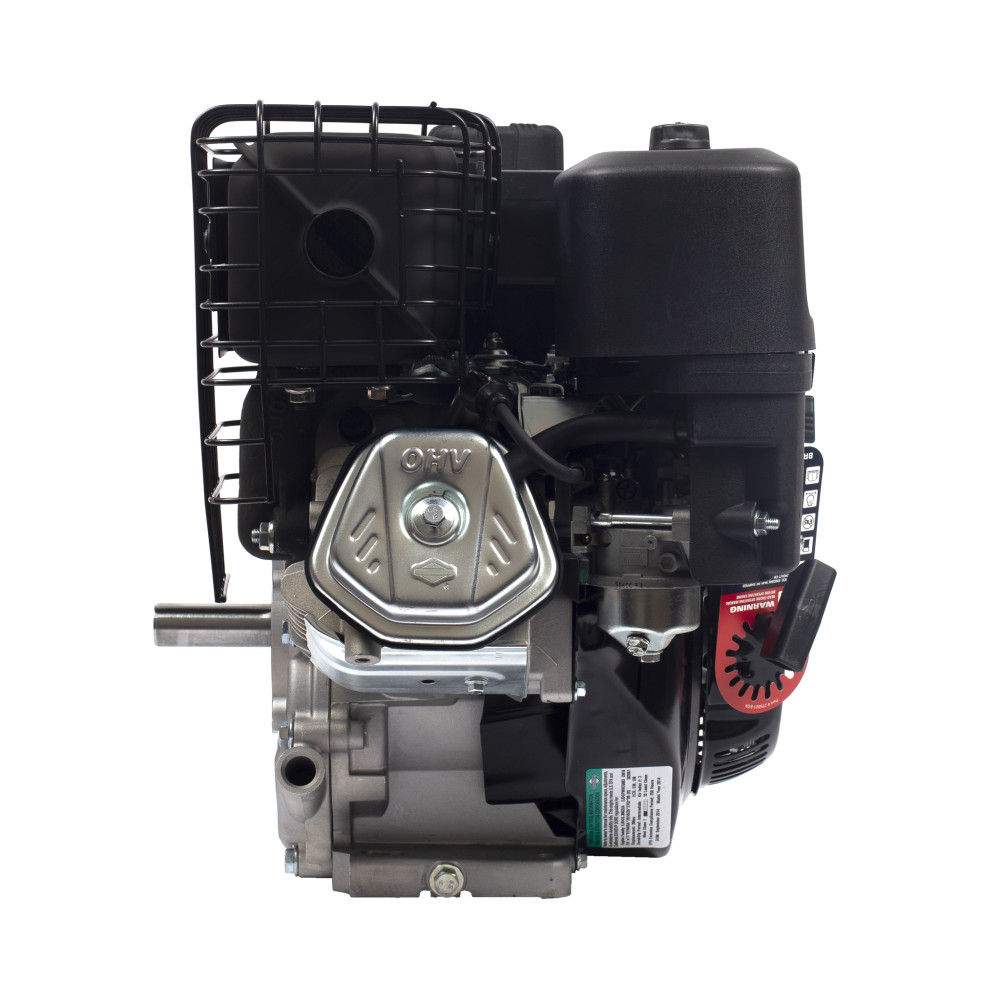

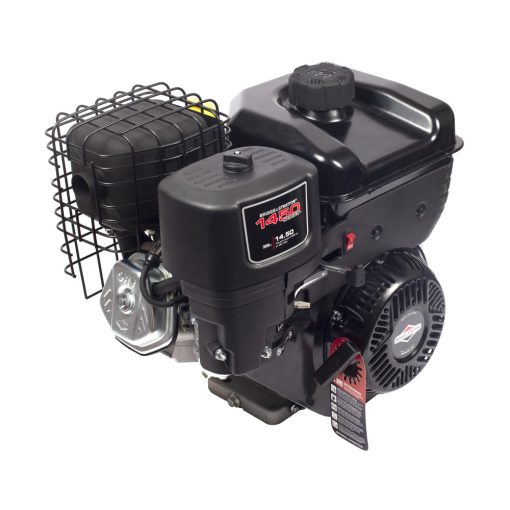

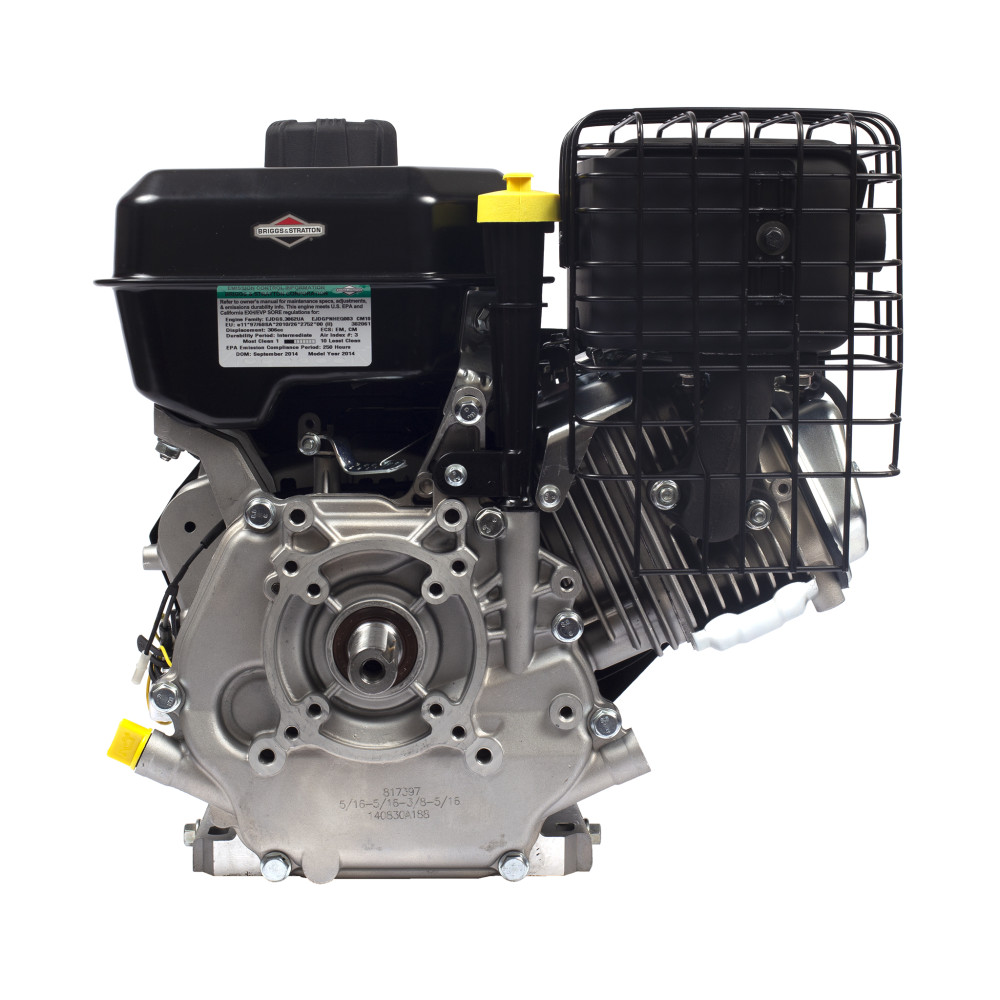

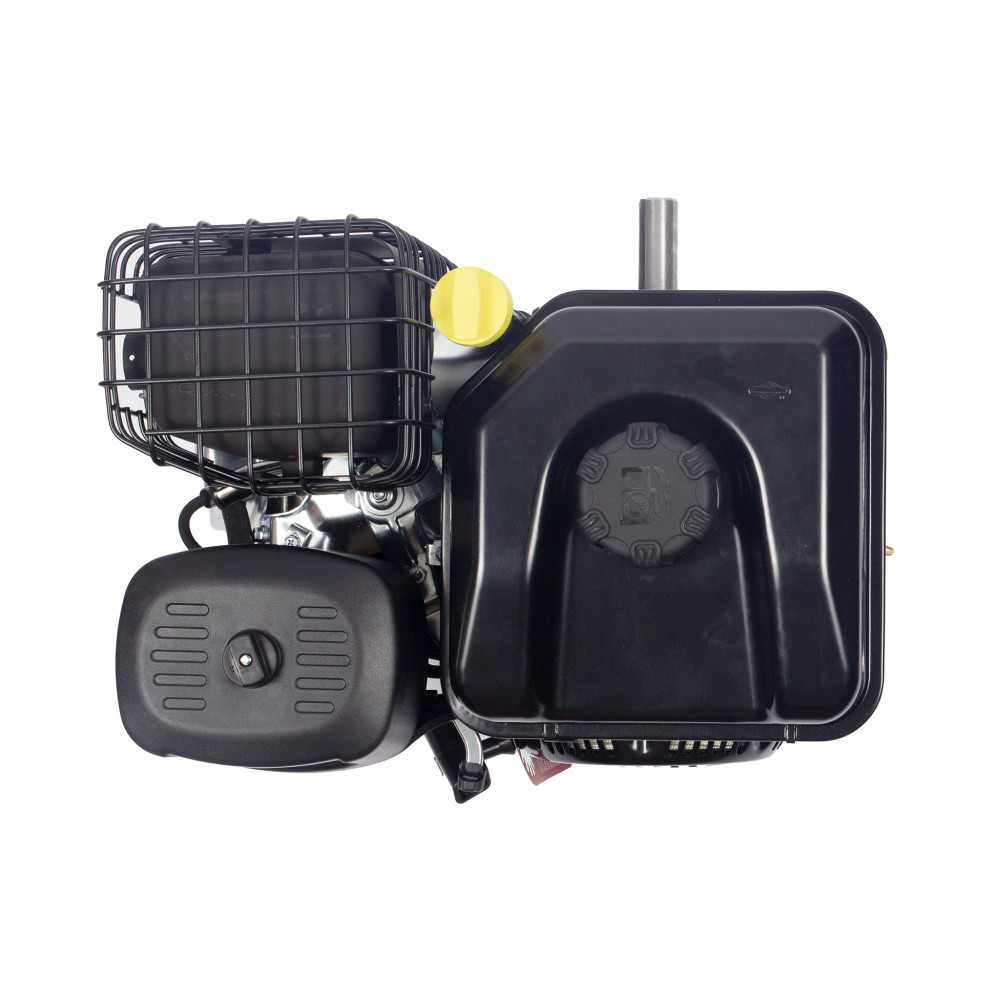

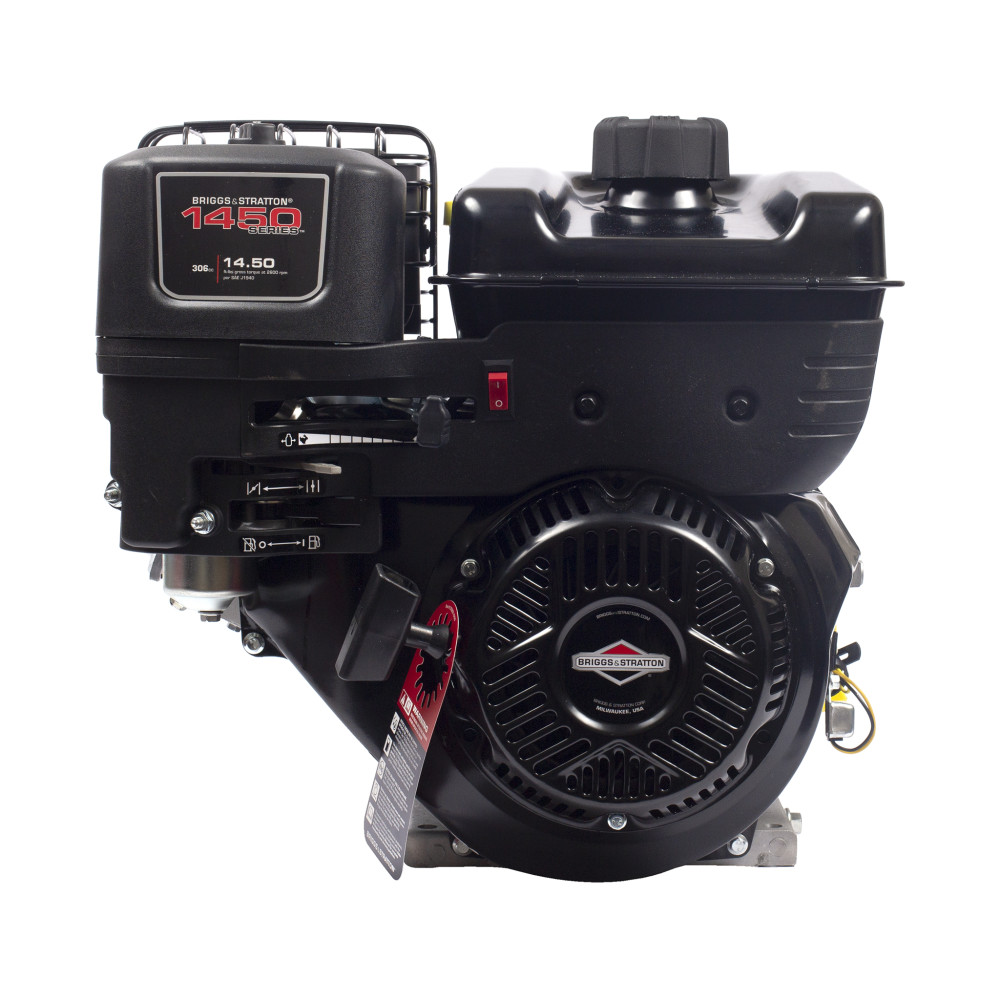

Briggs & Stratton Engine XR1450 Single Cylinder 4 Cycle 1″ x 2 49/64″ Crankshaft
This genuine 305cc Briggs & Stratton single cylinder engine offers dependable power for frequent use in demanding work environments. With a power rating of 14.50 gross torque, this engine features a premium Dual Clean air filtration system, recoil starter, and maintenance-free Magnetron electronic ignition. With a manufacturer limited warranty of 2 years consumer use / 1 year commercial use, Briggs & Stratton provides power that you can trust. This engine includes a Dura-Bore cast iron cylinder sleeve for extended life. This engine includes an installed muffler, a low-oil sensor, and a fuel tank.
Features
Dura-Bore® cast iron cylinder sleeve for extended life
PTO ball bearing
Maintenance-free Magnetron® electronic ignition for quick, dependable starts
Overhead valve design (OHV) for cooler operation and long valve life
Specifications
Acme Tools Brand Name
BRIGGS AND STRATTON
Acme Tools Part Number
19N132-0055-F1
Assembled Depth (in)
17
Assembled Height (in)
17
Assembled Weight (lbs)
73.45
Assembled Width (in)
14
Camshaft Configuration
OHV
CARB Compliant
Yes
Carburetor Design
Butterfly Float Type
Country of Origin
China
Cylinder Count
1
Dry Weight (lbs)
68
Engine Block Material
Cast Aluminum Alloy
Engine Bore (mm)
81.79
Engine Configuration
Single
Engine Cooling System
Air Cooled
Engine Cycle
4-Stroke
Engine Displacement (cc)
306 cc
Engine Fuel Type
Gasoline
Engine Governor System
Centrifugal
Engine Horsepower (hp)
0
Engine Oil Sump Style
Wet
Engine Output Shaft Direction
Horizontal Shaft
Engine Stroke (mm)
57.91
Engine Torque (ft-lbs)
14.5
Fuel Capacity (qt)
3.2
Height (in)
17
Ignition System
CD (Capacitance Discharge)
Oil Capacity (qt)
37

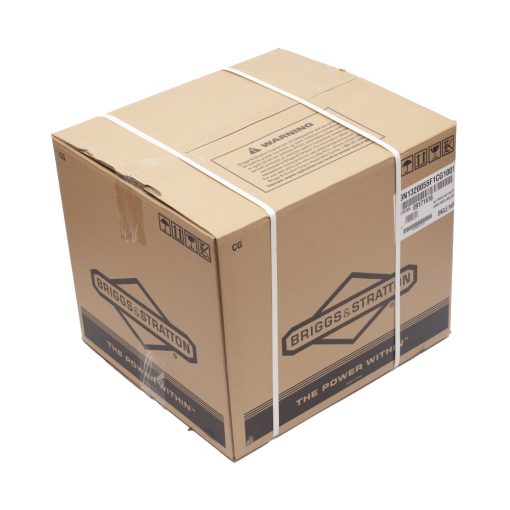

Package Contents
Engine,deflector,owner manual
Package Depth
19.25
Package Height
18.25
Package Weight
73.45
Package Weight (lbs)
73.45
PTO Shaft Rotation
Counterclockwise (PTO shaft side)
Starting System
Recoil
Type of Lubrication System
Splash
