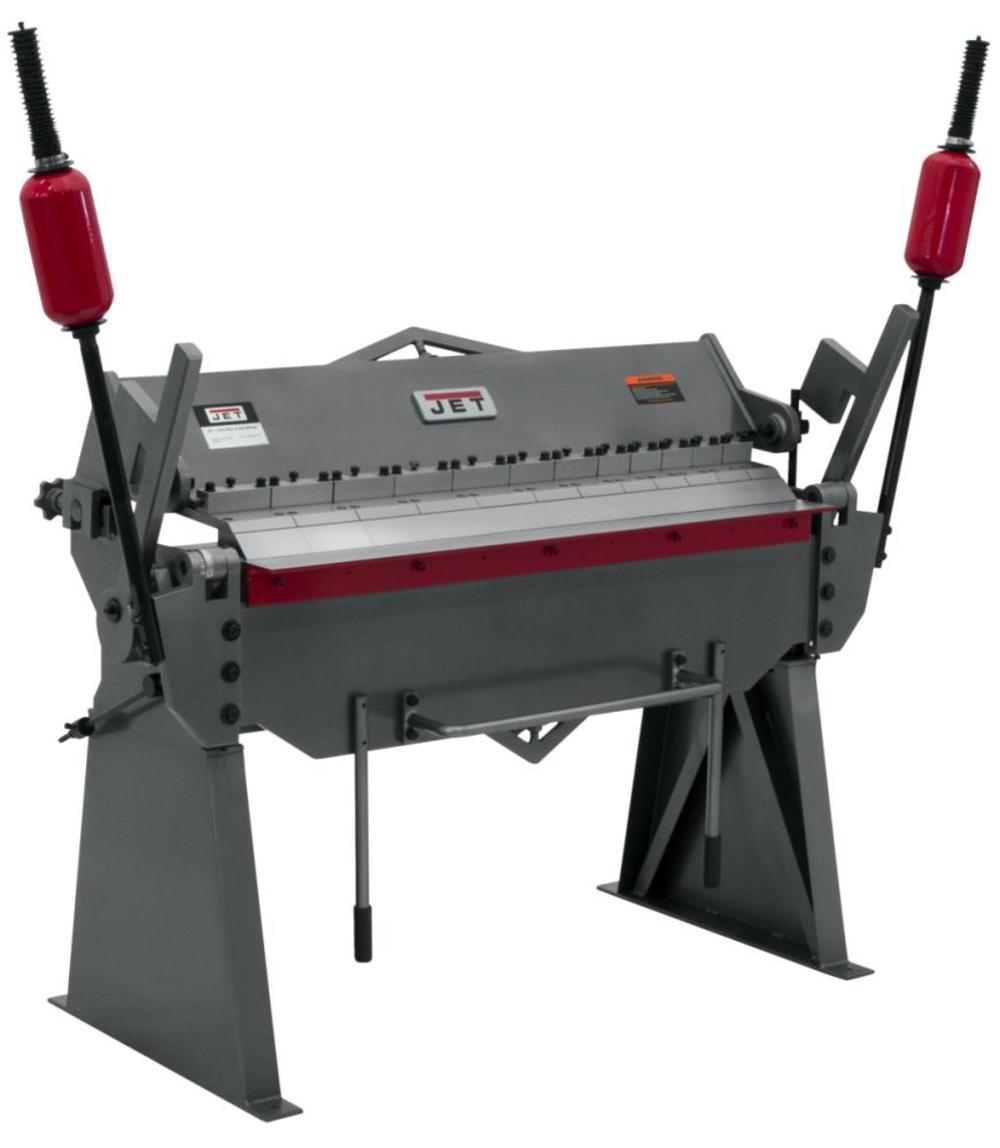

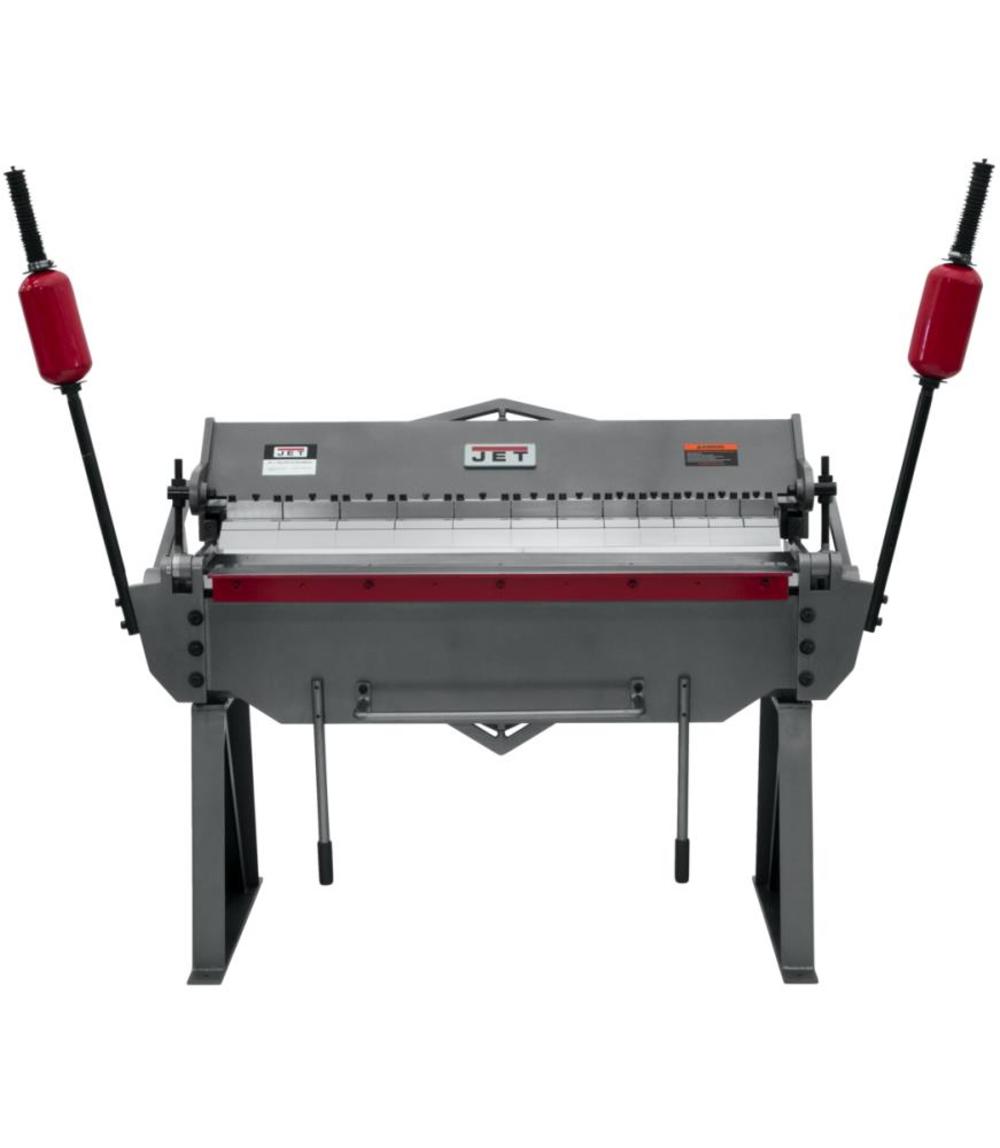

BPB-1248, 48″ x 12 Gauge Floor Model Box and Pan Brake
Box and pan brakes from jet are perfect for the larger, high volume shop that requires versatility yet demands rugged durability and bending precision.
Features

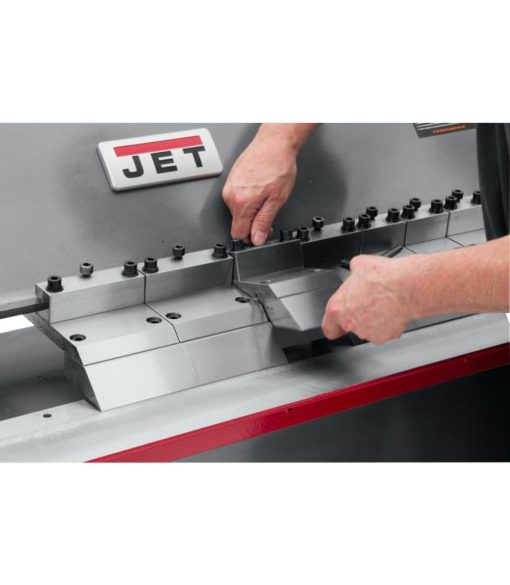

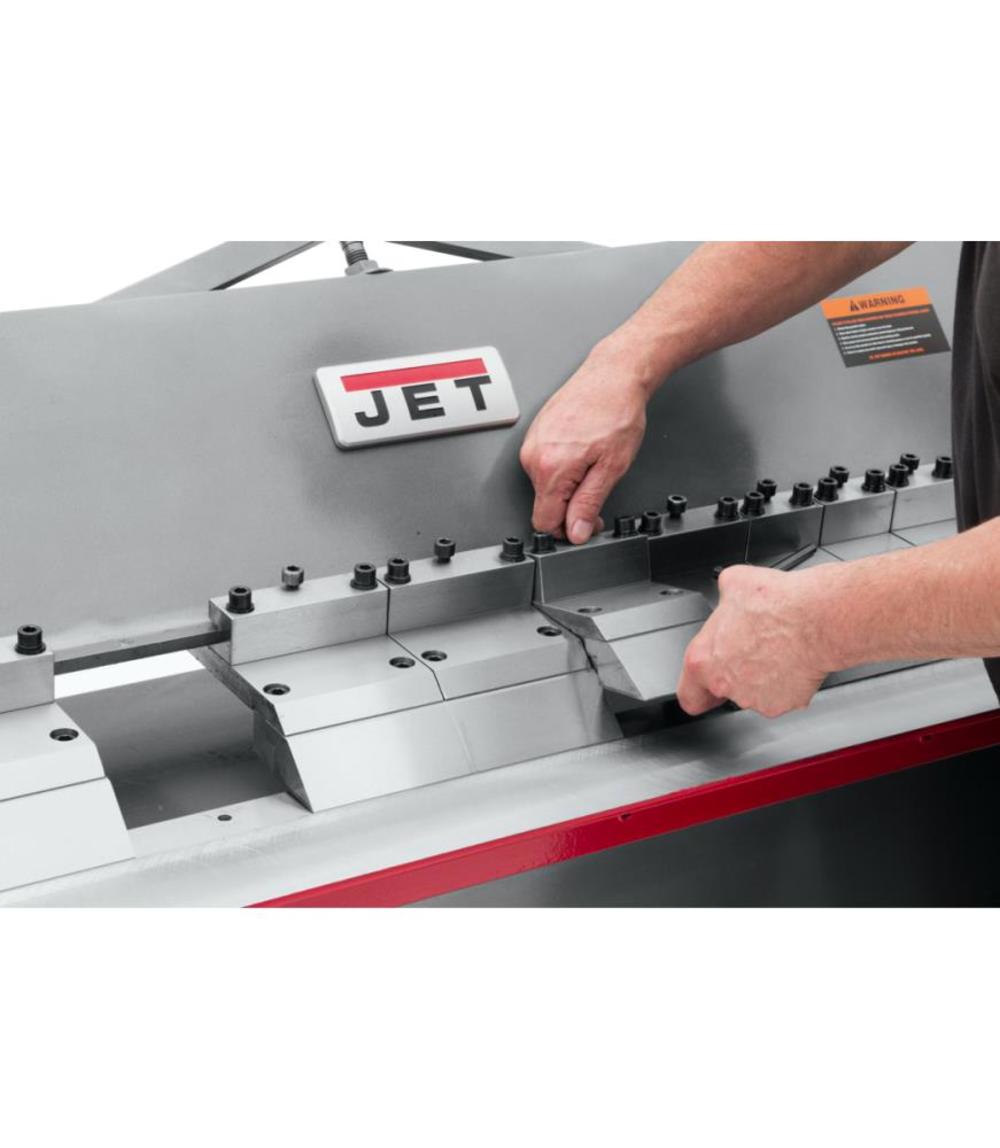

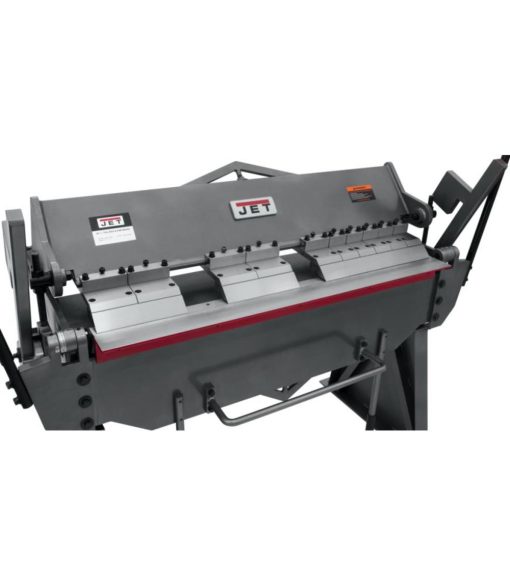

Wide assortment of finger widths allow greater versatility in the shop
With fingers installed it can be used as a full-length nose bar, turning the machine into a straight bending brake
All body sections are welded steel plate with heavy truss rods and braces designed to give greater strength and durability
Both the bed and apron are bored in line to assure the utmost accuracy

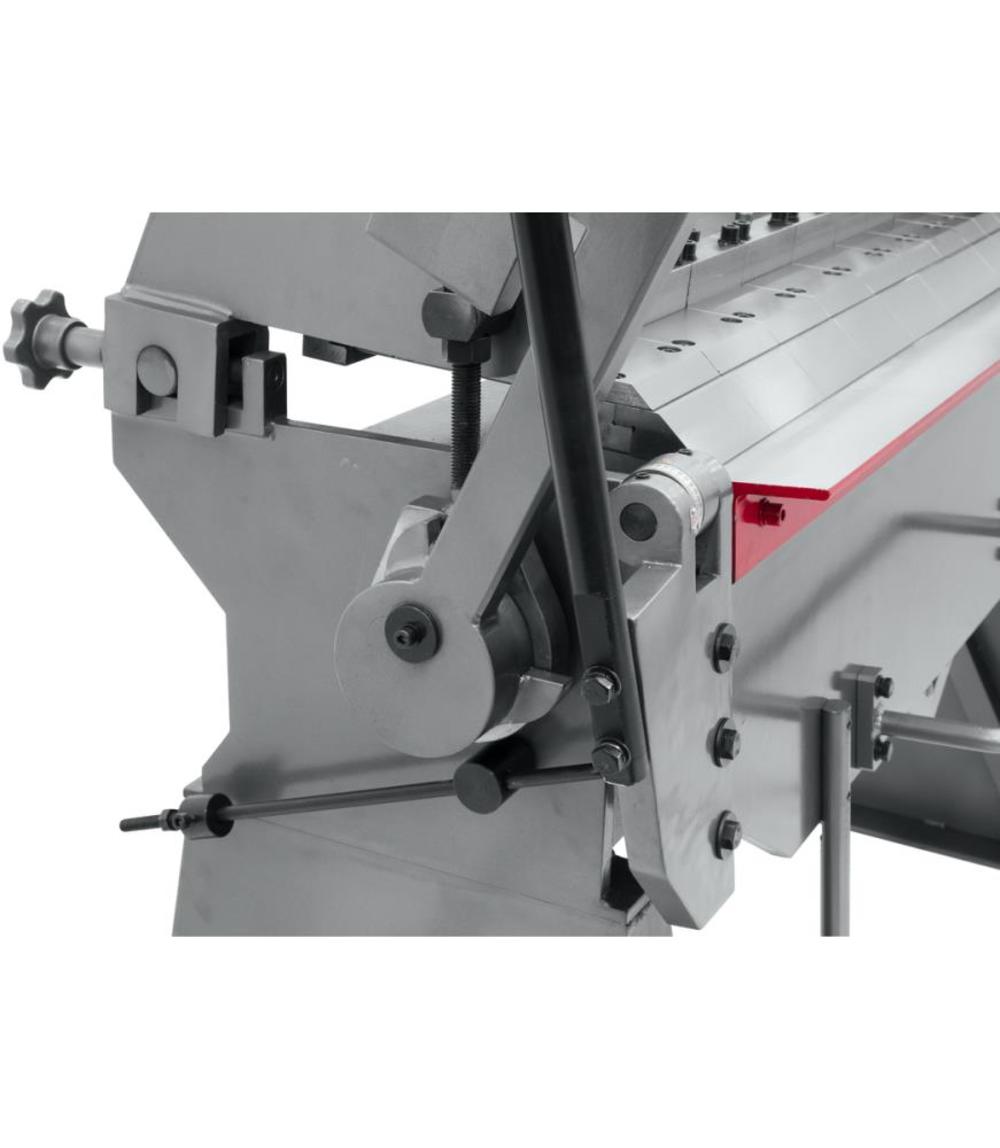

Counter weights can be moved up or down to adjust desired leverage
Stop rod for repeatable bending
12 gauge maximum capacity for mild-steel
10 gauge maximum capacity for aluminum and copper alloys
16 gauge maximum capacity for stainless steel
Specifications
Acme Tools Brand Name
JET
Acme Tools Part Number
754110
Assembled Weight (lbs)
1100

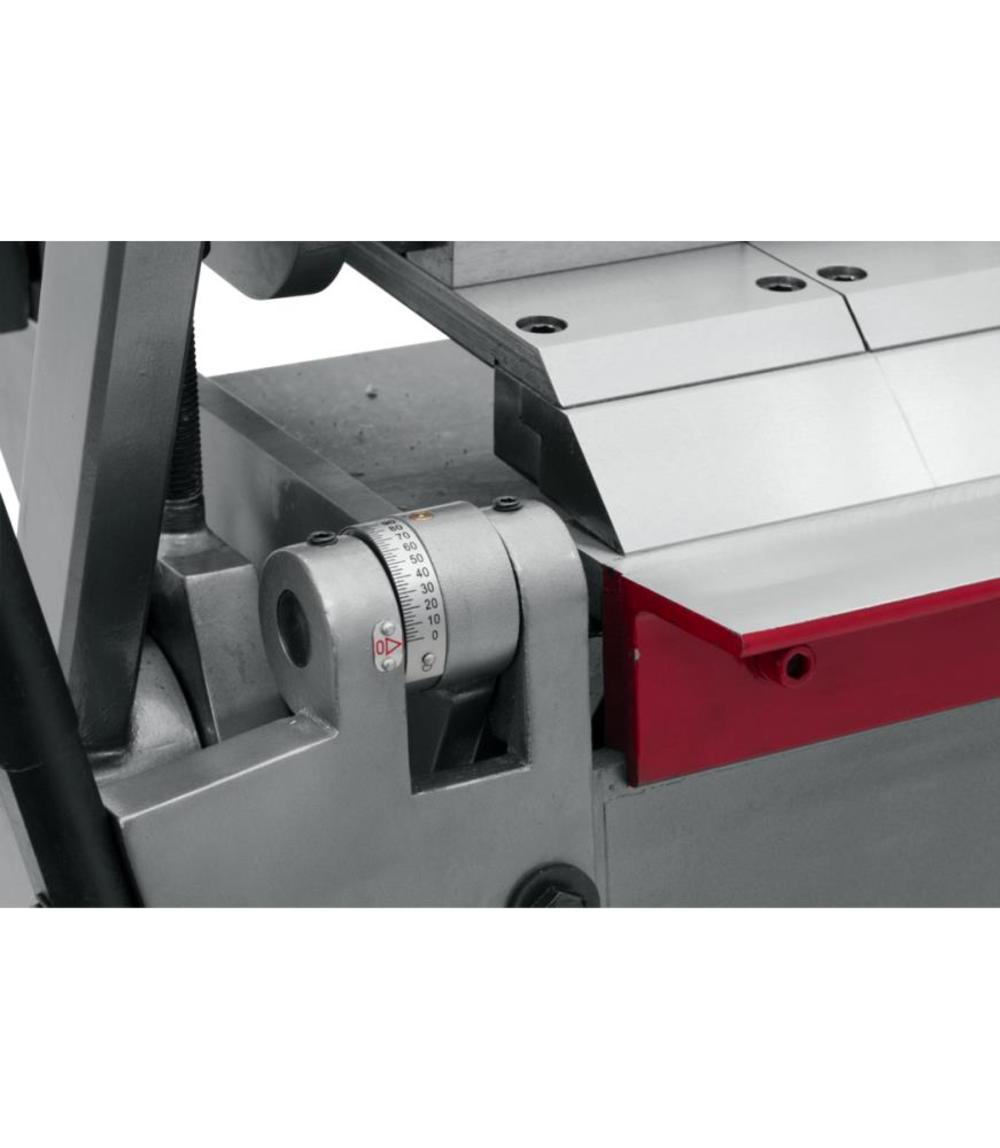

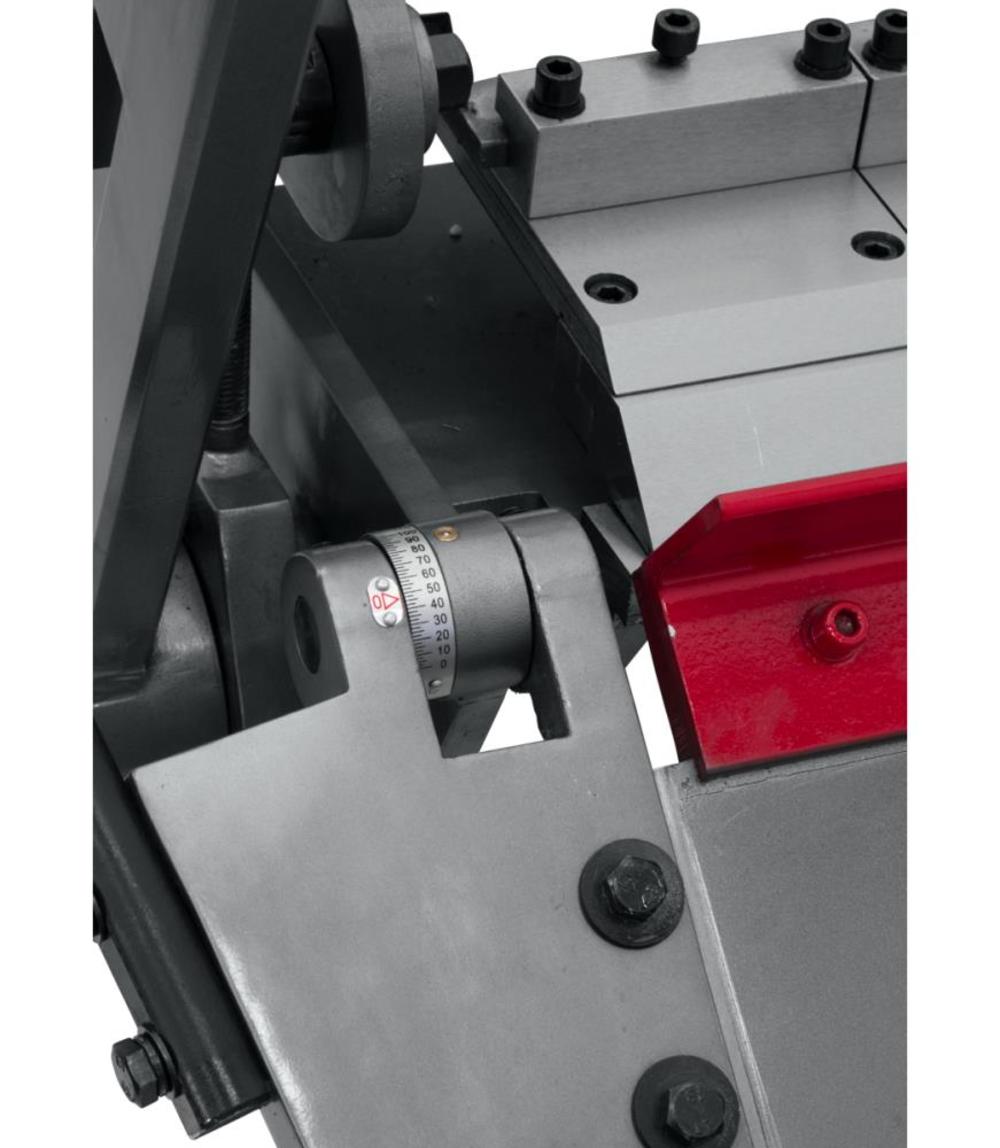

Beam Adjustment
Yes
Bending Length Capacity (in)
48
California Proposition 65 Warning Required
Yes
Color / Finish
See image
Country of Origin
China
Gauge Capacity (ga)
12
Internal Supplier Part #
754110
Internet Product Code (IPC)
635A0D0A5EC
Manufacturer Warranty
2 Year
Material
Cast Iron
Maximum Beam Adjustment (in)
0.875
Maximum Beam Lift (in)
1.5
Maximum Box Depth (in)
4
Nose Radius (in)
0.03125
Number of Fingers
12
Overall Height (in)
70
Overall Length (in)
87
Overall Width (in)
59
Package Contents
12 Fingers
Package Depth
87
Package Height
70
Package Weight
1250
Package Weight (lbs)
1250
Weight (lbs)
1110
