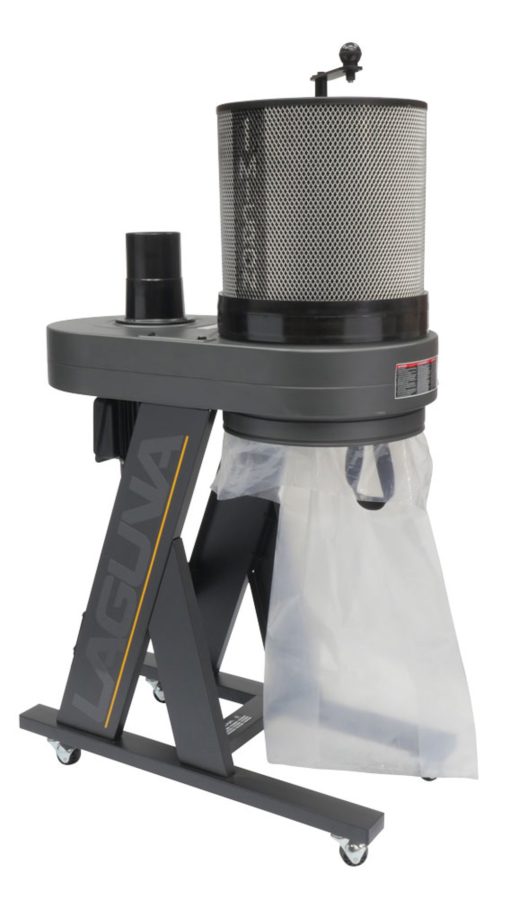

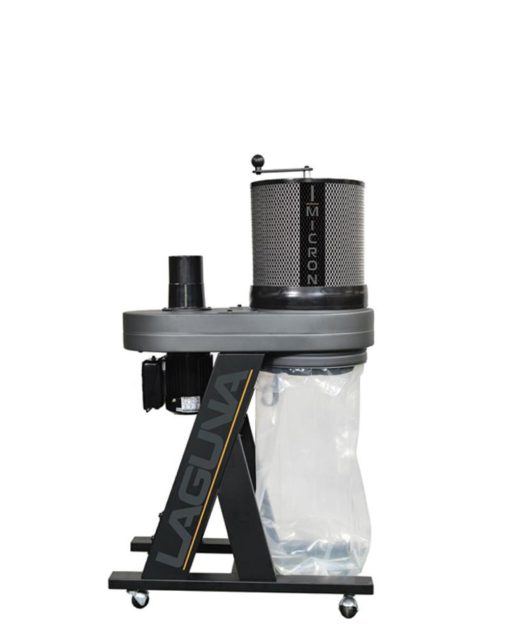

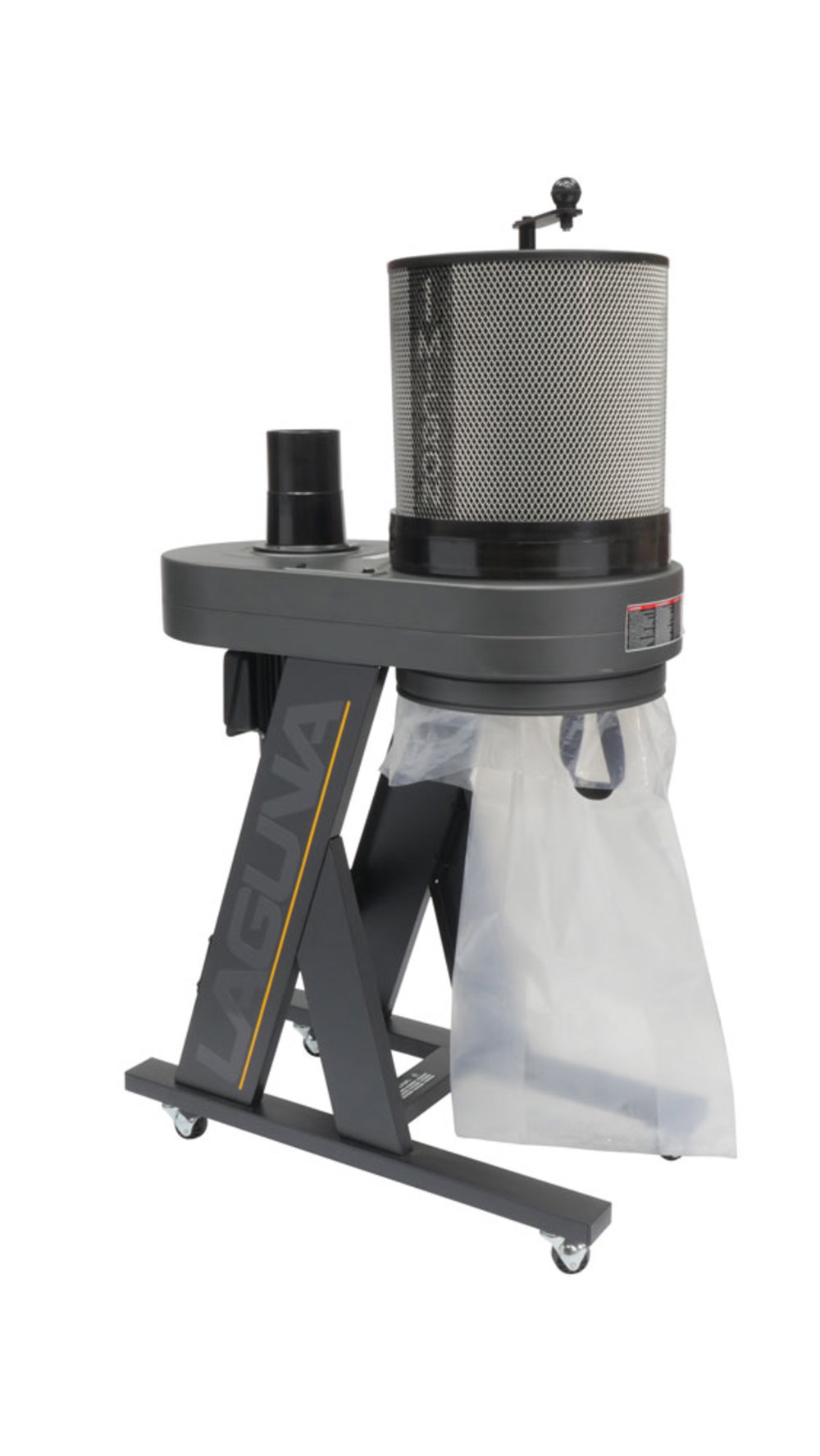

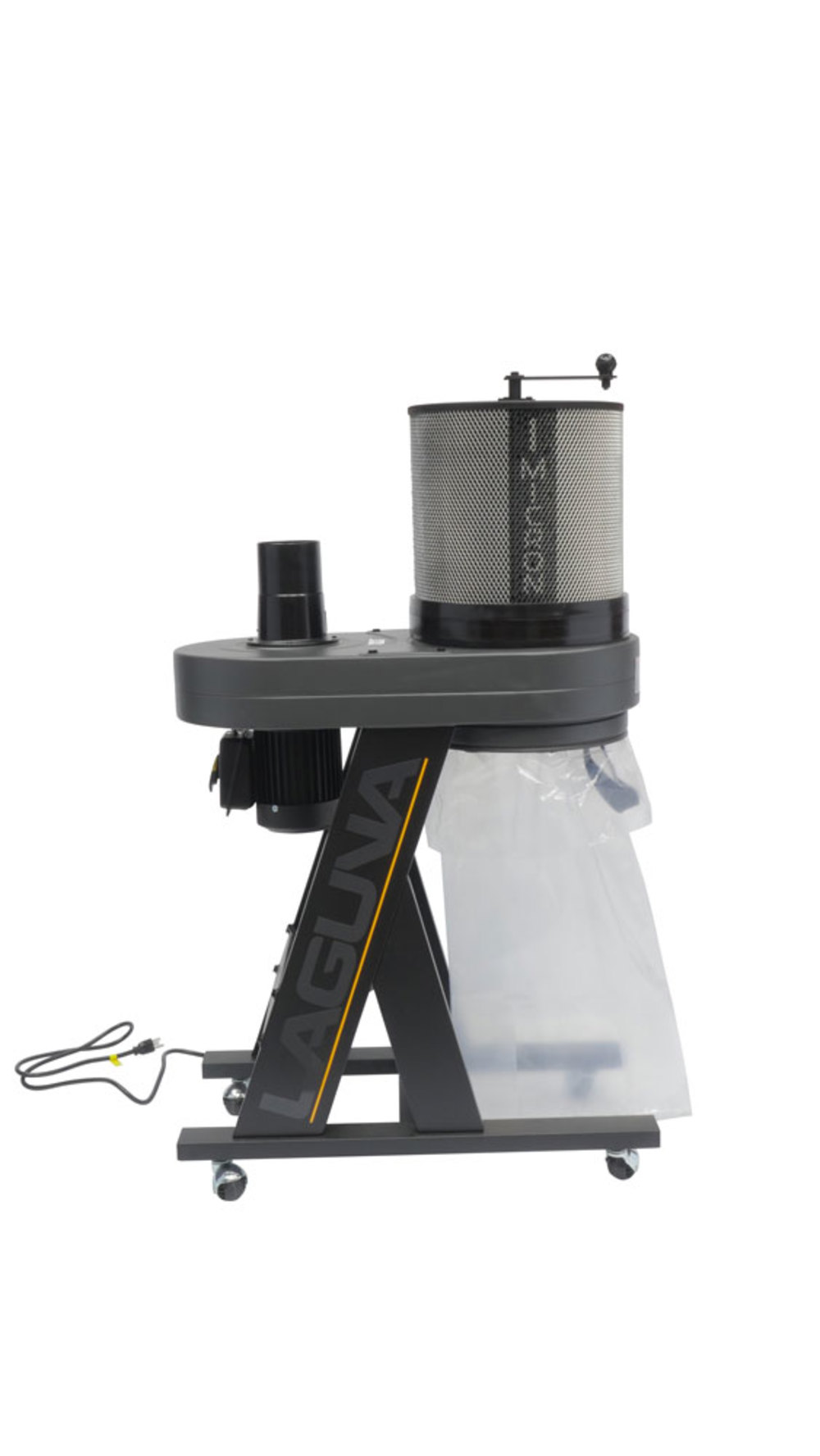

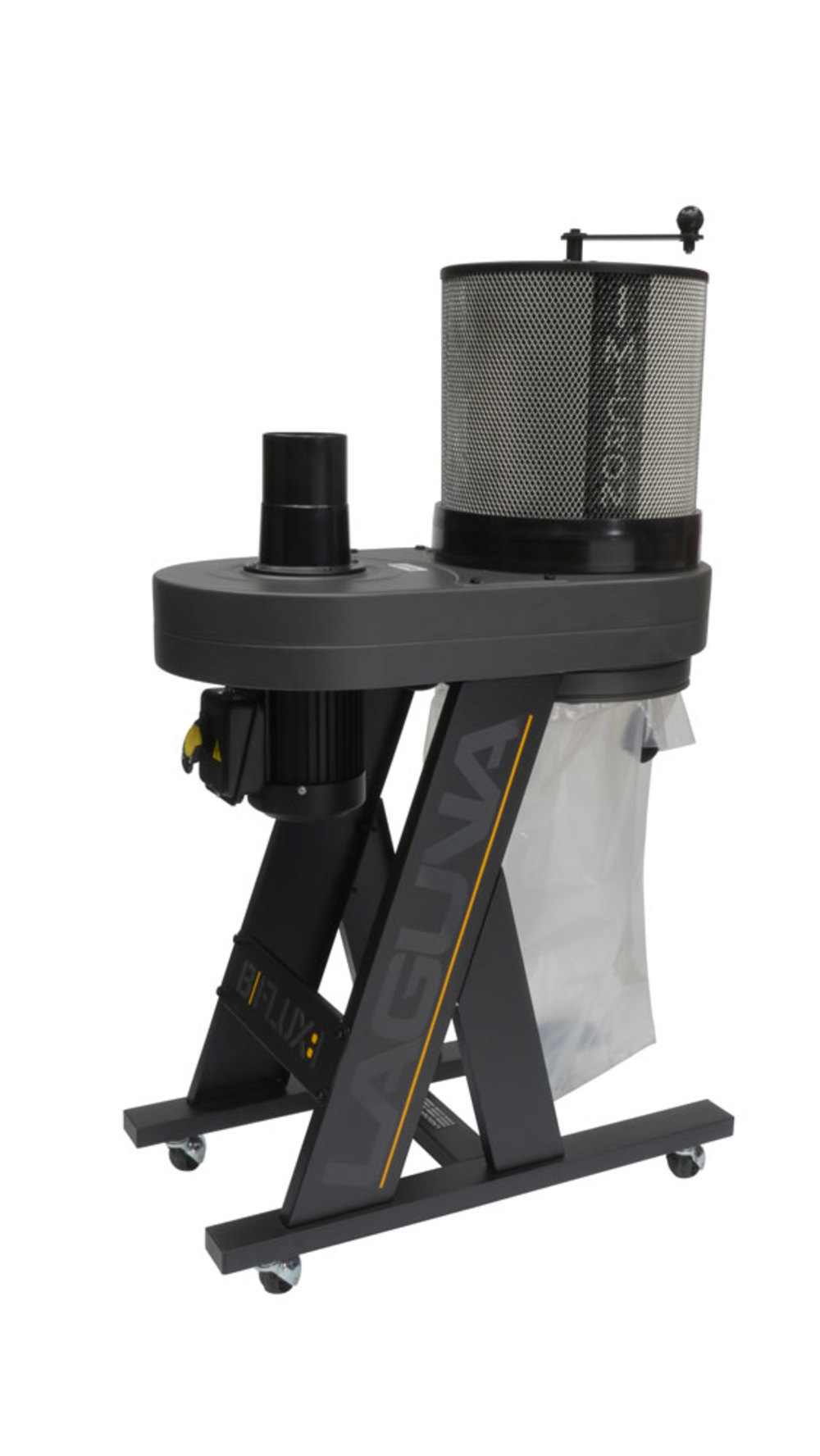

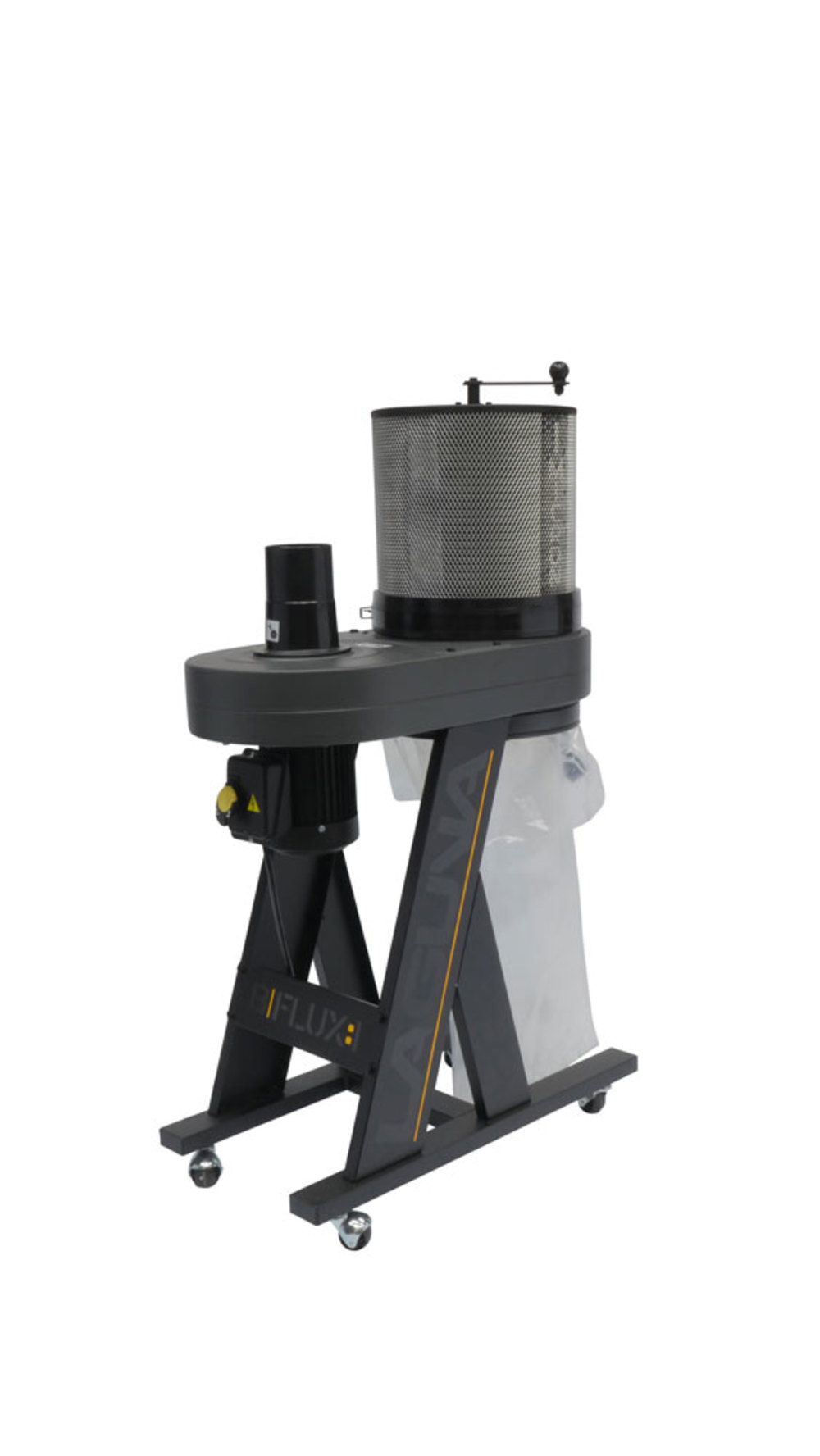

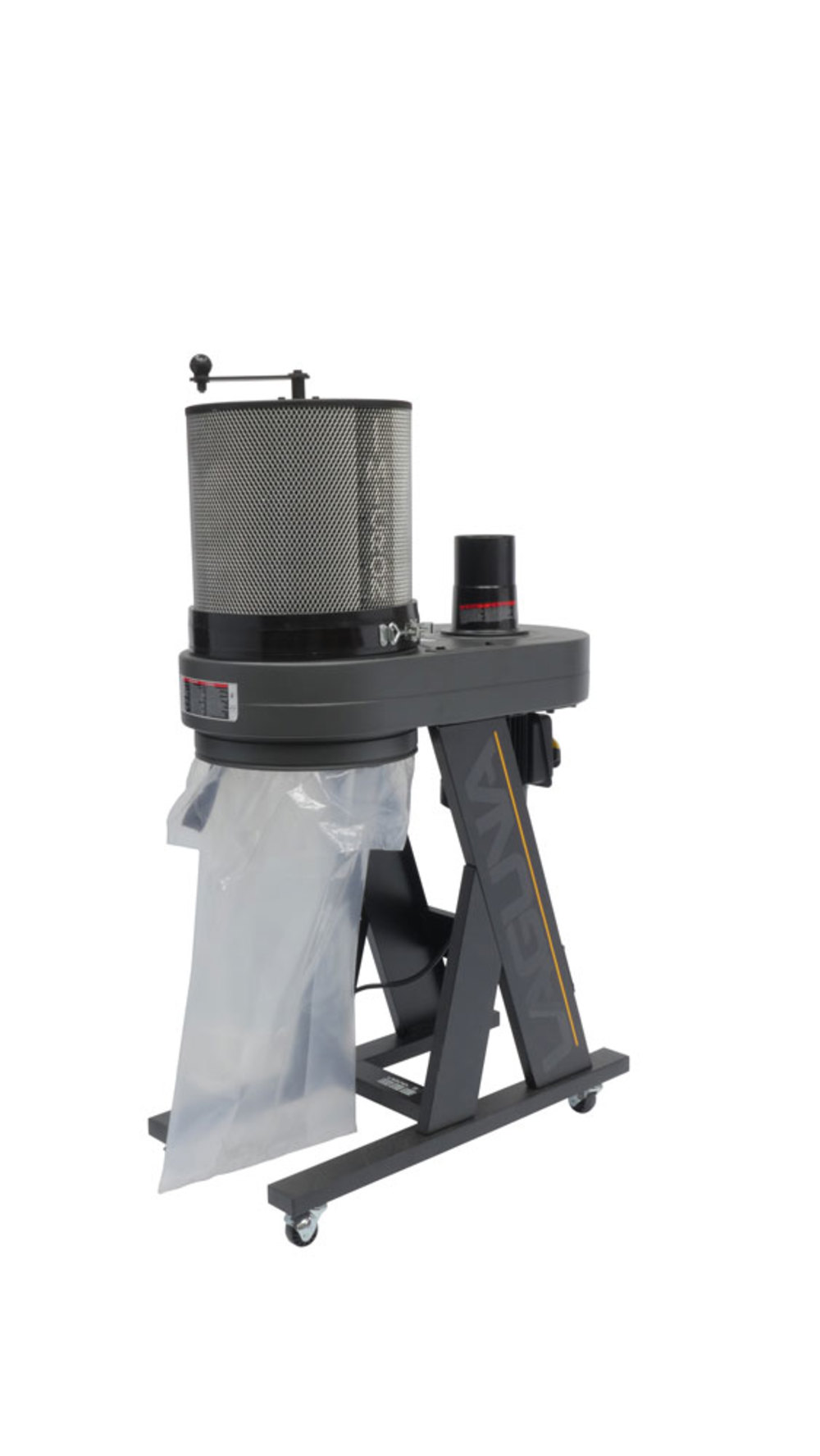

b|Flux:1 Dust Collector
The most beautiful single stage dust collector to hit the market in years. Sleek design and power to match. No more fumbling with a steel band to mount your lower bag, the b|flux comes with a patented snap-band that makes changing the bag a breeze. Unlike most 1 HP units the b|flux feels solid & has a low dB rating. The horizontal dust chute provides optimum airflow & can swivel 180° to make the 4″ outlet face downwards.
Features
Motor 1 HP, phase 1, voltage 110,
Amps 8.4 A, hertz 60, plug yes
RPM 3450, high frequency hand held remote control
Nominal CFM 650, inlet diameters 4″ x 1 port
Hand held remote control none
Max static pressure (inches of water) 4.86″
Impeller/fan size 9″
Impeller material steel
Impeller type radial fin
Canister filter type 1 micron
Filtration efficiency 0.2-2micron @99.97%
Merv rating 12
Canister diameter 360 mm (14.2″)
Canister length 300 mm (11.8″)
Filter surface area 1.6 m², 17.2 ft²
Canister cleaning manual handle crank

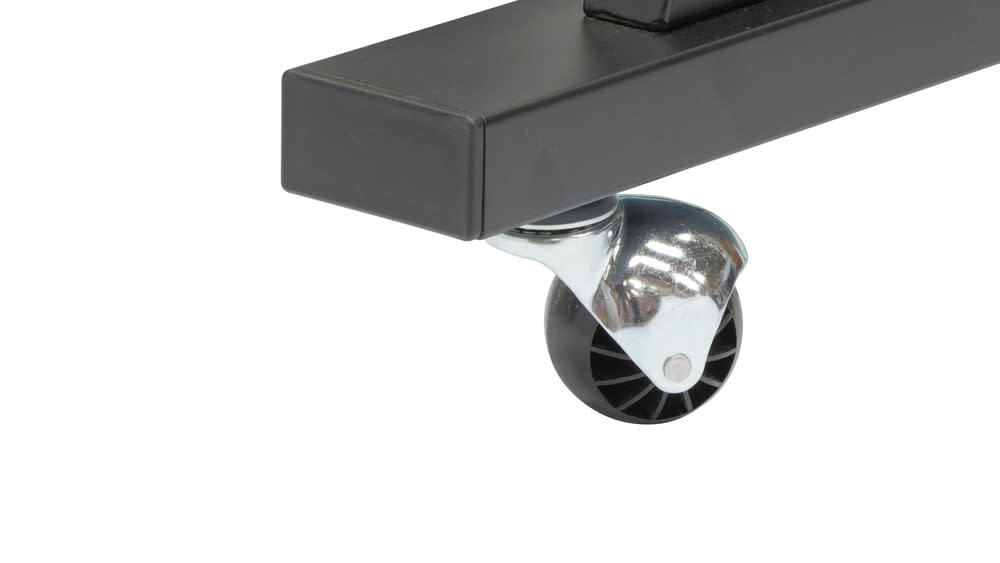

Wheels 2″ ball caster
US/CSA approved yes
Decibel reading 76 d B(A) (9.8 ft)
Specifications
Acme Tools Brand Name
LAGUNA TOOLS
Acme Tools Part Number
MDCBF1110C1M
Assembled Weight (lbs)
77
California Proposition 65 Warning Required
Yes
Country of Origin
China
Manufacturer Warranty
1 Year Manufacturers Warranty
Package Weight
78
Package Weight (lbs)
78
Shipping Weight (lbs)
71
