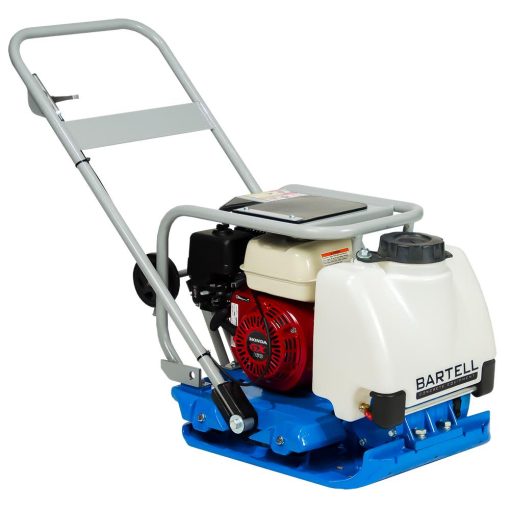

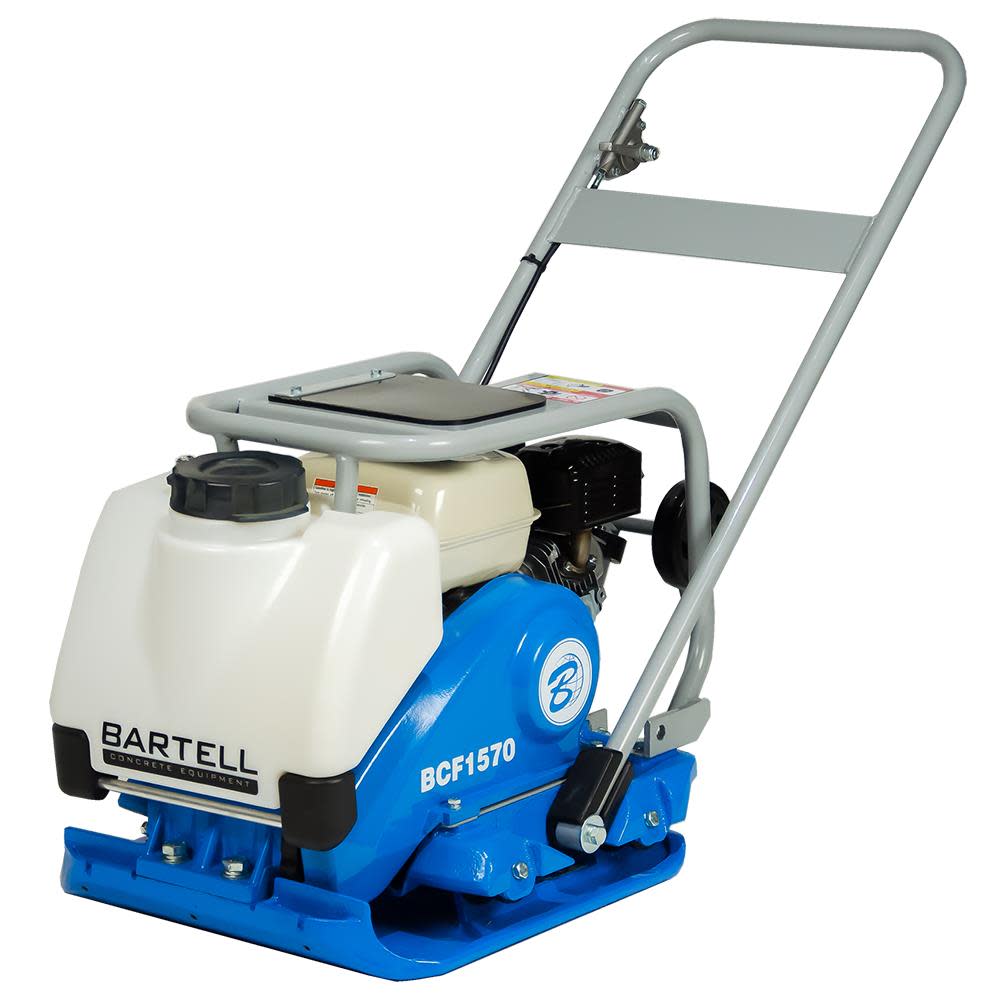

BARTELL MORRISON Bartell BCF1570 Forward Compactor, with Water Kit, Honda GX160 – BCF1570H
The BCF1570 is Bartell’s most popular compactor because of its versatility and exceptional quality. Bartell forward plates are innovative, hard-hitting, and low maintenance. We keep your safety and convenience in mind: built in hoist hooks for safe transportation, retractable wheel kits for easy mobility, and sealed belt cover design keeps rocks out and still cools properly.
Features
Delivers 3500lbs of compaction force

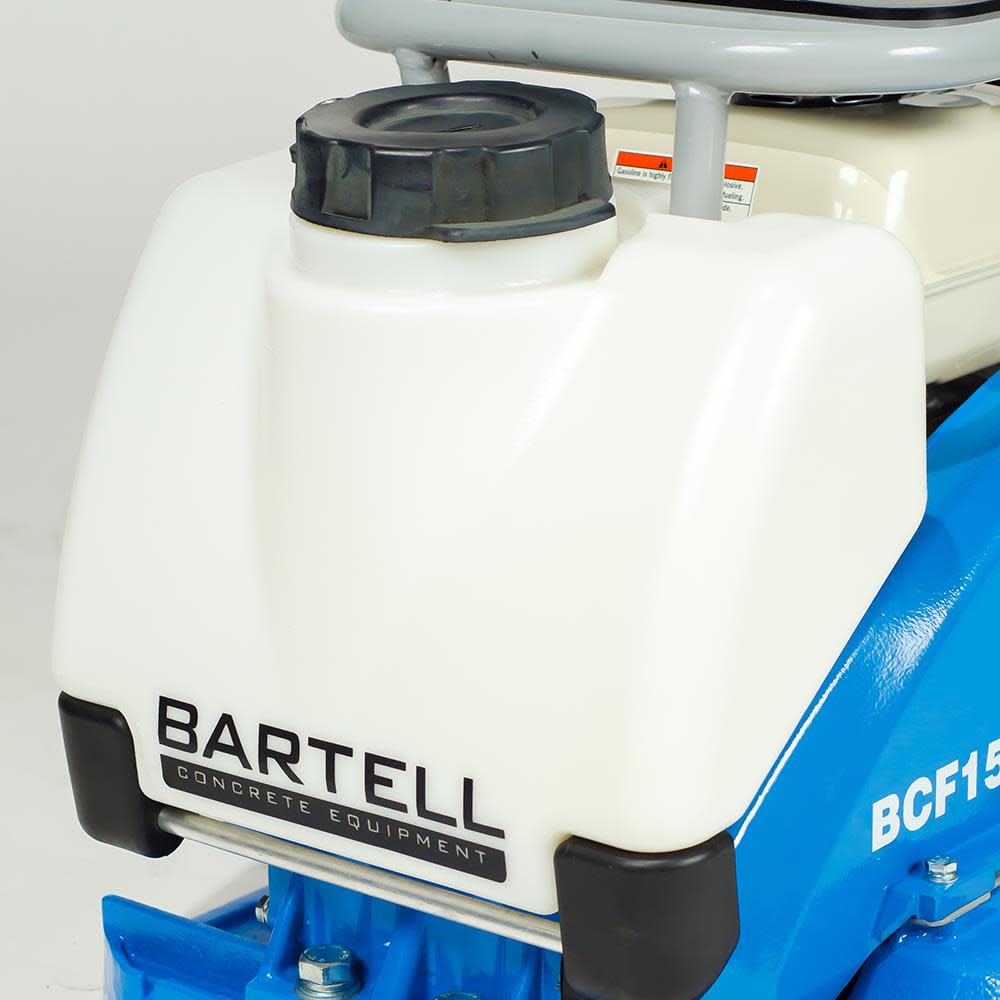

Includes a removable water tank which allows the unit to be used on asphalt, and reduces dust on dry compaction jobs

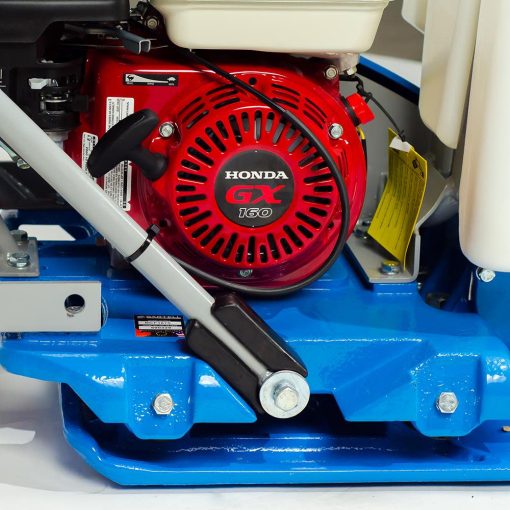

Honda powered – 4.8hp Honda GX160 engine
Throttle control on the upper handle is safer for the operator
Lifting bales – maybe your work site is far off the beaten path? every plate has a robust lifting bale to make it easier to move your equipment when a wheel kit won’t do
Water tanks – our models BCF1570 and BCF2150 come with water tanks standard. you bet your asphalt wont stick
Specifications
Acme Tools Brand Name
BARTELL MORRISON
Acme Tools Part Number
BCF1570H
Anti-Vibration Handle
Yes
Application
ASPHALT, BASE MATERIAL, STONE, DIRT
Assembled Weight (lbs)
210
California Proposition 65 Warning Required
Yes
CARB Compliant
Yes
Color / Finish
Grey and Blue – painted
Compacting Plate Length (in)
21
Compacting Plate Width (in)
20
Compaction Equipment Type
Vibratory Plate Compactor
Country of Origin
China
Engine
HONDA GX160
Engine Starting Method
Recoil
Engine Type
Gasoline 2 cycle
Extension Plates Included
No
Internal Supplier Part #
BCF1570H
Internet Product Code (IPC)
0FBF9656522
Lifting Bail Included
Yes
Manufacturer Warranty
1 YEAR
Material
ASPHALT, BASE MATERIAL, STONE, DIRT
Maximum Engine Output (hp)
5
Maximum Travel Speed (ft/min)
82
Overall Height (in)
33
Overall Length (in)
44
Overall Weight (lbs)
210
Overall Width (in)
20
Package Weight
250
Package Weight (lbs)
216
Shipping Weight (lbs)
240
Surface Capability
ASPHALT, BASE MATERIAL, STONE, DIRT
Water Tank Capacity (qt)
20
