Description
Description

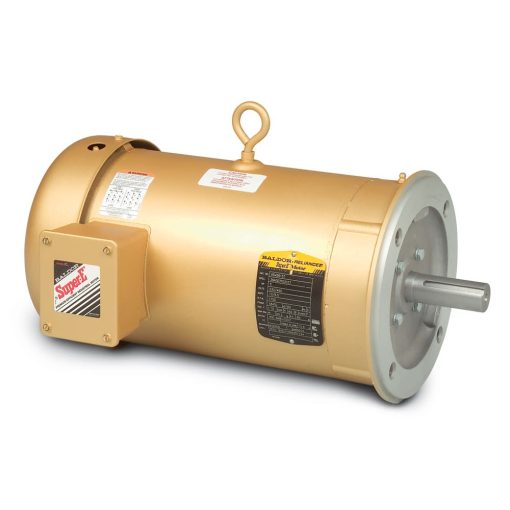

Baldor VEM3561 3HP, 1760RPM, 3PH, 60HZ, 56C, 3632M, TEFC, F1, N Motor
The extensive line of Baldor-Reliance single phase and three phase General Purpose motors are available in a wide variety of enclosure construction from industrial steel band open designs where water and dust exposure are moderate; to totally enclosed cast iron designs where exposure to water, dust, and corrosives exists.
Features
In stock, ready to ship: Baldor-Reliance General Purpose motors are the ideal choice when off-the-shelf availability is of highest importance. General Purpose motors are versatile to perform reliably in a variety of operations where highly custom and hazardous location certifications are not needed
Our time-saving local technical experts get to know your unique needs and requirements, so we can truly provide a motor that fits and meets your requirements
To protect your critical asset from shaft induced currents that can be harmful to the motor, we offer an off-the-shelf solution
Operations and processes that face frequent cycling, starting, and stopping require a motor that can aid with decelerating the load and by holding the load in the event of an interrupted power supply
Specifications
Acme Tools Brand Name
BALDOR-RELIANCE
Acme Tools Part Number
VEM3561
Assembled Weight (lbs)
70
California Proposition 65 Warning Required
Yes
Country of Origin
United States
Full Load Efficiency
89.5%
Horsepower (hp)
3.000 hp
Input Frequency (Hz)
60.00 Hz
Input Voltage
460 V
230 V
230 V
Motor Enclosure
Totally Enclosed, Fan Cooled (TEFC)
NEMA Frame Size
56C
Package Contents
Baldor VEM3561 3HP, 1760RPM, 3PH, 60HZ, 56C, 3632M, TEFC, F1, N Motor
Package Depth
24
Package Height
24
Package Weight
70
Package Weight (lbs)
70
Phase
3
RPM
1,800 rpm
Shaft Diameter (in)
0.625 in
Voltage
230/460
