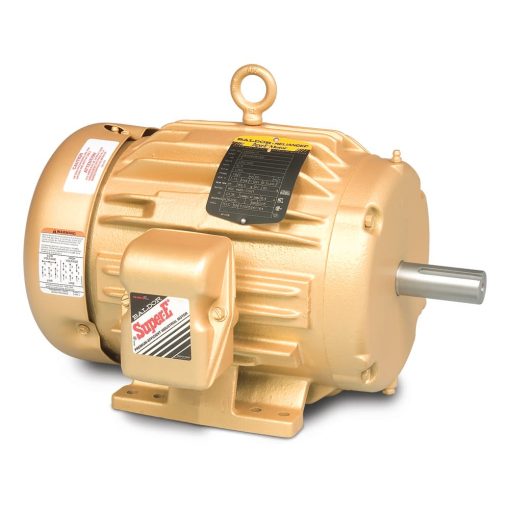

Baldor General Purpose Motor, 40HP, 1775RPM, 3PH, 60HZ, 324T, 1254M, TEFC, F1
General Purpose three phase motors are designed for both direct on line (DOL) and variable-speed operation. Designed to work over a wide variable torque speed range, these motors have an insulation system that meets the requirements of NEMA MG1 Part 31.4.4.2 for VFD use and are considered inverter ready.
Features
To protect your critical asset from shaft induced currents that can be harmful to the motor, we offer an off-the-shelf solution.
We offer an extensive line of brake-motors for these demanding applications.
Baldor-Reliance pump motors provide exceptional value by increasing reliability and reducing maintenance costs.
We help you save money by using winding designs that are industry leading in efficiency and can be counted on to stand up over time to the challenges of inverter use.
Specifications
Acme Tools Brand Name
BALDOR-RELIANCE
Acme Tools Part Number
EM4110T
Assembled Weight (lbs)
570
California Proposition 65 Warning Required
Yes
Country of Origin
United States
Full Load Efficiency
94.1%
Horsepower (hp)
40.000
Input Frequency (Hz)
60.00
Input Voltage
230 V
460 V
460 V
Motor Enclosure
Totally Enclosed, Fan Cooled (TEFC)
NEMA Frame Size
324T
Package Contents
Baldor 40HP 1775RPM 3PH 60HZ 324T 1254M TEFC F1 Motor
Package Depth
24
Package Height
24
Package Weight
571
Package Weight (lbs)
571
RPM
1775
Shaft Diameter (in)
2.125
Shaft Rotation
Reversible
Voltage
230/460
