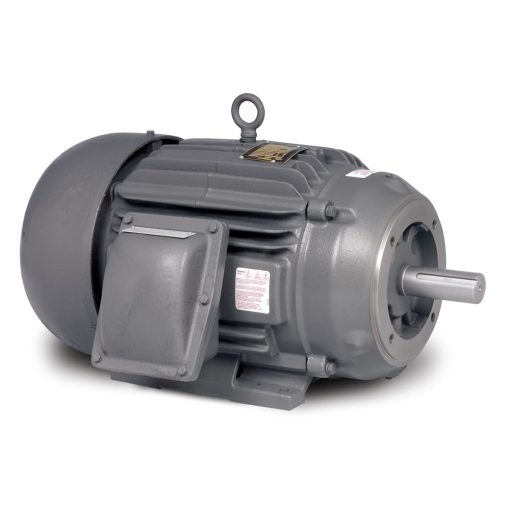

BALDOR CEM7058T 25//20HP, 1775//1475RPM, 3PH, 60//50HZ, 284T Explosion Proof Motor
When you specify a Baldor-Reliance explosion-proof motor, you can trust that it meets your specifications, and more. ABB follows the specs to the letter, and then takes it a step further. We work with you, applying our know-how and experience to find the best possible solution to fit your needs. From initial design to manufacture, we are committed to building motors that deliver high performance, efficiency and reliability without compromising safety throughout their entire life cycle.
Features
Trusted experts in designing, engineering and manufacturing motors for industrial applications in hazardous area locations (explosive environments)
Heavily invested in safety through our in house certified testing labs
Fast solutions for hazardous applications offered in a broad range of stock and custom products
Available when you need it from local distribution networks, supported by US manufacturing
Maximize operating savings with premium efficient designs
Increased reliability and operating uptime with robust electrical and mechanical designs
Specifications
Acme Tools Brand Name
BALDOR-RELIANCE
Acme Tools Part Number
CEM7058T
Assembled Weight (lbs)
506
California Proposition 65 Warning Required
Yes
Color
Gray
Country of Origin
United States
Current Range (A)
60.0 A @ 190 V
64.0 A @ 208 V
62.0 A @ 230 V
30.0 A @ 380 V
31.0 A @ 460 V
64.0 A @ 208 V
62.0 A @ 230 V
30.0 A @ 380 V
31.0 A @ 460 V
Full Load Efficiency
93.6%
Horsepower (hp)
25//20
Input Frequency (Hz)
190 V @ 50 Hz
380 V @ 50 Hz
230 V @ 60 Hz
460 V @ 60 Hz
380 V @ 50 Hz
230 V @ 60 Hz
460 V @ 60 Hz
Input Voltage
190 V @ 50 Hz
380 V @ 50 Hz
230 V @ 60 Hz
460 V @ 60 Hz
380 V @ 50 Hz
230 V @ 60 Hz
460 V @ 60 Hz
Motor Enclosure
Severe Duty Explosion Proof (XPFC)
NEMA Frame Size
284T
Package Contents
BALDOR CEM7058T 25//20HP, 1775//1475RPM, 3PH, 60//50HZ, 284T Motor
Package Depth
24
Package Height
24
Package Weight
506
Package Weight (lbs)
506
Phase
3
RPM
1775//1475RPM
Shaft Diameter (in)
1.875 in
Shaft Rotation
Reversible
Voltage
190/230/380/460
