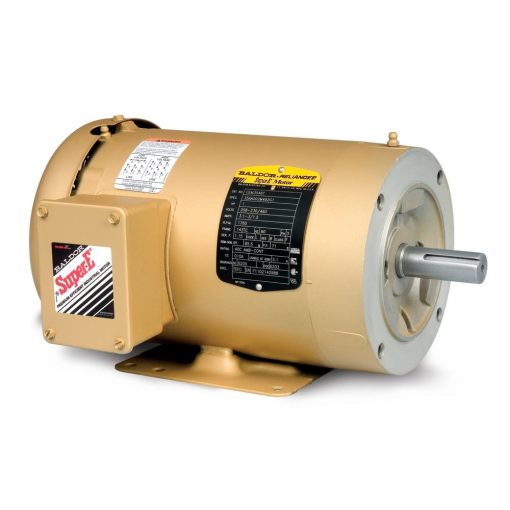

Baldor CEM3615T 5HP, 1750RPM, 3PH, 60HZ, 184TC, 3642M, TEFC, F1 Motor
The extensive line of Baldor-Reliance single phase and three phase General Purpose motors are available in a wide variety of enclosure construction from industrial steel band open designs where water and dust exposure are moderate; to totally enclosed cast iron designs where exposure to water, dust, and corrosives exists.
Features
Baldor-Reliance General Purpose motors are the ideal choice when off-the-shelf availability is of highest importance. General Purpose motors are versatile to perform reliably in a variety of operations where highly custom and hazardous location certifications are not needed
Our time-saving local technical experts get to know your unique needs and requirements, so we can truly provide a motor that fits and meets your requirements
To protect your critical asset from shaft induced currents that can be harmful to the motor, we offer an off-the-shelf solution
Operations and processes that face frequent cycling, starting, and stopping require a motor that can aid with decelerating the load and by holding the load in the event of an interrupted power supply
Specifications
Acme Tools Brand Name
BALDOR-RELIANCE
Acme Tools Part Number
CEM3615T
Assembled Weight (lbs)
93
California Proposition 65 Warning Required
Yes
Country of Origin
United States
Current Range (A)
13.9 A @ 208 V
13.4 A @ 230 V
6.7 A @ 460 V
13.4 A @ 230 V
6.7 A @ 460 V
Full Load Efficiency
89.5%
Horsepower (hp)
5.000 hp
Input Frequency (Hz)
60.00 Hz
Input Voltage
230 V
460 V
460 V
Motor Enclosure
Totally Enclosed, Fan Cooled (TEFC)
NEMA Frame Size
184TC
Package Contents
Baldor CEM3615T 5HP, 1750RPM, 3PH, 60HZ, 184TC, 3642M, TEFC, F1 Motor
Package Depth
24
Package Height
24
Package Weight
93
Package Weight (lbs)
93
Phase
3
RPM
1,800 rpm
Shaft Diameter (in)
1.125 in
Shaft Rotation
Reversible
Voltage
230/460
