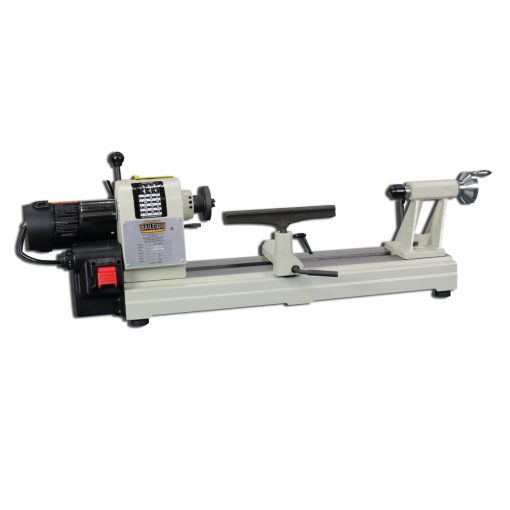

Baileigh WL-1218VS Bench Top Variable Speed Wood Turning Lathe
The WL-1218VS from Baileigh Industrial sets a new standard in bench top wood lathes. This all cast iron lathe has a 12 In. swing with 18 In. between centers. The cast iron construction makes for a rigid structure to increase accuracy when cutting. The WL-1218VS is a variable speed lathe with three speed ranges, 250 to 750, 600 to 1800, and 1350-4000 Rpm. A speed control knob helps determine what speed the spindle is running at. It also has an MT2 taper for spindle and tailstock. A 3 In. face plate and 6 In. tool rests are also included.
Features

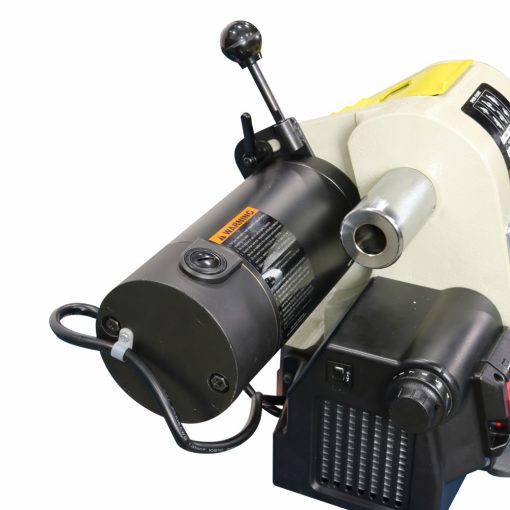

3/4HP motor runs on 110V power
12 In. swing
18 In. between centers

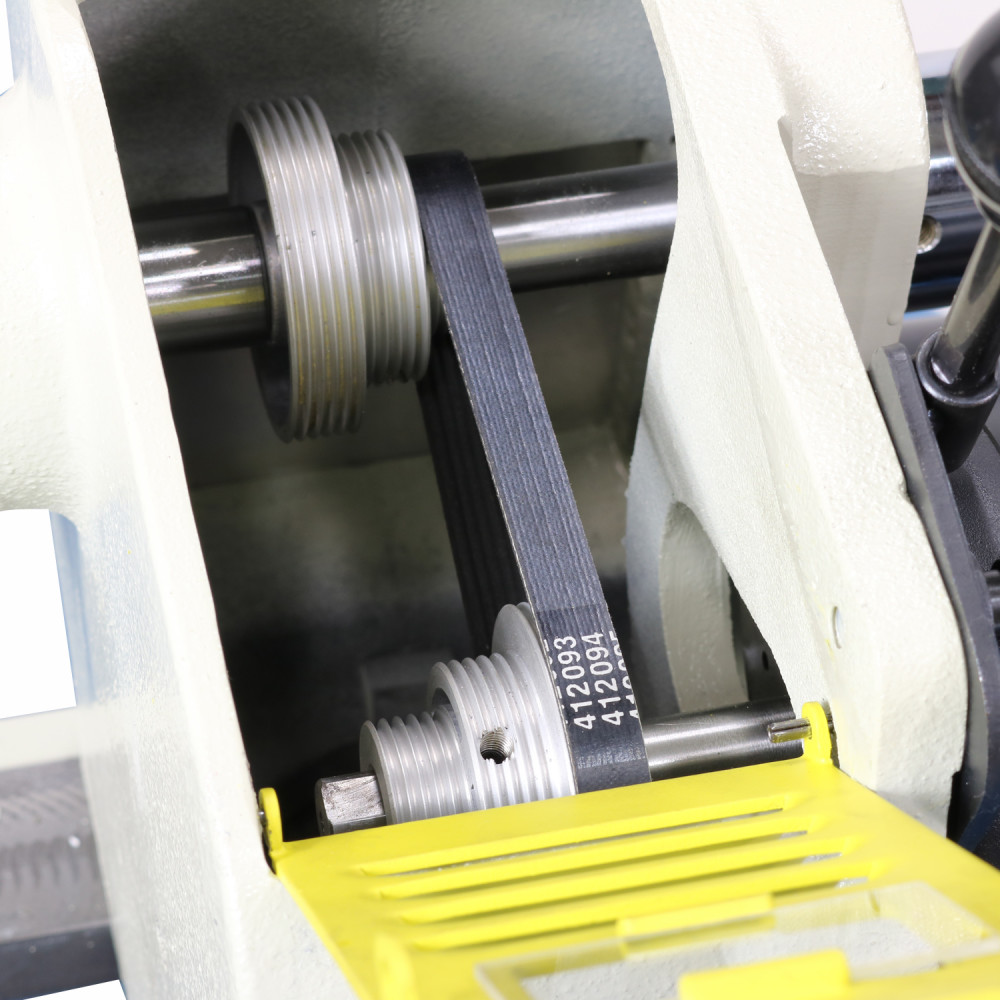

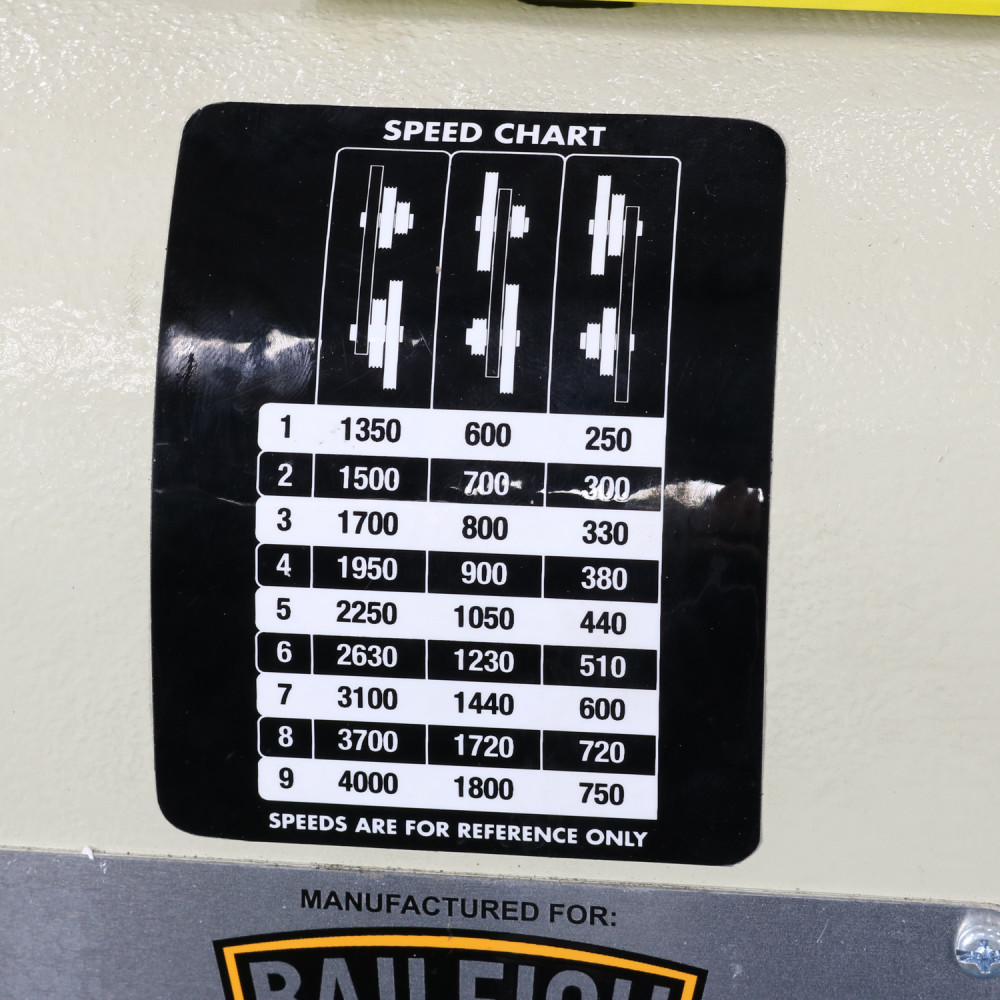

3 speed ranges: 250 to 750 Rpm, 600 to 1800 Rpm, and 1350 to 4000 Rpm

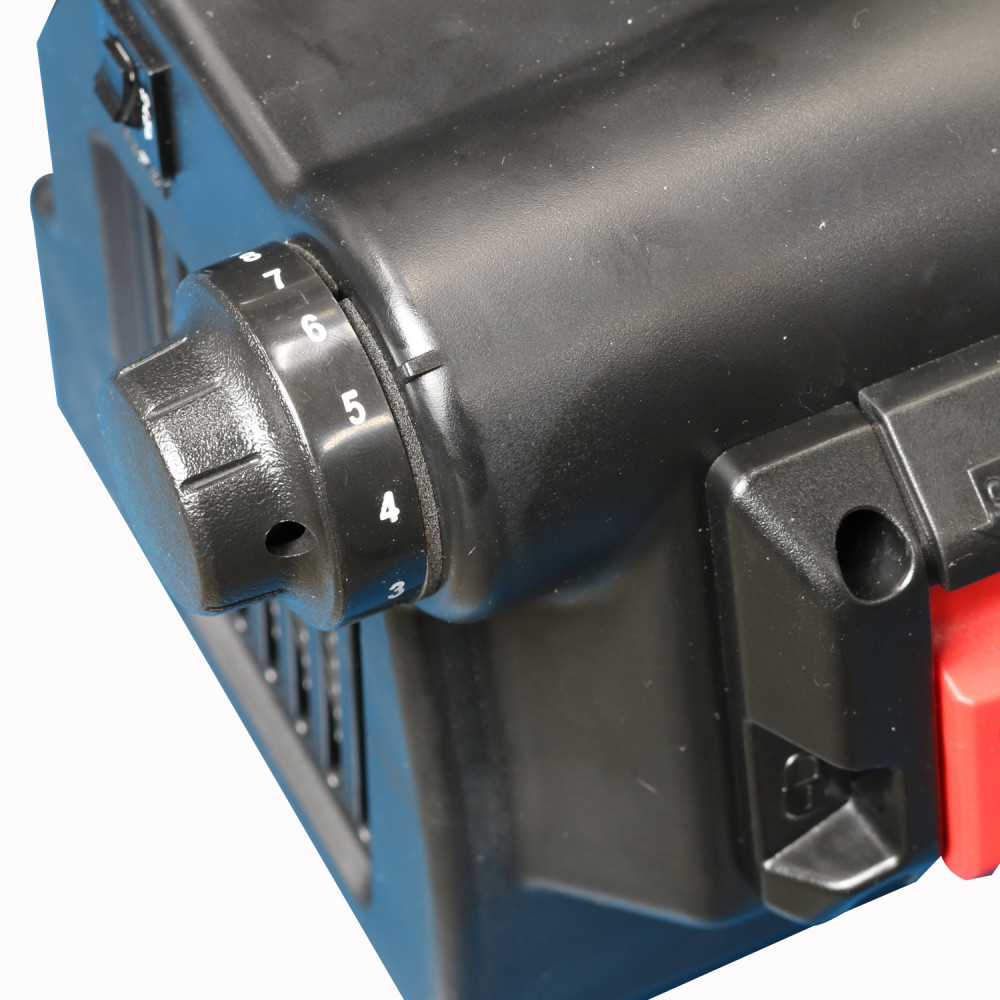

Control knob helps you adjust and see the spindle speed

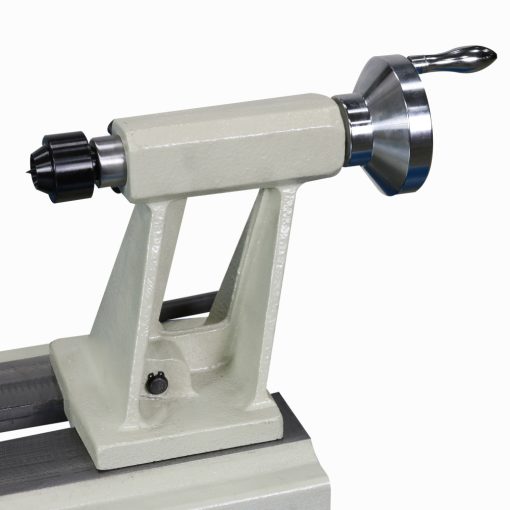

MT2 taper for spindle and tailstock

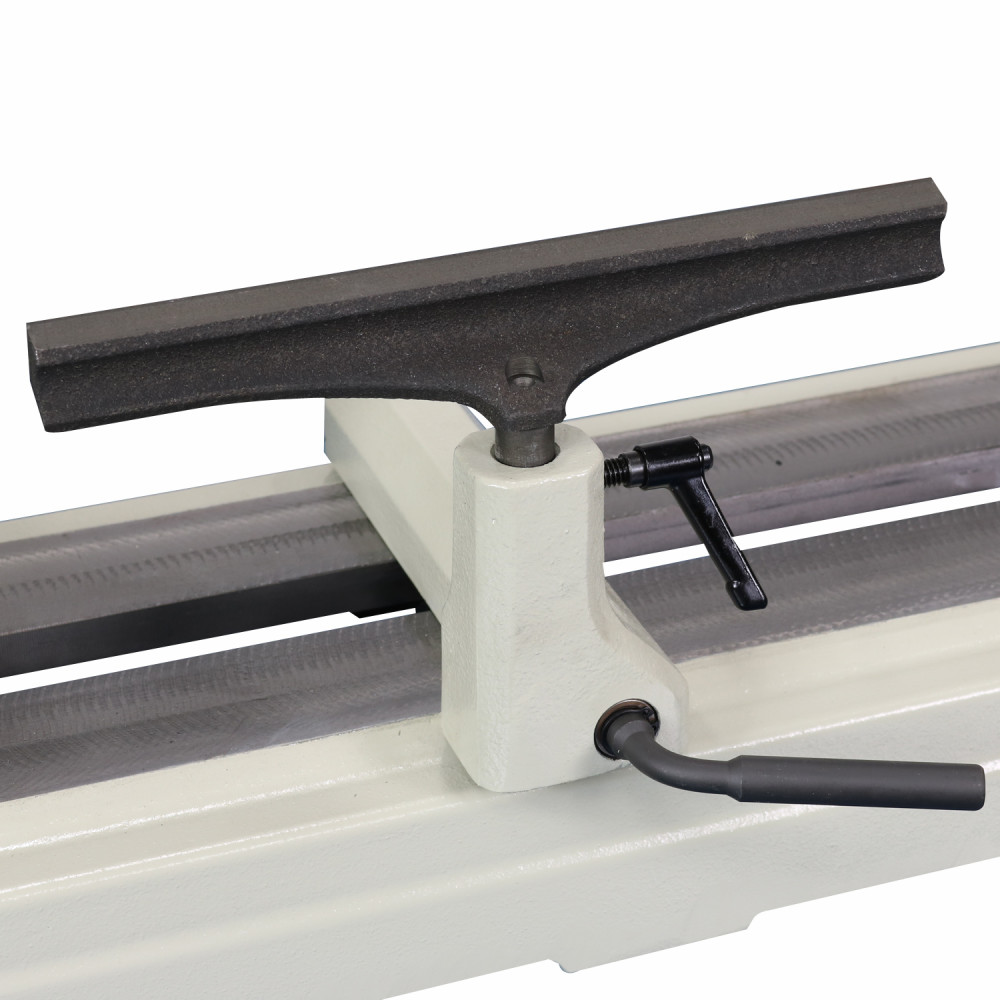

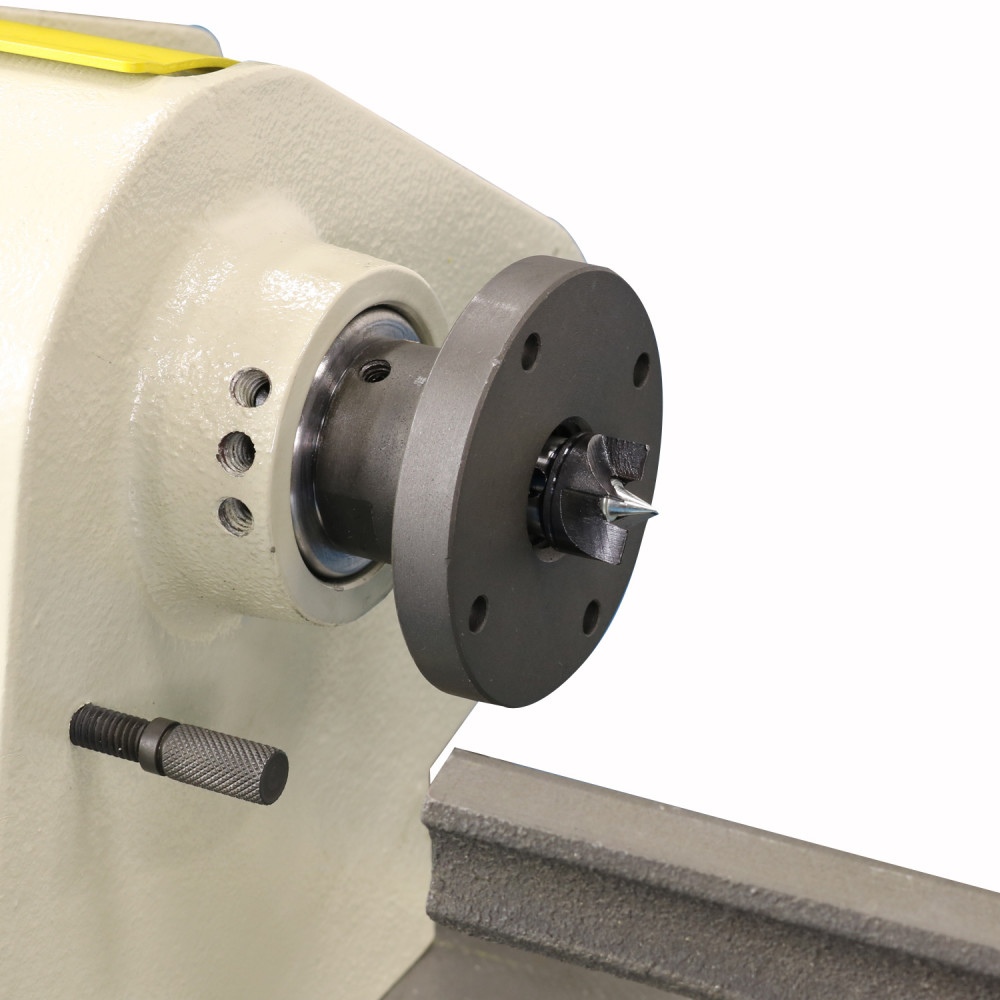

Includes 3 In. face plate and 6 In. tool rests
Cast iron construction gives the lathe rigid structure to increase accuracy when cutting
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1013575
Assembled Weight (lbs)
105
Center To Center (in)
18
Compound Rest Travel (in)
10
Country of Origin
Taiwan
CSA Certified
No
ETL Listed
No
Horsepower (hp)
0.75
Housing Material
Cast Iron
Lowest Operational Speed (rpm)
300
Maximum Speed (rpm)
3600
Metal Lathe Type
Other
Package Contents
Lathe, 3 In. Face plate and 6 In. tool rests
Package Depth
36
Package Height
44
Package Weight
105
Swing Over Bed
12 In.
Swing Over Cross Slide
18 In.
UL Listed
No
Variable Speed
Yes
