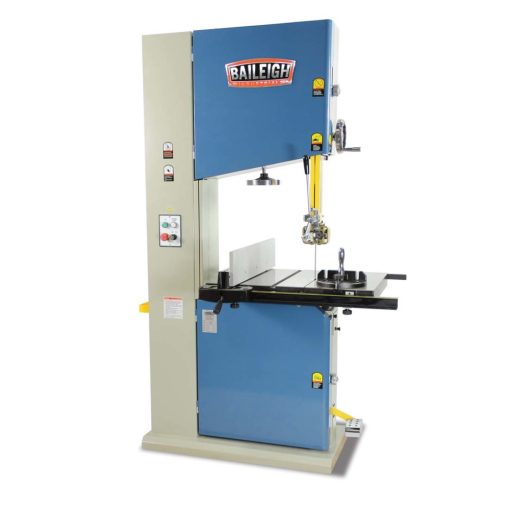

Baileigh WBS-22 Vertical Band Saw 460V 3 Phase 5HP 22″

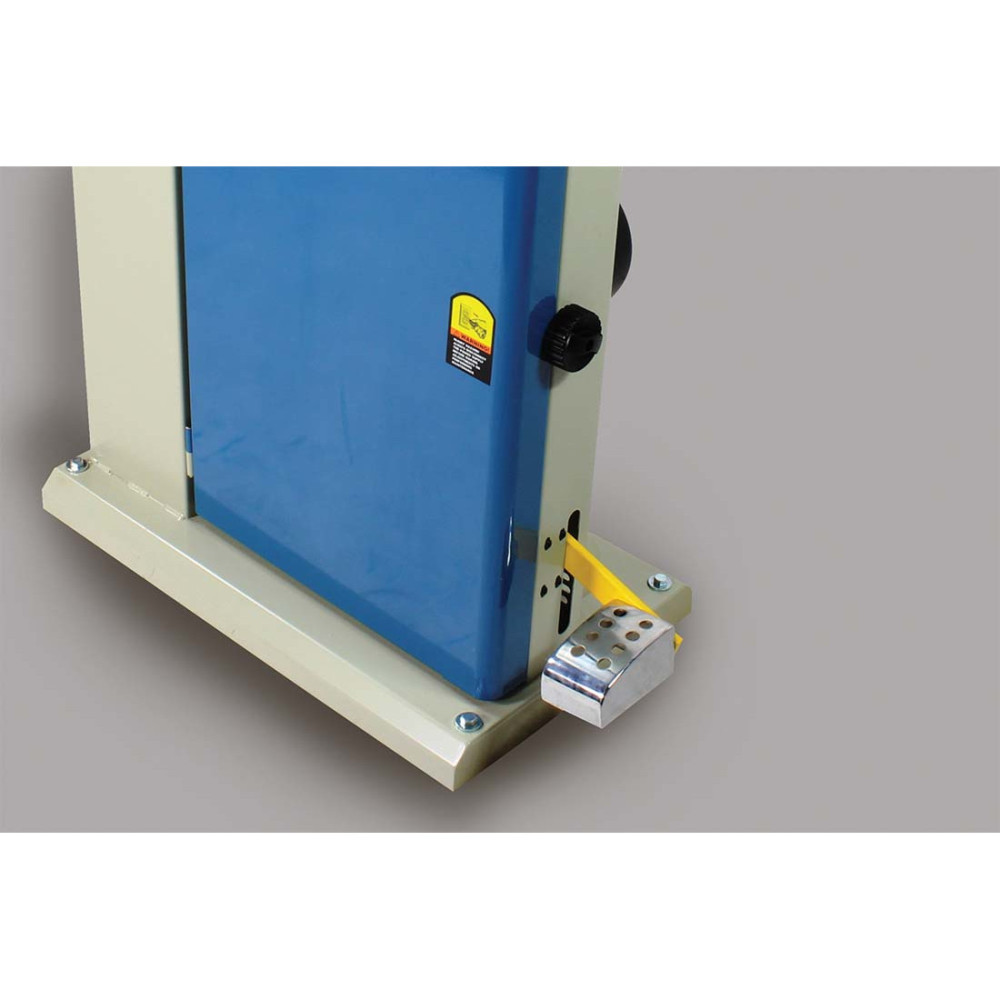

The WBS-22 vertical bandsaw is the largest in the Baileigh industrial line of woodworking bandsaws. It has a 21-5/8 In. throat depth that incorporates a patented blade guide system helps keep the blade perfectly aligned for precise cuts. A foot brake is also included as well as a quick change blade system. The WBS-22 runs on 460V 3 Phase power and has a 5HP motor that operates at 4900 Rpm. The WBS-22 wood bandsaw for sale is built to last with its fully welded steel frame. The enormous 23 In. x 30 In. all cast iron table, has the ability to tilt to 45 Deg. Many accessories such as a heavy duty rip fence and miter gauge are also included.
Features

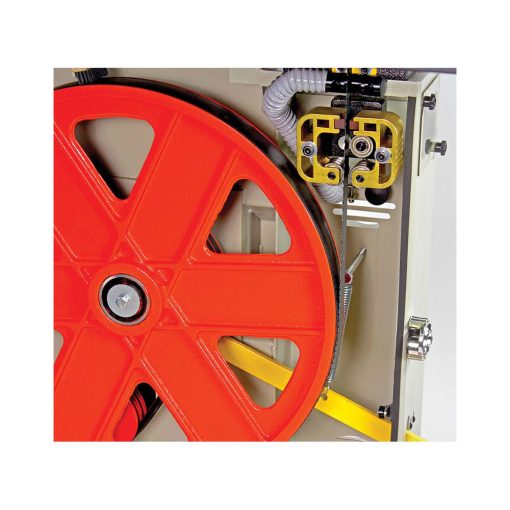

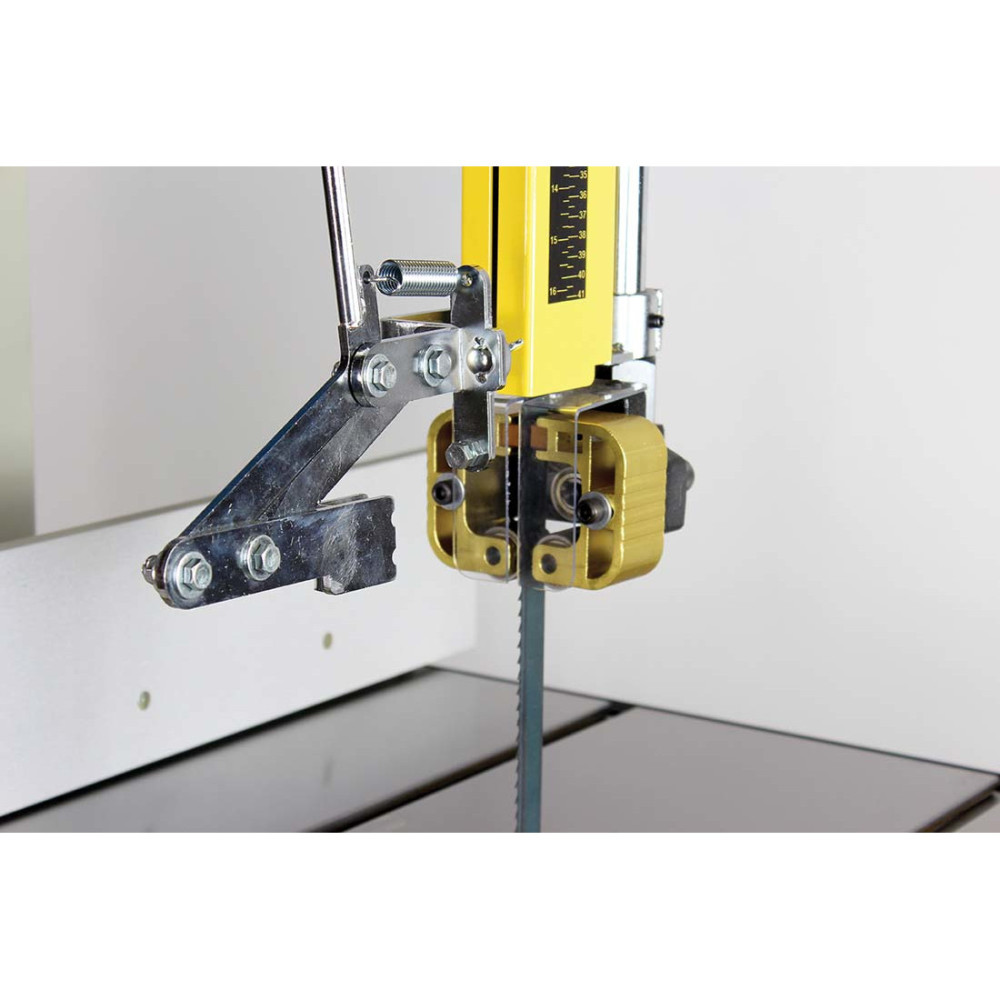

It has a 21-5/8 In. throat depth that incorporates a patented blade guide system helps keep the blade perfectly aligned for precise cuts
Runs on 460V 3 Phase power and has a 5HP motor that operates at 4900 Rpm
The enormous 23 In. x 30 In. all cast iron table, has the ability to tilt to 45 Deg

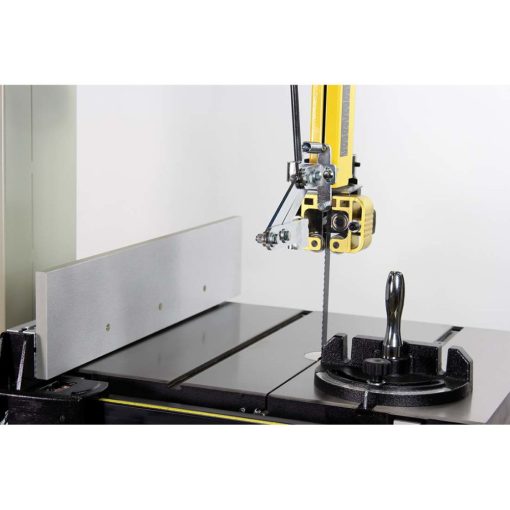

Many accessories such as a heavy duty rip fence and miter gauge are also included
172 In. long x 1/8 – 1-1/2 In. wide belt/blade
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1013943
Amperage (A)
0.0
Assembled Weight (lbs)
500
Band Saw Frame Material
Steel
Cordless / Corded
Corded
Country of Origin
Taiwan
CSA Certified
No
ETL Listed
No
Fence Included
Yes
Horsepower (hp)
5
Material
Cast Iron
Maximum Blade Length (In)
172
Maximum Blade Width (In)
0.125-0.5
Package Contents
Band Saw, Rip Fence, Miter Gauge
Package Depth
72
Package Height
72
Package Weight
500
Phase
3
Table Length (in)
30
Table Material
Cast Iron
Table Width (in)
23
UL Listed
No
